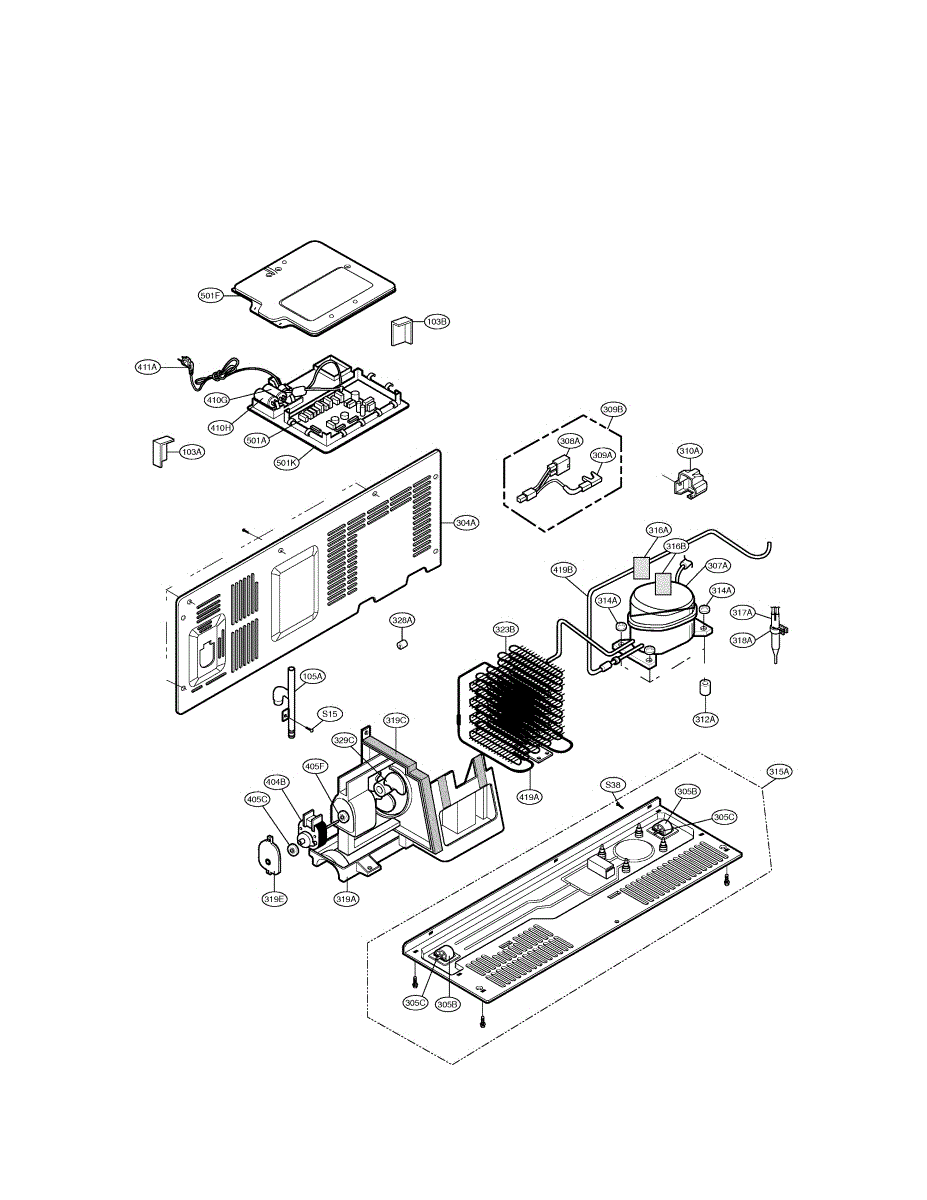

Parts for Lg LSC27910SB: Mechanical Compartment Parts

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

This replacement screw secures specified panels or components inside your appliance. Refreshing worn or missing hardware helps restore a tight fit, reduce rattling, and keep assemblies properly aligned for reliable performance.

• Provides secure fastening for brackets, panels, or internal assemblies
• Replaces stripped, rusted, or lost hardware
• Helps reduce vibration and rattling noises
• Symptoms include loose panels, shifting components, or a screw that won't tighten

• Disconnect power and allow any hot surfaces to cool before servicing
• Wear cut-resistant gloves and eye protection
• Match length and thread to the original; replace like-for-like
• Start threads by hand to avoid cross-threading; do not overtighten

The Drain Tube Assembly is an OEM part for LG refrigerators. This drain tube assembly is responsible for directing condensation and melt water that accumulates in the refrigerator away to the evaporator pan.

Causes can include cracks developing from limescale or mineral accumulation, flexing fatigue from repeatedly catching drips, or damage from improper cleaning methods.

Symptoms of a bad drain tube assembly include:

• Puddles or leaks developing underneath the refrigerator
• Poor air flow from vents and higher temperatures
• Ice or moisture buildup in refrigerator walls and seals
• Water stains or corrosion appearing inside the unit

This OEM LG part is also compatible with some Kenmore models.

THERMISTOR ASSEMBLY,PTC

The Compressor Overload Protector is an OEM replacement part for LG refrigerators. It plays an important safety role in protecting the compressor from damage due to excessive heat. Located near the compressor unit, the overload protector functions to shut off power to the compressor if temperatures become too high during operation.

Causes can include normal wear over time rendering it less responsive to temperature changes. Mineral or refrigerant deposits may also impede its ability to detect overheating conditions accurately.

Symptoms of a faulty overload protector include:

• Refrigerator fails to properly cool or the compressor does not run
• Circuit board or electrical component failure or burnout
• Lack of cold air production and higher than normal freezer/fridge temperatures

This OEM LG part is also compatible with some Sears/Kenmore models.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

This drip tray is the replacement pan that collects defrost and condensate water beneath the refrigerator, helping keep floor and cabinet areas dry. It restores the appliance's normal water drainage path. What it does:

• Catches defrost and condensate water from the freezer/refrigerator evaporator
• Directs collected water to the evaporator/heat source or drain area to allow evaporation
• Helps stop water pooling under or around the appliance that can cause floor damage
• Fits into the cabinet under the unit and works with existing drain and mounting features

• One drip tray

• Disconnect power to the appliance before attempting any service
• Pull the appliance away from the wall and remove the kick plate or front access panel as needed to access the tray
• Replace the tray in the cabinet, ensuring it seats and aligns with existing clips, slots, or drain tube
• If you see additional damage (cracked supports, clogged drain tube), inspect and replace those parts separately

This OEM replacement part is a washer door assembly. The washer door assembly consists of the main components that make up the front door of the washer. Over time, a washer door can become inoperable due to excessive wear and tear. If the washer door is no longer shutting or opening properly or is damaged to the point of inoperability, it will need to be replaced.To replace the washer door, start by making sure the washer is unplugged. Once it has been powered off, proceed to open the door. Locate the screws that attach the hinges to the door. Unthread the screws and lift the door off from its hinges. Set the old door to the side and proceed to place the new door on its hinges. Fasten the screws that secure it. Once secured, open and close the new door to make sure it is functioning properly.This authentic OEM part is sourced directly from the manufacturer and is compatible with LG brand washers.

The Condenser Fan Blade is an OEM replacement part for LG refrigerators. The condenser fan motor blade is located on the condenser fan motor which is usually located on or near the compressor at the back of the refrigerator. This part is responsible for circulating air over the condenser coils. This helps to remove heat from the condenser and evaporate water in the defrost drain pan.

Causes of blade failure can include normal wear over extended runtime, accumulated dirt and dust impeding airflow, or physical impact damage.

Symptoms of a faulty condenser fan blade include:

• Refrigerator fails to properly cool and maintain temperatures
• Condenser unit runs excessively as heat fails to dispel
• Abnormal noises such as grinding or squealing emanate from the condenser area

This OEM LG part is also compatible with some Sears/Kenmore model refrigerators.

The LG cooling motor is an OEM replacement part responsible for cooling of the refrigerator's condenser coils. This part is located at the rear or bottom of the refrigerator, adjacent to the compressor. Its primary function is to power the fan blades that draw air across the condenser coils, aiding in the dissipation of heat generated during the refrigeration process.

Causes of a bad cooling motor can include regular wear and tear, electrical issues, or debris obstructing the motor. Over time, the motor may fail due to prolonged use or exposure to moisture and dust, affecting the refrigerator’s cooling efficiency.

Symptoms of a bad cooling motor include:

• Unusual or loud noises coming from the refrigerator
• Inconsistent or inadequate cooling
• The refrigerator or freezer compartment feeling warmer than usual
• The fan not spinning or spinning irregularly

This OEM LG part is also compatible with Sears/Kenmore.

The Damper Motor Support is an OEM part for LG refrigerators. It holds the damper motor in place, ensuring proper air flow between the refrigerator and freezer compartments. This support is essential for maintaining the correct temperature balance within the appliance.

Causes of a bad damper motor support can include wear and tear over time, physical damage from impacts, or exposure to moisture that can weaken the support structure. A faulty support can lead to improper functioning of the damper motor, affecting the refrigerator's cooling efficiency.

Symptoms of a bad Damper Motor Support include:

• Inconsistent temperatures between refrigerator and freezer
• Unusual noises coming from the damper area
• Visible damage or cracks in the support
• Reduced cooling efficiency

This OEM LG part is also compatible with Sears/Kenmore models.

This motor start/run capacitor helps the appliance motor or compressor start and run more reliably, restoring proper motor performance and reducing symptoms caused by a weak or failed capacitor. What it does:

• Provides the momentary electrical boost motors or compressors need to start
• Helps maintain stable motor operation during run cycles
• Resolves symptoms like motors that hum but won't start, intermittent starting issues, or cycling problems
• Replaces a worn or failed capacitor to restore consistent performance

• One replacement capacitor as shown

• Disconnect power before servicing and verify the appliance is de-energized
• Capacitors can hold charge — discharge safely before touching terminals
• Match terminal type and mounting location to the original part; do not force connections
