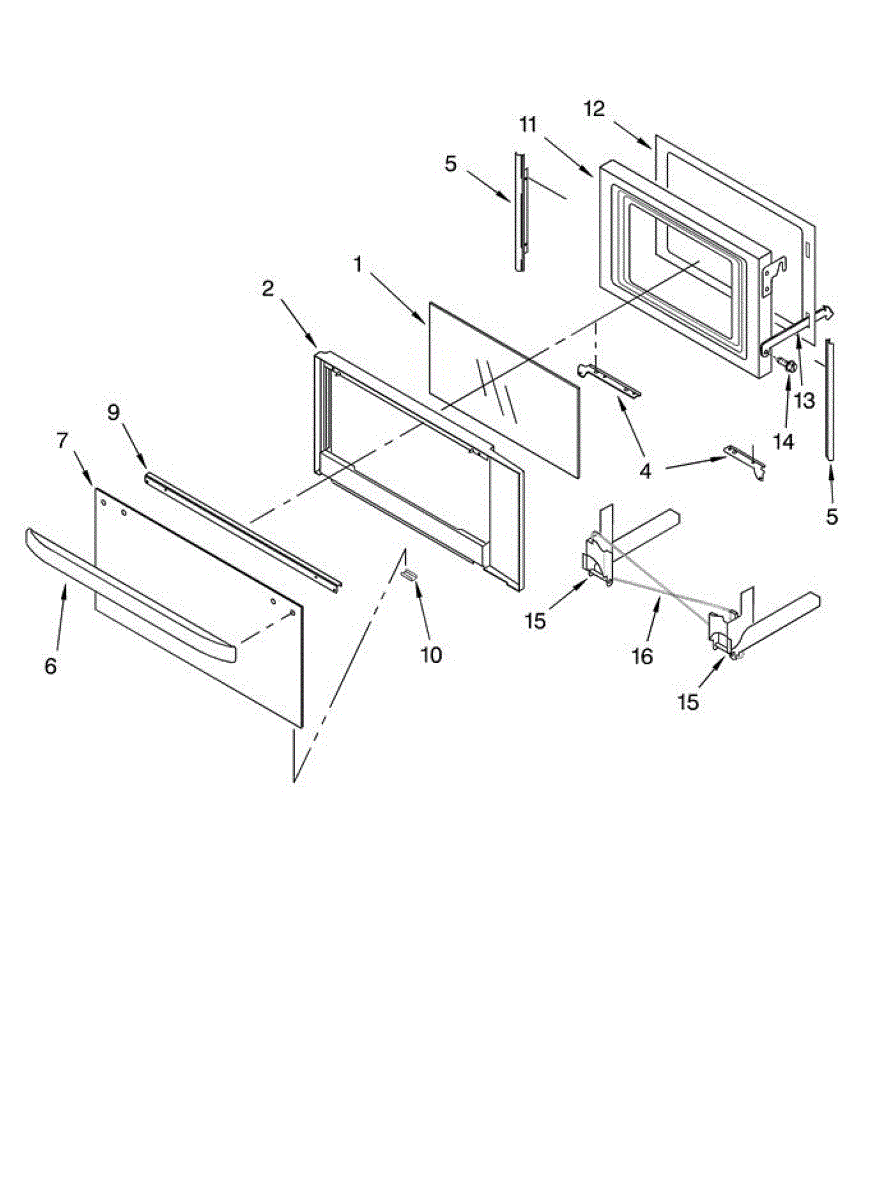

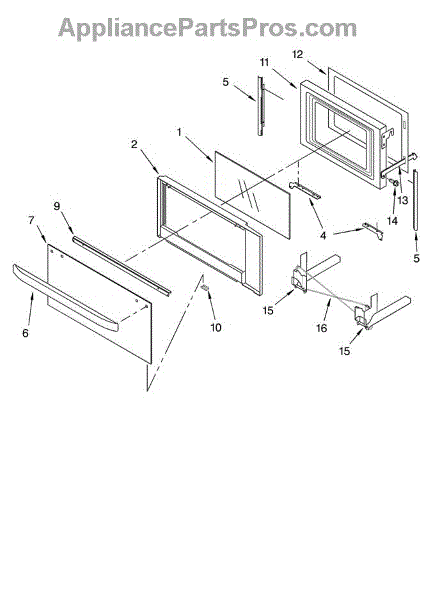

Parts for Kitchenaid KEHC309JBL5: Microwave Door Parts

Screw for control panel vent.

The Microwave Door Frame is an OEM replacement part for Whirlpool microwaves. As a key component of the microwave appliance, the door frame surrounds and supports the actual door.

Causes of a bad microwave door frame include warping, cracks or breaks that compromise its supporting function. Over time and repeated use, the frame can become damaged or misshapen.

Symptoms of a bad door frame include:

• The door not sealing properly when closed
• Difficulty latching or opening/closing the door
• Alignment issues that prevent smooth operation

It's also compatible with KitchenAid, RCA, and some Kenmore microwave models.

This is the right side mounting bracket. For left side use 4449142.

This is the left side mounting bracket. For right side use 4449141.

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

This is the right side, side filler. For left side use 4449086.

This is the left side, side filler. For right side use WP4449083.

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

The Outer Door Glass is an OEM part for Whirlpool microwaves. This replacement glass is essential for the proper function and appearance of your microwave's door, providing a clear view inside while ensuring the door structure's integrity and safety.

Causes of a bad Outer Door Glass can include accidental impacts that cause cracks or shattering, thermal stress from high temperatures, or degradation from frequent cleaning chemicals that can weaken the glass over time.

Symptoms of a bad Outer Door Glass include:

• Cracks or breakage in the glass
• Scratches that impair visibility
• Loose glass panel, indicating a failure in the mounting or seal

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A factory screw with 8-32 machine threads used to secure brackets, panels, and internal components where specified. Restores a solid, factory fit when the original fastener is missing, stripped, or corroded. What it does:

• Provides the specified 8-32 machine-thread fastening for OEM components
• Helps prevent looseness, vibration, or rattling from a missing/damaged screw
• Replaces screws with worn heads or stripped threads to enable proper tightening
• Supports correct reassembly during part replacement or service

• 1 screw

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original for thread and length before installing
• Start threads by hand to avoid cross-threading; tighten until snug
• Do not overtighten into plastic or thin metal; replace damaged inserts/clips if found

• Thread size: 8-32 (machine)

Color: Black

Color: White.

Color: Black.

This is the left side door hinge. For right side use WP4375324.

This is the right side door hinge. For left side use WP4375323.

The Microwave Door Torsion Spring is an OEM replacement part for Whirlpool microwaves. As a crucial closure component, it works to securely close and maintain a firm seal on the microwave door.

Causes of a bad torsion spring can include wear from opening the door repeatedly, stress fractures from over-tightening brackets, or damage inhibiting proper closure tension.

Symptoms of a bad torsion spring include:

• The door not closing or sealing fully
• Uneven pressure allows leaks around the perimeter
• Unable to maintain a locked position during cooking

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore microwave models.

NOTE: For black, white, and biscuit models. Yellow color tip. Right-hand side. For the left-hand side order WP4451008.

***FOR KEMC308KSS** STAINLESS MODELS, USE PART # WP4452396 FOR RIGHT SIDE AND PART # WP4452395 FOR LEFT SIDE***


The Microwave Door Torsion Spring is an OEM part for Whirlpool microwaves. This spring helps in the smooth opening and closing of the microwave door by providing the necessary tension to support the door’s movement. Note: For left-hand side only.

A faulty torsion spring can lead to difficulties in operating the microwave door and can impact the appliance's performance and safety.

Symptoms of a bad microwave door torsion spring include:

• Difficulty in opening or closing the door
• The door not staying open or closed properly
• A loose or sagging door
• Unusual noises when operating the door

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
