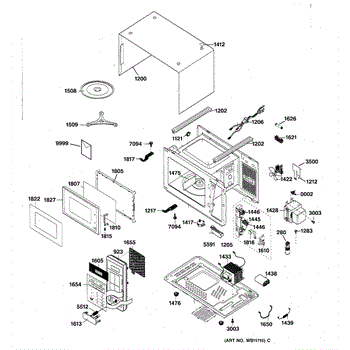

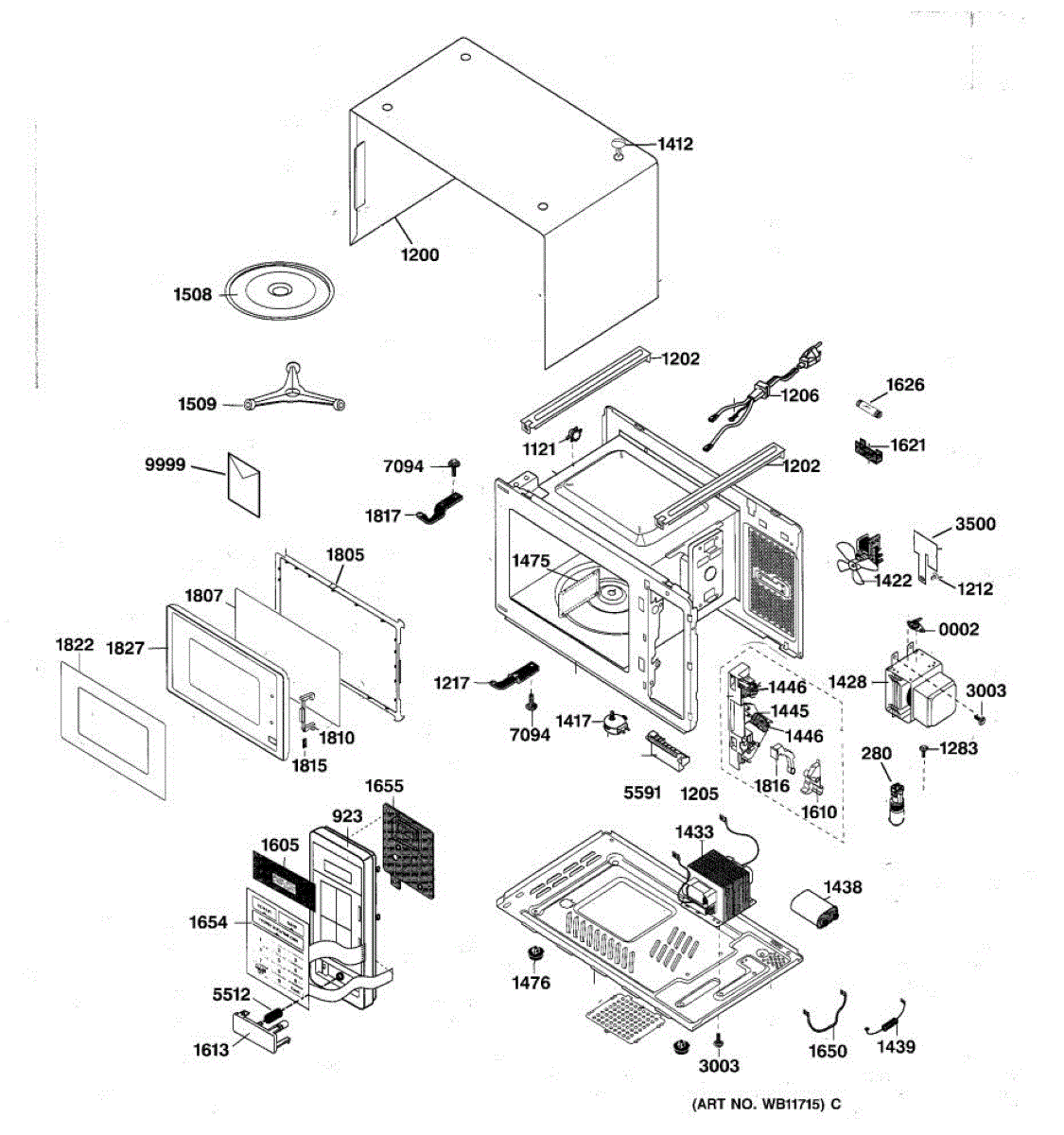

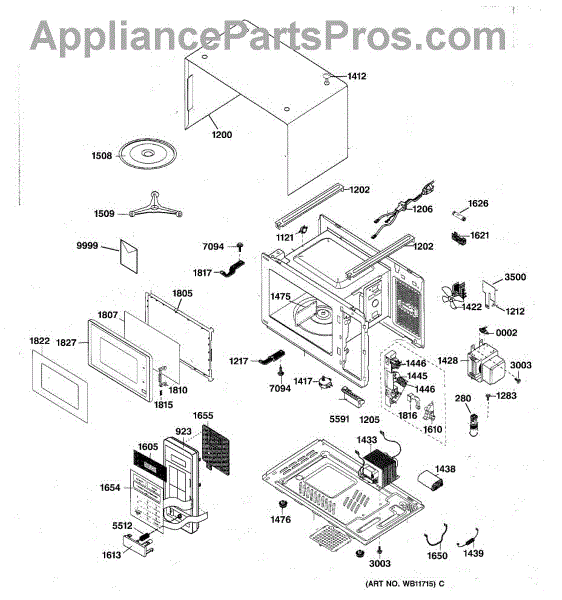

Parts for Ge JE520BW01: 01 - Section1 Parts

This microwave thermostat is a temperature-sensitive safety switch that helps protect the unit from overheating. When the preset limit is reached, it interrupts power to the affected circuit to help prevent damage and erratic shutdowns.

• Monitors temperature at its mounting location and opens the circuit if overheating is detected
• Helps protect internal components from excessive heat
• Common symptoms of a failed thermostat include: unit shuts off during cooking, won't start until it cools down, or has no power/no heat due to an open safety
• Replace if the original tests open when it should be closed

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Microwaves contain a high-voltage capacitor that can retain a dangerous charge; only qualified persons should service and discharge the capacitor
• Note wire locations before removal and transfer connections firmly to the new thermostat
• Mount the thermostat securely and in the same position to ensure proper temperature sensing

Turntable motor that rotates the microwave's glass tray to promote even cooking and restore proper tray movement. Replacing a worn motor helps eliminate stalling, grinding, or no-spin problems. What it does:

• Turns the glass turntable so food rotates for even heating.
• Replaces a motor that causes the tray to stop rotating or to spin intermittently.
• Addresses motor noises such as humming, grinding, or clicking tied to a failing drive.
• Restores smooth, consistent rotation when the original motor has worn out.

• Disconnect power before servicing and remove the glass tray and roller ring first.
• Access the motor from the cavity floor or rear panel depending on model; unplug the motor connector and remove mounting fasteners before swapping.
• Test rotation with the microwave empty and power restored before final reassembly.

This high-voltage rectifier diode is used in the microwave's high-voltage circuit. It converts AC to DC so the magnetron can produce heat. A failed diode can cause no heat, loud humming, or a blown fuse when starting. What it does:

• Rectifies high-voltage AC to DC to power the magnetron
• Blocks reverse voltage in the HV circuit
• Common failure symptoms can include: runs but doesn't heat; loud hum then shutdown; line fuse blows at startup

• 1 high-voltage diode

• Unplug the microwave and properly discharge the high-voltage capacitor before servicing—dangerous voltage can remain even when unplugged
• Match diode orientation/polarity to the original and ensure a solid chassis ground connection where used
• Route leads and reinstall any clamps/insulators exactly as found; keep wiring clear of sharp edges and hot components
• If the original diode failed, inspect the HV capacitor and transformer for related issues before reassembly

The Monitor Switch is an OEM replacement part for GE microwave ovens. Located internally on the turntable control circuit board, this switch monitors rotation of the turntable during cooking cycles.

Causes of failure involve degradation of the electrical contacts from continuous arcing loads over years of use combined with vibration stresses.

Symptoms of a faulty monitor switch include:

• The turntable no longer rotates or spinning intermittently
• Cooking cycles aborting prematurely with error messages
• Screeching or grinding noises emanating from beneath cavity
• Visible burnt spots on turntable drive assembly

This genuine GE switch is also compatible with select Hotpoint and RCA models.

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This part has been discontinued and is no longer available.

Round glass microwave tray, 10 7/8 inches in diameter.

Ceramic

This door film is the outer overlay used to restore the finished surface of the appliance door and improve appearance after scratches, peeling, or wear. It provides a clean, uniform look without replacing the whole door. What it does:

• Covers worn, scratched, or peeling door finish to restore a uniform appearance
• Acts as the replaceable outer surface for cosmetic repairs
• Helps prevent further cosmetic deterioration of the door exterior
• Matches the original part's fit and shape for a flush finish when installed correctly

• One outer door film

• Clean and dry the door surface thoroughly before installation to ensure proper adhesion and fit
• Align the film carefully before final placement; repositioning can damage the adhesive or film
• Use only manufacturer-recommended tools and methods

This washered screw secures panels and internal components where a combined screw-and-washer fastener is required, restoring proper fit and stopping movement or rattling. Simple replacement with the correct fastener keeps assemblies aligned and stable. What it does

• Secures panels, brackets or components where a washered screw is specified
• Replaces missing, stripped or corroded fasteners that allow vibration or gaps
• Helps stop rattling, loose panels or misaligned parts caused by a failed screw
• Provides a sealed bearing surface to distribute load and prevent pull-through

• One washered screw

• Disconnect power and/or water to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid cam-out and fastener damage
• Align parts before tightening and snug; avoid over-tightening which can strip threads or crack plastic
