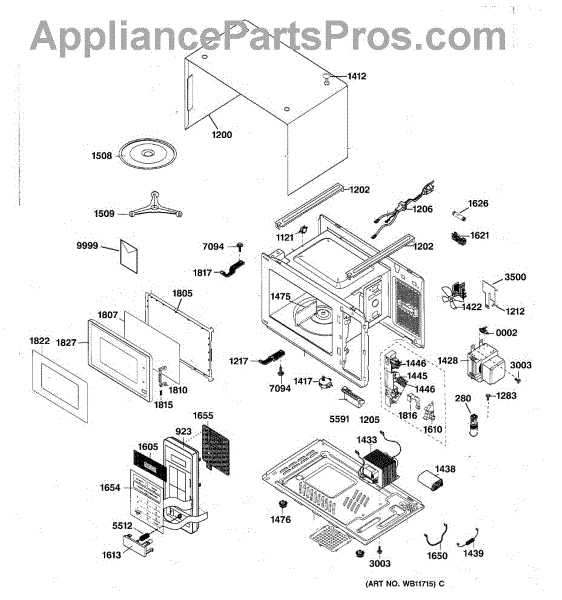

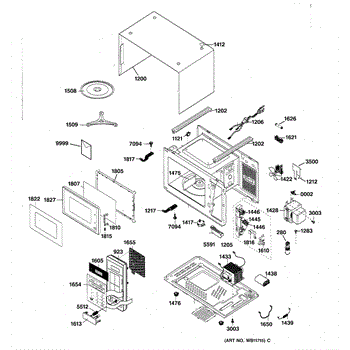

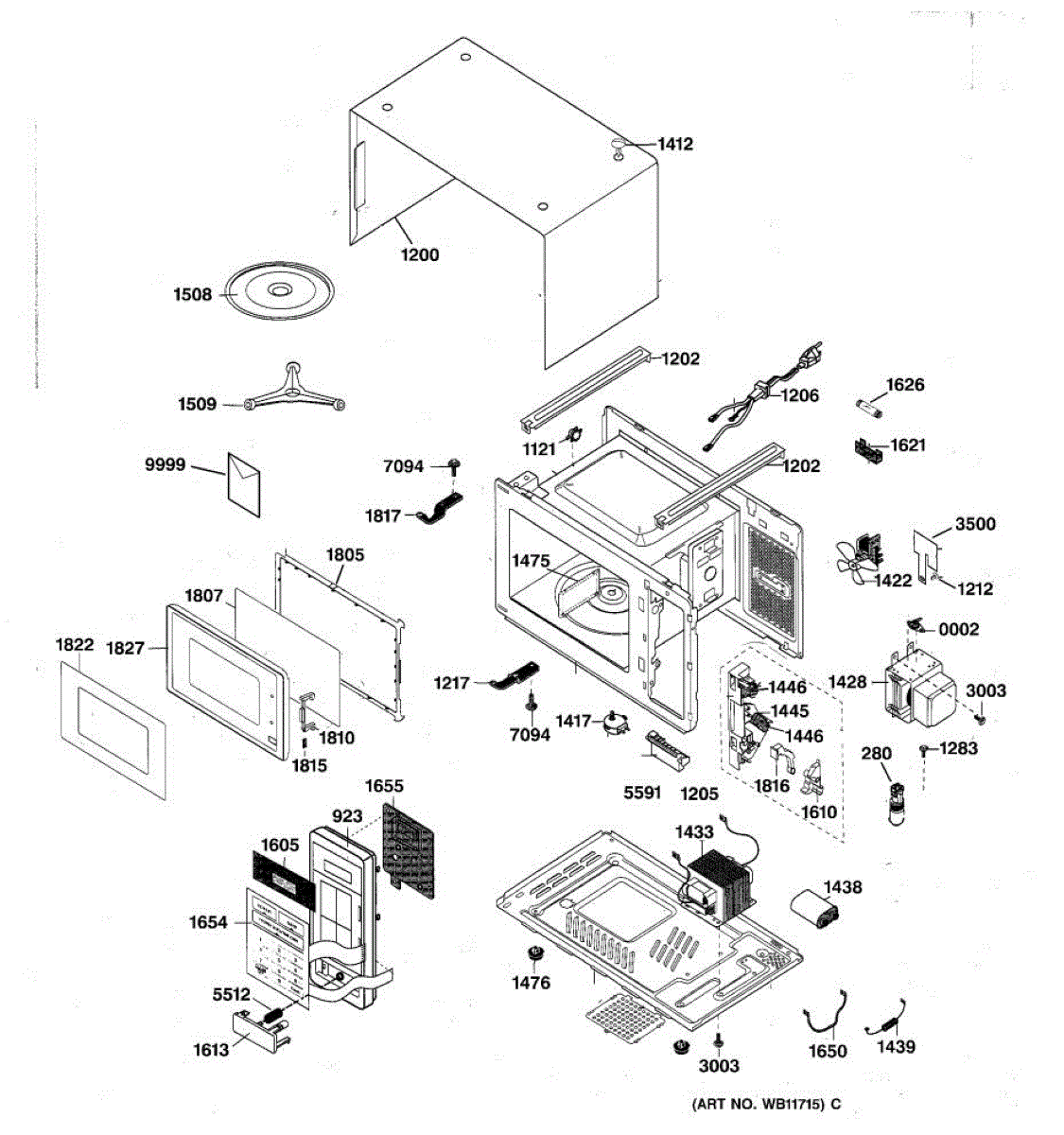

Parts for Ge JE520BW02: 01 - Section1 Parts

Microwave shuts down during use? This thermal cutoff thermostat prevents overheating by interrupting power when temperatures exceed safe limits.

This is a replacement power cord assembly for electric ranges and ovens. It provides a direct electrical connection from the house supply to the appliance so your range receives safe, reliable power. What it does:

• Replaces a damaged or worn range/oven power cord to restore power delivery
• Prevents intermittent power loss caused by frayed wires or loose connections
• Eliminates burning smells, arcing, or visible wire damage from a failed cord
• Ensures a secure connection at the appliance terminal block

• Always disconnect household power at the breaker before inspecting or replacing the cord
• Inspect the terminal block and mounting bracket; replace any damaged hardware before installing

Fix a microwave turntable that won't rotate, stalls, or makes grinding noises. This motor spins the glass tray for even heating. DIY repair in 10 minutes.

Microwave not heating or humming loudly? The high-voltage diode converts AC to DC for the magnetron. Repair takes 30-45 minutes with basic tools.

The Monitor Switch is an OEM replacement part for GE microwave ovens. Located internally on the turntable control circuit board, this switch monitors rotation of the turntable during cooking cycles.

Causes of failure involve degradation of the electrical contacts from continuous arcing loads over years of use combined with vibration stresses.

Symptoms of a faulty monitor switch include:

• The turntable no longer rotates or spinning intermittently
• Cooking cycles aborting prematurely with error messages
• Screeching or grinding noises emanating from beneath cavity
• Visible burnt spots on turntable drive assembly

This genuine GE switch is also compatible with select Hotpoint and RCA models.

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Protects the magnetron from food splatter and grease. Replace if burnt, cracked, or damaged to prevent arcing and restore proper heating. Verify fit.

This part has been discontinued and is no longer available.

Round glass microwave tray, 10 7/8 inches in diameter.

Replace a cracked, broken, or missing push button on your microwave control panel. This button installs on the front panel for manual operation control.

Ceramic

This door film is the outer overlay used to restore the finished surface of the appliance door and improve appearance after scratches, peeling, or wear. It provides a clean, uniform look without replacing the whole door. What it does:

• Covers worn, scratched, or peeling door finish to restore a uniform appearance
• Acts as the replaceable outer surface for cosmetic repairs
• Helps prevent further cosmetic deterioration of the door exterior
• Matches the original part's fit and shape for a flush finish when installed correctly

• One outer door film

• Clean and dry the door surface thoroughly before installation to ensure proper adhesion and fit
• Align the film carefully before final placement; repositioning can damage the adhesive or film
• Use only manufacturer-recommended tools and methods

Outer door window glass for microwaves. Installs on the exterior of the door frame. Replace if cracked, shattered, discolored, or missing.

Washered screw secures panels, brackets, and internal microwave components. Replace if screw is missing, stripped, or damaged to restore proper fit.
