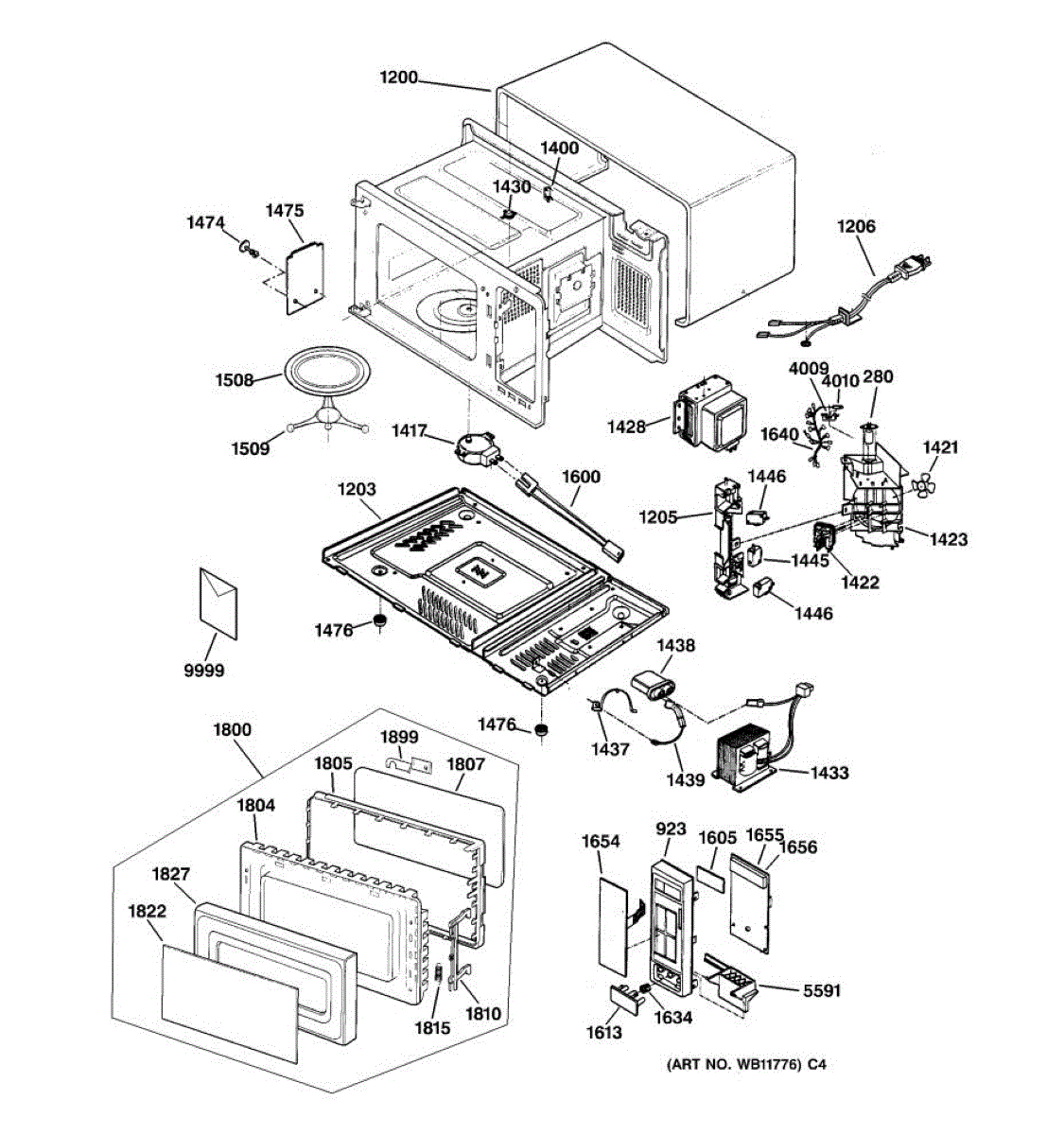

Parts for Ge JES1033BB01: 01 - Section1 Parts

This replacement microwave lamp restores proper lighting inside the cavity or over the cooktop. A working bulb improves visibility while cooking and checking doneness, and allows the light feature to operate as intended.

• Provides illumination when the door opens or when the light button is used
• Helps you see food during cooking and cleanup
• Typical failure symptoms: no light, flickering, or intermittent lighting
• Visible darkening or a broken filament indicates the bulb has failed

• Disconnect power at the breaker or unplug the appliance before replacing
• Allow the bulb and surrounding area to cool
• Match the base style and electrical rating to your original bulb per the owner's manual
• If your bulb is the halogen capsule style, handle with clean gloves or a cloth; avoid touching the glass

This wire holder is a small retaining clip that secures wiring or harnesses to the appliance chassis to prevent rubbing, strain, and accidental disconnection. It helps keep wiring routed neatly for reliable operation and safer service. What it does:

• Secures a wire or wiring harness to a mounting point to reduce movement and abrasion
• Helps prevent loose or chafed wires that can cause intermittent operation or electrical arcing
• Keeps wiring routed away from hot or moving components
• Restores proper harness placement after service or if the original clip is broken

• Always disconnect power to the appliance before servicing electrical components
• Inspect surrounding wiring and connectors for damage; replace any frayed or exposed wires
• Clip typically installs into the factory mounting location; basic hand tools may be needed

The Magnetron is an OEM component specifically designed for GE microwaves. The magnetron is responsible for generating microwave radiation that cooks food by utilizing electromagnetic energy. It works by accelerating electrons within a vacuum tube using a magnet to generate microwave emissions.

Causes of a bad magnetron can include overuse, excessive cooking times, damage from arcing due to sparks, or general wear and tear over time.

Symptoms of a bad magnetron include:

• Inefficient or inconsistent cooking and heating
• Longer cook times required
• Food not cooking thoroughly or remaining cold in spots
• The microwave making buzzing or humming noises during use

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Switch Monitor Interlock is an OEM replacement part for GE microwaves. This safety component ensures that the microwave operates only when the door is securely closed. It prevents the microwave from running if the door is open, providing a critical safety feature to protect users from exposure to microwave radiation.

Causes of a bad switch monitor interlock can include wear and tear over time, mechanical damage from frequent door opening and closing, or electrical malfunctions that impact its performance.

Symptoms of a bad Switch Monitor Interlock include:

• The microwave not starting or operating intermittently
• The microwave running with the door open
• Error messages or safety warnings displayed on the control panel
• Unusual clicking or buzzing noises when the microwave door is opened or closed

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Interlock Switch is an OEM part for GE microwaves. It ensures the safety of the microwave by preventing the appliance from operating while the door is open. This switch is part of a microwave's safety mechanism, which includes multiple interlock systems designed to stop the generation of microwaves immediately once the door is opened, thereby protecting users from exposure to microwave radiation.

Signs that it's time to replace your door interlock switch include the microwave not starting or stopping unexpectedly, the microwave continuing to operate with the door open, or a failure to heat food even though the appliance seems to be running.

Symptoms of a bad Door Interlock Switch include:

• Microwave does not start
• Microwave stops unexpectedly
• The microwave operates with the door open
• Microwave turns on but does not heat food

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This rivet assembly is a direct-replacement fastening piece used to secure appliance panels and components, restoring a stable, rattle-free fit and preventing movement caused by worn or broken rivets. What it does:

• Secures panels, brackets, or component mounts to restore proper alignment and support
• Stops rattling, vibration, or loose hardware caused by damaged or missing rivets
• Provides a durable mechanical fastener where original rivets have sheared or loosened
• Helps maintain safe operation by keeping parts properly retained

• Disconnect power (and gas/water if applicable) before attempting any repairs
• Removal may require drilling out the old rivet; installation typically needs a rivet gun or equivalent tool
• Keep hardware orientation the same as the original; replace any damaged surrounding parts

Color: brown. Each prong measures about 5 inches from the center.

A small replacement push-button spring that restores reliable button return and control feel on affected appliances. Replaces worn or broken button springs so controls snap back and operate more consistently. What it does:

• Provides tension behind a push button so the button returns to its original position after pressing
• Restores proper button feel and prevents buttons from sticking or remaining depressed
• Helps resolve intermittent or unresponsive control-button action caused by a weak or broken spring
• Used in push-button/control-panel assemblies where a compact compression spring is required

• Disconnect power to the appliance before accessing controls to reduce shock risk
• Remove the control panel or button assembly per your model's service instructions; keep small parts secure
• Note spring orientation and seating; use needle-nose pliers if needed to position the spring carefully

The Fuse is an OEM part for GE microwaves. It serves as a safety device designed to protect the microwave from excessive current that can cause overheating and potential fire hazards. When the current flowing through the microwave circuit exceeds a certain level, the fuse blows or breaks, cutting off the power to prevent damage or fire.

Common causes for a fuse to blow include power surges, faulty wiring within the appliance, or the use of microwave inappropriate containers that cause sparks. It is essential to address these issues not only to replace the fuse but also to correct the underlying problems to prevent future failures.

Symptoms of a bad fuse include:

• The microwave suddenly stops working.
• No signs of power or response even when the microwave door is closed and the start button is pressed.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
