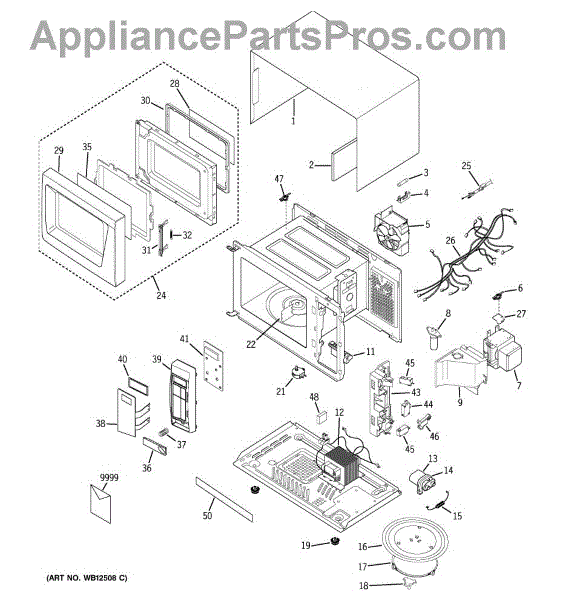

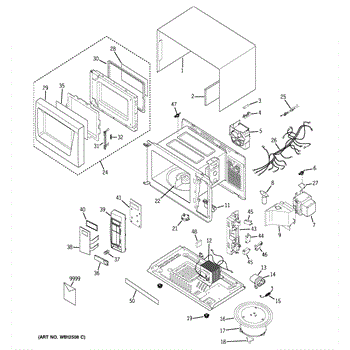

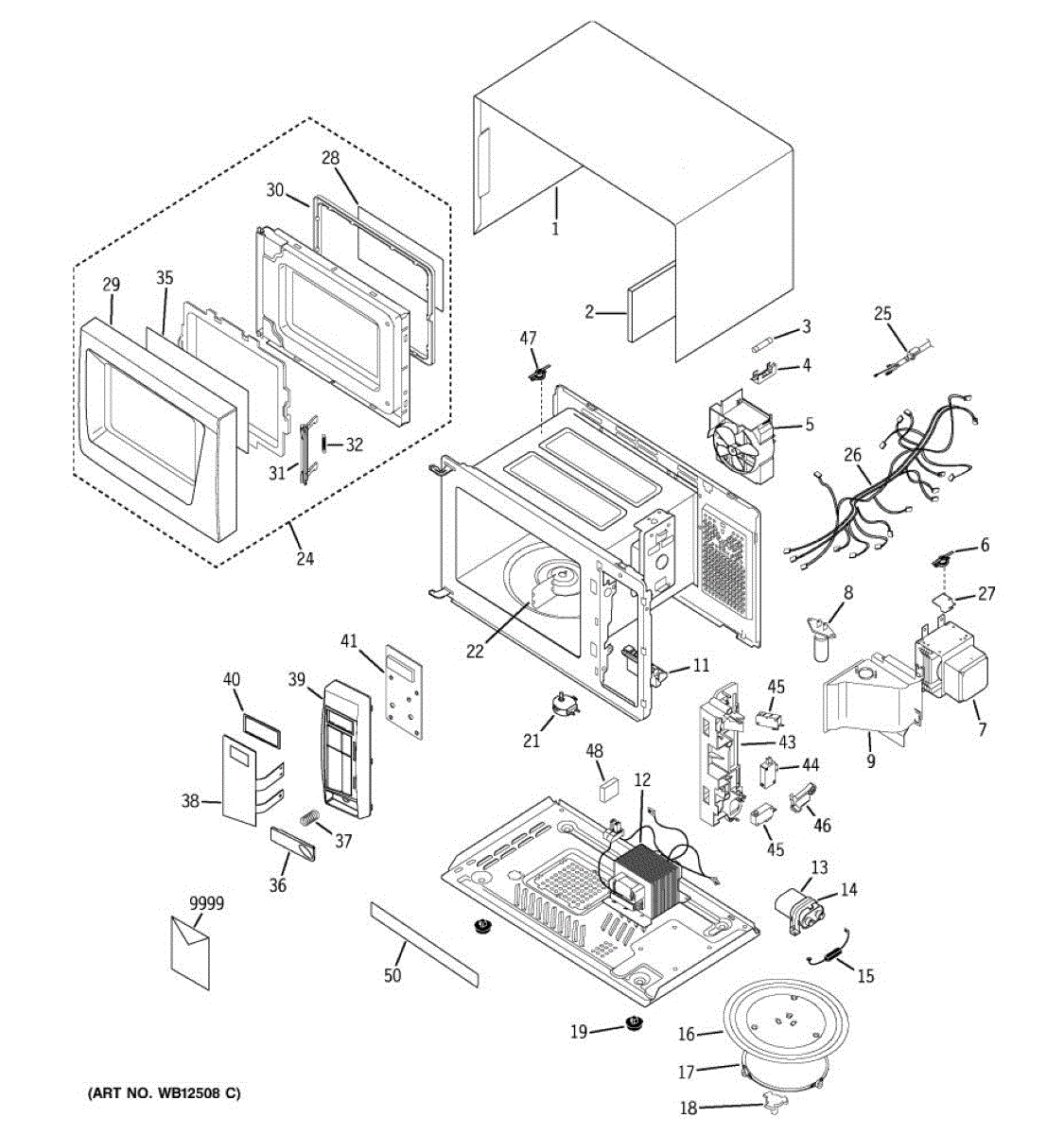

Parts for Ge JES1235WF001: 01 - Microwave Parts

The Fuse is an OEM part for GE microwaves. It serves as a safety device designed to protect the microwave from excessive current that can cause overheating and potential fire hazards. When the current flowing through the microwave circuit exceeds a certain level, the fuse blows or breaks, cutting off the power to prevent damage or fire.

Common causes for a fuse to blow include power surges, faulty wiring within the appliance, or the use of microwave inappropriate containers that cause sparks. It is essential to address these issues not only to replace the fuse but also to correct the underlying problems to prevent future failures.

Symptoms of a bad fuse include:

• The microwave suddenly stops working.
• No signs of power or response even when the microwave door is closed and the start button is pressed.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Fix a noisy or non-functioning microwave with this fan motor. Solves overheating and cooling issues. Moderate DIY repair with basic tools required.

Replacement thermostat that senses and controls the appliance heating system to restore accurate heating and stable temperature cycles, helping the appliance reach and maintain the set temperature. What it does:

• Senses temperature and signals the heating element or valve to turn on/off to maintain set temperature.
• Commonly linked to symptoms such as failure to reach set temperature, temperature fluctuating or cycling erratically, or continuous heating.
• Works as the temperature-regulation component in the appliance's control pathway to stabilize performance.
• Matches the OEM function for temperature control; use when thermostat diagnostics indicate a failed or inaccurate sensor.

• Disconnect power to the appliance before attempting removal or installation to avoid shock or ignition hazards.
• Handle the sensing element and terminals carefully to avoid damage; ensure secure electrical connections and proper routing of any capillary or sensor lead.
• After installation, test the appliance through a full heat cycle to confirm correct operation.

Microwave not heating but runs? Replace the magnetron to restore cooking power. Intermediate DIY repair taking 1-2 hours with proper safety steps.

Replacement air cover (air baffle) for microwaves. Directs airflow and protects internal components. Order when original is cracked, damaged, or missing.

The microwave switch lever is a small plastic arm inside the door latch assembly that activates the door interlock switches when the door is closed. These switches signal the microwave that the door is securely shut before allowing it to operate. Replace this part if the microwave won't start, runs with the door open, or the door doesn't latch and release properly.

This microwave high-voltage capacitor stores and releases energy in the high-voltage circuit to power the magnetron. Replacing a failed capacitor helps restore proper heating and protects other components in the high-voltage system.

• Works with the transformer and high-voltage diode to supply the magnetron with the required voltage
• Failure may result in the unit running but not heating
• Shorted capacitors can blow the internal fuse or trip a breaker; opens may cause loud humming or buzzing
• Visible swelling or leakage on the capacitor body are common failure signs

• Unplug the microwave; capacitors can retain a dangerous charge even when unplugged—discharge using an appropriate, insulated method before servicing
• Note wire positions and terminal orientation; transfer any mounting hardware from the original part
• Mount securely and route wires to avoid pinching

Microwave not heating but lights and timer work? The high voltage diode converts AC to DC for the magnetron. DIY repair in 1-2 hours with basic tools.

Glass cooking tray for microwave ovens. Sits on turntable support to rotate food during cooking. Replace if cracked, chipped, broken, or missing.

Replacement drive coupler for microwave turntable systems. Connects motor to turntable shaft. Replace if cracked, stripped, or broken to restore rotation.

Black plastic foot that supports and stabilizes your microwave. Installs on the bottom corners. Replace if cracked, broken, or missing for proper leveling.

Microwave turntable stopped spinning or rotating? This turntable motor drives the glass tray for even heating. DIY-friendly replacement restores rotation.

Replace a damaged, frayed, or missing microwave power cord. This electrical cord connects your microwave to the wall outlet, delivering power to the unit.

This wire harness connects control components to deliver power and signals where needed, restoring reliable electrical connections and resolving issues caused by damaged or worn wiring. Use it to replace a faulty harness and re-establish proper appliance function. What it does:

• Routes power and signal circuits between the control board and associated components
• Restores lost or intermittent electrical connections caused by frayed or broken wires
• Helps address symptoms such as no power to controls, intermittent operation, or failure of related functions
• Maintains factory wiring layout and connector fit for correct component interfacing

• Disconnect power to the appliance before attempting any service
• Match connector shapes and wire colors to confirm correct fit before final installation
• Replace only with the exact harness to avoid mismatched connectors or wiring

Restores your microwave door's appearance with this thin decorative film. Covers scratches and discoloration. Verify fit with your model number.

Fix a microwave door that won't close or latch properly with this white door latch assembly. Common DIY repair taking 15-30 minutes with basic tools.

This push button replaces a worn, cracked, or missing control button on ranges, ovens and cooktops to restore reliable tactile control of selector switches and front-panel functions. It fits snap-in style switch assemblies and matches OEM form. What it does

• Replaces a broken or missing control push button so switches respond correctly
• Restores a secure, tactile interface for selector and function switches
• Helps stop buttons from sticking, slipping, or falling out during use
• Fits into the front control panel or selector switch housing as originally designed

• Disconnect power to the appliance before starting any work.
• Access the control panel per your appliance's service instructions; remove trim or bezels as needed.
• Snap the button into the switch housing; do not force or pry on surrounding plastic.

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This microwave thermostat monitors the internal temperature and automatically shuts off the microwave when it reaches 105 degrees Celsius to prevent overheating. It protects your microwave from damage caused by excessive heat buildup. Replace this part if your microwave shuts off unexpectedly during normal operation or if it overheats frequently.
