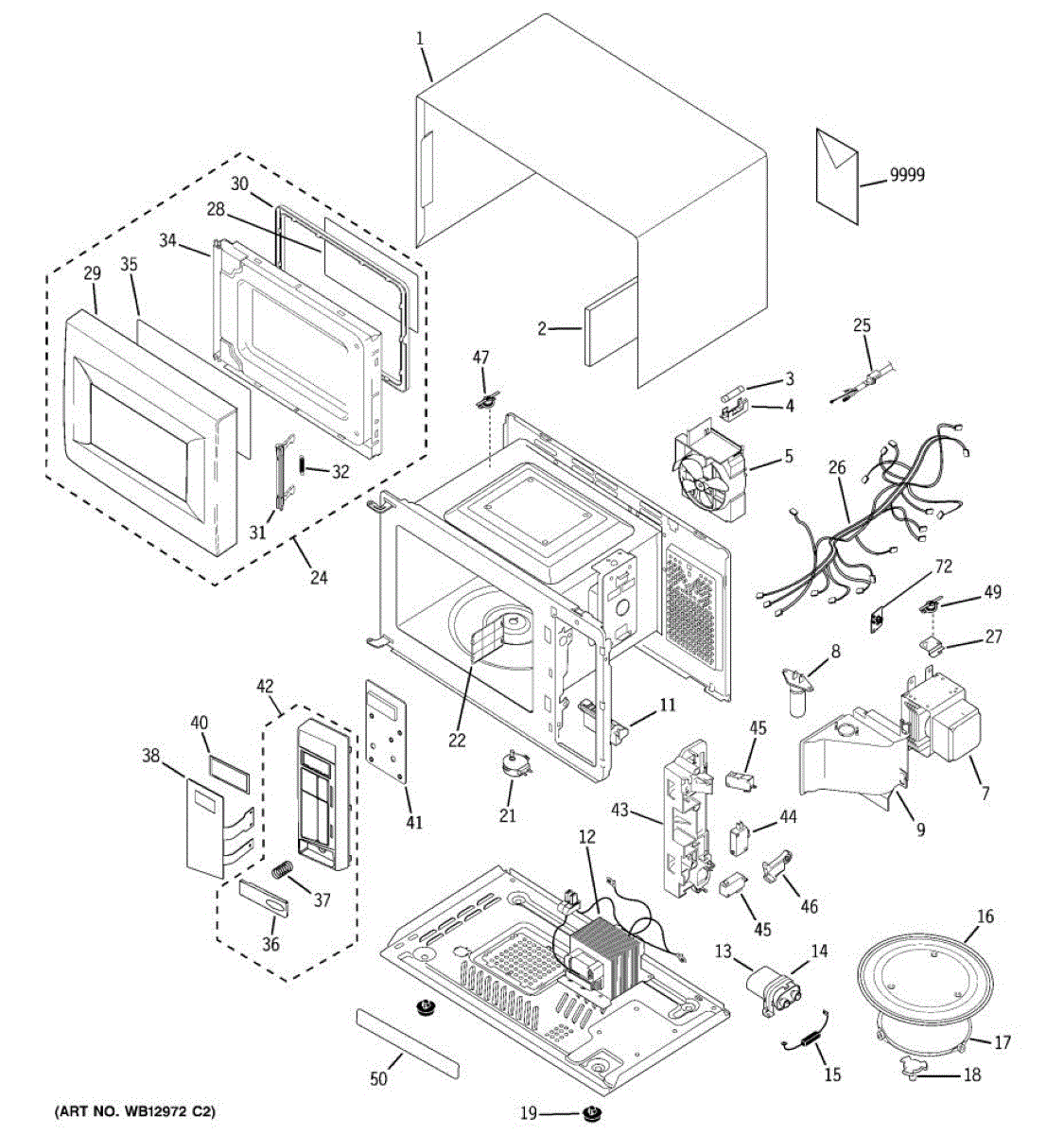

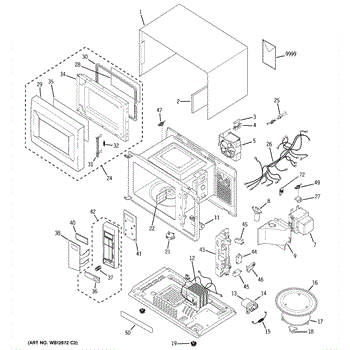

Parts for Ge JES1334BH02: 01 - Microwave Parts

The Fuse is an OEM part for GE microwaves. It serves as a safety device designed to protect the microwave from excessive current that can cause overheating and potential fire hazards. When the current flowing through the microwave circuit exceeds a certain level, the fuse blows or breaks, cutting off the power to prevent damage or fire.

Common causes for a fuse to blow include power surges, faulty wiring within the appliance, or the use of microwave inappropriate containers that cause sparks. It is essential to address these issues not only to replace the fuse but also to correct the underlying problems to prevent future failures.

Symptoms of a bad fuse include:

• The microwave suddenly stops working.
• No signs of power or response even when the microwave door is closed and the start button is pressed.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Microwave not heating but runs? Replace the magnetron to restore cooking power. Intermediate DIY repair taking 1-2 hours with proper safety steps.

Replacement air cover (air baffle) for microwaves. Directs airflow and protects internal components. Order when original is cracked, damaged, or missing.

The microwave switch lever is a small plastic arm inside the door latch assembly that activates the door interlock switches when the door is closed. These switches signal the microwave that the door is securely shut before allowing it to operate. Replace this part if the microwave won't start, runs with the door open, or the door doesn't latch and release properly.

This microwave high-voltage capacitor stores and releases energy in the high-voltage circuit to power the magnetron. Replacing a failed capacitor helps restore proper heating and protects other components in the high-voltage system.

• Works with the transformer and high-voltage diode to supply the magnetron with the required voltage
• Failure may result in the unit running but not heating
• Shorted capacitors can blow the internal fuse or trip a breaker; opens may cause loud humming or buzzing
• Visible swelling or leakage on the capacitor body are common failure signs

• Unplug the microwave; capacitors can retain a dangerous charge even when unplugged—discharge using an appropriate, insulated method before servicing
• Note wire positions and terminal orientation; transfer any mounting hardware from the original part
• Mount securely and route wires to avoid pinching

Microwave not heating but lights and timer work? The high voltage diode converts AC to DC for the magnetron. DIY repair in 1-2 hours with basic tools.

Glass cooking tray for microwave ovens. Sits on turntable support to rotate food during cooking. Replace if cracked, chipped, broken, or missing.

Plastic coupler that connects the turntable tray to the motor shaft in your microwave. Replace if cracked, broken, or worn to restore smooth rotation.

Black plastic foot that supports and stabilizes your microwave. Installs on the bottom corners. Replace if cracked, broken, or missing for proper leveling.

Microwave turntable stopped spinning or rotating? This turntable motor drives the glass tray for even heating. DIY-friendly replacement restores rotation.

Complete door assembly that replaces a damaged or worn oven/microwave door to restore proper closure and function. Fits the appliance's original mounting points and finishes the front for safe, reliable use. What it does:

• Replaces a cracked, dented, or warped door to help the appliance close and seal correctly
• Restores the front exterior appearance and protects internal components
• Helps prevent heat or steam leakage caused by a damaged door
• Reattaches controls, window, and trim as originally configured

• Disconnect power (and gas if applicable) before starting any repair
• Handle glass and trim carefully; wear gloves and eye protection
• Two people may be required for safe lifting and alignment

Replacement power cord for your microwave. Connects the unit to your wall outlet. Order a new cord if yours is damaged, frayed, or missing.

Restores your microwave door's appearance with this thin decorative film. Covers scratches and discoloration. Verify fit with your model number.

Replace your microwave's touch pad control panel if buttons are unresponsive, the overlay is cracked, or the keypad membrane is worn or damaged.

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This microwave thermostat monitors the internal temperature and automatically shuts off the microwave when it reaches 105 degrees Celsius to prevent overheating. It protects your microwave from damage caused by excessive heat buildup. Replace this part if your microwave shuts off unexpectedly during normal operation or if it overheats frequently.

Replacement thermostat that senses and controls the appliance heating system to restore accurate heating and stable temperature cycles, helping the appliance reach and maintain the set temperature. What it does:

• Senses temperature and signals the heating element or valve to turn on/off to maintain set temperature.
• Commonly linked to symptoms such as failure to reach set temperature, temperature fluctuating or cycling erratically, or continuous heating.
• Works as the temperature-regulation component in the appliance's control pathway to stabilize performance.
• Matches the OEM function for temperature control; use when thermostat diagnostics indicate a failed or inaccurate sensor.

• Disconnect power to the appliance before attempting removal or installation to avoid shock or ignition hazards.
• Handle the sensing element and terminals carefully to avoid damage; ensure secure electrical connections and proper routing of any capillary or sensor lead.
• After installation, test the appliance through a full heat cycle to confirm correct operation.
