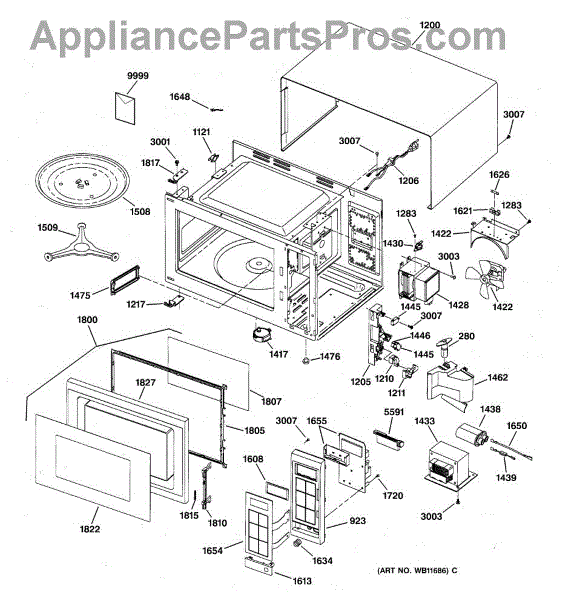

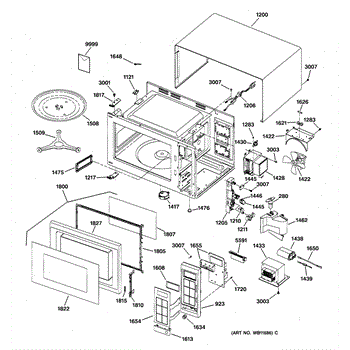

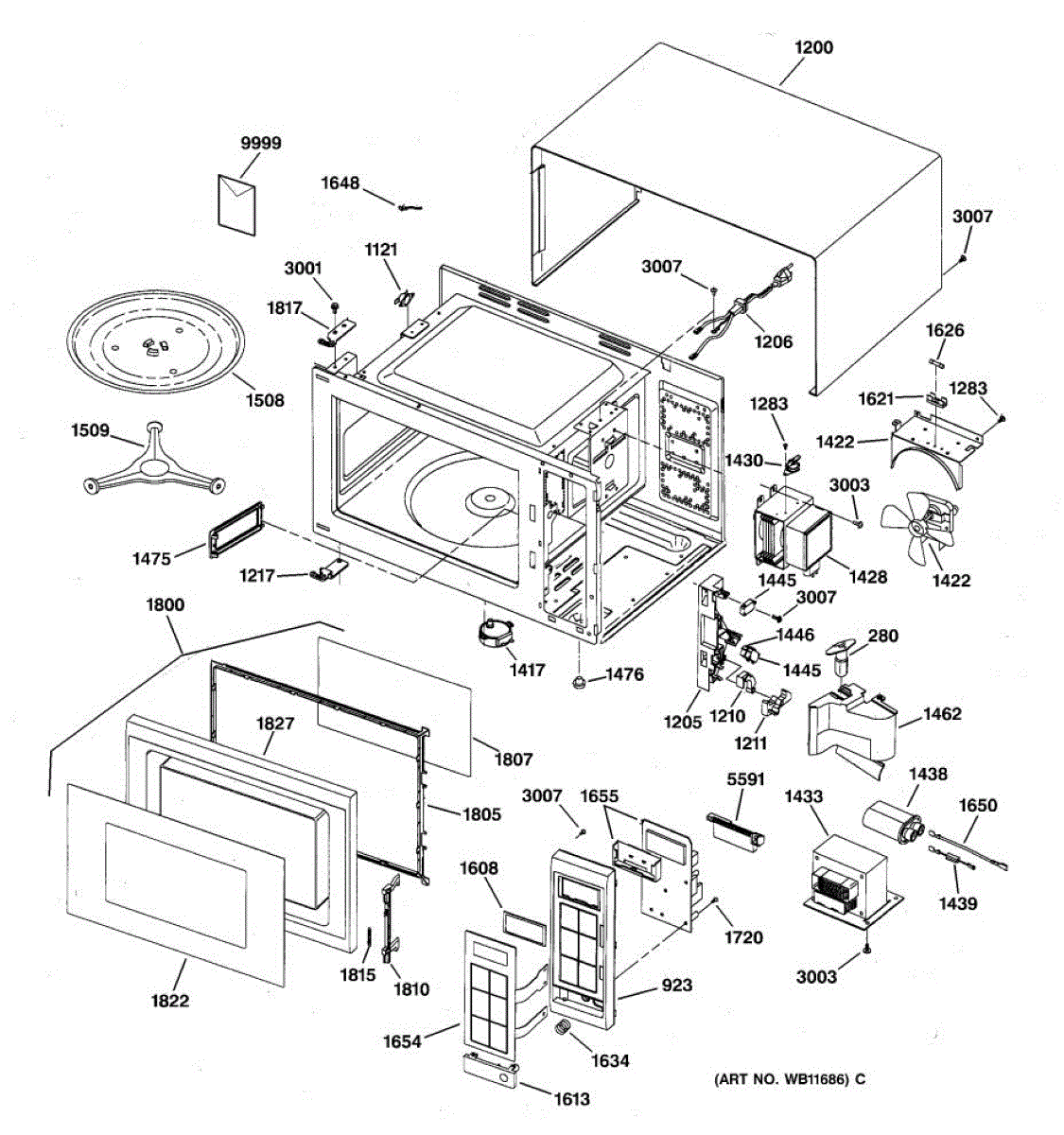

Parts for Ge JES733BV02: 01 - Section1 Parts

This is a magnetron that is used on microwave ovens. The purpose of the magnetron is to provide the microwaves that actually cook the foot inside of the microwave oven. Use caution when replacing this part. High-voltage capacitors in microwaves can retain a deadly amount of electrical charge, even when they are unplugged.If the microwave begins making a buzzing noise and doesn't heat food properly, this part will need to be replaced. Use extreme caution when working with this appliance. Unplug the unit first.This particular magnetron is compatible with microwave ovens that are manufactured by the General Electric, Hotpoint, and Maytag brands. This part is sold individually and is sourced directly from the manufacturer as a genuine OEM part.

This high-voltage rectifier diode is used in the microwave's high-voltage circuit. It converts AC to DC so the magnetron can produce heat. A failed diode can cause no heat, loud humming, or a blown fuse when starting. What it does:

• Rectifies high-voltage AC to DC to power the magnetron
• Blocks reverse voltage in the HV circuit
• Common failure symptoms can include: runs but doesn't heat; loud hum then shutdown; line fuse blows at startup

• 1 high-voltage diode

• Unplug the microwave and properly discharge the high-voltage capacitor before servicing—dangerous voltage can remain even when unplugged
• Match diode orientation/polarity to the original and ensure a solid chassis ground connection where used
• Route leads and reinstall any clamps/insulators exactly as found; keep wiring clear of sharp edges and hot components
• If the original diode failed, inspect the HV capacitor and transformer for related issues before reassembly

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Monitor Switch is an OEM replacement part for GE microwave ovens. Located internally on the turntable control circuit board, this switch monitors rotation of the turntable during cooking cycles.

Causes of failure involve degradation of the electrical contacts from continuous arcing loads over years of use combined with vibration stresses.

Symptoms of a faulty monitor switch include:

• The turntable no longer rotates or spinning intermittently
• Cooking cycles aborting prematurely with error messages
• Screeching or grinding noises emanating from beneath cavity
• Visible burnt spots on turntable drive assembly

This genuine GE switch is also compatible with select Hotpoint and RCA models.

This part has been discontinued and is no longer available.

This part has been discontinued and is no longer available.

This white start button is the push-button cap used on appliance control panels to activate cycles or functions. It restores a worn, cracked, or non-responsive start control so the appliance can be operated normally. What it does:

• Replaces a damaged or worn start/power push button on the control console
• Provides a tactile surface to engage the appliance's start switch or momentary contact
• Helps resolve symptoms such as a stuck, cracked, loose, or non-responsive start button
• Works with the existing switch assembly and mounting on the control panel

• One white start button

• Turn off power to the appliance before servicing to avoid shock or injury
• This is a button/cap only; retain or reuse the original switch or follow OEM instructions if switch replacement is required
• Remove the control panel or console trim as needed to access and snap the button into place; no specialized tools typically required

Ceramic

This door film is the thin outer covering that restores the refrigerator door's appearance and protects the finish from scratches and wear. It provides a like-new look when the original film is damaged or peeling. What it does:

• Replaces cracked, torn, peeling or scratched outer door film to improve appearance
• Helps protect the door finish from everyday scuffs and surface damage
• Restores a smooth, uniform exterior surface for better aesthetics
• Useful when the original decorative/protective film has separated or degraded

• Designed for peel-and-stick application; clean and dry the surface before installing
• Remove remaining adhesive and residue for best adhesion and appearance
• Use caution to avoid trapping air bubbles; a soft squeegee or cloth can help smooth the film

This washered screw secures panels and internal components where a combined screw-and-washer fastener is required, restoring proper fit and stopping movement or rattling. Simple replacement with the correct fastener keeps assemblies aligned and stable. What it does

• Secures panels, brackets or components where a washered screw is specified
• Replaces missing, stripped or corroded fasteners that allow vibration or gaps
• Helps stop rattling, loose panels or misaligned parts caused by a failed screw
• Provides a sealed bearing surface to distribute load and prevent pull-through

• One washered screw

• Disconnect power and/or water to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid cam-out and fastener damage
• Align parts before tightening and snug; avoid over-tightening which can strip threads or crack plastic
