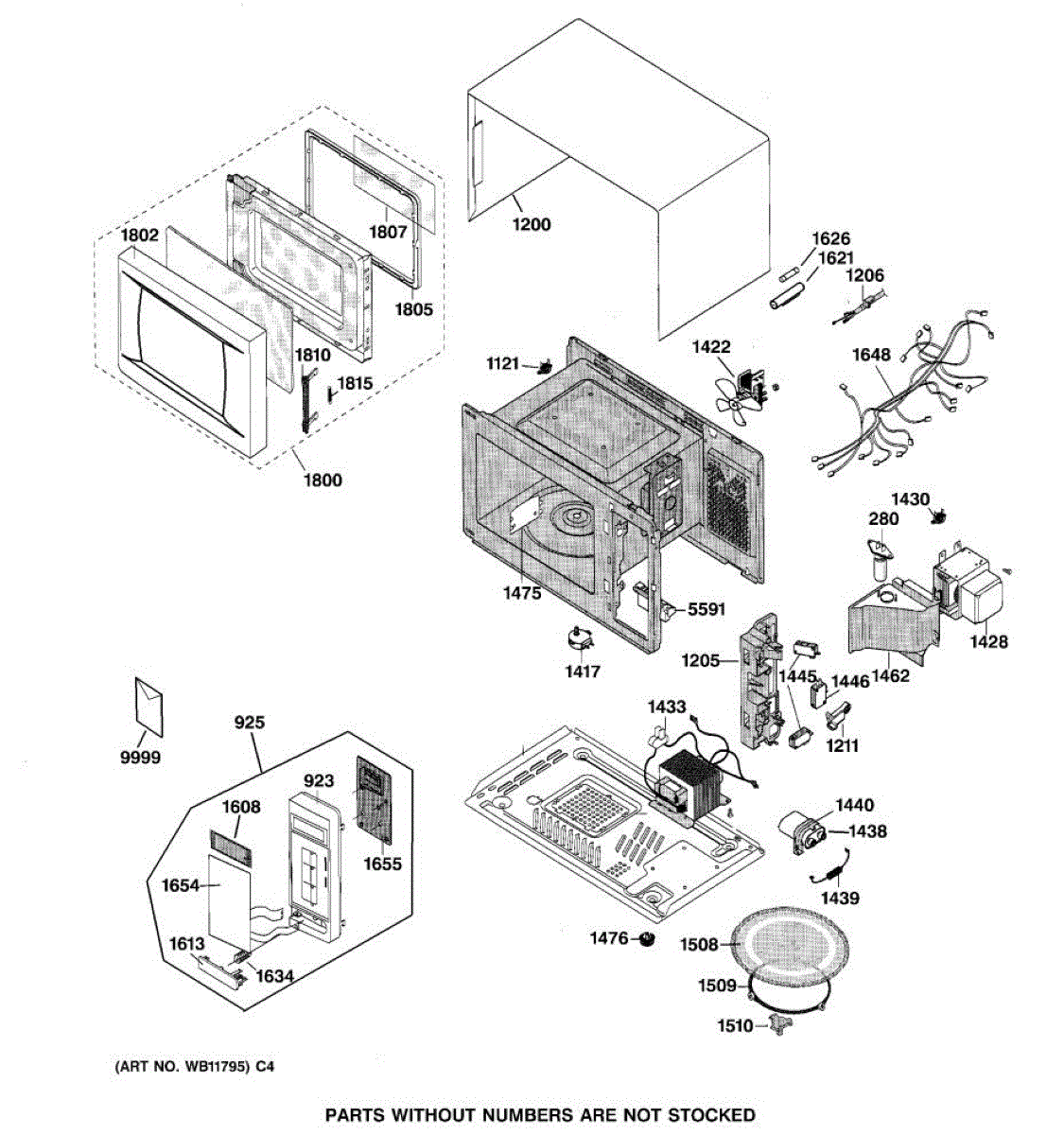

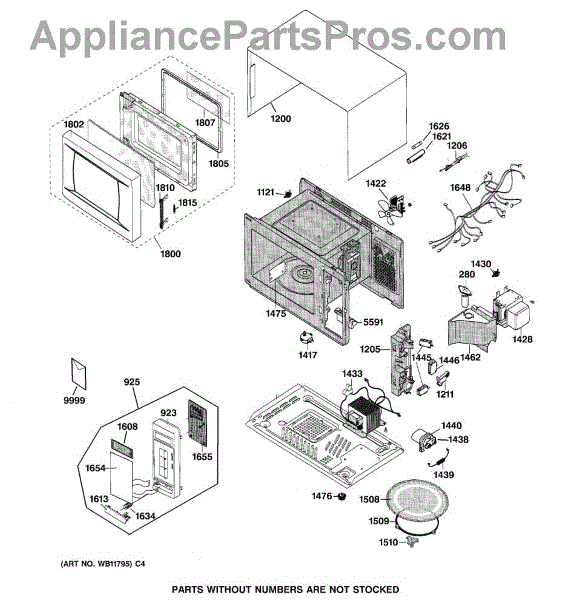

Parts for Ge ZSC2001CSS: 01 - Microwave Parts

This interior oven lamp provides bright, direct lighting inside the oven cavity so you can monitor cooking without opening the door. Direct replacement designed for compatible GE ovens and ranges. What it does:

• Lights the oven interior so you can check food without releasing heat
• Replaces a dim, flickering, or burned-out oven light
• Restores safe visibility when checking racks, pans, and broiling items
• Fits standard oven lamp sockets used in many GE appliances

• Always disconnect power to the appliance before replacing the lamp
• Allow the oven to cool completely to avoid burns
• Remove protective cover or lens per your owner's manual before swapping the bulb
• Hand-tighten the lamp; do not overtighten.

This turntable motor rotates the microwave's glass tray during cooking. Replacing a worn or seized motor restores smooth, consistent tray movement to help ensure even heating and reliable performance.

• Drives the turntable shaft/coupler to rotate the glass tray during cook cycles
• Helps promote more even cooking and defrosting
• Common symptoms of failure: tray doesn't turn, intermittent or jerky rotation, loud humming/grinding from beneath the cavity

• Disconnect power before servicing; microwaves contain high-voltage components—use caution
• Access is typically from the bottom of the unit; remove the tray and coupler, then the motor's mounting screws, and transfer the wire connections
• Align the motor shaft with the coupler and ensure the tray spins freely before reassembly
• Test with a microwave-safe cup of water to ensure smooth rotation

Replacement thermostat that senses and controls the appliance heating system to restore accurate heating and stable temperature cycles, helping the appliance reach and maintain the set temperature. What it does:

• Senses temperature and signals the heating element or valve to turn on/off to maintain set temperature.
• Commonly linked to symptoms such as failure to reach set temperature, temperature fluctuating or cycling erratically, or continuous heating.
• Works as the temperature-regulation component in the appliance's control pathway to stabilize performance.
• Matches the OEM function for temperature control; use when thermostat diagnostics indicate a failed or inaccurate sensor.

• Disconnect power to the appliance before attempting removal or installation to avoid shock or ignition hazards.
• Handle the sensing element and terminals carefully to avoid damage; ensure secure electrical connections and proper routing of any capillary or sensor lead.
• After installation, test the appliance through a full heat cycle to confirm correct operation.

This high-voltage rectifier diode is used in the microwave's high-voltage circuit. It converts AC to DC so the magnetron can produce heat. A failed diode can cause no heat, loud humming, or a blown fuse when starting. What it does:

• Rectifies high-voltage AC to DC to power the magnetron
• Blocks reverse voltage in the HV circuit
• Common failure symptoms can include: runs but doesn't heat; loud hum then shutdown; line fuse blows at startup

• 1 high-voltage diode

• Unplug the microwave and properly discharge the high-voltage capacitor before servicing—dangerous voltage can remain even when unplugged
• Match diode orientation/polarity to the original and ensure a solid chassis ground connection where used
• Route leads and reinstall any clamps/insulators exactly as found; keep wiring clear of sharp edges and hot components
• If the original diode failed, inspect the HV capacitor and transformer for related issues before reassembly

This Bracket HVC is the OEM mounting bracket that secures the HVC assembly in place, keeping related components aligned and reducing vibration or movement for reliable operation. What it does

• Secures the HVC assembly or housing to the appliance frame to prevent shifting or loosening
• Helps maintain proper alignment of adjacent components for consistent performance
• Reduces vibration and rattling that can occur when a bracket is missing or damaged
• Commonly replaced when the HVC housing is loose, noisy, or does not sit flush

• One Bracket HVC mounting bracket

• Disconnect power to the appliance before beginning any work to avoid electrical shock
• Basic hand tools are typically required; handle metal edges carefully to avoid cuts
• Inspect mounting screws or clips and replace if worn to ensure a secure fit

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This cooking tray is the oven broiler/drip pan that catches drips and holds food while broiling, helping keep the oven interior cleaner and making broiling tasks easier. It provides a stable surface for broiling and roasting. What it does:

• Catches grease, juices and food debris to help prevent spills and reduce smoking
• Supports pans or food under the broiler for even browning and crisping
• Helps contain messes for easier cleanup after cooking
• Restores proper fit and function when the original tray is damaged or warped

• One cooking tray

• Install on the broiler rack or designated support slots; ensure tray sits flat and secure before use
• Allow the oven to fully cool before removing or installing the tray to avoid burns
• Clean with warm, soapy water and avoid abrasive cleaners that can damage the finish
• Inspect regularly for heavy warping or damage; replace if it no longer fits securely

Color: brown. Measures about 8 inches in diameter.

This 250V 15A safety fuse protects the appliance's line circuit from overcurrent. When the original fuse has blown, replacing it can restore power and help safeguard internal components from further damage.

• Opens the circuit if excessive current or a short occurs, protecting internal parts
• Common symptom: unit completely dead—no display, lights, or response to controls
• Blown fuse will test open (no continuity) with a multimeter
• If a new fuse blows again, another component may be shorted and needs diagnosis

• Unplug the appliance before servicing; microwaves can retain a dangerous charge—discharge the high-voltage capacitor
• Access the fuse near the line filter/control area; note clip orientation
• Replace only with the same 250V 15A rating; never bypass or upsize the fuse
• If the replacement fuse blows immediately, stop and troubleshoot the root cause

This film door is the thin protective window/cover film used on the appliance door to restore a clear view and protect the underlying glass or display surface from scratches and wear. It replaces damaged or peeled door film for a like-new appearance. What it does:

• Protects the door window or display surface from scratches, scuffs, and wear
• Restores a clear, unobstructed view when existing film is cloudy, scratched, or peeling
• Helps maintain the finished appearance of the door and prevents further surface damage
• Functions as the cosmetic/protective layer only — not a structural door component

• One film door

• Peel-and-stick or snap-on installation; follow manufacturer instructions and work on a clean, dry surface
• Clean glass or panel thoroughly before applying to avoid bubbles and trapped debris
• Avoid sharp tools that could damage the film during installation

This door lever is the user-access handle component that lets the appliance door open and latch reliably. It replaces a damaged or broken lever to restore normal door operation and safe access. What it does:

• Provides the handle/lever action needed to open and close the appliance door
• Restores a secure latch action when the original lever is cracked, worn, or broken
• Stops sticking or slipping that can prevent the door from opening smoothly
• Helps prevent further damage to the door assembly by replacing a compromised lever

• Disconnect power to the appliance before beginning any work to avoid shock or injury
• Basic hand tools typically required; access may require removing the door or inner panel
• Inspect surrounding trim and mounting points for damage; replace additional parts if worn
