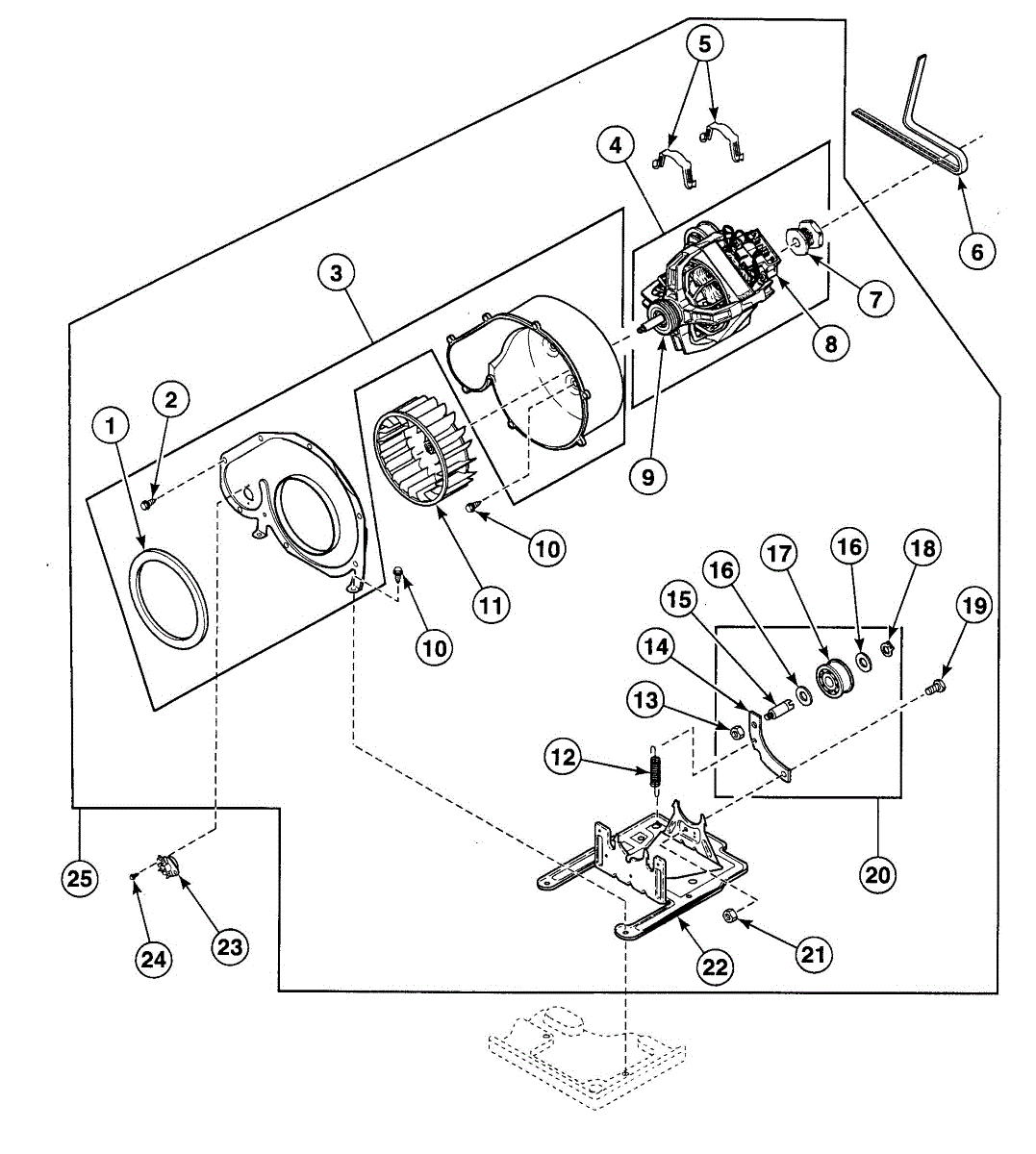

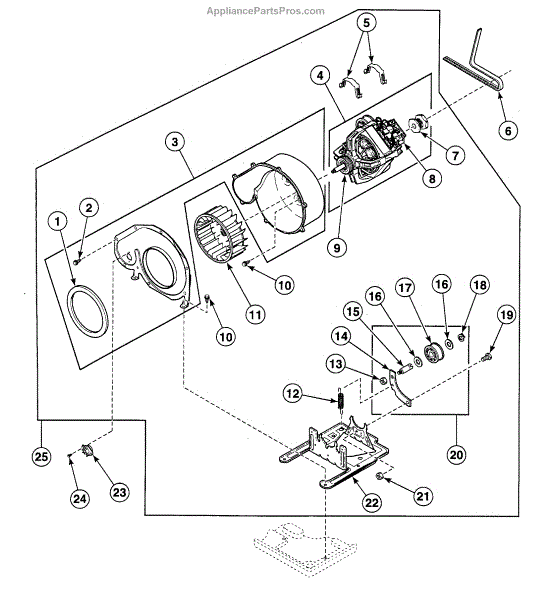

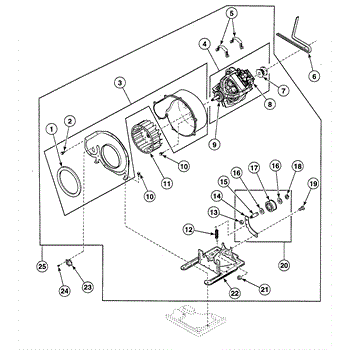

Parts for Speed Queen SDGC09LJ: Motor Assy Parts

This blower housing encloses the dryer's blower wheel and routes air from the drum through the lint system to the exhaust. Replacing a cracked or warped housing restores proper airflow, reduces vibration, and helps resolve extended dry times.

• Encloses and supports the blower wheel while channeling intake and exhaust airflow
• Helps maintain consistent drying performance and temperature regulation
• Typical failure symptoms: longer cycles, weak vent airflow, excess lint inside the cabinet, scraping or rattling near the blower
• Visual clues: cracks, broken mounting tabs, or housing out-of-round causing wheel contact

• Disconnect power; for gas units, also shut off the gas supply
• Access from the front: remove front panel and lint duct to reach the blower assembly
• Transfer the blower wheel, gasket/seals, and mounting hardware from the original housing as needed
• Seat the housing squarely; the blower wheel spins freely and clear lint buildup before reassembly

This drive motor and pulley assembly powers the belt-driven system to rotate the drum or tub. Replacing a weak or seized motor restores consistent rotation and reliable cycle performance on compatible 120V/60Hz models. What it does:

• Drives the belt that turns the drum or tub for wash/spin or tumble
• Provides correct 120V/60Hz operation for North American units designed for this spec
• Helps address symptoms like humming with no start, drum/tub not turning, belt not moving, or burning/motor smell
• Replaces a worn pulley to improve belt tracking and reduce slippage or squeal

• 1 motor and pulley assembly

• Disconnect power before servicing; for gas units, also shut off gas supply
• Relieve belt tension, note routing, and transfer wiring/connectors from the old motor
• Align the pulley and set proper belt tension; rotate by hand to verify free movement before restoring power

The Dryer Cylinder Belt is an OEM replacement part for Speed Queen dryers. It is a critical component that transmits the rotational force from the drive motor to the dryer drum, enabling it to spin during the drying cycle. This drum belt is approximately 99" long. This drum belt is flat and has 5 ribs and 4 grooves.

Symptoms of a faulty dryer cylinder belt include:

• The dryer drum not rotating or rotating intermittently
• Squeaking or grinding noises during operation
• Visible wear, cracks, or fraying on the belt

Causes of a bad cylinder belt can include normal wear and tear over time, exposure to high temperatures, misalignment or improper tracking, or physical damage from foreign objects or debris.

This OEM Speed Queen part helps maintain optimal washing performance on standard, heavy-duty, and commercial machines.

Considered a crucial part of the dryer, the blower fan assembly is the part that pulls in air from outside and then circulates that air in the drum to ensure clothing gets dry. After the air is moved around the drum, it is then moved through the exhaust vent. This part is located on the motor shaft and is made of durable plastic. Regular use can lead to wear and tear or damage to this component. If this occurs, the air in the dryer may not dry the clothing. In this case, the blower fan assembly will need to be replaced.If the blower fan assembly needs to be replaced, first the dryer should be unplugged from power. Take the cabinet top off and remove the front panel on the appliance. Take out the drum, remove the motor clamp, and loosen the blower fan so it can be removed. Take it out and replace it with the new blower fan assembly.The blower fan assembly is designed to be used with dryers manufactured by Amana and Speed Queen. It is sold as an individual part. This is an authentic OEM replacement part that is sourced directly from the manufacturer.

This idler lever is the replacement lever that supports the washer's drive system, restoring proper belt tension and smooth drum rotation. Replacing a worn lever reduces slipping and helps the washer run quietly and reliably. What it does:

• Positions and tensions the drive belt or pulley to transfer motor power to the drum
• Restores proper belt alignment to prevent slipping or loss of drive
• Removes noise caused by a loose or damaged idler lever during spin or agitation
• Helps prevent uneven or intermittent drum movement linked to a failing lever

• One lever, idler

• Disconnect power before beginning any repair to avoid electric shock
• Inspect adjacent components (belt, pulleys, mounts) and replace if worn for best results
• Use basic hand tools; secure parts per the manufacturer's service instructions

Dryers, washers, and washer dryer combos are made with an idler pulley shaft. It works in combination with the rest of the equipment in multiple ways. It switches the direction in which the output shaft is rotating. The idler pulley shaft also works to change gears and maintain the space between shafts. With time, because of excessive force, or as a result of misuse, the idler pulley shaft can wear out, break, or get damaged otherwise. When the part isn't working correctly, it has to be replaced to continue using the machine.The primary indication that there is something wrong with the idler pulley shaft is a machine that's producing excessive noises. Replacement of the idler pulley shaft is a straightforward process. It can be done in a few minutes with a nut driver and screwdrivers. Unplug the appliance before starting the disassembly.This idler pulley shaft is a genuine OEM replacement part. It is sold as an individual unit. It is made of durable metal materials. The idler pulley shaft is sourced from the manufacturer. It can be installed in various machines made by Speed Queen, Amana, and Magic Chef.

This idler wheel and bearing assembly maintains proper tension on the drive belt so your machine runs smoothly and quietly. Replacing a worn idler can eliminate squealing and help restore consistent drum or tub rotation. What it does:

• Keeps the drive belt properly tensioned for reliable operation
• Low-friction bearing supports smooth, quiet belt tracking
• Helps prevent belt slippage and premature belt wear
• Addresses symptoms such as squealing/chirping, burning rubber odor, belt coming off or fraying, or a drum/tub that won't spin or starts then stops

• Idler wheel with installed bearing

• Disconnect power; shut off gas supply before servicing
• Access the belt path and tensioner; relieve belt tension to remove the old idler
• Install the new wheel/bearing assembly and ensure free rotation
• Route the belt per the model's diagram, rotate by hand to check tracking, then reassemble and test

The Idler Lever Assembly with Bearing and Wheel is an OEM replacement part for Speed Queen dryers. This assembly maintains tension on the dryer belt, ensuring it rotates the drum effectively during operation. It includes the idler lever, bearings, and wheel, which work together to support smooth and efficient drum movement.

Over time, the idler assembly can wear out due to friction, heavy use, or lack of lubrication. Bearings may seize, or the wheel can become damaged, leading to reduced tension and compromised dryer performance.

Symptoms of a bad idler lever assembly include:

• Squeaking or grinding noises during operation
• Drum not turning or turning inconsistently
• Dryer belt slipping or breaking prematurely
• Increased drying times or inefficient operation

This OEM Speed Queen part is designed to restore reliable performance in compatible dryer models.

The Thermistor Assembly is an OEM part for Speed Queen dryers. This part monitors and regulates the temperature inside the dryer by providing temperature readings to the control board, ensuring that the dryer operates at the correct temperature settings for optimal drying performance.

Common causes of a bad thermistor include wear and tear over time, exposure to extreme temperatures, or electrical issues that can cause the sensor to fail.

Symptoms of a bad Thermistor Assembly include:

• The dryer not heating properly or overheating
• Inconsistent drying times or incomplete drying cycles
• Error codes related to temperature sensing
• The dryer shutting off unexpectedly

This blower kit and fan assembly circulates air for a dryer, restoring proper airflow to help clothes dry efficiently and prevent overheating. Designed as a direct replacement to restore the appliance's ventilation. What it does:

• Moves heated air through the drum and exhaust system to support effective drying
• Helps maintain proper airflow to prevent long dry times and reduce heat buildup
• Replaces worn or noisy blower components that can cause rattling or reduced suction
• Supports ventilation that reduces lint buildup in the cabinet and vent path

• Disconnect power before starting work to avoid shock or injury
• Handle sharp sheet metal and fan blades carefully; wear gloves and eye protection
• Verify airflow direction and secure mounting/fasteners during reassembly
• After installation, test the dryer through a full cycle and confirm proper venting
