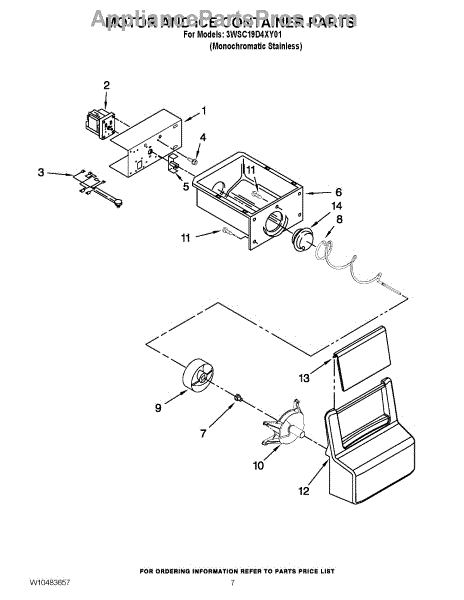

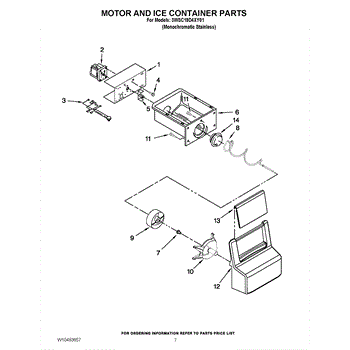

Parts for Whirlpool 3WSC19D4XY01: 05 - Motor And Ice Container Parts

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

Size: 8-32 x .312 inch.

The Motor Coupling is an OEM part for Whirlpool refrigerators. This coupling connects the ice dispenser motor to the ice dispensing mechanism, allowing the motor to drive the ice auger and dispense ice effectively.

Causes of a bad motor coupling can include wear and tear from regular use, overloading the ice dispenser, or mechanical failure of the dispenser motor.

Symptoms of a bad motor coupling include:

• The ice dispenser not functioning or dispensing ice intermittently
• Unusual noises such as grinding, clicking, or rattling during operation
• The ice auger not turning or dispensing ice properly
• Visible cracks, breaks, or wear on the coupling

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement ice bin stores and dispenses ice from the freezer; it restores proper ice handling and prevents jams or leaks caused by a cracked or worn container. Fits compatible Whirlpool refrigerators. What it does:

• Holds and funnels ice from the ice maker to the dispenser or door bin
• Prevents ice from spilling into the freezer compartment
• Reduces ice jams and helps ensure smooth dispensing
• Restores a damaged, cracked, or warped bin that causes leaks or poor fit

• Disconnect power to the refrigerator before removing or installing the bin
• Remove stored ice before handling; install carefully to avoid cracking
• Slide into the bin compartment until it seats securely; no special tools typically required
• Check ice maker alignment and dispenser components

The Ice Dispenser Drum is an OEM replacement part for Whirlpool refrigerators. This drum is located in the ice maker assembly and is responsible for dispensing ice when activated. It rotates to push ice through the chute and into your glass or container.

Causes of a bad ice dispenser drum include wear and tear from regular use, damage from ice jams, or breakage due to accidental mishandling. Accumulation of ice and debris can also cause the drum to malfunction.

Symptoms of a bad ice dispenser drum include:

• Ice not dispensing properly
• Grinding or clicking noises during operation
• Inconsistent ice output
• The dispenser becoming jammed frequently

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size; 8-18 x 1/2 inch.

The Ice Door is an OEM replacement part compatible with Whirlpool refrigerators. It covers and protects the ice container, ensuring that your ice stays fresh and free from any contaminants and preventing moisture or odors from entering the ice storage container. It features a convenient opening that allows for easy access to the ice whenever you need it.

Symptoms of a faulty ice container door include:

• Loose or broken door
• Difficulty in opening or closing the door
• Improper dispensing of ice

A bad ice container door can occur due to regular use, accidental damage, or wear and tear over time. If you notice issues such as a loose or broken door, difficulty in opening or closing the door, or ice that is not dispensing properly, it may be time to replace the ice container door.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This coupling is the small connector that links a drive motor to its mating component, transferring rotation so the appliance operates smoothly. Replacing a cracked or stripped coupling restores reliable drive and helps prevent further wear.

• Connects the motor shaft to the driven part to transmit torque
• Maintains alignment to reduce wobble and slippage
• Failure signs can include no movement, intermittent operation, clicking/grinding, or visible cracks/rounding
• Restores consistent motion of the connected part once replaced

• Disconnect power (and shut off water/gas if applicable) before servicing
• Access the drive area and remove any covers/tray/drive components as needed
• Pull the old coupling straight off the keyed or D-shaped shaft; clean and inspect the shaft
• Align and press the new coupling fully onto the shaft, reassemble, and test
