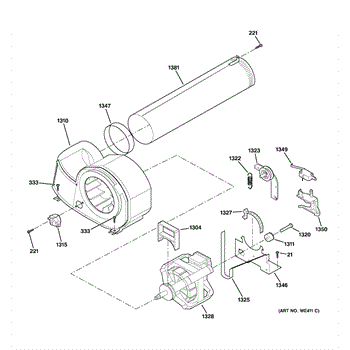

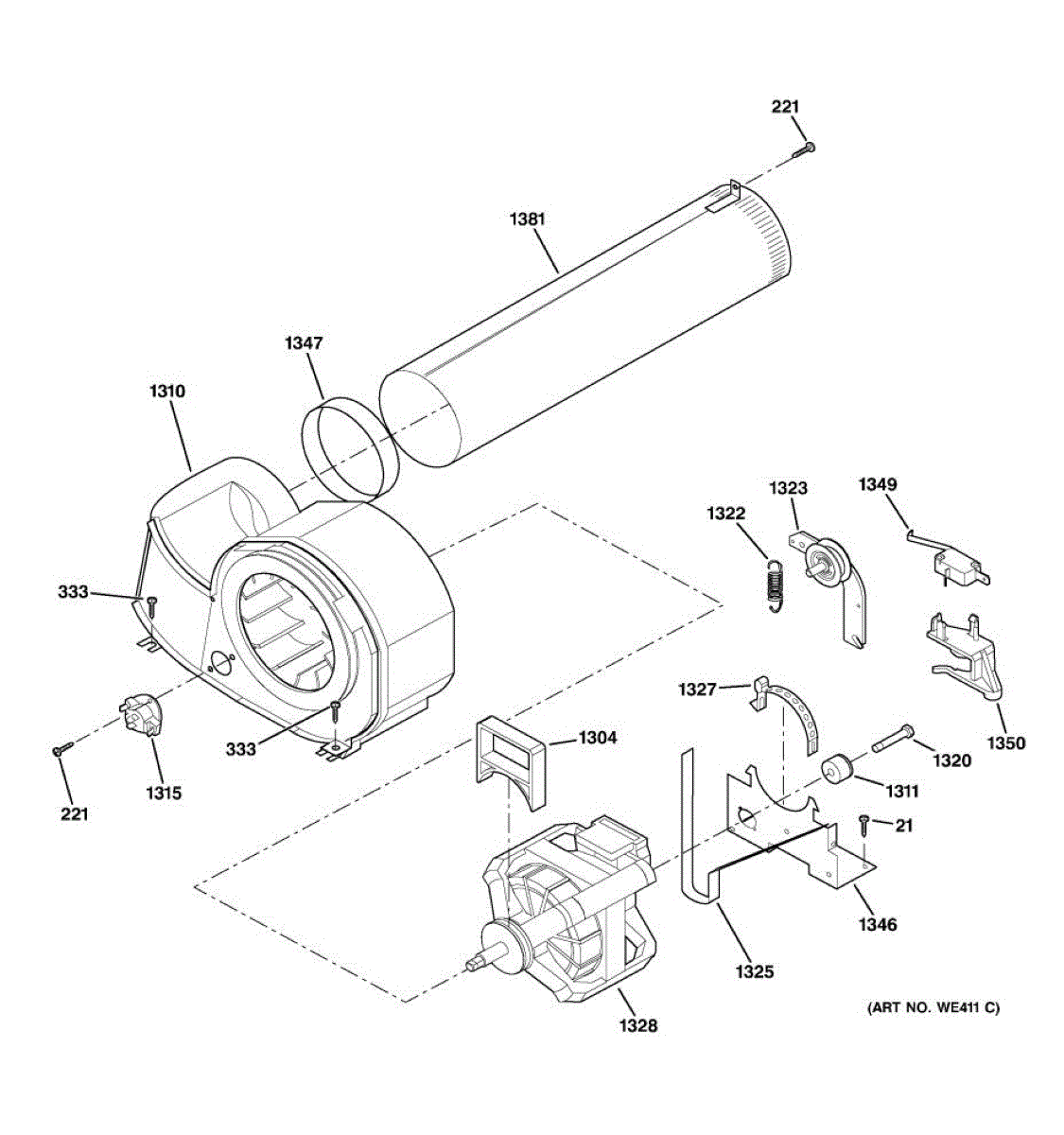

Parts for Ge DCL333GB0CC: 04 - Motor Parts

8 - 18 x 0.31

A replacement pan head screw used to fasten appliance panels and components. Its standard #8 coarse thread and 3/8-inch length secure trim, brackets, and small assemblies for stable operation. What it does:

• Fastens panels, brackets, and small parts in household appliances
• Replaces stripped, rusted, or missing #8-18 pan head screws
• Restores secure mounting where vibration or wear caused looseness
• Works with sheet-metal or threaded inserts designed for #8-18 screws

• Disconnect power to the appliance before beginning any repair
• Use the correct #2 Phillips or compatible driver to avoid cam-out
• Thread in straight and tighten until snug; avoid over-tightening to prevent stripping
• Keep small screws away from children and dispose of old fasteners safely

Includes blower wheel, housing and cover. Not available seperate.

Dryer not heating or overheating? A faulty control thermostat may be the cause. This part regulates heating cycles. Moderate repair difficulty.

Includes arm and pulley

Dryer drum belt wraps around drum and motor pulley to spin the drum. Replace if dryer won't start, makes squealing noise, or drum doesn't turn. Verify fit.

This dryer drive motor and pulley kit restores proper drum rotation by replacing a worn or seized motor. It delivers the torque to turn the drum via the belt so laundry tumbles evenly.

• Drives the drum through the belt for consistent tumbling
• Helps fix a drum that won't turn or starts then stalls
• Addresses humming or buzzing from the motor area
• Eliminates burning smells from a seized motor or pulley

• Unplug the dryer; for gas models, also shut off the gas supply
• Disconnect the vent and access the motor by removing panels
• Release belt tension, remove the old motor, and transfer bracket/pulley orientation and wiring positions
• After reassembly, hand-rotate the drum to ensure belt tracking before test run

Replace your dryer's exhaust duct hose if cracked, torn, or disconnected. This vent hose directs hot air from the dryer drum to the outside vent opening.
