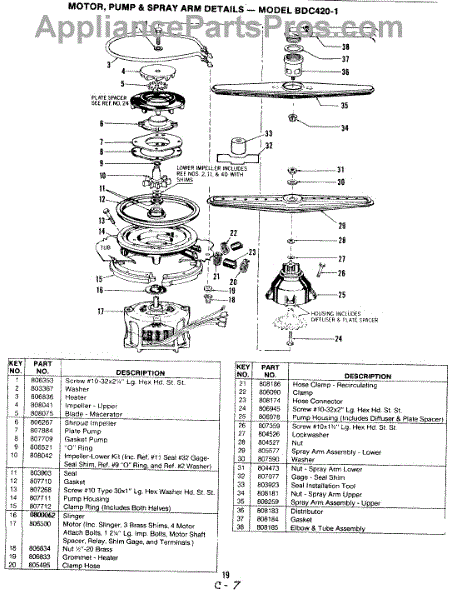

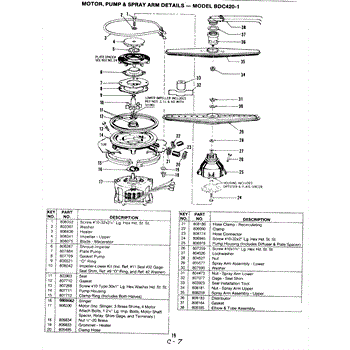

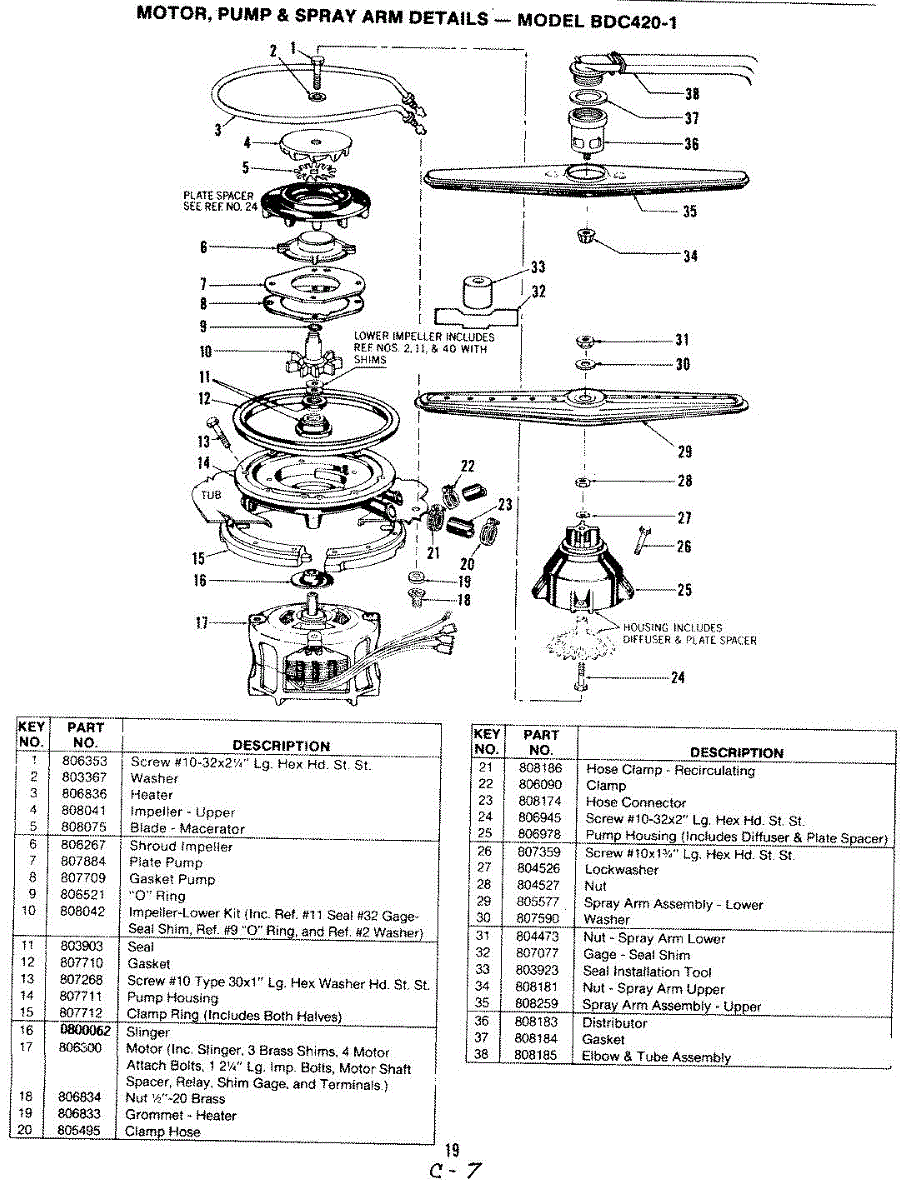

Parts for Magic Chef BDD520-1: 08 - Motor, Pump & Spray Arm (Bdc420-1) Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Fix poor upper rack cleaning in your dishwasher with this impeller and seal kit. Restores water pressure to the upper spray arm. Moderate DIY repair.

Dishwasher chopper blade grinds food particles in the sump filter assembly. Replace if dishes aren't clean or you hear grinding noises. Confirm fit with your model number.

Seals the connection between your dishwasher pump and housing to prevent leaks. Replace when you notice water pooling or dripping. Confirm fit with your model.

This O-ring is a small rubber sealing gasket that prevents water leaks at a refrigerator water connection. It restores a watertight seal to stop drips and maintain proper water flow to the dispenser/ice system. What it does:

• Creates a watertight seal at a water line or valve connection
• Helps stop visible dripping or slow leaks from fittings
• Maintains proper pressure and flow by preventing bypass around a joint
• Used where a compressible seal is required between two mating parts

• Shut off water supply and disconnect power before servicing
• Replace only with the correct-size O-ring and seat it evenly in the groove
• Inspect mating surfaces for nicks or debris; clean before installing the new O-ring
• Tighten fittings to manufacturer torque recommendations to avoid over-compression

Replacement mounting screw for dishwashers. Secures internal components and panels. Order a new screw if yours is stripped, missing, or damaged.

Brass nut that secures the heating element to the dishwasher tub. Replace if cracked, split, or causing leaks around the element mounting area.

This rubber grommet cushions and secures appliance components where they pass through panels or mount to frames, reducing vibration and protecting wiring or hoses from abrasion. It helps restore quiet operation and stable mounting. What it does:

• Cushions mounts and reduces vibration or rattling from motors or panels
• Protects wires, hoses, and tubing from chafing where they pass through openings
• Keeps components properly positioned to prevent wear and noise
• Worn or missing grommets can cause rubbing, vibration noise, or movement of parts

• One rubber grommet as shown

• Disconnect power to the appliance before servicing
• Remove the damaged grommet and install the replacement in the same orientation
• No special tools typically required; small pliers or a flat tool can help seat tight grommets
• Inspect surrounding seals, wiring, and mounting hardware while replacing

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Secures water or drain hoses to fittings, preventing leaks and loose connections. Replace when hoses slip or drip to restore a tight seal.

Replace your dishwasher's connector kit if the original is cracked, broken, or missing. This adapter installs between key components to ensure proper fit.

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

Mounting washer for dishwasher installation and assembly. Replace if washer is missing, cracked, or worn to ensure secure fastening of components.

Upper spray arm for dishwashers. Mounts to the top rack assembly to distribute water during wash cycles. Replace if cracked, broken, or missing.

Creates an airtight seal around your dishwasher door to prevent water leaks and improve cleaning performance. Replace when torn, cracked, or loose.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
