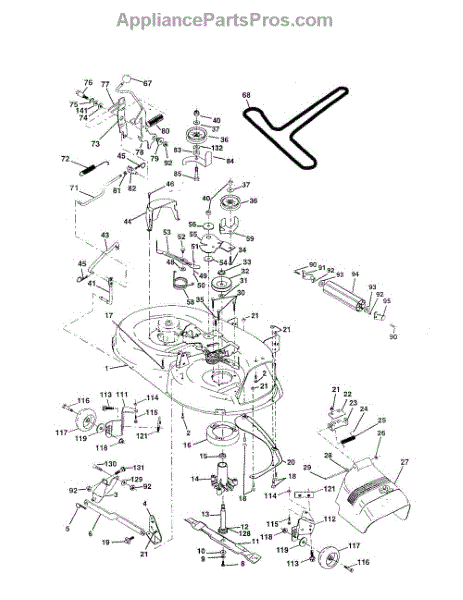

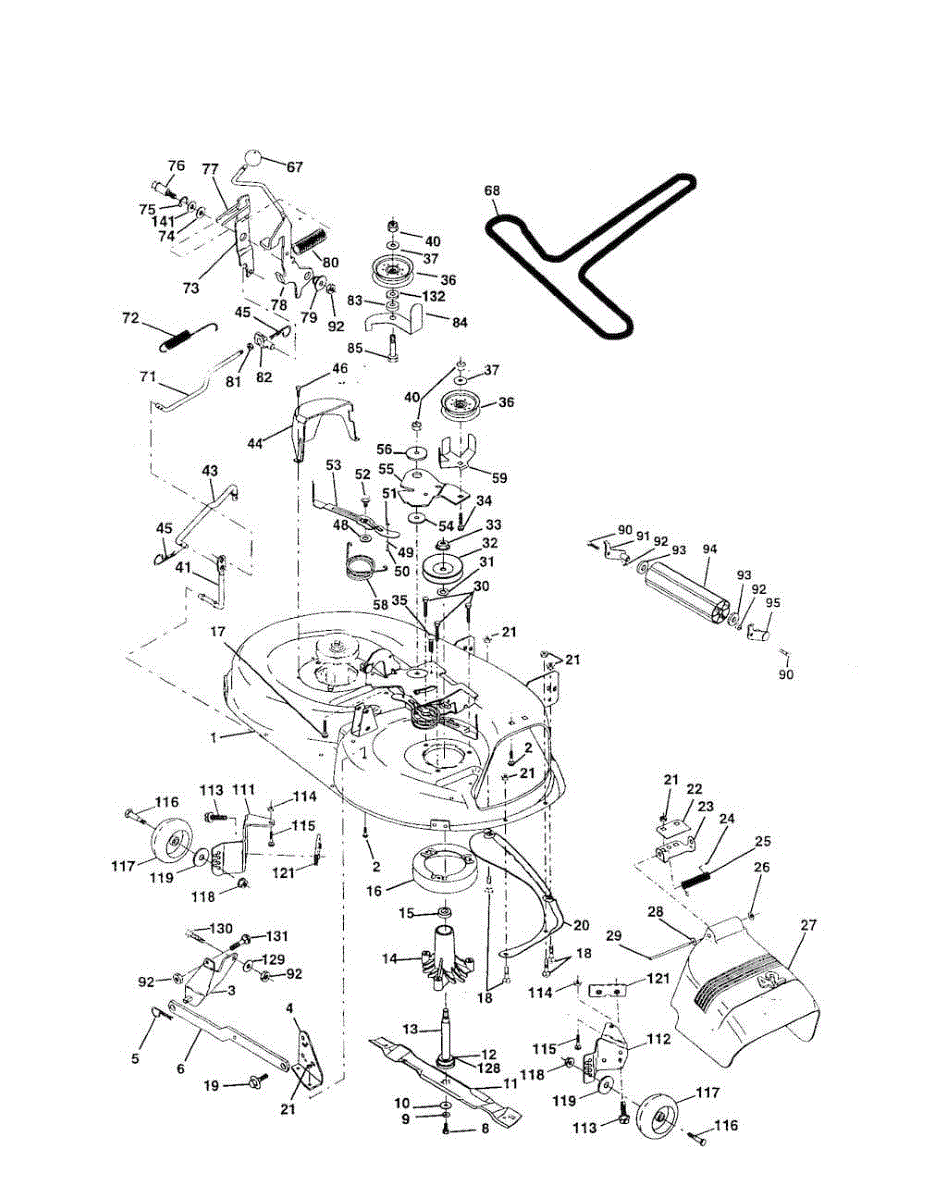

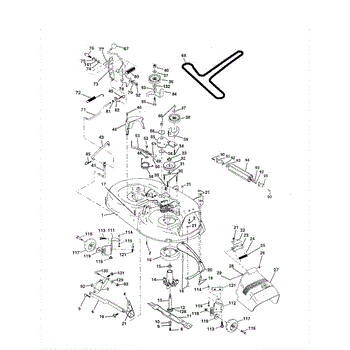

Parts for Poulan PPR17H42STA: Mower Deck Parts

This is a genuine OEM mandrel kit with a nut that is sourced directly from the manufacturer. It is designed for use on lawnmowers, tractors, and other outdoor lawn and garden equipment. The mandrel is responsible for spinning the blades on lawn mowers. It is part of the deck and can be a safety issue if not properly attached or if broken. If the spindle is broken or bent during use, it is apparent by uneven cutting, loud squealing, or vibrations, and buzzing sound. Mandrel replacement should be on a flat service for safety. If the mower is hot, allow it to cool before making repairs. Remove the spark plug and empty the gas tank. If the deck on the mower is removable, remove it before jacking the mower up. Once the mower is in the air, remove the blades to access the spindle. Remove the spindle. This is an excellent time to check the bearings and replace them if needed. Install the new spindle. Reinstall the blades. Lower the mower and if the deck was removed, reinstall the deck. This mandrel kit is made of high tensile metal; it comes with the nut for installation; it is sold as an individual unit. This mandrel kit is compatible with lawn mowers manufactured by Husqvarna Poulan, Weed Eater, and Ryobi.

This replacement deflector shield is a genuine OEM part intended for use on lawn mowers and tractors. It attaches to the side of the mower and directs grass clippings away from the blade as it mows. This serves to keep grass from bunching up in the blade, which could cause it to stall out. The direction of the deflector shield also blows grass clippings behind the mower to keep any potentially hazardous debris from flying up at the mower. Deflector shields can become dried out and brittle over time and can snap off if the mower drives too close to a wall, tree, or other hard object. Deflector shields usually only need replacing if they break. This would cause grass clippings and debris to fly in all directions, which could be dangerous for the user. Replacing the deflector shield is an easy repair and only requires a socket wrench set. This part is compatible with a wide variety of Husqvarna and Craftsman lawn mowers and tractors and is sourced from the original manufacturer. This product ships individually.

This is the replacement washer head screw for a lawnmower or lawn tractor. It is black in color and is roughly 1.5 inches in length. With its hexagonal head and washer face, it is usually used as a fastener in outdoor power tools. It is self-tapping, meaning it can tap its own threads when screwed into either plastic, wood, or metal. When used with lawn tractors and lawnmowers, this screw is commonly employed for securing the mandrel housing to the mower deck. Replace the washer head screw if the old screw is damaged or missing. First, a pilot hole should be made that's slightly smaller than the diameter of this screw before driving it with a screwdriver. This is also a thread-forming type of self-tapping screw, and it does not have a pointed tip. It is compatible with specific products from major brands like Ariens, Craftsman, Husqvarna, Murray, Poulan, Ryobi, and Weed Eater. This part is sold individually and is a genuine OEM part sourced directly from the manufacturer.

Deck idler pulley guides the mower belt on riding lawn tractors. Replace if belt slips, falls off, or pulley wobbles. Confirm fit with your model number.

Shoulder bolt for riding mower tractor assembly. Replaces worn, stripped, or missing 5/16-18 bolts. Essential hardware for secure component mounting.

Replacement spring for riding mower tractors. Installs in various mechanical assemblies. Order when original spring is broken, stretched, or missing.

Belt guard guides and protects drive belts on riding mowers and lawn tractors. Replace if cracked, broken, or missing to prevent belt damage and ensure safe operation. Verify fit with your model number.

This is a genuine replacement drive belt that is manufactured for use in select riding lawn mowers that feature double idler pulleys. This belt is specifically used on models that feature a 38- or 42-inch deck. Its job is to use the pulleys to engage and drive the cutting blades on the mower deck. Belts are subject to repetitive motion and high heat, which can cause them to crack or corrode, or even snap entirely. Replacing belts is typically considered a part of lawn mower maintenance, but some owners choose to keep an extra belt on hand in case of emergencies. Belts can also become stretched with excessive use, causing them to slip and lead to poor cutting performance. This is a genuine OEM drive belt from Husqvarna. It is compatible with select mowers from Poulan, Craftsman, and Husqvarna and fits more than 150 different models. It is made of durable rubber and will require a screwdriver or pry bar to install. Always be sure to disengage the engine and allow it to cool before performing any repairs. It is a good idea to secure the mower wheels when working under the deck, as well. This belt is sold as an individual unit and does not include any additional components.

Return spring for riding mower tractors. Replaces worn, broken, or missing springs. Restores proper tension and operation to linkage components.

Deck nose roller attaches to the front of your riding mower deck to prevent ground contact and wear. Replace if cracked, broken, or worn for smooth operation.

Wheel gauge bracket kit for 42-inch riding mower decks. Replaces cracked, bent, or missing brackets that support gauge wheel assemblies.

Wheel gauge bracket kit for 42-inch riding mower decks. Replaces cracked, bent, or missing brackets that support gauge wheel assemblies.

Bolt for riding mower tractors. Secures components and parts throughout the mower assembly. Replace if missing, stripped, or corroded for safe operation.

Shoulder bolt for lawn tractor mechanical assemblies. Enables rotation in gears, pulleys, and moving parts. Replace if worn, stripped, or missing.

Fix uneven cutting height or scalping issues with this gauge wheel. Regulates mowing deck depth for consistent lawn appearance. Simple installation.

Extruded gauge wheel bracket for riding mowers and lawn tractors. Replaces cracked, bent, or broken brackets that secure the gauge wheel assembly.

Fix excessive play or wobbling in rotating components with this riding mower thrust washer. Prevents axial movement between stationary and rotating parts.
