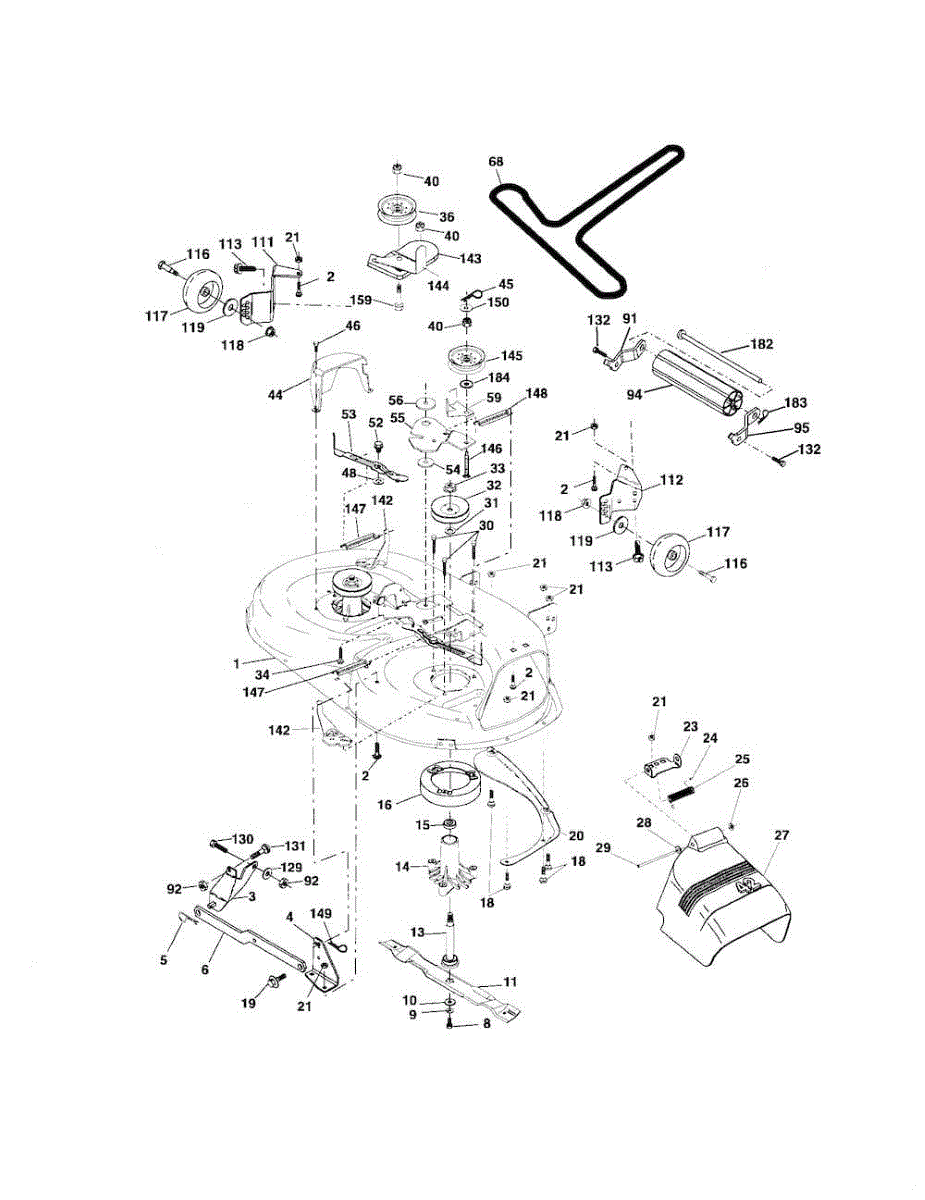

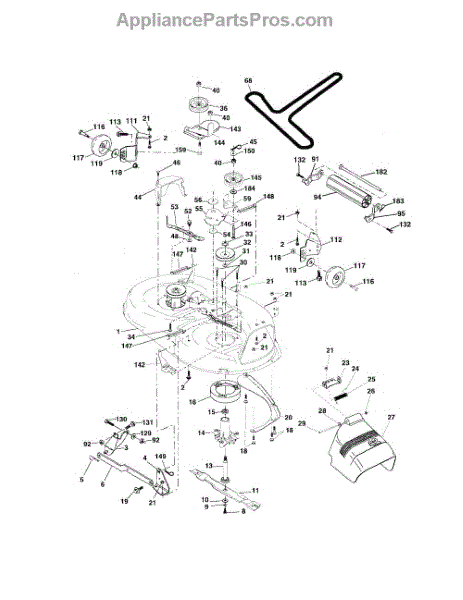

Parts for Poulan XT24H42YT: Mower Deck Parts

This is a genuine OEM mandrel kit with a nut that is sourced directly from the manufacturer. It is designed for use on lawnmowers, tractors, and other outdoor lawn and garden equipment. The mandrel is responsible for spinning the blades on lawn mowers. It is part of the deck and can be a safety issue if not properly attached or if broken. If the spindle is broken or bent during use, it is apparent by uneven cutting, loud squealing, or vibrations, and buzzing sound. Mandrel replacement should be on a flat service for safety. If the mower is hot, allow it to cool before making repairs. Remove the spark plug and empty the gas tank. If the deck on the mower is removable, remove it before jacking the mower up. Once the mower is in the air, remove the blades to access the spindle. Remove the spindle. This is an excellent time to check the bearings and replace them if needed. Install the new spindle. Reinstall the blades. Lower the mower and if the deck was removed, reinstall the deck. This mandrel kit is made of high tensile metal; it comes with the nut for installation; it is sold as an individual unit. This mandrel kit is compatible with lawn mowers manufactured by Husqvarna Poulan, Weed Eater, and Ryobi.

This replacement deflector shield is a genuine OEM part intended for use on lawn mowers and tractors. It attaches to the side of the mower and directs grass clippings away from the blade as it mows. This serves to keep grass from bunching up in the blade, which could cause it to stall out. The direction of the deflector shield also blows grass clippings behind the mower to keep any potentially hazardous debris from flying up at the mower. Deflector shields can become dried out and brittle over time and can snap off if the mower drives too close to a wall, tree, or other hard object. Deflector shields usually only need replacing if they break. This would cause grass clippings and debris to fly in all directions, which could be dangerous for the user. Replacing the deflector shield is an easy repair and only requires a socket wrench set. This part is compatible with a wide variety of Husqvarna and Craftsman lawn mowers and tractors and is sourced from the original manufacturer. This product ships individually.

This is the replacement washer head screw for a lawnmower or lawn tractor. It is black in color and is roughly 1.5 inches in length. With its hexagonal head and washer face, it is usually used as a fastener in outdoor power tools. It is self-tapping, meaning it can tap its own threads when screwed into either plastic, wood, or metal. When used with lawn tractors and lawnmowers, this screw is commonly employed for securing the mandrel housing to the mower deck. Replace the washer head screw if the old screw is damaged or missing. First, a pilot hole should be made that's slightly smaller than the diameter of this screw before driving it with a screwdriver. This is also a thread-forming type of self-tapping screw, and it does not have a pointed tip. It is compatible with specific products from major brands like Ariens, Craftsman, Husqvarna, Murray, Poulan, Ryobi, and Weed Eater. This part is sold individually and is a genuine OEM part sourced directly from the manufacturer.

Deck idler pulley guides the mower belt on riding lawn tractors. Replace if belt slips, falls off, or pulley wobbles. Confirm fit with your model number.

Flanged hex nut for lawn tractors and outdoor power equipment. Replace if threads are stripped, nut is missing, or hardware has corroded or loosened.

Shoulder bolt for riding mower tractor assembly. Replaces worn, stripped, or missing 5/16-18 bolts. Essential hardware for secure component mounting.

Belt guard guides and protects drive belts on riding mowers and lawn tractors. Replace if cracked, broken, or missing to prevent belt damage and ensure safe operation. Verify fit with your model number.

A V-belt is responsible for transmitting energy. It is made from a thick and sturdy rubber material. It features grooves for improved traction and measures ½ x 95-1/2. A worn-down v-belt can lead to inefficient energy loss, and therefore poor performance. Installing this v-belt requires pliers and a wrench. First, the spark plug wire needs to be removed. Then, position the mower deck to the lowest possible level. Move the machine's blade engagement level to OFF. Remove the belt found from the engine pulley. Don't forget to take out the bow-tie pins and blade engagement cable as well. Remove the bolt from the pulley cover and loosen the nuts found at the idler pulley. Put the new belt and then tighten the nuts on the idler pulleys. The deck can now be re-assembled to its original position. This Husqvarna 532144959 V-Belt OEM Replacement can help keep a lawnmower in top condition. This genuine Husqvarna made V-belt is specifically for driving the blades on a lawnmower. It is compatible with Ariens, Craftsman, Poulan Pro, Dixon, and Husqvarna mowers. This V-belt is sold individually.

Deck nose roller attaches to the front of your riding mower deck to prevent ground contact and wear. Replace if cracked, broken, or worn for smooth operation.

Wheel gauge bracket kit for 42-inch riding mower decks. Replaces cracked, bent, or missing brackets that support gauge wheel assemblies.

Wheel gauge bracket kit for 42-inch riding mower decks. Replaces cracked, bent, or missing brackets that support gauge wheel assemblies.

Replacement bolt for lawn tractors, riding mowers, and walk-behind equipment. Secures components together. Replace if missing, stripped, or damaged.

Shoulder bolt for lawn tractor mechanical assemblies. Enables rotation in gears, pulleys, and moving parts. Replace if worn, stripped, or missing.

This replacement extension spring is a vital part of the lawn tractor's blade system that helps to activate the blade break. This is useful when the operator wants to continue driving their lawn tractor but doesn't need the blade to continue rotating. Many lawn tractors include this as a safety precaution and require the operator to break the blade before they can drive in reverse. Extension springs are built to last a long time and very rarely break, but the coils may begin to separate from prolonged use. When this happens, the spring will no longer work as well and the operator will feel it start to give. Replacing the extension spring is fairly straightforward but will require you to remove the lower deck. Using a wrench to remove the spring can help but may not be necessary. This OEM extension spring is a high-quality replacement part sourced from its original manufacturer and is compatible with Ryobi, Jonsered, Husqvarna, Poulan, and Weed Eater lawn tractors. It ships individually.

This footrest pad is a righthand footrest pad and is a genuine Husqvarna part. It is made as a replacement part for lawn tractors. The footrest pad is the part of the mower on which the right foot sits while the machine is being used. It is also sometimes used as a pedal.To replace the footrest pad, simply remove the old one and attach this replacement part. No further disassembly of the tractor is required, so it is a relatively simple repair. However, before replacing the footrest pad, be sure to take proper safety precautions such as disconnecting the spark plug, emptying the fuel tank, and allowing the engine to cool completely.This footrest pad is a genuine OEM part that is sourced directly from the manufacturer. It is sold individually. Please note that it is not compatible with the left side of the tractor. It is compatible with tractors made by Craftsman, Husqvarna, and Poulan. It replaces obsolete part # 165799X428.

This part is a replacement foot rest pad. This is a genuine OEM part made by Husqvarna and has been sourced directly from the manufacturer. This part can be used to replace a worn or defective foot rest pad in a variety of lawn tractor models. This particular pad is intended for the left side.The foot rest pad ensures the user has a comfortable, non-slip surface on which to rest their foot. This part is subject to wear and tear and will require replacement with a genuine OEM part if worn, detached, or no longer effective. When working on or near any mechanical equipment, it is important to verify that it is powered off and completely cooled down before starting any repairs. For more accurate information on how and where to place this wheel, the appropriate owner's manual and equipment diagrams should be referred to. As an authentic replacement part, this foot rest pad is suitable for use on several different models of lawn tractors manufactured by Husqvarna, Poulan, and other brands. This is a genuine part made of high-quality, durable materials and is sold individually.
