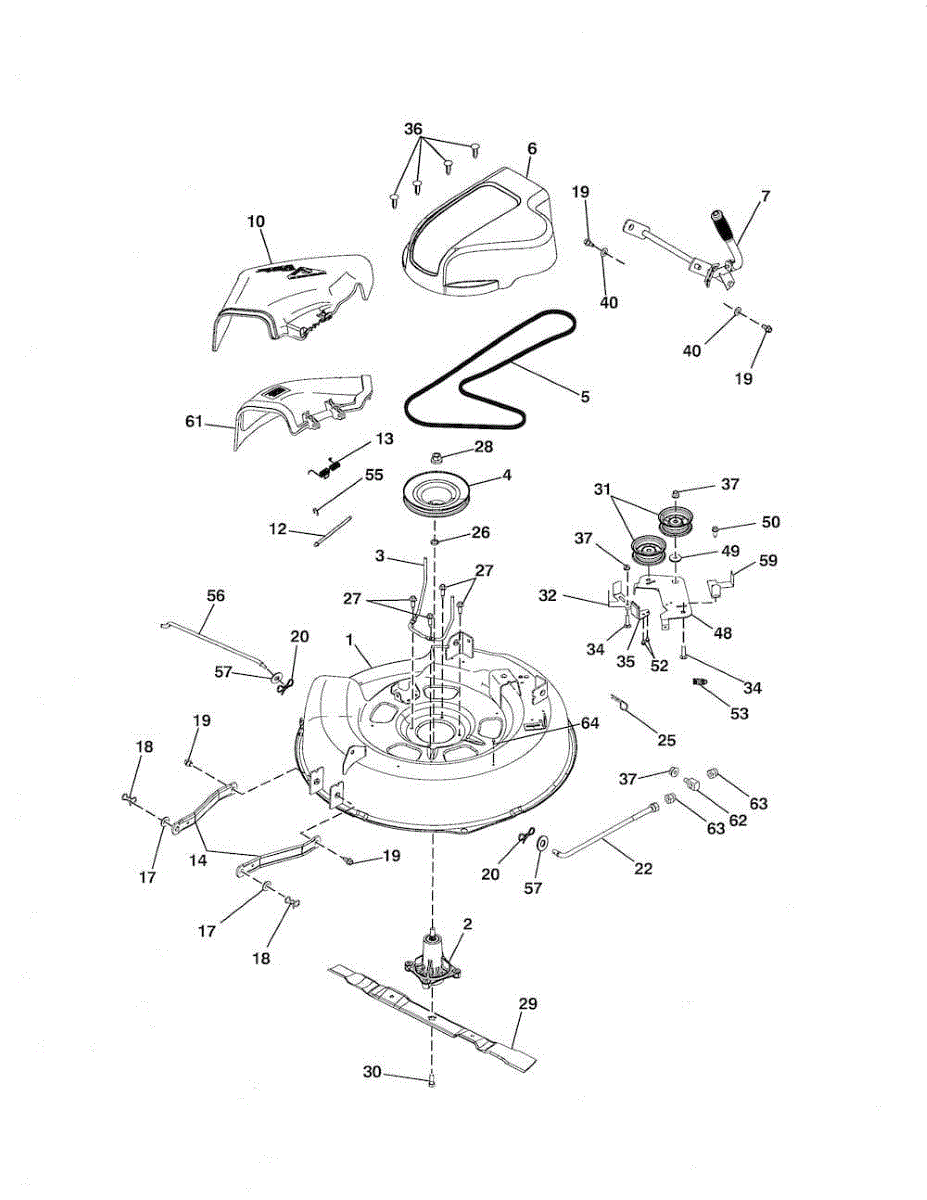

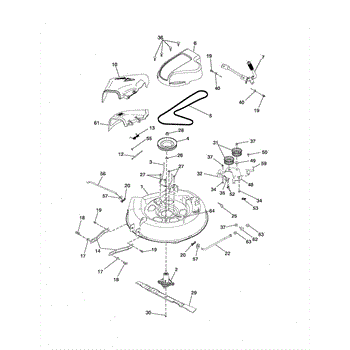

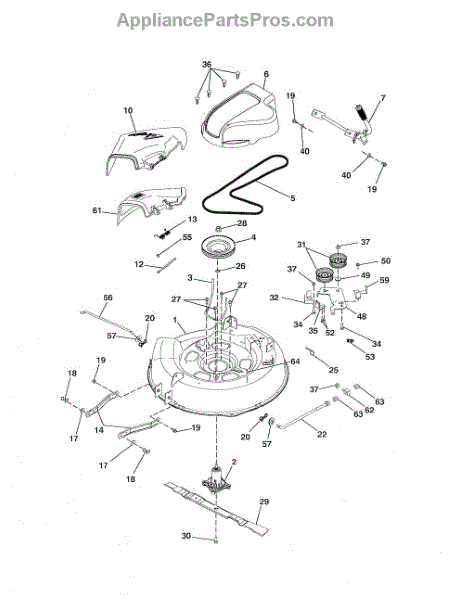

Parts for Weedeater WELRVBA30: Mower Deck Parts

This no grease mandrel assembly is the part that houses the shaft where the mower blade attaches. It is mounted to the deck of the mower by three bolts, which are sold separately. The mounting holes on the mandrel housing are not threaded, but the bolts used to secure the mandrel to the deck are self-tapping. If the lawnmower is no longer providing an even cut, there may be a problem with the mandrel assembly. A broken or damaged mandrel assembly can severely reduce the mower's cutting performance. Replace it as soon as possible. The mandrel shaft goes through the deck, and the pulleys are attached to them, then the belt that drives the mandrels is placed in the pulleys. A spacer must be installed under the pulley. Failing to use a spacer or installing it on top of the pulley will result in damage to the shaft and pulley. This mandrel assembly is compatible with Ariens, Craftsman, Husqvarna, Poulan, and Weed Eater lawn mower models. It is an OEM part sourced directly from the manufacturer and is sold individually. The mandrel assembly includes a housing, shaft assembly, bearing, and nut only; the pulley/washer and blade bolt/washers are not included.

This is the replacement washer head screw for a lawnmower or lawn tractor. It is black in color and is roughly 1.5 inches in length. With its hexagonal head and washer face, it is usually used as a fastener in outdoor power tools. It is self-tapping, meaning it can tap its own threads when screwed into either plastic, wood, or metal. When used with lawn tractors and lawnmowers, this screw is commonly employed for securing the mandrel housing to the mower deck. Replace the washer head screw if the old screw is damaged or missing. First, a pilot hole should be made that's slightly smaller than the diameter of this screw before driving it with a screwdriver. This is also a thread-forming type of self-tapping screw, and it does not have a pointed tip. It is compatible with specific products from major brands like Ariens, Craftsman, Husqvarna, Murray, Poulan, Ryobi, and Weed Eater. This part is sold individually and is a genuine OEM part sourced directly from the manufacturer.

This top lock flange nut is a genuine Husqvarna part, sold individually. This top lock flange nut can be used as a replacement part for lawn mowers. The purpose of a top lock flange nut is to provide a fastening component, in conjunction with a bolt, through which two parts can be affixed to one another through clamping and rotation.The top lock flange nut is a small fastening component that can be easily lost and misplaced. If components come loose as a result of a lost top lock flange nut, the component should be replaced by this genuine OEM replacement part. Additionally, over time, a top lock flange nut can be stripped or eroded beyond functionality, in which case the component should be replaced. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This is an OEM part sourced directly from the manufacturer. It is sold individually. This top lock flange nut is compatible with the following outdoor appliance brands: Husqvarna, Craftsman, Weed Eater, Dixon, Poulan, and Aries.

This genuine Husqvarna bolt and washer replacement part is specifically engineered to hold and secure the lawnmower blade in place. The bolt is threaded while the washer has a curved or rounded headed. A washer is needed for even load distribution of the threaded bolt. Fastening the bolt without the fastener may cause stress to the material it's driven into. One of the warning signs that the bolt and washer are broken is if the lawnmower blade doesn't rotate properly. Instead of moving in one circular motion, it turns erratically and goes up and down. In some cases, it will make a loud grinding noise during cutting. The lawnmower blade may even fly out from its normal position. Replacing the worn-down bolt and washer is fast and straightforward. First, shut down the engine and let it cool. Then, take out the spark plug and turn the mower on its side. Use a socket to remove the old bolt and washer. Then, grab the replacement and insert it through the blade's hole. Tighten it using the socket. This original Husqvarna bolt and washer is only suitable for lawnmowers made by Husqvarna, Craftsman, and Weed Eater. It is also compatible with some Dixon and Poulan lawnmowers. This bolt and washer replacement is sold individually.

This is a belt guard for use with certain models of riding mower and lawn tractor. The belt guard is situated between the washer and the arm idler. The purpose of the guard is to help guide the belt so that it works properly. They could also help to protect the belts from damage and work as a safety feature.The belt guard is made from durable metal and it is made to last. However, owners might find that they eventually need to replace the piece if it breaks or has other damage. If the belt guard has been bent or if it is corroding, it will not do its job properly. Replacing the guard will require a socket set, wrench set, and a set of pliers.The belt guard can serve as a replacement for many models of riding mowers and tractors from Husqvarna, Weed Eater, Ryobi, Poulan, and Jonsered. The piece is sold individually, and it is an authentic OEM replacement part sourced from the manufacturer.

This flanged hex nut is used in various models of lawn and garden equipment. The nut is considered a standard hardware part that may have multiple applications on different units. It is typically used along with a bolt or screw to provide a secure hold for various components. This nut is a small part and can become lost in the process of other repairs. It can also break or strip the threads due to regular wear and tear, impact damage, or another issue. If this nut is broken or missing, it needs to be replaced immediately. Replacing the hex nut with a genuine OEM part will ensure equipment is always in proper working order. This OEM hex nut is designed for use in select Craftsman and Husqvarna equipment. It is manufactured by Husqvarna as an exact replacement for the original nuts that came with the machine. This part can fit on more than 150 machines, including lawn mowers, tractors, snow blowers, and trimmers from both brands. Owners will want to check their parts diagram for the exact location(s) and application(s) of this nut. Since it is standard hardware, some people purchase multiple quantities to keep extra parts on hand in case of emergency.

This replacement part is a return spring, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by Husqvarna. A return spring is an essential part of many different engines. This type of spring is able to stretch and allow two different parts to work together and ensure that the machine is running smoothly. A new return spring might be needed if there are unusual noises coming from the inside of the device. It is possible that the return spring is malfunctioning or out of place. It is common that this type of spring can become stripped and snap over time. Be sure the engine is cooled down prior to attempting this repair. This spring is sold individually and is sourced from the manufacturer to ensure a proper fit in many devices. This is also a genuine OEM replacement part.

The Husqvarna 42 inch guard tuv idler, also called a belt keeper, can protects belts within the equipment. As a safety device, the guard tuv idler prevents injury to the operator and the machine. It will need to be replaced because of normal wear and tear like anything else. A bent, rusty, or debris-encrusted guard idler could cause a broken belt or worse.Proper maintenance will ensure a strong guard tuv idler and overall strong lawn mower. To replace this piece, a few wrenches are needed. Make sure the mower is off, and all moving parts have been stopped. Unplug the spark plugs to ensure the mower is off, and for added safety. Then, with wrenches, locate the guard tuv idler and remove the bolt and nut. Remove the old idler and place in the new one tightening the nut around it. This piece should be tight and not wobbly after installation. This is compatible with the Poulan PB30 electric start riding mower. The PB30 is considered a heavy-duty lawn mower and the deck is made from 14-guage steel. The guard tuv idler is a genuine OEM part sourced directly from the manufacturer and is sold individually.
