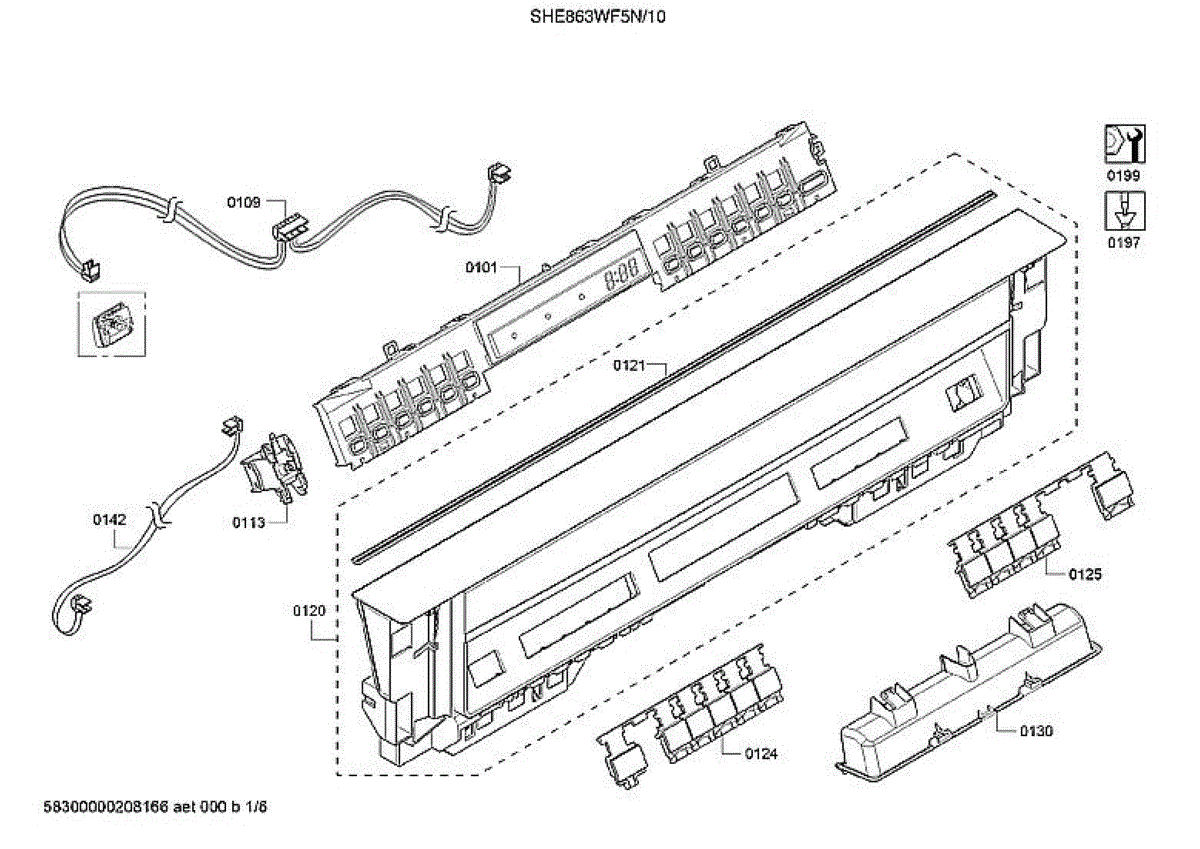

Parts for Bosch SHE863WF5N/10: Operating Module / Facia Panel Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Control Unit Dishwasher is an OEM component specially designed for premium Bosch dishwashers. It monitors cycles, temperatures, and water levels through precise digital controls and sensors. The control unit enables customized performance to suit any load with advanced settings for specialty items too.

Causes of failure can include liquid intrusion inducing shorts over time. Physical drops or impacts may also crack circuits or connections within.

Symptoms include:

• Inability to precisely regulate cycles as wash conditions change
• Faulty gauges of soil levels, temperatures, and run times
• Non-responsiveness of cycle or option buttons
• Draining, heating, and motorized malfunctions

Replacing with this genuine Bosch control unit restores customized functionality. Compatible with Miele, Asko, and Thermador models, optimization with an OEM component keeps dishes sparkling for years to come.


The Wire Harness is an OEM component specifically designed for select Bosch dishwashers requiring electrical connections between moving components. It facilitates signal and current pathways throughout appliance frames.

Reinforced flexing sections bend without kinks accommodating shifting door movements. While connector joints remain snug against jostling. This daisy chain design simplifies diagnostics and maintenance procedures compared to individual wiring.

Symptoms signaling the need for a new harness include:

• Intermittent cycle malfunctions indicating loose or corroded connections
• Broken or cracked housing exposing live conductors to shorting hazards
• Overly taut sections hindering the intended range of component motions

Causes relate to prolonged abrasion stresses and water damage compromising insulation throughout thousands of cycles. Physical damage during repairs may require a complete replacement of this integral wiring backbone.

This OEM Bosch replacement harness is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers relying on consistent control schemes. Reinstallation restores reliable electrical pathways.


The On/Off Switch is an OEM part for Bosch dishwashers. This switch controls the power to the dishwasher, allowing the user to turn the appliance on and off. It is typically located on the control panel and is essential for initiating and halting the wash cycles.

Causes of a bad On/Off switch can include wear and tear from regular use, electrical malfunctions, or physical damage such as cracks or breaks. When the switch fails, it can prevent the dishwasher from powering on or off correctly, disrupting the appliance's functionality.

Symptoms of a bad On/Off switch include:

• Dishwasher not turning on
• Difficulty in turning the dishwasher off
• The switch feeling loose or unresponsive
• Flickering power or intermittent operation

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Panel Facia is an OEM part for Bosch dishwashers. It is the front control panel of your dishwasher, providing a clean and polished look.

A bad panel facia can occur due to wear and tear over time, accidental damage, or exposure to moisture and cleaning agents. Signs of a faulty facia include cracks, discoloration, or a loose fit that compromises the aesthetic appeal of your dishwasher.

Symptoms of a bad panel facia include:

• Cracks or visible damage on the surface
• Discoloration or fading
• A loose or missing panel

Replace your damaged or worn-out panel facia with this genuine OEM Bosch part to restore the appearance of your dishwasher. This Bosch part can also be used on Thermador and Gaggenau appliances.


This seal creates a tight, leak-proof interface between mating components inside your appliance. Replacing a worn seal helps stop drips and protects nearby parts for reliable, leak-free operation.

• Forms a watertight barrier between connected parts
• Replaces cracked, flattened, or deformed sealing material that can leak
• Helps address puddling, dampness, or seepage around the unit
• Maintains proper performance and helps prevent water damage to surrounding components

• Disconnect power and shut off the water supply before servicing
• Access the sealed joint and note the original orientation and seating depth
• Clean mating surfaces; do not use sealants unless specified by the manufacturer
• Seat the new seal evenly; lightly lubricate with a water-safe lubricant and run a test cycle to check for leaks

This push button set replaces worn or damaged control panel buttons to restore reliable tactile feedback and appearance. It's a direct-fit control panel button assembly for appliances that use removable push-style controls. What it does:

• Replaces cracked, sticky, or unresponsive control buttons so functions register correctly
• Restores consistent tactile feel and improves user input accuracy
• Helps eliminate accidental skips or missed selections caused by worn buttons
• Matches original button layout and fit for straightforward replacement

• High-level replacement: remove the control panel or trim to access and swap the button assembly
• Disconnect power to the appliance before starting to avoid shock or damage
• Use basic hand tools; handle plastic buttons and clips carefully to avoid breakage

This factory replacement push button set restores smooth, reliable control-panel operation so you can select cycles and options with a proper click. Ideal when buttons are worn, cracked, sticky, or no longer actuate the switches behind the panel.

• Serves as the physical interface on the control panel for cycle/option selection
• Transfers your finger press to the underlying user-interface switches
• Helps resolve unresponsive selections or the need to press unusually hard
• Addresses buttons that are loose, sticking, cracked, or missing
• Restores consistent tactile feel and appearance on the console

• Disconnect power to the appliance before servicing
• Remove the console/fascia to access and release the old button caps
• Note button positions; install new buttons in the correct orientation until tabs fully engage
• Reassemble the panel and test each button for smooth travel and proper response

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This factory replacement handle restores a secure, comfortable grip for opening and closing your appliance. Replace a cracked, loose, or missing handle to improve usability and refresh the unit's appearance.

• Provides the handhold used to open and close the appliance door or panel
• Restores a firm, stable attachment when the original handle is cracked, stripped, or missing
• Helps address symptoms such as a loose/wobbly handle, difficulty opening, or cosmetic damage
• Built to match model-specific mounting geometry for proper alignment and fit

• Disconnect power to the appliance before service
• Support the door/panel while removing and reinstalling fasteners
• Transfer and reuse your model's original mounting hardware as needed
• Tighten fasteners evenly and check alignment and operation after reassembly

The Dishwasher Installation Set is an OEM part for Bosch dishwashers. This set contains all necessary hardware for professional installation or replacement, including leveling legs, mounting brackets and anti-tip brackets. Manufactured from corrosion-resistant steel, these parts securely fasten the dishwasher into place.

Causes relate to normal wear over time from use. Improper original installation may also compromise individual parts. Failing to properly level, brace or anchor the dishwasher leads to unnecessary stresses.

Symptoms of worn or missing installation hardware include:

• Looseness, shaking or movement during operation
• Doors failing to properly self-close or seal fully
• Leaks developing around dishwasher connections
• Installation not compliant with current regulations

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.
