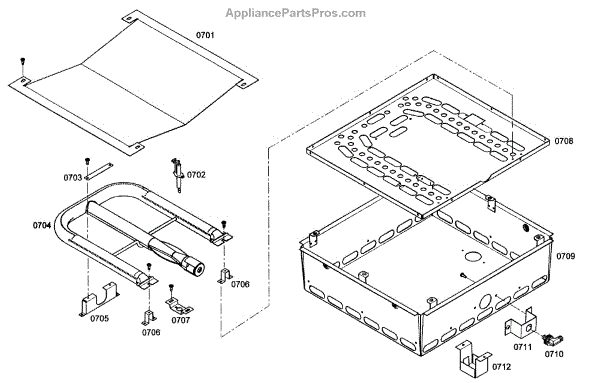

Parts for Thermador PRL366EG02: Oven 2 Parts

This spark igniter is the burner electrode that creates the high-voltage spark to light the gas. Replacing a worn igniter restores quick, reliable ignition and helps eliminate repeated clicking or having to light the burner manually.

• Generates a spark at the burner to ignite gas during lighting
• Typical symptoms: burner won't light, no visible spark at that burner, intermittent or delayed ignition, or needing a match to light
• Replaces a cracked, fouled, or heat-damaged electrode that no longer sparks reliably
• Provides the ignition spark only; gas flow is managed by the valve

• Disconnect power and shut off gas before servicing
• Remove grates/caps and access the burner; note wire routing and mounting
• Transfer mounting hardware from the old igniter; handle the ceramic insulator gently and keep the tip clean
• Reassemble, restore power/gas, and verify proper spark and burner ignition

A Trident-style surface burner head that directs gas to the cooktop burner for an even, controlled flame. Replaces a worn or damaged burner head to restore consistent heating and safe operation. What it does:

• Directs and shapes the gas flame for proper cooking heat
• Restores even flame pattern when the original burner is warped or clogged
• Helps eliminate weak or irregular flames caused by damaged ports
• Works with the burner base and cap to maintain stable ignition

• Turn off the appliance and shut off gas/electric power before servicing
• Remove grates and burner cap, then replace the burner head; reassemble in reverse order
• Clean mating surfaces of debris or corrosion before installation for proper fit
