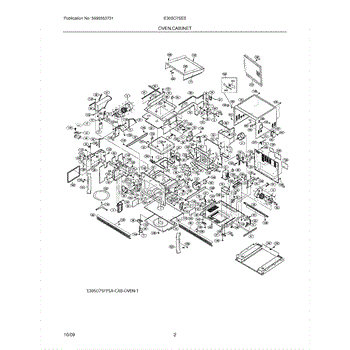

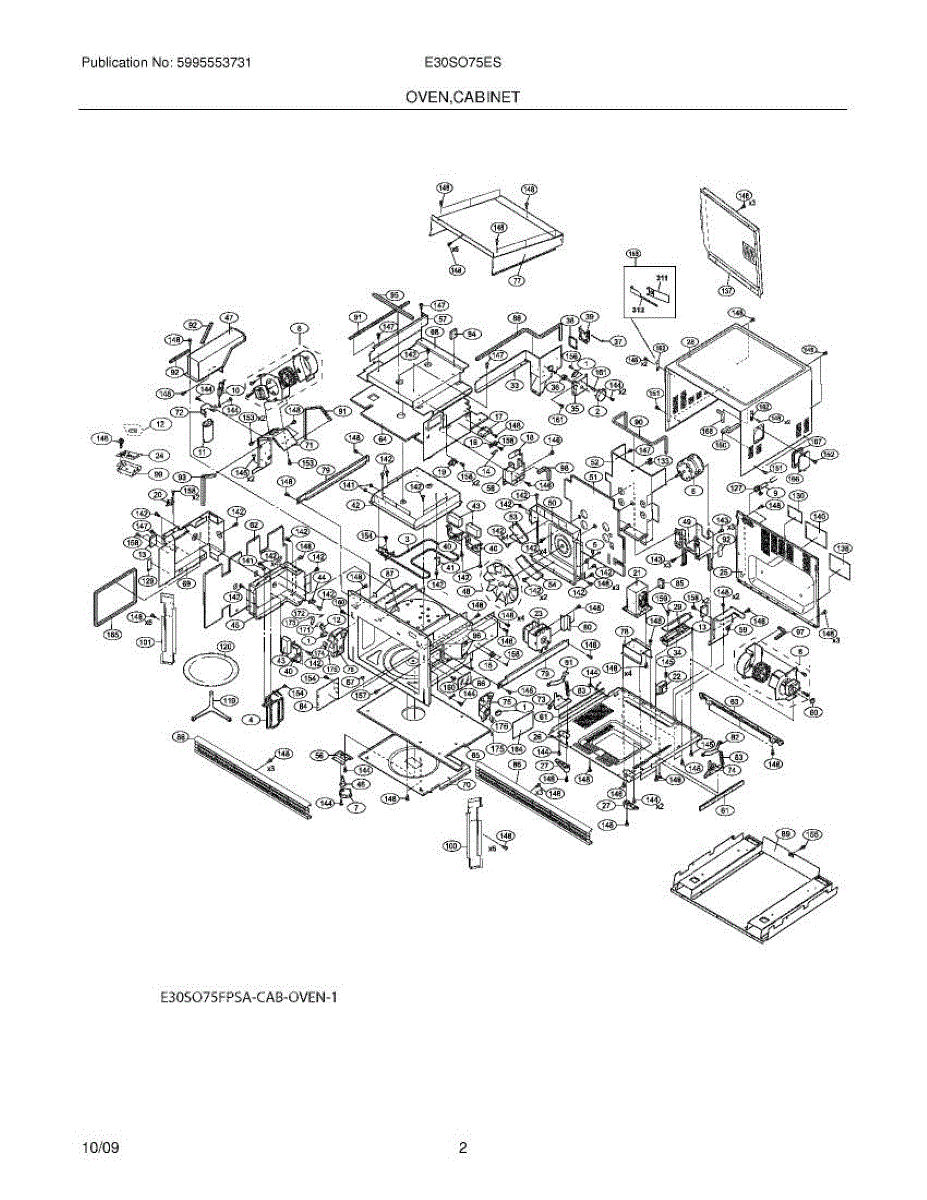

Parts for Electrolux E30SO75ESSB: 03 - Oven / Cabinet Parts

The Door Switch is an OEM replacement part for Frigidaire wall ovens. It is a component located on the oven door that detects when the door is opened and closed. The door switch works alongside the control board to regulate oven operations based on door position.

Symptoms of a bad door switch can include:

• Oven failing to automatically go into bake or warm modes after door closure
• Interior lights not turning on when the door is opened
• Control buttons/display remaining constantly lit instead of dimming
• Oven not heating or functioning properly in different modes

Causes relate to normal wear over extended use as the door switch mechanism cycles with frequent door openings and closings. Moisture exposure or impacts could also degrade switch performance.

This OEM Frigidaire switch is compatible with Amana, Jenn-Air, KitchenAid, and some Electrolux wall oven models as well.

This motor capacitor helps start and run appliance electric motors by providing the brief boost of power the motor needs to reach operating speed. Replaces a failed capacitor to restore normal motor starting and performance. What it does:

• Provides the electrical phase shift and momentary voltage boost motors need to start and run
• Commonly replaced when a motor hums, will not start, or runs weakly
• Helps stabilize motor operation and reduce hard starting stresses
• Resolves intermittent or failed motor startup symptoms when capacitor is the root cause

• Disconnect power to the appliance before accessing or replacing the capacitor
• Discharge stored voltage in the capacitor before handling to avoid shock
• Verify terminal connections and orientation match the original before installation

This thermal fuse stops excessive heat by opening the circuit when temperatures get too high, protecting the appliance and its components. Replace a blown fuse to restore normal heating or safety shutdown functions. What it does:

• Acts as an over-temperature safety device to interrupt power when internal temps exceed safe limits
• Commonly linked to symptoms such as no heat, intermittent heating, or an appliance that won't start
• Prevents further damage by cutting power when a serious overheating condition occurs
• Functions as a single-use safety cutout—if it's open, it must be replaced

• One thermal fuse

• Disconnect power before testing or replacing; verify no voltage present
• Test continuity with a multimeter to confirm the fuse is open before replacing
• Replace with the same part number and rating; do not bypass or substitute with wire
• If the fuse failed, inspect the appliance for underlying issues before returning to service

This magnetron is the high-voltage microwave tube that generates the energy used to heat food in a microwave oven. Replacing a failed magnetron restores microwave heating when other components are good. What it does

• Converts high-voltage electrical energy into microwave radiation to heat food.
• Commonly linked to no-heat or weak-heat symptoms in microwave operation.
• Fails can produce unusual noises or arcing inside the cavity before complete loss of heating.
• Works with the oven's high-voltage circuit; other components also affect operation.

• One replacement magnetron (quantity: 1) — unit only.

• High-voltage components retain lethal charge even when unplugged; discharge the high-voltage capacitor before service.
• Disconnect power and follow the manufacturer's service manual for safe removal and installation.
• Inspect surrounding high-voltage components and waveguide/cover for damage while servicing.

This coupling connects the washer drive motor to the transmission to transfer power for agitation and spinning. Replacing a worn or broken coupling restores reliable drive engagement and reduces noise and slipping. What it does:

• Transfers motor rotation to the transmission so the drum agitates and spins
• Prevents metal-on-metal contact between motor and gearbox when intact
• Common symptom: washer won't agitate or spin, or slips under load
• Common symptom: loud grinding or clunking noises from the washer during cycle

• One coupling

• Disconnect power and water before servicing; follow the manufacturer's disconnection procedures
• Access may require removing the washer cabinet or front panel—refer to your model's service manual
• Inspect adjacent parts (motor mounts, shaft splines) for wear and replace as needed

This replacement angle is a small metal mounting bracket used to secure components in place on compatible Frigidaire appliances. It restores proper positioning and support for panels or assemblies that rely on a fixed bracket. What it does

• Provides a sturdy mounting point to hold panels, rails, or small assemblies in alignment.
• Replaces bent, cracked, or missing brackets that allow shifting or vibration.
• Helps stop rattling, misalignment, or loose panels caused by a damaged bracket.
• Works as a direct-fit hardware piece when the original bracket is worn or broken.

• Installer should turn off power to the appliance and unplug before starting work.
• Use appropriate hand tools; bracket fasteners may require small screws or bolts.
• Keep track of removed fasteners and any shims or spacers—reinstall in the same order.

This packing is a replacement door gasket that seals the appliance cabinet to keep cold in and warm air out, helping maintain proper cooling and reduce frost buildup. It restores a tight seal around the door for consistent performance. What it does:

• Replaces a worn or torn door seal to stop warm air leaks and reduce frost and moisture inside the compartment
• Helps the appliance maintain set temperatures and can improve cooling consistency
• Can reduce unnecessary compressor run time caused by poor sealing
• Addresses symptoms like visible gaps, cold loss at the door, or excessive frost buildup

• Disconnect power to the appliance or unplug before starting work
• Clean the door frame and contact surfaces before installing the new gasket to ensure a good seal
• Align and seat the gasket evenly around the door; some gaskets require gentle stretching or warming for proper fit
• Inspect door hinges and closing action; adjust if the door does not close evenly after gasket replacement

This rubber mounting cushion cushions and isolates appliance components to reduce vibration, noise and wear. It protects contacts and trim while helping parts stay securely positioned for reliable daily operation. What it does:

• Dampens vibration and reduces rattling or buzzing during operation
• Protects edges and surfaces from metal-to-metal contact and wear
• Helps hold panels or components in proper alignment
• Absorbs shock from door or component movement to prevent damage

• One rubber mounting cushion

• Disconnect power before accessing internal panels or parts
• Remove trim or fasteners as needed to reach the mounting location; note original orientation for correct placement
• Press or seat the cushion fully into its mounting slot; replace any retaining clips if present
• If adhesive was used originally, use a compatible, appliance-safe adhesive following manufacturer instructions

This rubber cushion cushions and protects cabinet and door contact points, reducing noise, vibration, and wear. It restores a snug, quiet fit where plastic or metal parts meet and helps stop rattling or door misalignment. What it does:

• Absorbs impact between door, drawer or cabinet components to prevent metal-on-metal contact
• Reduces vibration and rattling that can occur from loose or worn bumpers
• Helps maintain proper door/drawer alignment and smooth closing
• Worn or missing cushions can cause noise, scraping, or uneven gaps

• One replacement rubber cushion

• Disconnect power and remove any panels or trim needed to access the worn cushion
• Most cushions press into a hole or slot; gently push into place until fully seated
• Inspect surrounding mounting area for damage or buildup and clean before installing
• Use basic hand tools; if adhesive was used originally, replace with appropriate adhesive rated for appliance plastics if needed

This replacement cushion is a small rubber damper that helps isolate and support appliance components to reduce vibration and prevent wear. It restores stable contact points for smoother, quieter operation. What it does:

• Absorbs vibration and reduces noise where panels or components meet
• Cushions and protects parts from impact and wear
• Helps maintain proper alignment of mounted parts
• Can prevent rattling or movement that results from worn or missing cushions

• Cushion

• Disconnect power and water before servicing the appliance
• Use basic hand tools and avoid sharp prying that can tear the cushion
• Replace all matching cushions for even performance

This replacement appliance label provides the factory identification and safety information fastened to the appliance so you can read model/serial and safety/warning text clearly. It restores legible markings for servicing and ownership records. What it does

• Shows the appliance identification, model/serial or rating area and factory safety/warning text so technicians and owners can service data.
• Helps ensure required safety and operating instructions remain visible and readable.
• Replaces a torn, faded, or missing label that can make identification and troubleshooting harder.
• Supports accurate parts ordering and service by restoring the original markings.

• One replacement label

• Peel-and-stick replacement; clean and dry the surface thoroughly before applying.
• Align carefully and press from one edge to the other to avoid bubbles; firm pressure ensures adhesion.
• Do not stretch or trim the label unless explicitly specified by the equipment instructions.
• For safety, disconnect power or follow manufacturer safety precautions before working near electrical components.

This replacement identification decal restores legible equipment labeling so model, rating and safety information are visible for service and ownership. It helps replace faded, torn or peeling labels to improve readability and compliance. What it does:

• Provides a clear, adhesive identification decal with printed model/rating/safety information
• Replaces faded, torn or peeling factory labels that are hard to read
• Helps owners identify the appliance correctly during service
• Maintains visible safety and rating information required for repair or inspection

• Clean and dry the installation surface thoroughly before applying
• Peel backing and press decal firmly, smoothing out air bubbles for full adhesion
• Do not stretch, reposition repeatedly, or apply to wet/oily surfaces
• If label covers a vent or operational opening, confirm placement with service manual

This is a replacement screw used to secure appliance components and panels so assemblies stay stable and aligned. It provides a straightforward fix when a mounting fastener is missing, stripped, or damaged. What it does

• Secures panels, brackets, or trim to prevent movement and vibration
• Stops rattling or loose parts caused by missing or damaged screws
• Restores proper fit and alignment of the affected assembly
• Works wherever the OEM-designated screw of this size and thread is required

• Turn power off or unplug the appliance before working on electrical areas
• Use the proper-size driver to avoid stripping the head
• Start threads by hand, then tighten until snug — do not overtighten
• If the original screw is corroded or the hole is damaged, inspect mating parts for repair before installing

This is a replacement screw used to secure interior and exterior appliance panels and small components, restoring secure attachment and eliminating loose or rattling parts. Ideal when original fasteners are missing or damaged. What it does:

• Secures trim, access panels, brackets, and small assemblies
• Stops rattling, vibration noise, and loose panel movement
• Replaces missing, worn, or stripped fasteners to restore fit
• Works as a direct-fit fastener where the OEM screw is specified

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or driver bit to avoid cam-out or damage
• Thread by hand to avoid cross-threading, then tighten snugly—do not overtighten

This is a replacement mounting screw used to secure panels, trim, and small components in compatible appliances. Installing the correct screw restores a secure fit and helps stop rattling or loose parts. What it does:

• Secures panels, brackets, trim pieces or small assemblies to the appliance frame
• Prevents parts from shifting, vibrating, or producing rattling noises when in place
• Replaces missing, worn, or stripped fasteners that cause loose doors or misaligned trim
• Works with the original mounting points and thread types used by the manufacturer

• Always disconnect power or unplug the appliance before servicing to avoid electrical hazard.
• Use the correct screwdriver or bit to avoid stripping the head; do not overtighten.
• Keep track of small parts and compare the new screw to the old one before installation.

This is a replacement mounting screw used to secure panels, trim, and small components in compatible appliances. Installing the correct screw restores a secure fit and helps stop rattling or loose parts. What it does:

• Secures panels, brackets, trim pieces or small assemblies to the appliance frame
• Prevents parts from shifting, vibrating, or producing rattling noises when in place
• Replaces missing, worn, or stripped fasteners that cause loose doors or misaligned trim
• Works with the original mounting points and thread types used by the manufacturer

• Always disconnect power or unplug the appliance before servicing to avoid electrical hazard.
• Use the correct screwdriver or bit to avoid stripping the head; do not overtighten.
• Keep track of small parts and compare the new screw to the old one before installation.

This rubber cushion is a small replacement bumper that reduces vibration, cushions moving parts and helps prevent noise or wear from metal-to-metal contact. It restores quiet, stable operation for the part it supports. What it does:

• Acts as a shock absorber to reduce vibration and rattling
• Protects surfaces and components from direct contact and wear
• Helps maintain proper spacing and alignment for moving assemblies
• Common symptom: noise, vibration, or metal-on-metal contact where a bumper is missing or worn

• One replacement cushion

• Safety first: disconnect power before servicing electrical appliances
• Inspect the mounting area and remove debris before installing the new cushion
• Most cushions press into place; no special tools usually required
• If adhesive or fasteners are present on the old cushion, retain or replace them exactly as found

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

Note: Quantity is one tool (right side)

Left side tool is part # AP3778569

Right side tool part # AP3778556
