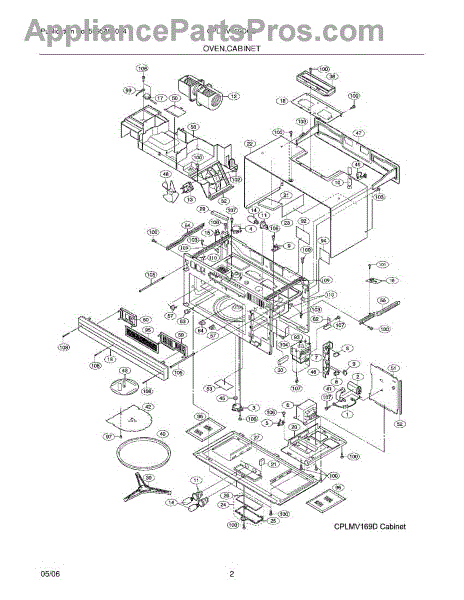

Parts for Frigidaire CPLMV169DCD: 03 - Oven / Cabinet Parts

Parts for Frigidaire CPLMV169DCD: 03 - Oven / Cabinet Parts

Location on Diagram
Part Description
Price & Availability
F1
Product photo
5.0 (3)
By: Frigidaire
Part Number: 5304468869

This rectifier assembly (diode) is part of the microwave's high-voltage circuit, converting alternating current to direct current to power the magnetron. It works in conjunction with the high-voltage capacitor to double the transformer's output voltage. Replace this part if the microwave runs but does not heat, or if testing reveals the diode has shorted or opened.

More
$75.22

IN STOCK
Ships Today Guaranteed
Add to Cart
F2
Product photo
By: Frigidaire
Part Number: 5304455389

If your microwave won't heat food or hums loudly, the high voltage capacitor may have failed. This electrical component stores energy for the magnetron.

More
$58.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
F3
Product photo
4.9 (15)
By: Frigidaire
Part Number: 5304440021

This replacement motor restores reliable rotation to the component it drives—bringing back proper airflow or mechanical movement so your appliance runs as designed and noise is minimized.

  • Converts electrical energy into steady shaft rotation to power the attached fan, blower, or mechanism
  • Common failure signs: won't start, only hums, stalls, or intermittently runs
  • Worn bearings or windings can lead to overheating and reduced performance
What's included: 1 motor Install notes:
  • Disconnect power before servicing; if the unit uses capacitors, discharge them per the service manual
  • Note wire locations and transfer any brackets, grommets, or fan blades from the old motor
  • Mount securely, align the shaft, and confirm correct rotation before finalizing
  • Spin the shaft by hand to check for free movement, then test for smooth, quiet operation

More
$77.95

IN STOCK
Ships Today Guaranteed
Add to Cart
F4
Product photo
By: Frigidaire
Part Number: 5304440022
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

F5
Product photo
4.0 (1)
By: Frigidaire
Part Number: 5304440023

This control switch regulates heat to a surface burner so the cooktop reaches and holds the selected temperature. Restores responsive burner control and consistent cooking performance. What it does:

  • Sends variable power to a surface burner to adjust heat levels as you set the knob
  • Commonly replaces a switch that causes a burner to stay cold, not heat, or only work at one setting
  • Can fix clicking, intermittent operation, or loss of variable control on the affected element
  • Works with the cooktop's control knob and wiring harness to manage element output

What's included:

  • One replacement infinite burner control switch

Install notes:

  • Disconnect power to the appliance before beginning any work
  • Remove the cooktop or control panel as needed to access the switch; keep track of mounting hardware
  • Match wire locations and connector orientation when reattaching harness; take a photo first if helpful

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

F6
Product photo
By: Frigidaire
Part Number: 5304468156
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

F7
Product photo
4.7 (3)
By: Frigidaire
Part Number: 5304463439

Microwave not heating but runs normally? A failed magnetron is the likely cause. This repair restores heating function. Moderate DIY difficulty.

More
$186.95

IN STOCK
Ships Today Guaranteed
Add to Cart
F8
Product photo
5.0 (9)
By: Frigidaire
Part Number: 5304493153

The Door Switch is an OEM replacement part for Frigidaire wall ovens. It is a component located on the oven door that detects when the door is opened and closed. The door switch works alongside the control board to regulate oven operations based on door position.

Symptoms of a bad door switch can include:

  • Oven failing to automatically go into bake or warm modes after door closure
  • Interior lights not turning on when the door is opened
  • Control buttons/display remaining constantly lit instead of dimming
  • Oven not heating or functioning properly in different modes

Causes relate to normal wear over extended use as the door switch mechanism cycles with frequent door openings and closings. Moisture exposure or impacts could also degrade switch performance.

This OEM Frigidaire switch is compatible with Amana, Jenn-Air, KitchenAid, and some Electrolux wall oven models as well.

More
$66.95

IN STOCK
Ships Today Guaranteed
Add to Cart
F9
Product photo
5.0 (1)
By: Frigidaire
Part Number: 5304468224
$66.55

IN STOCK
Ships Today Guaranteed
Add to Cart
F10
Product photo
By: Frigidaire
Part Number: 5304440028

Replacement power cord for your microwave. Connects the appliance to your electrical outlet. Order a new cord if yours is frayed, damaged, or missing.

More
$84.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
F11
By: Frigidaire
Part Number: 5304461117
$39.21

IN STOCK
Ships Today Guaranteed
Add to Cart
F12
Product photo
By: Frigidaire
Part Number: 5304440029
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

F13
Product photo
By: Frigidaire
Part Number: 5304493152

This drive motor restores rotational power to the appliance's drum or agitator so loads spin and drain correctly. It's a direct-replacement motor designed to restore normal wash and spin cycles when the original motor fails. What it does:

  • Provides the mechanical drive force for the washer drum/agitator so clothes tumble and spin
  • Re-establishes proper agitation and spin speed control when a worn or failed motor causes no-spin or no-agitate symptoms
  • Operates with the appliance's existing pulley, belt, or coupling
  • Works as the core rotating component tied to load movement and draining functions
What's included:
  • One motor
Install notes:
  • Disconnect power and water before beginning any repair; follow the appliance service manual for safe access
  • Replacement typically requires removing cabinet panels, drive belt or coupling, and electrical connector—avoid forcing parts
  • Inspect associated belts, couplings, and mounting hardware; replace worn items to prevent repeated failures

More
$64.76

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
14
Product photo
5.0 (3)
By: Frigidaire
Part Number: 5304440031

Restores interior and cooktop lighting in your microwave. Replace when bulb burns out or dims for clear visibility. Verify fit with your model number.

More
$26.36

IN STOCK
Ships Today Guaranteed
Add to Cart
F15
Product photo
5.0 (1)
By: Frigidaire
Part Number: 5304502765
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

F16
By: Frigidaire
Part Number: 5304493151

This is an electrical noise filter that suppresses electromagnetic interference generated by the microwave during operation. It prevents electrical noise from traveling back through the power line and affecting other electronics in your home. Replace this filter if the microwave trips breakers, causes interference with nearby devices, or fails to power on.

More
$40.55

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
F17
Product photo
By: Frigidaire
Part Number: 5304440033

Fix a microwave that won't heat properly or shuts off early with a new temperature sensor. This part monitors internal temperature for safe operation.

More
$150.58

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
18
Product photo
By: Frigidaire
Part Number: 5304468162

Replace your microwave's mounting plate if it's cracked, bent, or missing. This structural component secures the microwave during installation.

More
$35.30

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
19
Product photo
By: Frigidaire
Part Number: 5304464742
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

20
By: Frigidaire
Part Number: 5304468161
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

21

Pad

By: Frigidaire
Part Number: 5304440237
$19.50

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
22
Product photo
By: Frigidaire
Part Number: 5304468164
$102.71

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
23
By: Frigidaire
Part Number: 5304440344

This wiring diagram is the factory electrical schematic used to identify wire routing, connector locations, and circuit relationships—helpful for accurate diagnosis and repair planning. It provides a clear view of the appliance's electrical layout to guide troubleshooting. What it does:

  • Shows wire colors, connector pinouts, and component wiring for the appliance circuitry
  • Helps locate and identify wires and terminals when tracing electrical faults
  • Assists technicians and DIYers in verifying proper connections during repairs
  • Useful for diagnosing symptoms like no power to controls, intermittent operation, or blown fuses
What's included: One original wiring diagram sheet Install notes:
  • Always disconnect power to the appliance before inspecting or working on electrical components
  • Use the diagram as a reference only; verify wire continuity and voltage with a multimeter before servicing
  • Handle the diagram sheet carefully to avoid tearing or smudging; store with the appliance documentation

More
$6.73

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
24
Product photo
By: Frigidaire
Part Number: 5303319573

This is a black plastic lens and frame assembly that covers the interior lamp on a microwave oven. It protects the light bulb from grease and moisture while diffusing light inside the cooking cavity. Replace this lens if it is cracked, yellowed, melted, or missing, which can leave the bulb exposed to splatter and reduce interior illumination.

More
$57.76

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
25
By: Frigidaire
Part Number: 5303319574

This frame holds and protects the light lens cover inside the microwave, keeping the interior bulb shielded while allowing light to pass through. It snaps or screws into place over the light housing area. Replace this frame if it is cracked, warped, or missing, which can leave the light bulb exposed to moisture and food splatter.

More
$54.25

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
26
Product photo
By: Frigidaire
Part Number: 5303319575

Glass cover for microwave hood lamp. Protects the light bulb from grease and debris. Replace if cracked, broken, or missing to restore proper lighting.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

27
Product photo
By: Frigidaire
Part Number: 5304451823

Mounting plate cover for your microwave. Installs on the support bracket assembly. Replace if cracked, broken, or missing to restore proper appearance.

More
$116.28

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
29
By: Frigidaire
Part Number: 5304441369

Replacement cushion for your microwave door or cabinet. Installs to provide cushioning and prevent impact damage. Order a new cushion if worn or missing.

More
$8.56

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
30
By: Frigidaire
Part Number: 5304441370
$8.21

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
38
Product photo
4.3 (3)
By: Frigidaire
Part Number: 5304464343

Controls airflow in your microwave's exhaust vent system. Installs between blower and duct. Replace if cracked, broken, sticking, or missing.

More
$60.58

IN STOCK
Ships Today Guaranteed
Add to Cart
39
Product photo
5.0 (1)
By: Frigidaire
Part Number: 5304467717

This is the roller guide assembly that sits on the floor of the microwave and supports the glass turntable tray, allowing it to rotate smoothly during cooking. It typically consists of a ring with small wheels or rollers. Replace this part if the turntable wobbles, does not rotate evenly, or if the rollers are broken or worn, which can cause uneven cooking or noise during operation.

More
$86.66

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
40
Product photo
5.0 (12)
By: Frigidaire
Part Number: 5304440285

Glass turntable tray for microwaves. Replaces cracked, broken, or missing rotating platters. Installs on turntable support to hold dishes during cooking.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

41
By: Frigidaire
Part Number: 5303319587
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

42
Product photo
5.0 (4)
By: Frigidaire
Part Number: 5304468175
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

F43
Product photo
5.0 (1)
By: Frigidaire
Part Number: 5304468176
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

45
Product photo
By: Frigidaire
Part Number: 5304440288

This bushing guides and supports a rotating shaft to reduce wear and keep moving parts aligned, restoring smooth, quiet operation. Fits specific Frigidaire appliances—use the OEM part number to fit for your model. What it does

  • Supports a rotating shaft or drum to prevent metal-on-metal contact
  • Reduces friction and wear that can cause squeaks, grinding, or rough rotation
  • Helps maintain proper alignment for consistent appliance performance
  • Commonly replaces worn or damaged bushings that allow excessive play
What's included One bushing Install notes
  • Disconnect power before servicing and access the affected assembly per your model's service manual
  • Remove the worn bushing and any debris; press or tap the new bushing into place squarely
  • Inspect mating shaft/surface for scoring or wear; replace or repair if damaged
  • Use only OEM-recommended lubricants if specified by the manufacturer; do not assume grease is required

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

46
Product photo
By: Frigidaire
Part Number: 5304440289

This is a plastic bracket that holds the door interlock switches in proper alignment inside the microwave's door latch assembly. It ensures the switches are correctly positioned to detect when the door is open or closed. Replace this part if the microwave won't start, runs with the door open, or if the switch holder is cracked or broken.

More
$81.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
47
Product photo
5.0 (5)
By: Frigidaire
Part Number: 5304468135

Secures your microwave to the wall or cabinet during installation. Replace this bracket if the original was lost, damaged, or missing during remodeling.

More
$77.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
F48
Product photo
By: Frigidaire
Part Number: 5304440291
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

49
By: Frigidaire
Part Number: 5303319605
$29.56

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
50
By: Frigidaire
Part Number: 5304468178
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

51
By: Frigidaire
Part Number: 5304468179
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

52
By: Frigidaire
Part Number: 5304440294

This small rubber bumper cushions and protects the appliance door and cabinet by absorbing impact and preventing metal-to-metal contact. It helps reduce door noise and wear for a quieter, smoother close. What it does:

  • Acts as a door stop/cushion to prevent direct contact between the door and cabinet
  • Reduces rattling, clanking, and vibration during door movement
  • Helps maintain a proper door seal by stabilizing door position
  • Commonly replaced when cracked, flattened, missing, or causing noise
What's included: One replacement bumper Install notes:
  • Usually installs by pressing into a pre-formed hole or onto a mounting peg; no special tools required
  • Verify exact mounting location before removal; keep track of orientation for re-installation
  • Disconnect power only if working near electrical components; this is typically a non-electrical part
  • Inspect surrounding area for additional wear or missing fasteners while replacing

More
$11.02

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
53
Product photo
By: Frigidaire
Part Number: 5304440295

This is a translucent lens cover that sits over the interior or exterior light bulb in a microwave. It diffuses the light evenly and protects the bulb from grease and food splatter. Replace this lens if it is cracked, discolored, melted, or missing, which can leave the bulb exposed and reduce interior visibility.

More
$12.62

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
54
By: Frigidaire
Part Number: 5304440296
$25.07

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
55
Product photo
By: Frigidaire
Part Number: 5304440297
$27.90

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
56
By: Frigidaire
Part Number: 5304468183

This replacement duct guides internal airflow to and from the appliance, restoring proper ventilation and helping the unit maintain even temperatures. Designed to match the original fit and routing for reliable performance. What it does:

  • Channels conditioned or exhaust air through the correct internal path
  • Helps prevent airflow restrictions that can cause uneven cooling or heating
  • Reduces rattling or vibration from a damaged or misrouted air path
  • Supports normal compressor/fan operation by maintaining intended ventilation
What's included:
  • One replacement duct as shown
Install notes:
  • Inspect surrounding connectors and seals; replace damaged gaskets for best results
  • Secure all fasteners to prevent air leaks
  • Disconnect power (and water if applicable) before beginning work to avoid injury
  • Avoid sharp bends that can restrict airflow

More
$74.48

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
57
Product photo
By: Frigidaire
Part Number: 5304467733

This component supports the stirrer cover inside the microwave cavity, helping distribute microwave energy evenly. Replace it if the stirrer cover rattles, falls, or food heats unevenly.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

59
By: Frigidaire
Part Number: 5304459558
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

60
Product photo
By: Frigidaire
Part Number: 5304440302
$31.66

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
62
By: Frigidaire
Part Number: 5304440304
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

63
Product photo
By: Frigidaire
Part Number: 5304467762

Replacement turntable support for your microwave. Installs under the glass tray to allow smooth rotation. Replace if cracked, broken, or worn out.

More
$12.34

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
64
Product photo
By: Frigidaire
Part Number: 5304467763

Replacement turntable support for your microwave. Mounts under the glass tray to enable smooth rotation. Order a new support if yours is cracked or broken.

More
$13.61

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
92
By: Frigidaire
Part Number: 5304440333

This replacement appliance label provides the factory identification and safety information fastened to the appliance so you can read model/serial and safety/warning text clearly. It restores legible markings for servicing and ownership records. What it does

  • Shows the appliance identification, model/serial or rating area and factory safety/warning text so technicians and owners can service data.
  • Helps ensure required safety and operating instructions remain visible and readable.
  • Replaces a torn, faded, or missing label that can make identification and troubleshooting harder.
  • Supports accurate parts ordering and service by restoring the original markings.
What's included
  • One replacement label
Install notes
  • Peel-and-stick replacement; clean and dry the surface thoroughly before applying.
  • Align carefully and press from one edge to the other to avoid bubbles; firm pressure ensures adhesion.
  • Do not stretch or trim the label unless explicitly specified by the equipment instructions.
  • For safety, disconnect power or follow manufacturer safety precautions before working near electrical components.

More
$6.73

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
93
Product photo
By: Frigidaire
Part Number: 5304440334
$4.59

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
94
By: Frigidaire
Part Number: 5304465314
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

95
Product photo
5.0 (10)
By: Frigidaire
Part Number: 5304440335

Charcoal air filter captures grease, smoke, and odors in over-the-range microwaves. Replace when performance declines. Confirm fit with your model number.

More
$53.95

IN STOCK
Ships Today Guaranteed
Add to Cart
96
Best Seller
Product photo
4.9 (22)
By: Frigidaire
Part Number: 5303319568

Grease filter for range hoods and over-the-range microwaves. Dimensions: 5-7/8" x 7-7/8" x 3/32" (5.875 x 7.875 x 0.09375). Rectangle shape. Captures grease from cooking air. Replace when clogged, discolored, or every 6-12 months.

More
$48.36

IN STOCK
Ships Today Guaranteed
Add to Cart
97
Product photo
By: Frigidaire
Part Number: 5304467773

Secures panels and components inside your microwave, keeping parts aligned and reducing rattles. Replace when clip is broken, cracked, or missing.

More
$41.23

IN STOCK
Ships Today Guaranteed
Add to Cart
F99
By: Frigidaire
Part Number: 5304440339
$12.30

IN STOCK
Ships Today Guaranteed
Add to Cart
100
Product photo
By: Frigidaire
Part Number: 5304451553

This is a replacement screw used to secure appliance components and panels so assemblies stay stable and aligned. It provides a straightforward fix when a mounting fastener is missing, stripped, or damaged. What it does

  • Secures panels, brackets, or trim to prevent movement and vibration
  • Stops rattling or loose parts caused by missing or damaged screws
  • Restores proper fit and alignment of the affected assembly
  • Works wherever the OEM-designated screw of this size and thread is required
What's included One screw Install notes
  • Turn power off or unplug the appliance before working on electrical areas
  • Use the proper-size driver to avoid stripping the head
  • Start threads by hand, then tighten until snug — do not overtighten
  • If the original screw is corroded or the hole is damaged, inspect mating parts for repair before installing

More
$13.93

IN STOCK
Ships Today Guaranteed
Add to Cart
101
Product photo
By: Frigidaire
Part Number: 5304451553

This is a replacement screw used to secure appliance components and panels so assemblies stay stable and aligned. It provides a straightforward fix when a mounting fastener is missing, stripped, or damaged. What it does

  • Secures panels, brackets, or trim to prevent movement and vibration
  • Stops rattling or loose parts caused by missing or damaged screws
  • Restores proper fit and alignment of the affected assembly
  • Works wherever the OEM-designated screw of this size and thread is required
What's included One screw Install notes
  • Turn power off or unplug the appliance before working on electrical areas
  • Use the proper-size driver to avoid stripping the head
  • Start threads by hand, then tighten until snug — do not overtighten
  • If the original screw is corroded or the hole is damaged, inspect mating parts for repair before installing

More
$13.93

IN STOCK
Ships Today Guaranteed
Add to Cart
102
By: Frigidaire
Part Number: 5304461379
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

103
Product photo
By: Frigidaire
Part Number: 5304451553

This is a replacement screw used to secure appliance components and panels so assemblies stay stable and aligned. It provides a straightforward fix when a mounting fastener is missing, stripped, or damaged. What it does

  • Secures panels, brackets, or trim to prevent movement and vibration
  • Stops rattling or loose parts caused by missing or damaged screws
  • Restores proper fit and alignment of the affected assembly
  • Works wherever the OEM-designated screw of this size and thread is required
What's included One screw Install notes
  • Turn power off or unplug the appliance before working on electrical areas
  • Use the proper-size driver to avoid stripping the head
  • Start threads by hand, then tighten until snug — do not overtighten
  • If the original screw is corroded or the hole is damaged, inspect mating parts for repair before installing

More
$13.93

IN STOCK
Ships Today Guaranteed
Add to Cart
104
Product photo
By: Frigidaire
Part Number: 5303319641
$11.88

IN STOCK
Ships Today Guaranteed
Add to Cart
105
Product photo
By: Frigidaire
Part Number: 5304440341

Single replacement screw for microwaves. Secures panels, trim, brackets, and internal components. Replaces worn, stripped, or missing fasteners.

More
$14.40

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
106
By: Frigidaire
Part Number: 5304453725
$11.88

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
107
By: Frigidaire
Part Number: 5304461379
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

108
Product photo
5.0 (1)
By: Frigidaire
Part Number: 5304441378

Replacement screw fastener for microwaves. Secures panels, brackets, and trim pieces in place. Needed when original screws are stripped, lost, or missing.

More
$13.20

IN STOCK
Ships Today Guaranteed
Add to Cart
109
Product photo
By: Frigidaire
Part Number: 5304463149

Mounting support plate for microwave installation. Provides structural stability for secure wall or cabinet mounting. Replace if cracked, bent, or missing.

More
$25.57

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
110
By: Frigidaire
Part Number: 5304445468
$32.38

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
  • 5,000+ Repair Videos 5,000+ Repair Videos
  • Same-Day Shipping Same-Day Shipping
  • 365 Day Return Policy! 365 Day Return Policy!
  • Repair ForumFree Tech Support!
  • Top Quality Store on Google
