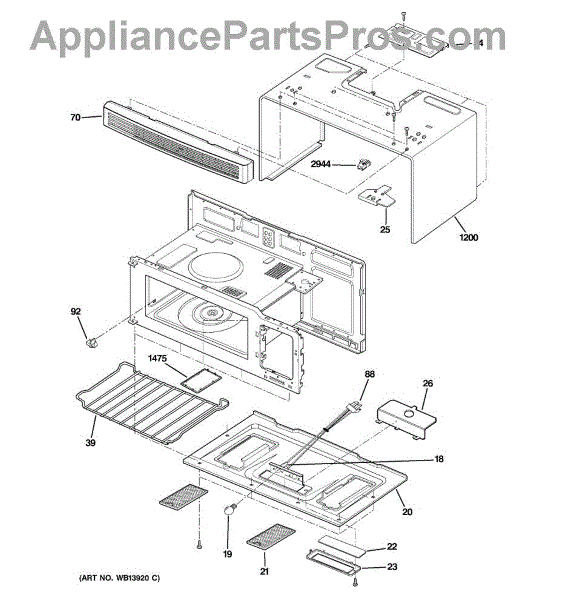

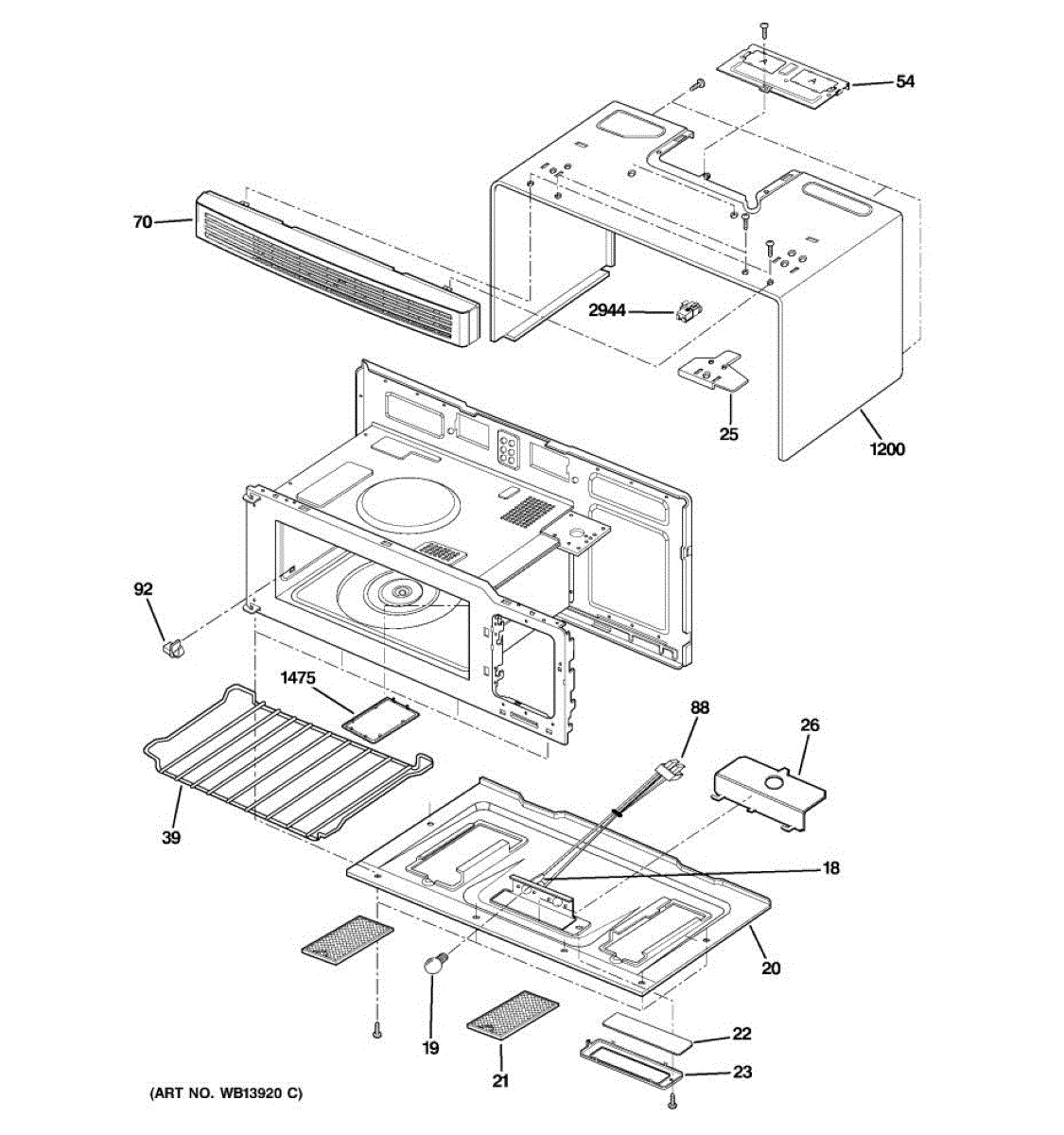

Parts for Ge HVM1540DM2BB: 03 - Oven Cavity Parts

The Lamp is an OEM replacement part for GE microwave ovens. It plays an essential role in enhancing visibility within the microwave, facilitating users to keep an eye on their food without opening the door. This high-quality bulb is engineered to withstand the heat and vibration commonly associated with microwave use, ensuring longevity and reliability.

Causes of a malfunctioning Lamp can include filament wear over time, which is a common issue with incandescent bulbs, or damage from microwave vibrations or power surges. Regular usage can naturally lead to the lamp's eventual dimming or failure, necessitating its replacement to maintain optimal microwave functionality.

Symptoms of a bad Lamp include:

• No illumination inside the microwave when in use
• Flickering or intermittent light operation
• A sudden pop or crack sound indicating the bulb has burnt out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This base plate is a replacement cabinet mounting plate that supports and secures the appliance cabinet at the bottom. It restores proper cabinet alignment and helps keep internal components protected from debris and movement. What it does

• Provides a stable mounting surface for the appliance cabinet to sit on and attach to the chassis
• Helps maintain proper clearance and alignment of the cabinet with internal parts
• Prevents debris and small objects from entering the lower cabinet area
• Can reduce vibration or rattling caused by a loose or damaged base plate
• Common symptom: cabinet sits unevenly or exhibits bottom-end gaps, rattling, or loose fit

• One base plate

• Disconnect power (and gas if applicable) before beginning any repair
• Use basic hand tools; support the cabinet while loosening mounting fasteners
• Verify part orientation and fit against the cabinet and chassis before tightening
• If rusted or damaged fasteners are present, replace them with equivalent hardware

The Air Filter is an OEM part for GE microwaves. This filter is designed to remove grease, smoke, and odors from the air that passes through the microwave's ventilation system, particularly in over-the-range models.The filter measures about 5 inches wide by 7-1/2 inches deep.

Over time, regular cooking can cause buildup on the filter, reducing its effectiveness. Regular maintenance is essential to ensure proper air filtration.

Symptoms of a bad Air Filter include:

• Persistent cooking odors in the kitchen
• Reduced ventilation performance
• Visible grease buildup on the filter
• Smoke not being effectively filtered during cooking

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This factory glass panel replaces a cracked, shattered, or missing original, restoring a clean, safe cover/viewing surface on your appliance. It helps protect internal areas from splatter and keeps the assembly looking and fitting the way it should.

• Replaces a damaged glass component within the original assembly on applicable models
• Restores a clear, smooth surface for proper appearance and function
• Helps shield underlying parts from spills, grease, and debris
• Common symptoms: cracked or shattered glass, missing piece, sharp edges, looseness/rattling

• Disconnect power before servicing; allow all surfaces to cool
• Wear cut-resistant gloves and eye protection; handle edges carefully
• Support the panel/door during removal and installation to prevent stress on frames/hinges

The GE grille vent is an OEM replacement part responsible for allowing airflow and ventilation in the microwave. The grille vent is typically located on the front of the microwave, near the top, or on the sides. It serves as an outlet for heat and steam generated during cooking, helping to prevent the accumulation of excess moisture and maintaining proper airflow within the appliance.

The GE grille vent can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Dimensions:

• Depth - 29.625  in
• Height - 2.25  in
• Width - 3.5  in

This part fixes the following symptoms:

• Restricted airflow or poor ventilation inside the microwave
• Excessive heat buildup or overheating during cooking
• Steam or condensation remaining inside the microwave after use
• Visible damage, such as cracks, breaks, or warping, to the grille vent
• Inability to properly attach or secure the grille vent

A replacement auxiliary burner holder for gas/electric cooktops that secures the small heating element or burner cap for stable, even cooking. Restores proper support and alignment for auxiliary burners. What it does:

• Holds and centers the auxiliary burner or element cap on the cooktop for reliable heat contact
• Helps prevent burner wobble, misalignment, and uneven heating
• Supports safe, consistent pan placement on the auxiliary cooking zone
• Fits into the cooktop assembly where the auxiliary burner is mounted

• One auxiliary burner holder (1 count)

• Basic part; remove burner cap/element and replace holder per appliance disassembly steps
• Turn off power and/or gas and disconnect the appliance before beginning work
• Handle porcelain-coated parts carefully to avoid chipping; avoid overtightening fasteners

This resin canopy is the interior ceiling cover inside the microwave cavity. It shields the stirrer area from grease and splatter to help maintain even heating and protect internal components for safer, more reliable cooking. What it does:

• Covers and protects the stirrer/waveguide opening at the top of the cavity
• Helps promote even microwave energy distribution for consistent cooking
• Shields internal parts from grease, steam, and food debris
• Replace if warped, cracked, burned, discolored, loose, or if you notice arcing/sparking inside the cavity

• 1 resin canopy

• Disconnect power before servicing; microwave components can carry high voltage
• Remove the old canopy by releasing tabs or fasteners from inside the cavity
• Clean the cavity roof and seating surfaces before installation
• Ensure the canopy is fully seated and do not operate the microwave without it installed

This nut assembly secures an appliance component to its mounting point, restoring a solid connection and preventing unwanted movement. Replace a damaged or missing nut to stop rattling and keep parts aligned for reliable operation. What it does:

• Fastens a panel, bracket or component to its mounting stud or bolt to maintain proper alignment.
• Restores a secure connection when the original nut is stripped, corroded or missing.
• Helps stop rattling, looseness or parts that won't stay in place.
• Works as a direct replacement to restore proper fit and function.

• Disconnect power (and water if applicable) before beginning any repair.
• Use the correct-size socket or wrench; avoid cross-threading when installing.
• Tighten snugly but do not overtighten — replace mating hardware if threads are damaged.
