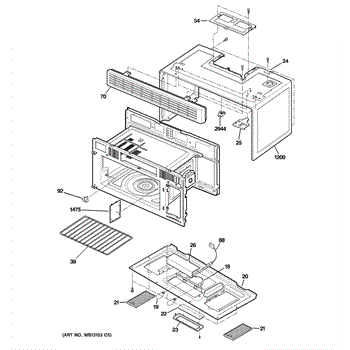

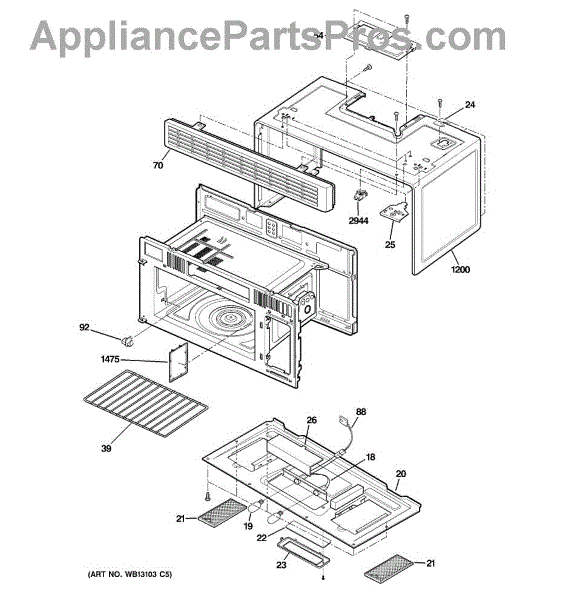

Parts for Ge JVM1653BH06: 03 - Oven Cavity Parts

The Lamp is an OEM replacement part for GE microwave ovens. It plays an essential role in enhancing visibility within the microwave, facilitating users to keep an eye on their food without opening the door. This high-quality bulb is engineered to withstand the heat and vibration commonly associated with microwave use, ensuring longevity and reliability.

Causes of a malfunctioning Lamp can include filament wear over time, which is a common issue with incandescent bulbs, or damage from microwave vibrations or power surges. Regular usage can naturally lead to the lamp's eventual dimming or failure, necessitating its replacement to maintain optimal microwave functionality.

Symptoms of a bad Lamp include:

• No illumination inside the microwave when in use
• Flickering or intermittent light operation
• A sudden pop or crack sound indicating the bulb has burnt out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This base plate is a replacement cabinet support plate that helps secure and stabilize the appliance lower cabinet, restoring proper fit and reducing vibration for safe, reliable operation. What it does:

• Provides a mounting surface and support for lower cabinet components and assemblies
• Keeps the cabinet aligned so doors and panels close correctly
• Reduces excessive vibration or movement caused by a damaged or missing plate
• Helps protect internal components from debris and physical stress

• Disconnect power and water (if applicable) before beginning work
• Access may require removing lower access panels or front trim; keep fasteners organized
• Use appropriate hand tools; avoid forcing parts to prevent damage

This base plate is a replacement cabinet mounting plate that supports and secures the appliance cabinet at the bottom. It restores proper cabinet alignment and helps keep internal components protected from debris and movement. What it does

• Provides a stable mounting surface for the appliance cabinet to sit on and attach to the chassis
• Helps maintain proper clearance and alignment of the cabinet with internal parts
• Prevents debris and small objects from entering the lower cabinet area
• Can reduce vibration or rattling caused by a loose or damaged base plate
• Common symptom: cabinet sits unevenly or exhibits bottom-end gaps, rattling, or loose fit

• One base plate

• Disconnect power (and gas if applicable) before beginning any repair
• Use basic hand tools; support the cabinet while loosening mounting fasteners
• Verify part orientation and fit against the cabinet and chassis before tightening
• If rusted or damaged fasteners are present, replace them with equivalent hardware

The Air Filter is an OEM part for GE microwaves. This filter is designed to remove grease, smoke, and odors from the air that passes through the microwave's ventilation system, particularly in over-the-range models.The filter measures about 5 inches wide by 7-1/2 inches deep.

Over time, regular cooking can cause buildup on the filter, reducing its effectiveness. Regular maintenance is essential to ensure proper air filtration.

Symptoms of a bad Air Filter include:

• Persistent cooking odors in the kitchen
• Reduced ventilation performance
• Visible grease buildup on the filter
• Smoke not being effectively filtered during cooking

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This factory glass panel replaces a cracked, shattered, or missing original, restoring a clean, safe cover/viewing surface on your appliance. It helps protect internal areas from splatter and keeps the assembly looking and fitting the way it should.

• Replaces a damaged glass component within the original assembly on applicable models
• Restores a clear, smooth surface for proper appearance and function
• Helps shield underlying parts from spills, grease, and debris
• Common symptoms: cracked or shattered glass, missing piece, sharp edges, looseness/rattling

• Disconnect power before servicing; allow all surfaces to cool
• Wear cut-resistant gloves and eye protection; handle edges carefully
• Support the panel/door during removal and installation to prevent stress on frames/hinges

The Grille Vent is an OEM part for GE microwaves. It is designed to fit above the microwave door, facilitating the ventilation of steam and heat generated during cooking. This grille helps to maintain optimal operating temperatures and prevents overheating by ensuring proper airflow across the microwave's internal components.

Causes for grille vent damage typically involve prolonged exposure to heat and moisture, which can degrade the material of the grille over time.

Symptoms of a bad Grille Vent include:

• Cracking or warping due to high heat exposure
• Restricted airflow that may cause the microwave to overheat
• Increased noise levels as the fan struggles to pull air through the blocked or damaged vent

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Vent Grille is an OEM part for GE microwaves. This grille is mounted on the exterior of the microwave, typically above the door, and serves as a protective cover for the ventilation system. It allows air to flow into and out of the microwave.

Causes of damage to the Vent Grille often involve accidental impacts, such as hitting the grille with kitchen utensils or other objects, or natural degradation from heat and grease exposure over time.

Symptoms of a bad Vent Grille include:

• Cracks, breaks, or significant wear on the grille, which can compromise its ability to protect the microwave's ventilation system.
• Looseness or detachment from the microwave, potentially obstructing proper airflow and affecting the appliance's cooling efficiency.
• Visible signs of discoloration or damage, which could detract from the microwave's appearance.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

A replacement auxiliary burner holder for gas/electric cooktops that secures the small heating element or burner cap for stable, even cooking. Restores proper support and alignment for auxiliary burners. What it does:

• Holds and centers the auxiliary burner or element cap on the cooktop for reliable heat contact
• Helps prevent burner wobble, misalignment, and uneven heating
• Supports safe, consistent pan placement on the auxiliary cooking zone
• Fits into the cooktop assembly where the auxiliary burner is mounted

• One auxiliary burner holder (1 count)

• Basic part; remove burner cap/element and replace holder per appliance disassembly steps
• Turn off power and/or gas and disconnect the appliance before beginning work
• Handle porcelain-coated parts carefully to avoid chipping; avoid overtightening fasteners

This molded resin cover is a protective plastic shield used inside the microwave. It helps protect internal components and ducting from splatter and debris and restores a secure, finished fit when the original cover is cracked or missing. What it does:

• Shields internal components from grease, steam, and food splatter inside the unit
• Helps maintain proper airflow paths and a snug, rattle-free fit
• Common replacement when the original cover is cracked, warped, loose, or missing
• Visual cue: exposed internal parts or a cover that won't stay secured

• One resin (plastic) cover

• Disconnect power (unplug or switch off the breaker) and allow the unit to cool
• Access the cover location; remove retaining screws/clips and keep hardware for reuse
• Align the new cover and secure it without overtightening
• Ensure the cover is fully seated and not contacting nearby moving parts before restoring power

This nut assembly secures an appliance component to its mounting point, restoring a solid connection and preventing unwanted movement. Replace a damaged or missing nut to stop rattling and keep parts aligned for reliable operation. What it does:

• Fastens a panel, bracket or component to its mounting stud or bolt to maintain proper alignment.
• Restores a secure connection when the original nut is stripped, corroded or missing.
• Helps stop rattling, looseness or parts that won't stay in place.
• Works as a direct replacement to restore proper fit and function.

• Disconnect power (and water if applicable) before beginning any repair.
• Use the correct-size socket or wrench; avoid cross-threading when installing.
• Tighten snugly but do not overtighten — replace mating hardware if threads are damaged.
