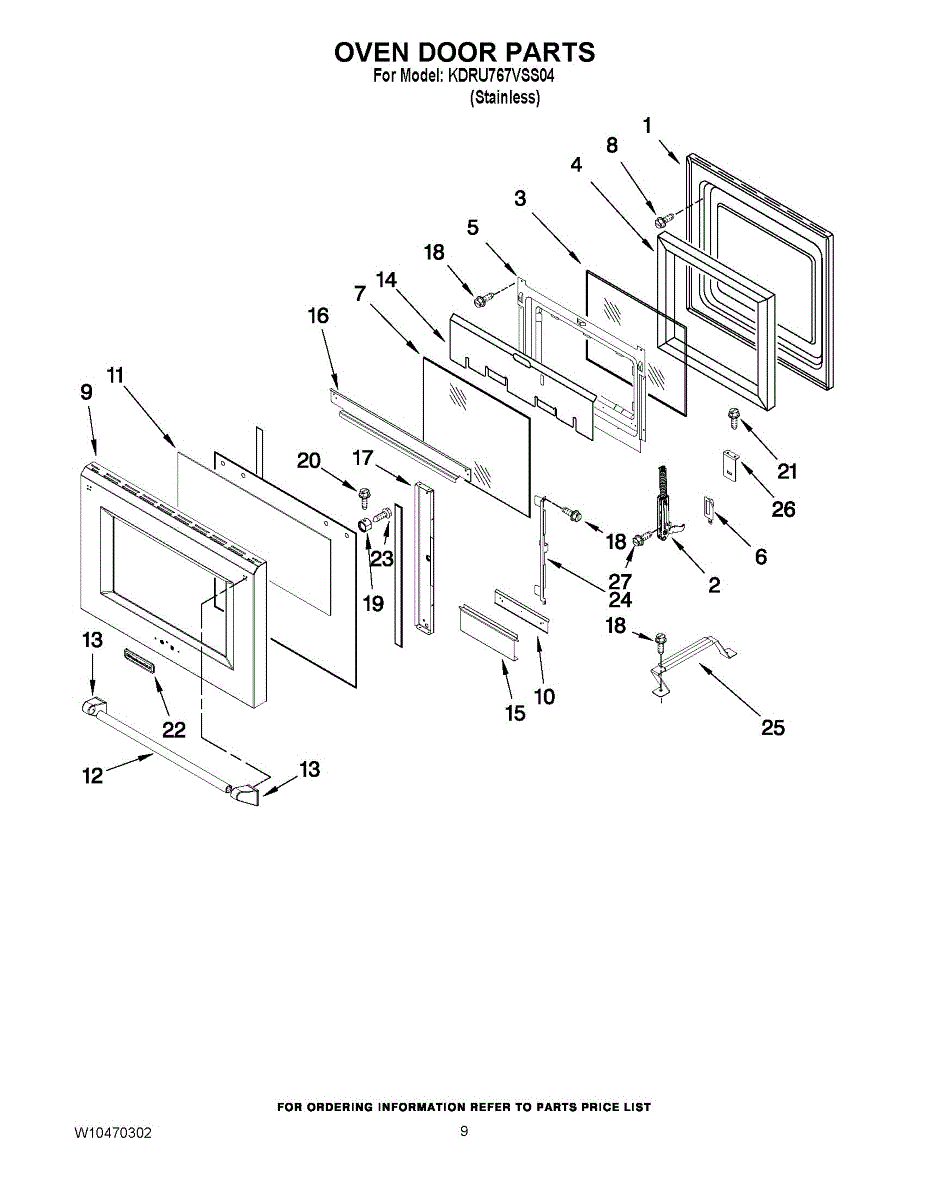

Parts for Kitchenaid KDRU767VSS04: 06 - Oven Door Parts

This Door Hinge supports and pivots the appliance door so it opens and closes smoothly and seals properly. Replacing a worn hinge restores proper alignment and closure to help prevent binding, squeaks, and poor sealing. What it does:

• Provides the pivot and support for the door during opening and closing
• Helps maintain correct alignment for proper latch and gasket contact
• Reduces scraping, rubbing, or sagging caused by a worn or bent hinge
• Common symptoms: door misalignment or sagging, won't close/stay closed, uneven gaps, squeaking/clicking from hinge area, visible hinge wear or play

• 1 door hinge

• Disconnect power to the appliance; shut off water supply if applicable
• Support the door while removing/installing hinge screws to prevent damage or injury
• Some hinges are spring-loaded—use caution and wear appropriate safety gear
• After installation, adjust per service guidelines if needed

This inner oven door glass panel replaces a cracked, shattered, or stained pane to restore a clear viewing window and a safe barrier in the door, helping your oven heat properly and look like new. What it does:

• Forms the interior layer of the oven door window assembly
• Helps contain heat in the cavity and supports proper temperature performance
• Restores clear visibility into the oven
• Common failure signs: visible cracks or chips, shattered glass, rattling fragments, or heat escaping at the door

• 1 inner door glass panel

• Disconnect power and allow the oven to cool completely; shut off gas supply if applicable
• Remove the door per the service/user manual and place it on a padded surface
• Wear cut-resistant gloves and eye protection; handle glass by the edges only
• Note the order and orientation of panes, spacers, and trim; transfer hardware and avoid over-tightening screws against glass

This retainer is a small mounting clip that keeps a nearby component held securely in place, helping prevent rattles and misalignment for reliable appliance operation. Install restores proper positioning of the secured part. What it does

• Holds a component or assembly in its intended position to prevent movement or vibration
• Common symptom: loose or rattling parts near the retainer location
• Common symptom: component shifts or comes partially detached during operation
• Works as a replacement for a cracked, broken, or missing retainer that fails to secure the part

• One retainer

• Disconnect power (unplug appliance or switch off circuit breaker) before beginning any repair
• Accessing the retainer may require removing a panel or adjacent parts; keep fasteners organized
• Use basic hand tools; avoid forcing parts to prevent damage to surrounding components

This inner oven door glass replaces the cracked or damaged glass panel inside the oven door to restore the viewing window and help the door seal properly. It gives a clear view of cooking without opening the door and helps maintain oven temperature. What it does:

• Replaces the inner glass panel in the oven door to restore a secure, insulated barrier
• Provides a clear viewing window so you can monitor food without losing heat
• Stops rattling or vibration caused by loose or broken inner glass
• Helps reduce heat loss and improves oven temperature stability when the door seals correctly

• Disconnect power and ensure the oven is completely cool before starting.
• Handle glass with care; wear cut-resistant gloves and eye protection.
• Replacement may require removing the door and some trim pieces—keep screws and hardware organized.
• Use only the screws/hardware specified for your door.

This 8-32 x 3/8 screw secures panels, brackets, and internal components in your appliance so everything stays aligned and tight. Replace worn or missing hardware to restore a solid, rattle-free fit and safe operation.

• Fastens components to frames, brackets, or panels
• Helps reduce vibration, rattling, and misalignment
• Replaces missing, stripped, or corroded screws
• Correct 8-32 machine thread for tapped holes in compatible assemblies

• Disconnect power before servicing; shut off gas or water if applicable
• Start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping

This replacement door handle provides a durable grip for opening and closing your refrigerator door. It restores a secure grab point and a finished look after the original handle becomes cracked, loose, or broken. What it does

• Replaces a damaged or missing refrigerator door handle so the door can be opened and closed easily
• Restores a solid, ergonomic grip and normal door operation
• Helps prevent accidental drops or injury from cracked or sharp handle edges
• Useful when original handle is loose, snapped, or cosmetically worn

• Turn off ice maker or water supply and remove food/containers from door area as needed for safe access
• Use appropriate hand tools (screwdriver, socket) to remove fasteners; keep screws for reuse only if undamaged
• Avoid scratching the cabinet or door finish during removal and installation

This end cap fits onto a refrigerator or freezer door handle to protect the handle end and provide a finished look. It restores secure handle alignment and appearance after damage or wear. What it does:

• Covers and protects the exposed end of a door handle for a clean, finished appearance
• Helps keep the handle seated and prevents snagging or sharp edges
• Commonly replaced when cracked, worn, or broken during normal use or accidental impact
• Matches original fit and mounting points for straightforward replacement

• One end cap

• Install with the door open and handle supported to avoid strain on the mounting hardware
• May require removal of the handle or a few fasteners depending on model
• Use proper tools and avoid overtightening to prevent cracking the new end cap
• Disconnect power to any nearby powered components before working

This glass support bracket secures the oven door glass panel to the door frame, keeping the glass aligned and stable for safe use. Replace a worn or damaged bracket to reduce rattling and restore proper door fit. What it does:

• Supports and anchors the oven door glass to the door assembly
• Keeps the glass aligned to prevent movement and vibration during operation
• Helps eliminate rattling, clanking, or loose-feeling door panels
• Contributes to a proper door seal and consistent closing action

• Disconnect power to the appliance before beginning any repair.
• Handle glass panels carefully—wear cut-resistant gloves and eye protection.
• Keep fasteners and mounting positions consistent; tighten fasteners securely but do not overtighten.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This replacement name plate is the exterior label that displays model/serial and branding information and restores the appliance's original appearance. It's a simple cosmetic part used when the original label is damaged, faded, or missing. What it does

• Replaces a worn or missing appliance identification label to restore readable model/serial and specification text
• Helps make service and parts identification easier by restoring the visible product information
• Improves exterior appearance when the factory name plate is peeling, scratched, or faded
• Provides the OEM-correct label fit and layout for a factory look

• One replacement name plate

• Surface must be clean, dry, and free of grease—use isopropyl alcohol or a mild cleaner before applying
• Peel backing and align carefully; press firmly to ensure full contact and adhesion
• Wear gloves to avoid fingerprints and handle the adhesive surface minimally
• No special tools required; remove original adhesive residue with a plastic scraper before installing

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power
