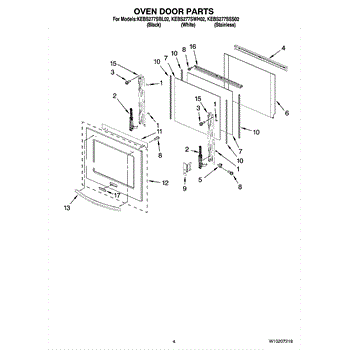

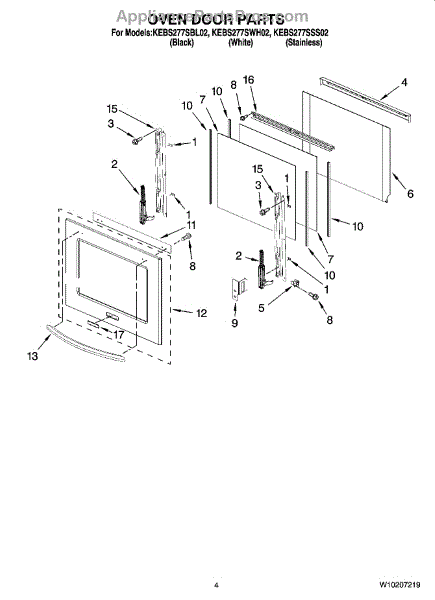

Parts for Kitchenaid KEBS277SBL02: 03 - Oven Door Parts

This 10-32 x 3/8 machine screw secures appliance components. It keeps panels, brackets, and trim firmly attached so everything stays aligned and quiet during operation.

• Fastens metal parts using a 10-32 thread in pre-tapped holes or with a matching 10-32 nut
• Maintains proper alignment of panels, brackets, and trim to reduce vibration and rattling
• Replace if the original screw is missing, stripped, rusted, or damaged
• Using the correct hardware helps restore a secure, factory-tight fit

• Disconnect power; shut off gas supply if applicable. Allow the appliance to cool completely before servicing
• Note screw locations/lengths and replace like-for-like
• Start threads by hand to avoid cross-threading; snug with the appropriate driver—do not overtighten
• If the receiving threads are damaged, repair or replace the mating component before installing

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power

This replacement seal restores a tight barrier between mating components, helping prevent leaks and maintain proper performance. Install it when the original seal becomes worn or damaged to keep moisture and fluids contained where they belong. What it does

• Creates a watertight/airtight seal between connected parts
• Helps prevent drips, seepage, and moisture escaping from joints
• Maintains correct system pressure/flow at the sealed connection
• Replace if the old seal is cracked, flattened, swollen, or brittle
• Common symptoms include moisture around the joint, intermittent leaks, or residue/mineral trails

• 1 seal

• Disconnect power and, if applicable, shut off water supply before service
• Remove the old seal and clean the groove and mating surfaces thoroughly
• Lightly lubricate with manufacturer-approved silicone grease only; seat the seal evenly without twisting
• Reassemble, restore utilities, and run a short test to check for leaks
