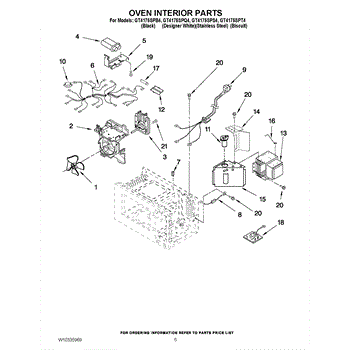

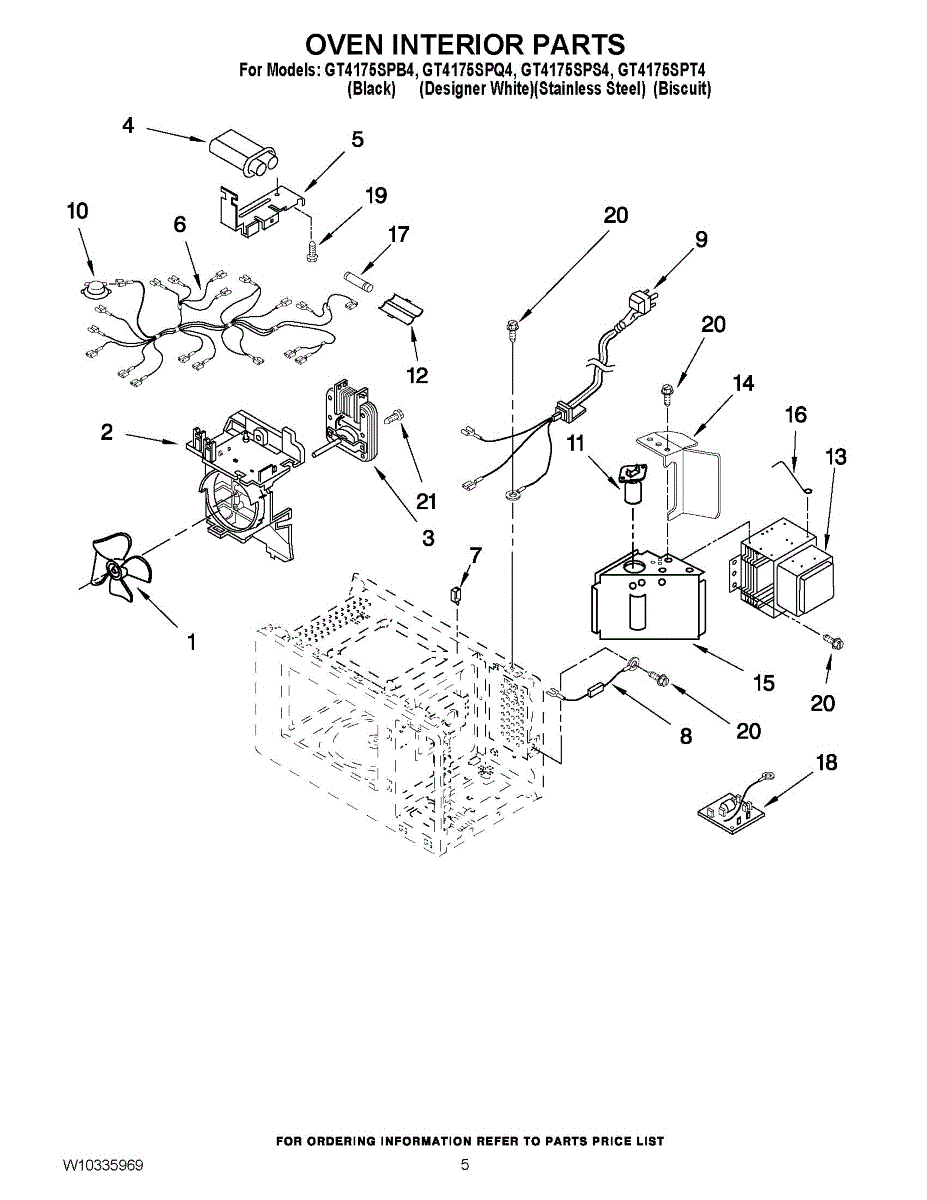

Parts for Whirlpool GT4175SPQ4: 05 - Oven Interior Parts

Fix a microwave that won't heat with this high voltage capacitor. Stores electrical charge to power the magnetron. Replace if heating has stopped.

Wire harness for microwaves. Connects internal electrical components. Replace if wires are frayed, damaged, or connections are loose or corroded.

This is a high voltage diode wire assembly used in the microwave's power circuit. It works with the capacitor and magnetron to convert electrical current and generate microwave energy for cooking. Replace this part if the microwave runs but does not heat, or if the diode has visibly burned or shorted out.

This replacement power cord restores the electrical connection to your appliance so it powers reliably. Designed as a direct-fit cord assembly to replace a damaged or worn lead and help restore normal operation. What it does:

• Provides the main AC connection between the appliance and your household outlet
• Replaces frayed, cut, or broken cords that can cause loss of power or intermittent operation
• Helps eliminate sparking or exposed wiring hazards from a damaged cord
• Restores safe, stable power delivery when the cord is the root cause of power issues

• Disconnect power at the breaker and unplug the appliance before starting any work
• Route and secure the cord per the appliance wiring diagram; avoid pinching or sharp bends
• Do not attempt to splice or modify the cord

Microwave not heating but still running? The magnetron controls heating function. DIY repair in under 2 hours with basic tools and multimeter testing.

Microwave won't turn on or has no power? A blown fuse is often the cause. This safety fuse protects circuits from shorts. Requires cover removal to replace.

Fastener screw
