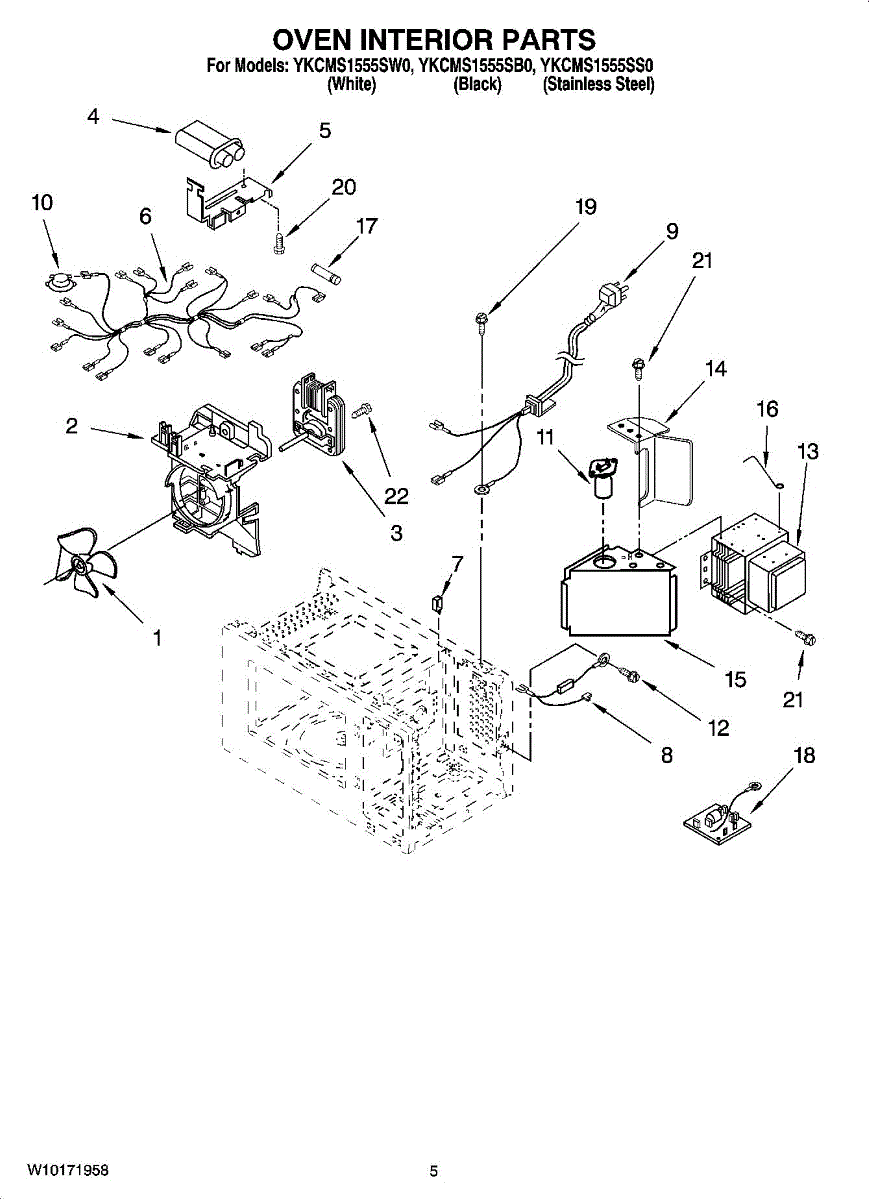

Parts for Whirlpool YKCMS1555SW0: 05 - Oven Interior Parts

This is a Whirlpool microwave magnetron. The microwave magnetron is one of the main components that control the heating function in the appliance. If a microwave has suddenly stopped heating but is still turning on normally, the problem could be the magnetron. Use a voltage tester to confirm whether this part is causing the problem. This component is made for installation in a microwave and oven combo where the microwave doubles as a vent hood. To replace this part, begin by unplugging the appliance and removing it from above the oven. Two people will be needed for this repair. This part requires exposure to highly sensitive electrical parts that could cause severe injury.This is a genuine OEM replacement part sourced directly from the manufacturer. This part is compatible with Whirlpool, Magic Chef, Amana, and Maytag appliances.

This electrical safety fuse opens the circuit when a short or overcurrent occurs. Replacing a blown fuse can help restore power after the root cause is corrected, protecting controls and wiring from further damage.

• Protects the appliance by interrupting power during overcurrent or short-circuit events
• When open/blown, the appliance may be completely unresponsive
• Helps prevent damage to control boards and wiring during faults
• Often fails after a component shorts or a power surge occurs

• Disconnect power to the appliance before servicing
• Use a multimeter to test the fuse for continuity; replace only if open
• Install a fuse with the exact same rating and form factor as the original
• If the new fuse blows again, stop and diagnose the underlying fault; consider service for high-voltage systems

Fastener screw
