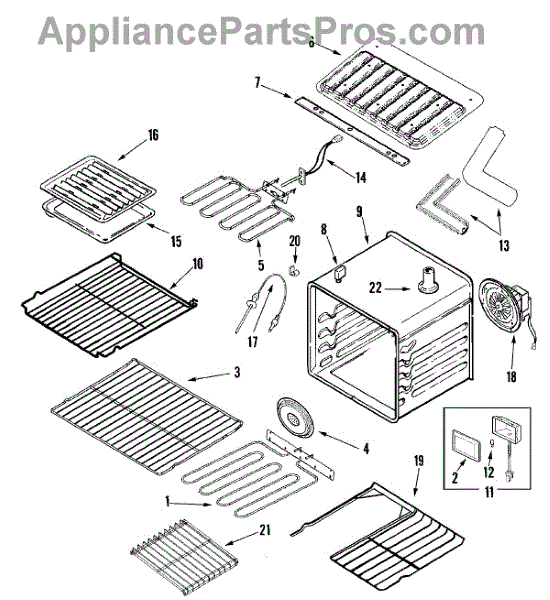

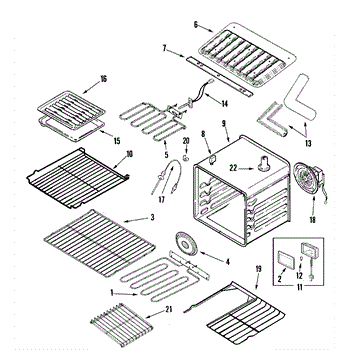

Parts for Jenn-Air JJW9630DDS: 04 - Oven Parts

The bake element is the lower heating element inside an electric oven cavity. Replacing a failed element restores consistent baking performance, proper preheat times, and reliable temperature control.

• Provides the primary bottom-oven heat source used in Bake mode
• Common failure symptoms: no heat during bake or very slow preheating
• Oven may not reach set temperature or cook evenly
• Visible damage may include blistering, cracks, or breaks in the element sheath

• Disconnect power at the breaker before servicing and allow the oven to cool completely
• Remove oven racks for access; take a photo of wiring to aid reassembly
• Remove mounting screws, gently pull the element forward, and transfer wires one at a time to the new element
• Ensure the element sits level and clear of cavity walls; do not overtighten screws; restore power and test Bake

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This lens cover protects and diffuses the appliance light, keeping grease and heat away from the bulb and socket for clear, even illumination. Replace a cracked, missing, or cloudy lens to restore visibility and safe operation.

• Shields the light bulb and socket from splatter, moisture, and debris
• Diffuses light for clearer visibility of the work/cooking area
• Helps maintain a heat barrier around the lamp
• Common symptoms: lens is cracked/broken, discolored/cloudy, missing, or won't stay secured

• Disconnect power and allow the appliance to cool completely before servicing
• Wear gloves; remove the old lens by unthreading, releasing the retainer, or unclipping (varies by model)
• Clean the seating area; align tabs or threads and seat the new lens securely
• Do not overtighten; verify the light operates and the lens is fully secured

The Oven Rack is an OEM part for Whirlpool ovens. It provides a sturdy and reliable surface for baking and roasting a variety of dishes. Designed to fit perfectly within Whirlpool models, this rack ensures optimal air circulation around the food, contributing to even cooking and browning.

Causes of a bad Oven Rack can include warping or damage from high heat, rusting from moisture exposure, or general wear and tear over time. Misshaping or instability can also result from placing too much weight on the rack or using it inappropriately.

Symptoms of a bad Oven Rack include:

• Difficulty sliding the rack in or out.
• Uneven cooking or baking due to improper leveling of the rack.
• The rack does not fit securely in the oven slots.
• Visible rust or damage, which could potentially contaminate food.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

Restore proper top heat to your oven with this broil element. It delivers the intense, even radiant heat needed for broiling, so foods brown and sear correctly when the original element fails or is damaged.

• Supplies high, direct heat from the top of the oven during Broil
• Common fix for no-broil or weak broiling performance
• Replace if the element is blistered, cracked, warped, or shows arcing
• Help resolve uneven browning or a tripped breaker caused by a shorted element

• Disconnect power at the breaker before servicing
• Remove oven racks; unfasten the element's mounting screws and gently pull it forward
• Support and disconnect the wires; attach them to the new element and position it
• Secure the element, ensure connections are tight and clear of metal, then restore power and test

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This receptacle provides the appliance's electrical connection point, restoring a secure power feed and preventing intermittent or no-power issues. Use it to replace a damaged or worn connector for reliable operation. What it does:

• Restores the appliance's main power connection where the cord or harness plugs in
• Replaces cracked, melted, or loose receptacles that cause intermittent power
• Stops arcing or poor contact that can lead to shutdowns or overheating smells
• Helps ensure a firm, vibration-resistant electrical connection

• Disconnect all power before starting work to avoid shock or injury
• Verify wiring colors and terminal positions match the original before reconnecting
• Securely fasten the receptacle and strain-relieve the cord/harness to prevent movement

This meat probe is the oven temperature sensor that monitors internal food temperature to help you cook meat to the desired doneness. It delivers accurate readings to the oven control so timed and probe-based cooking cycles work properly. What it does:

• Senses internal food temperature and sends that reading to the oven control board
• Enables probe-based cooking and automatic shutoff when target temperature is reached
• Helps correct symptoms like probe-based cook cycles not ending or inconsistent doneness
• Replaces a damaged or intermittently-reading probe that prevents reliable temperature detection

• One meat probe/temperature sensor

• Disconnect power to the appliance before accessing the oven interior or wiring
• Allow the oven to cool fully and handle the probe and connector carefully to avoid wire strain
• Inspect the probe connector and socket for corrosion or damage before installing

Comes with three connectors per package.

This 10-32 terminal block nut fastens wire lugs to the appliance's terminal studs. Replacing a missing, stripped, or corroded nut restores a tight, reliable connection and helps prevent heat damage or intermittent power at the connection.

• Secures wire lugs to a 10-32 terminal stud for a solid electrical connection
• Restores proper clamping force when the original nut is stripped, corroded, or missing
• Helps address loose/burned terminal connections, heat discoloration, or intermittent power at the block
• Suitable for terminal block and similar 10-32 stud applications on compatible appliances

• Disconnect power at the breaker or unplug the appliance before servicing
• Inspect the terminal block, studs, and wiring for heat damage; replace any damaged components
• Clean threads and start the nut by hand to avoid cross-threading; tighten firmly without overtightening
• If the stud turns while tightening, hold it with an appropriate tool to protect the block

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This screw is a small fastener used to secure panels and components on compatible Samsung appliances, keeping parts stable and reducing vibration or rattling. It's a simple replacement when an original screw is missing or damaged. What it does:

• Secures panels, brackets, or trim so parts stay aligned and stable
• Prevents vibration noise caused by loose fasteners
• Restores proper fit where a stripped or missing screw allowed gaps
• Works wherever the OEM screw specification matches the appliance mounting point

• One screw

• Disconnect power and unplug the appliance before servicing
• Use the matching screwdriver or driver bit to avoid stripping the head
• Thread by hand to start, then snug—do not overtighten to prevent damage
