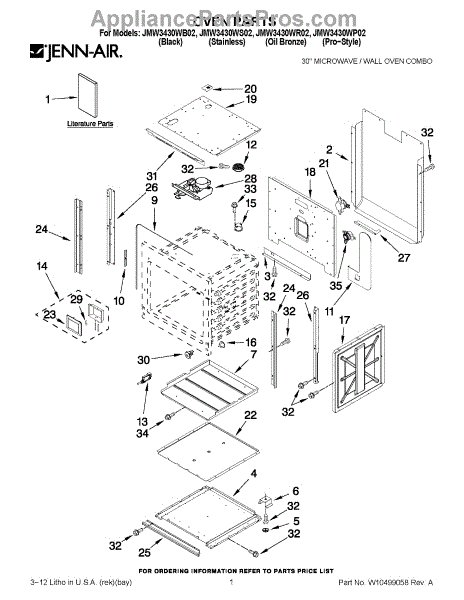

Parts for Jenn-Air JMW3430WP02: 01 - Oven Parts

A hi-limit safety switch that stops heating when temperatures get too high, protecting the appliance from overheating and helping prevent damage. Designed to replace a failed thermal cutoff to restore safe temperature control. What it does:

• Opens the heating circuit when internal temperature exceeds the safe limit to prevent overheating
• Commonly replaces a failed or intermittently opening thermal limit control
• Helps stop burners or heating elements from running unchecked when a thermostat fails
• Addresses symptoms like no heat, intermittent heating, or safety trip shutdowns

• Disconnect power before accessing heating components and wiring
• Verify the part matches the appliance diagram and wiring orientation before installation
• If corrosion or other damage is present on connectors or terminals, replace or repair per OEM guidance

This lens cover protects and diffuses the appliance light, keeping grease and heat away from the bulb and socket for clear, even illumination. Replace a cracked, missing, or cloudy lens to restore visibility and safe operation.

• Shields the light bulb and socket from splatter, moisture, and debris
• Diffuses light for clearer visibility of the work/cooking area
• Helps maintain a heat barrier around the lamp
• Common symptoms: lens is cracked/broken, discolored/cloudy, missing, or won't stay secured

• Disconnect power and allow the appliance to cool completely before servicing
• Wear gloves; remove the old lens by unthreading, releasing the retainer, or unclipping (varies by model)
• Clean the seating area; align tabs or threads and seat the new lens securely
• Do not overtighten; verify the light operates and the lens is fully secured

This trim vent is the exterior plastic trim piece that surrounds the dryer's front vent opening, restoring a finished appearance and protecting the vent area from damage. It's a direct-replacement exterior trim for dryers with a front vent opening. What it does

• Covers and protects the front vent opening while keeping the dryer's appearance finished
• Helps direct airflow from the dryer's vent outlet toward the exhaust connection
• Replaces cracked, warped, or broken vent trim that allows debris or drafts
• Reduces gaps that can allow lint buildup around the dryer's vent opening

• One trim vent

• Install with the dryer disconnected from power; follow the dryer's service manual for access steps
• Usually secures with snap clips or a few screws—keep original fasteners if reusing
• Check alignment with the dryer's vent opening before tightening fasteners
• If you encounter additional damage to surrounding panels or mounting points, inspect those areas for repair

This bottom vent trim restores the finished look and proper airflow at the appliance's lower front. It covers and protects the vent opening while keeping the lower access area neat and finished. What it does:

• Covers the lower front vent opening and provides a finished appearance
• Directs airflow from the lower vent area to help proper ventilation
• Replaces cracked, bent, or missing trim that can expose internal components
• Helps keep debris and large particles from entering the vent opening

• Disconnect power to the appliance before starting any work
• Handle edges carefully; trim pieces and openings can be sharp

The Light Bulb is an OEM part for Whirlpool ranges and ovens. It provides illumination inside the oven cavity, allowing users to monitor the cooking process without opening the oven door.

Causes of a bad light bulb can include burnout from regular use, electrical issues, or damage due to high temperatures and vibrations within the oven.

Symptoms of a bad light bulb include:

• The light not turning on when the oven door is opened or the light switch is activated
• Flickering or dim light
• The bulb appears visibly damaged or burned out

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This thermostat is the temperature control switch that helps regulate your appliance's internal temperature for proper operation and food safety. It replaces a failed or faulty control to restore consistent cooling performance. What it does:

• Senses interior temperature and cycles the compressor or heating element to maintain set temperature
• Stops cooling or heating when the thermostat fails open, or causes overcooling when it fails closed
• Commonly replaced for inconsistent temperatures or an appliance that runs constantly
• Works as the user-controlled temperature regulator in the appliance's control system

• Disconnect power before starting any repair to reduce shock risk
• Handle mounting hardware and wiring carefully; note wire locations before removal
• Test operation after install by setting temperature and confirming normal cycling
