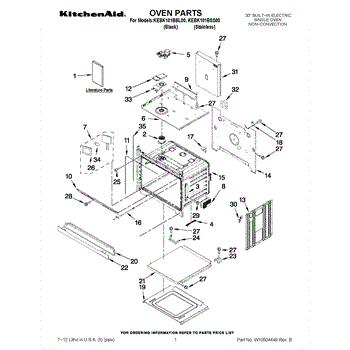

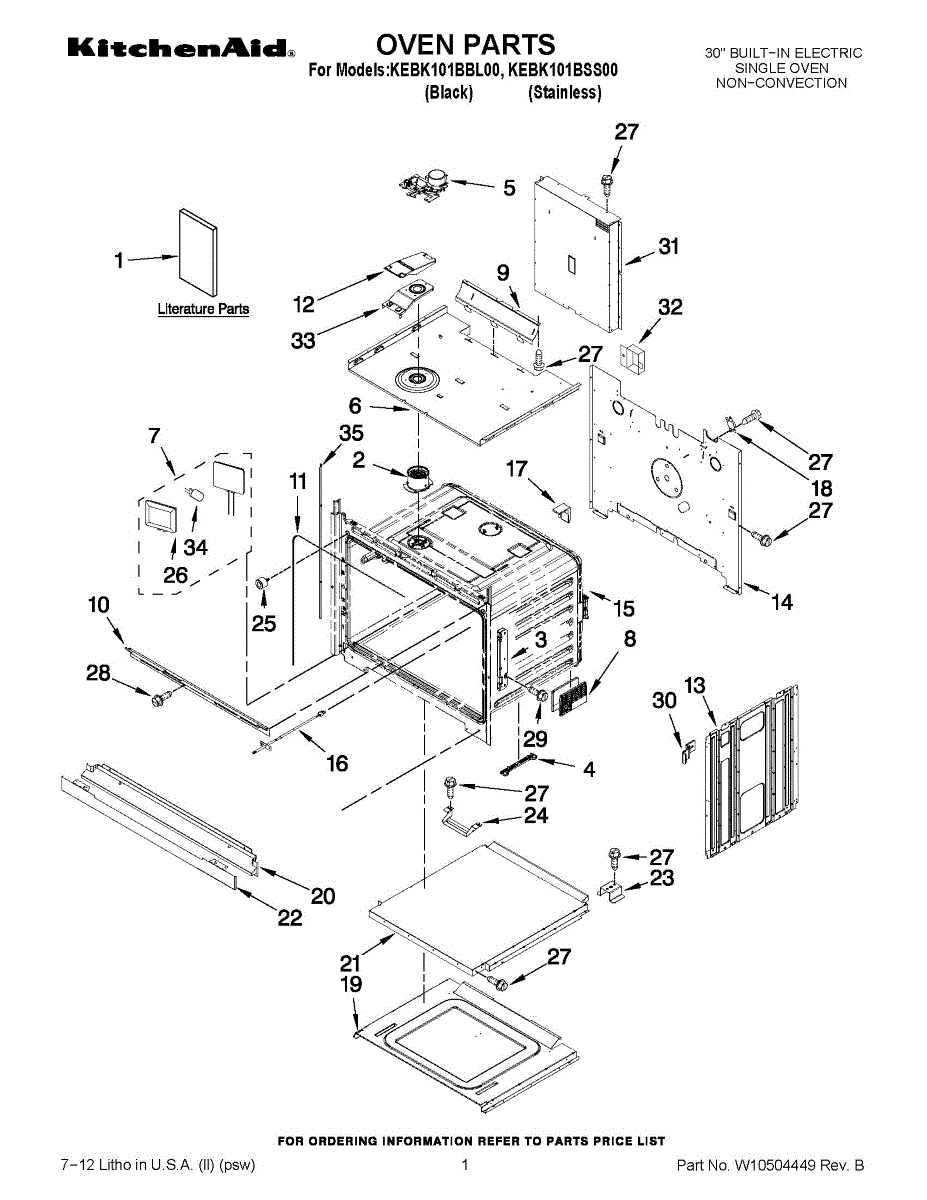

Parts for Kitchenaid KEBK101BBL00: 01 - Oven Parts

Routes hot, moist air from your dryer drum to the external vent outlet. Replace if cracked, disconnected, or damaged to restore proper airflow.

Receiver bracket that mounts and holds oven door hinges in place. Replace if cracked, broken, or worn from repeated use causing door misalignment or instability.

Replacement spacer for ovens and microwaves. Maintains proper clearance and alignment between components. Order a new spacer if yours is missing or damaged.

Oven door won't close or displays F5/E1 error? This door latch assembly secures the door and engages the safety interlock for proper operation.

Restores bright oven interior lighting so you can monitor food without opening the door. Replace when bulb burns out or dims. Verify fit by model number.

Color: Black. For biscuit order 98008169. For white order WP98008544.

Replace your wall oven door cavity gasket when heat escapes or condensation appears. Creates an airtight seal for optimal cooking temperatures. Confirm fit with your model number.

Replacement bumper rail that cushions your oven door to reduce noise and prevent metal contact. Installs on door frame to restore smooth closing.

This is a fixed high-limit thermostat used in ranges and ovens to monitor internal temperature and cut power to the heating element if the oven exceeds a safe operating temperature. It acts as a safety device to prevent overheating and potential fire hazards. Replace this thermostat if your oven is not heating at all, shuts off prematurely, or if you have confirmed a lack of continuity through the component with a multimeter.

Replace a cracked, broken, or missing vent cover on your electric wall oven or microwave combo. Installs on the exterior to restore proper appearance.

Lower front vent for electric wall ovens. Channels hot air and moisture out of the oven cavity. Replace if cracked, damaged, or missing for proper airflow.

This is a metal bottom panel that covers the lower section of the oven cavity. It serves as an access cover to protect internal components beneath the oven floor, such as the bake element or wiring. Replace this panel if it is warped, corroded, rusted through, or missing, which can lead to uneven heating or exposed components.

Front kick panel trim that covers and finishes the lower vent opening on wall ovens. Replace if cracked, broken, or missing for a clean appearance.

This bottom vent trim covers the lower front opening and directs airflow while giving the appliance a finished, clean look. It replaces a damaged or missing kickplate to restore proper ventilation and appearance.

• Shields the lower cabinet opening and helps guide airflow through the base
• Improves finished look by concealing internal components at the bottom front
• Common symptoms of failure include a loose, cracked, or missing trim and rattling at the base
• Can affect airflow if the trim is broken, warped, or not secured

• Unplug power and shut off utilities as applicable before servicing
• Remove existing fasteners, note their locations, and retain for reuse if still serviceable
• Align the trim with mounting points; secure with the correct hardware per your model
• Do not overtighten fasteners to avoid cracking the trim

6-32 machine screw secures panels, brackets, and components in appliances. Replace worn, missing, or stripped screws to restore proper fit and assembly.

Restores bright oven interior lighting so you can monitor food without opening the door. Replace when bulb burns out or dims. Verify fit by model number.

Screw for control panel vent.

This factory fastener secures components inside your appliance, keeping panels, brackets, and assemblies properly attached. Replacing a worn, stripped, or missing screw restores a tight fit and helps prevent vibration, rattling, and misalignment.

• Fastens parts to frames, panels, or brackets as specified in your model's parts diagram
• Helps maintain alignment and reduce vibration/rattling during operation
• Replace when the original screw is missing, corroded, stripped, or no longer holds
• Direct OEM hardware for the designated locations on applicable models

• Disconnect power; shut off gas/water if applicable. Allow hot surfaces to cool.
• Use the correct driver size; start threads by hand to avoid cross-threading.
• Tighten until snug—do not overtighten, especially into plastic or thin sheet metal.
• If a mating clip, insert, or nut is damaged, replace that hardware per your model diagram.

This spacer is a small mounting component that maintains proper clearance and alignment between oven panels or structural elements at the front of the unit. It helps ensure even gaps and secure positioning of surrounding parts. Replace this spacer if panels appear misaligned, loose, or if the original spacer is cracked or missing.

Interior light bulb illuminates your oven cavity for monitoring cooking progress. Replace when dim or burnt out. Verify fit with your model number.

This trim kit provides finishing pieces for built-in wall oven installations. It covers gaps between the oven and cabinet opening for a seamless, professional appearance. Install it when mounting a wall oven to achieve proper fit and hide rough cabinet edges.
