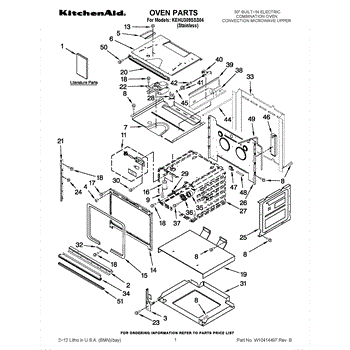

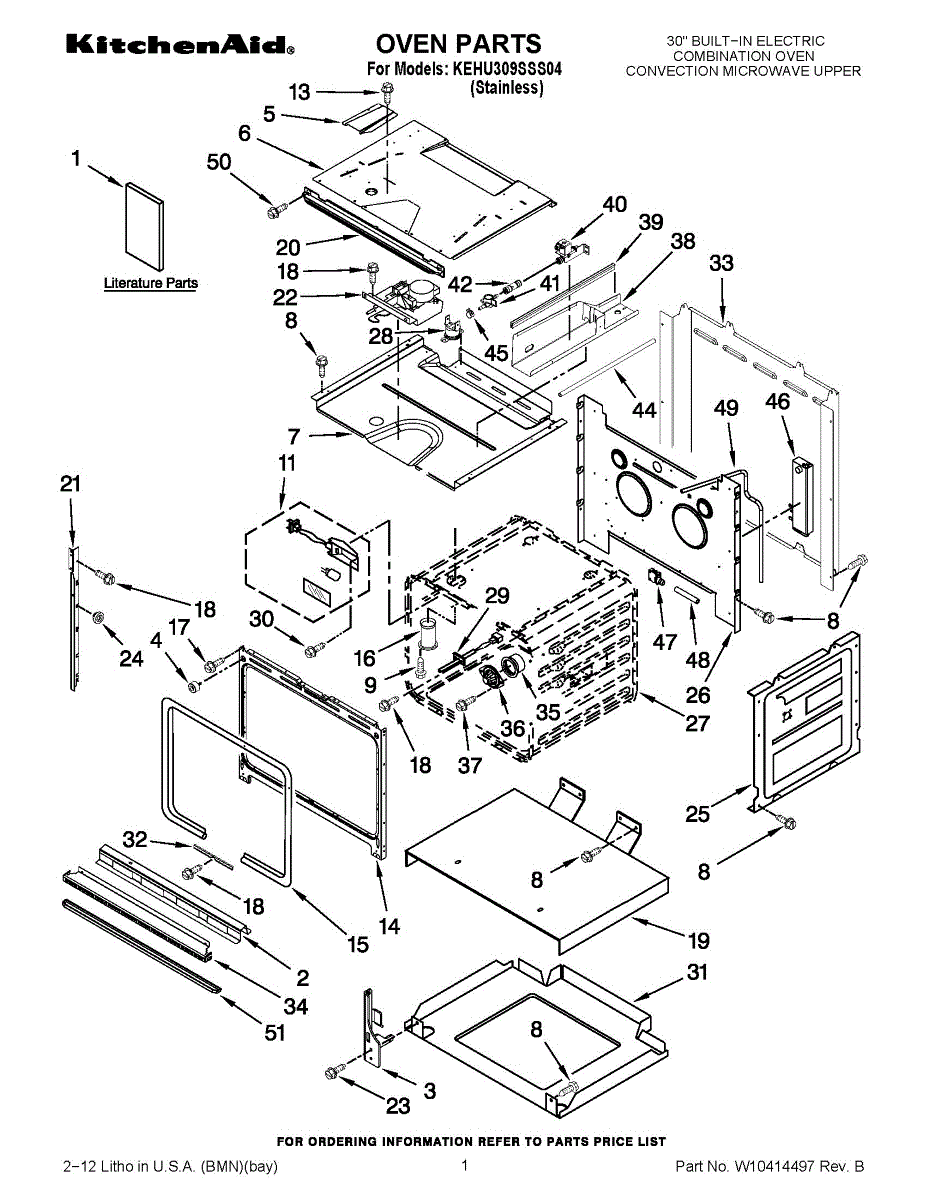

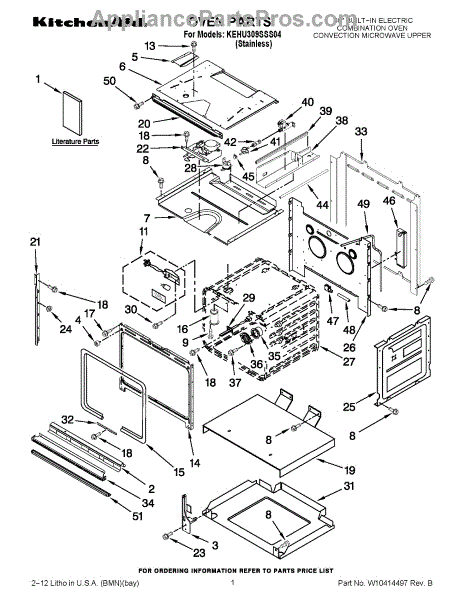

Parts for Kitchenaid KEHU309SSS04: 01 - Oven Parts

Left side hinge receiver for door hinge. For right side hinge receiver use WP4455606.

Right side hinge receiver for door hinge. For left side hinge receiver use WP4455605.

This small replacement bumper cushions contact points to reduce noise, prevent wear, and help doors or panels close more quietly and sit flush. Use it to restore proper cushioning where an original bumper is worn or missing. What it does:

• Absorbs shock and prevents metal-to-metal contact that can cause noise or chipping
• Helps doors, panels, or components close more softly and remain properly seated
• Reduces vibration transferred to surrounding parts for quieter operation
• Restores protective spacing to prevent rubbing and premature wear

• Disconnect power to the appliance before servicing and follow the manufacturer's safety instructions
• Typically installs at the contact point; remove the old bumper and press or place the replacement into position
• If the bumper uses adhesive or a fastener, use the same method indicated by the OEM for secure fitment

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Includes light bulb.

Screw for side trim.

This oven door gasket forms the heat-resistant seal between the door and oven cavity. Replacing a worn seal helps the oven reach and maintain temperature, reduces heat loss around the door, and supports even, consistent baking performance.

• Creates a continuous seal between the oven door and frame to contain heat and moisture
• Helps maintain accurate temperatures and normal preheat times
• Replaces torn, frayed, flattened, or brittle seals that allow heat to escape
• Common symptoms include hot air leaking near the door, uneven baking, and longer cook times

• Disconnect power at the breaker and allow the oven to cool completely before servicing
• Open the door and remove the old gasket, noting clip/pin locations and orientation
• Press the new gasket evenly into the retaining channel or holes; do not stretch the seal
• Close the door and verify uniform contact around the frame for a snug seal

Size: 8-18 x 3/8 inch.

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power

This door latch secures the appliance door and signals the control that it's safely closed. Replacing a worn or broken latch restores reliable door closure and proper cycle operation. What it does:

• Holds the door closed and aligned during use
• Engages the door strike to complete the door/lock switch circuit
• Resolve issues such as: door won't latch or pops open; cycles won't start; intermittent "door open" messages; needing to press/hold the door to run

• One door latch

• Disconnect power before servicing
• Access is typically from the door/front panel; note screw locations and latch orientation
• Transfer any mounting hardware from the original latch if needed
• After installation, verify smooth latch engagement with the strike and run a test cycle

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power

Right and left hand side.

This thermal fuse is a one-time safety cutoff for select ovens. It opens if excessive heat is detected, interrupting power to the control circuit to help protect components. Replacing a blown fuse may restore control/display power.

• Opens permanently at approximately 105°C (221°F) to cut power during overheat conditions
• Helps protect the electronic control and wiring from heat damage
• Addresses: blank display or unresponsive controls, oven not heating, unit shutting off during self-clean or high-heat use

• Disconnect power at the breaker before servicing
• Location varies by model; typically mounted on the oven cabinet near the control area or cooling system
• Replace like-for-like; do not bypass. Transfer existing connectors and secure in the original position
• Check cooling fan operation, airflow/vents, and wiring to correct the cause of overheating

• Cut-off temperature: 105°C (221°F)
• Non-resettable (one-time) fuse

The Oven Temperature Sensor is an OEM part for Whirlpool ovens. This component is responsible for monitoring the oven's internal temperature, sending data to the control board to maintain the desired cooking temperature. It ensures accurate temperature readings, which are essential for baking, roasting, and other cooking functions.

Causes of a bad Oven Temperature Sensor include prolonged exposure to high temperatures, which can degrade its responsiveness over time. Additionally, physical damage or wear and tear can lead to inaccurate temperature readings.

Symptoms of a bad Oven Temperature Sensor include:

• The oven temperature is inconsistent with the setting.
• Food is not cooking evenly or as expected.
• The oven fails to reach the set temperature, or it overshoots it significantly.
• Error codes related to temperature regulation appear on the oven's display.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement mounting screw secures panels and components on compatible Whirlpool appliances, helping restore proper fit and reduce movement or noise. Use it when a lost or damaged screw prevents parts from staying in place. What it does:

• Fastens panels, brackets, trim pieces or small assemblies
• Helps stop rattling, loose parts, or misaligned panels
• Restores secure attachment after hardware is lost or stripped
• Matches common OEM thread and head style for a correct fit when specified by model

• One replacement screw

• Turn off and unplug the appliance before servicing to avoid shock or injury
• Use the correct driver bit to avoid stripping the screw head
• Do not overtighten; snug until parts are secure to prevent damage
• If the original screw is corroded or stripped, replace it with this part for reliable fastening

Screw for control panel vent.

This solenoid valve is the electrical valve assembly that opens and closes to control fluid flow in the appliance, restoring proper fill and shutoff behavior when the original valve fails. What it does:

• Electrically opens and closes to allow or stop fluid flow to the appliance
• Stops unintended flowing or leaking when the valve seals properly
• Commonly linked to symptoms such as no fill, continuous filling, intermittent fill, or leaks near the valve
• Works as the actuator controlled by the appliance's control board to meter fluid delivery

• Disconnect power and shut off the water supply before servicing.
• Handle valve connections and seals carefully; replace any damaged gaskets or hoses.
• Reconnect wiring to the correct terminals and secure all fittings to avoid leaks.
• Test appliance through a full cycle after install and check for leaks.

This hose clamp secures a rubber or plastic hose to its fitting to maintain a tight, leak-resistant seal. Replace a worn or missing clamp to stop drips and keep appliance water connections secure.

• Fastens a hose to a barb or port to prevent leaks
• Helps keep hoses from slipping off due to vibration or pressure
• Restores proper sealing when a clamp is rusted, bent, or stripped
• Common symptoms: water dripping at a hose joint, loose hose connection, or a clamp that won't tighten

• Disconnect power and shut off the water supply before servicing
• Place a towel to catch residual water when removing hoses
• Position the clamp just behind the hose barb/bead and secure with the appropriate tool
• Restore water and power, then run a quick check for leaks at the connection

This boiler is the dishwasher water-heating assembly that provides the hot wash and rinse temperatures needed for effective cleaning. Replaces a failed boiler to restore normal heating during dishwasher cycles. What it does:

• Heats water used during wash and rinse cycles so detergent can clean effectively
• Helps maintain proper cycle temperatures for sanitizing performance
• Stops working when the element fails or the boiler leaks or overheats
• Often linked to no-heat cycles, prolonged wash times, or error codes related to water temperature

• Disconnect power and water supply before starting any repairs
• Inspect for leaks and damaged connectors; replace any worn mounting hardware or seals
• Handle electrical connections carefully and follow the appliance's service manual for wiring and testing

This silicone transmission hose routes water between the washer transmission and tub, using flexible material to resist kinks and temperature. It restores proper drainage and transfer flow to help prevent leaks and poor washer performance. What it does:

• Replaces a worn or cracked hose that can cause water leaks under the washer
• Maintains a flexible, kink-resistant channel between the transmission and tub
• Helps prevent intermittent filling/draining issues caused by damaged hoses
• Resists typical washer temperatures and flexing where rubber hoses fail

• Disconnect power and shut off water supply before beginning any repair
• Drain remaining water from the washer and place towels to catch spills
• Remove and replace the hose clamps; inspect and replace corroded clamps
• Avoid sharp bends or pinching the hose during reassembly
