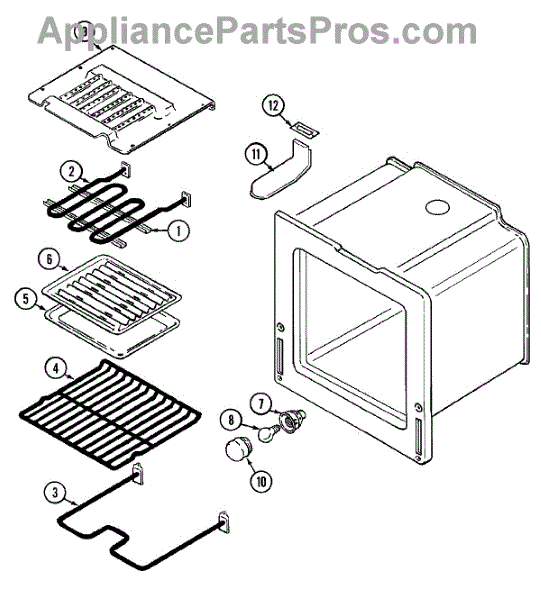

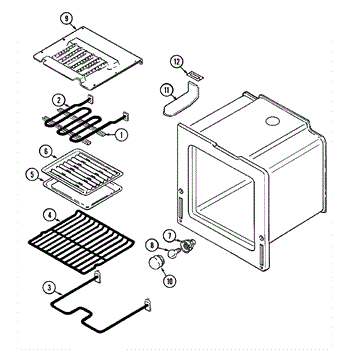

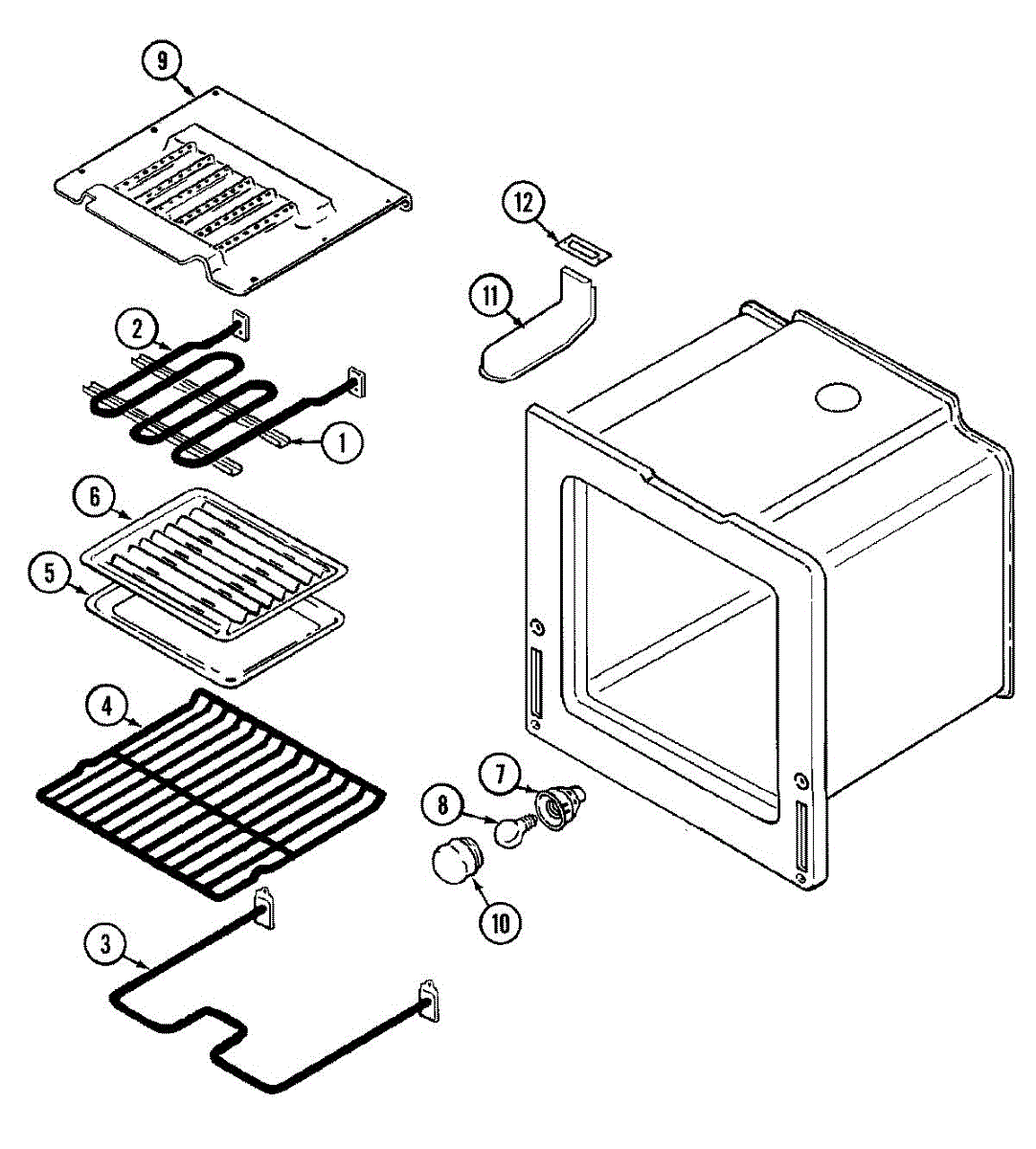

Parts for Magic Chef 6892VRV: 03 - Oven Parts

This is a replacement broil element for the oven's upper heating function. It restores high-heat broiling and top-surface browning so you can sear, brown, and finish foods as intended. What it does:

• Produces the direct, high heat required for broiling and browning
• Replaces a burned-out, visibly damaged, or non-heating upper element
• Restores even top-heat for recipes that require searing or finishing
• Helps eliminate weak or no heat from the oven's broil function

• One broil element

• Disconnect power to the appliance before starting any repair
• Allow the oven to cool completely and use basic hand tools to remove mounting screws and the old element
• Handle the new element carefully to avoid bending or damaging terminals

This OEM Replacement Part is a bake element designed for Whirlpool electric ovens. It measures approximately 19 1/4 inches wide and 15 1/2 inches deep. The element extends about 3 inches past the bracket to the terminals. The element, positioned at the bottom of the oven cavity, supplies heat for baking. It features male spade connectors with push-on wire terminals. If your oven experiences uneven heating, lack of heat, or minimal heat during baking, replacing this part may be necessary.

Ensure the range is unplugged or the house circuit breaker for the range is shut off before installation. The element provides 2100 watts on 208 volts and 2800 watts on 240 volts. Removal involves unscrewing Phillips screws above the element brackets and detaching the wire harness without losing wires. Inspecting the wire terminals for any signs of arcing or burning during removal is recommended.

The Oven Rack is an OEM part for Whirlpool ovens. It provides a sturdy and reliable surface for baking and roasting a variety of dishes. Designed to fit perfectly within Whirlpool models, this rack ensures optimal air circulation around the food, contributing to even cooking and browning.

Causes of a bad Oven Rack can include warping or damage from high heat, rusting from moisture exposure, or general wear and tear over time. Misshaping or instability can also result from placing too much weight on the rack or using it inappropriately.

Symptoms of a bad Oven Rack include:

• Difficulty sliding the rack in or out.
• Uneven cooking or baking due to improper leveling of the rack.
• The rack does not fit securely in the oven slots.
• Visible rust or damage, which could potentially contaminate food.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This snap-in indicator light assembly mounts in the control panel and illuminates when a function is active. Replace a failed or damaged indicator to restore clear status feedback on your range or wall oven.

• Provides visual indication that a selected function is active
• Restores at-a-glance status on the control panel
• Common symptoms: indicator won't light, flickers, stays on constantly, or the lens/housing is damaged
• Direct replacement for the original snap-in lamp assembly

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the rear of the control panel; note wire locations or take a photo
• Depress the retaining tabs to release the old light; transfer wires to the new assembly and snap it fully into place
• Restore power and verify indicator operation

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Color: clear. Measures about 3 inches in diameter.
