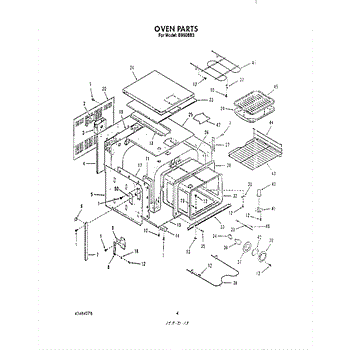

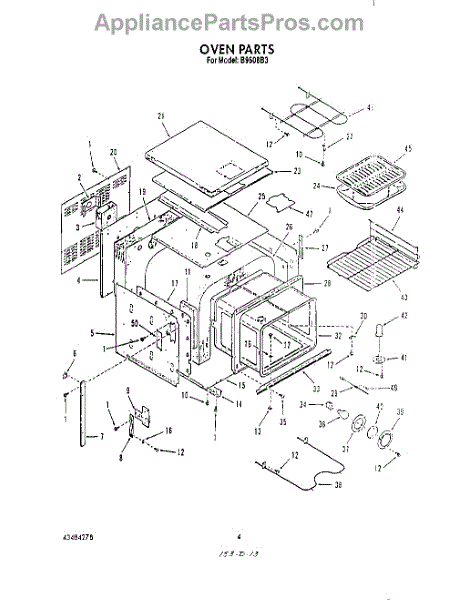

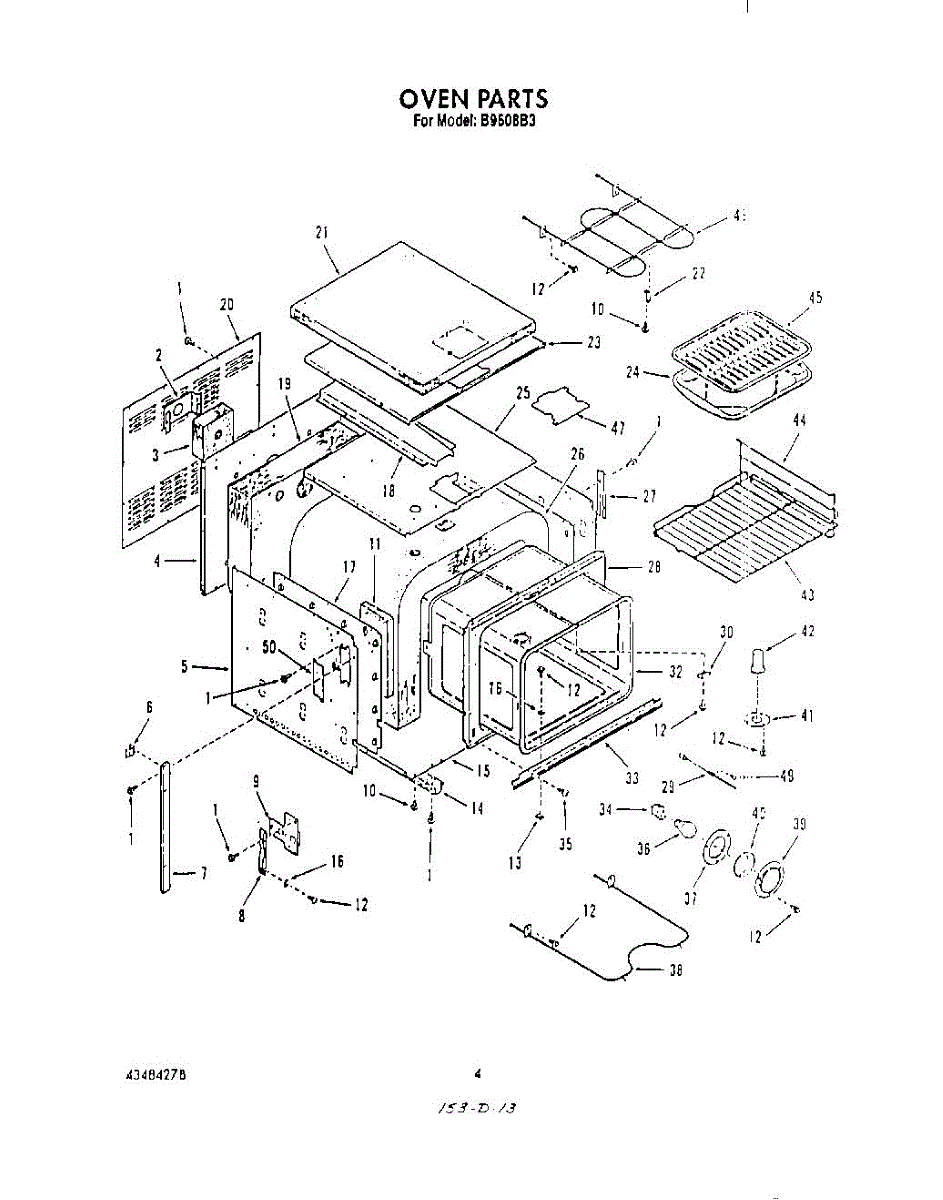

Parts for Whirlpool B9608B3: 04 - Oven Parts

ST10-16 X 7/16"

Size: 10-32 x 1/2 inch.

Includes 12 washers.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Oven Sensor Assembly is an OEM part for GE ovens. This part monitors the oven's internal temperature, ensuring it matches the set temperature on the oven's controls. By accurately measuring the heat inside the oven, the sensor assembly communicates with the oven's control system to adjust the temperature accordingly.

Over time, the oven sensor can become faulty due to wear or damage, leading to inaccurate temperature readings. This can manifest as unevenly cooked food, longer cooking times, or an oven that fails to reach the desired temperature setting.

Symptoms of a bad Oven Sensor Assembly include:

• The oven temperature is inconsistent with the setting
• Food is not cooking evenly or as expected
• The oven fails to heat to the set temperature
• Error codes appearing on the oven display related to temperature regulation

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This light socket holds the bulb and supplies power for reliable appliance lighting. Replace a cracked, heat-damaged, or loose socket to restore safe, consistent illumination inside the appliance.

• Secures the lamp and connects it to the appliance wiring
• Restores proper electrical contact to the bulb
• Replaces sockets showing arcing, discoloration, melting, or a loose fit
• Common symptoms: light won't turn on, flickers, works intermittently, or bulbs fail prematurely

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the appliance to cool completely before accessing the socket
• Use the bulb type and wattage specified for your model
• Transfer existing mounting screws/brackets and wiring connectors as needed; ensure tight, clean connections

Replacement bake element for the lower oven. This is the primary heat source in Bake mode, restoring reliable preheats and even results when the original element fails. If your oven won't heat or underbakes, this part addresses the issue.

• Provides radiant heat from the bottom of the oven during Bake mode
• Common failure symptoms: no heat in Bake, won't reach set temperature, or visible breaks/blistering on the element
• Restores even baking and consistent preheat performance when replaced
• Often tests open (no continuity) when the original element is burned out

• Disconnect power at the breaker or unplug the appliance before servicing
• Remove oven racks, then the element's mounting screws; gently pull the element forward to access wires
• Support wires so they don't retract; disconnect the two spade terminals and transfer any mounting bracket from the old element if needed
• Attach terminals to the new element, tuck wires carefully, reinstall screws, restore power, and test Bake

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The broil element is the oven's upper heating element. It delivers intense radiant heat for broiling; replacing a failed element restores proper broil performance and more even browning.

• Provides top, direct radiant heat during the Broil cycle
• Symptoms of failure: no broil heat, uneven broiling, visible blistering/cracks or breaks in the element, sparking or tripping the breaker when Broil is selected
• Helps restore proper searing/finishing from the top of the oven

• Disconnect power at the breaker or unplug the range before servicing
• Remove oven racks; support the element while removing its mounting screws
• Gently pull the element forward and disconnect the two wires; prevent wires from slipping behind the oven liner
• Make firm, clean terminal connections; avoid bending the element, reinstall screws, then test the Broil cycle

A replacement screw used to secure appliance panels and components. This direct-fit fastener restores proper assembly and helps stop rattles or misalignment caused by a missing or damaged screw. What it does:

• Secures trim, panels, or internal components to maintain proper fit and function
• Prevents parts from vibrating loose during operation
• Helps stop rattling, squeaks, or gaps caused by a missing or stripped screw
• Restores correct alignment so doors, knobs, or covers operate smoothly

• One replacement screw

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Install by hand until threaded, then tighten snugly—do not over-tighten
• Replace with the exact part number for proper fit and function
