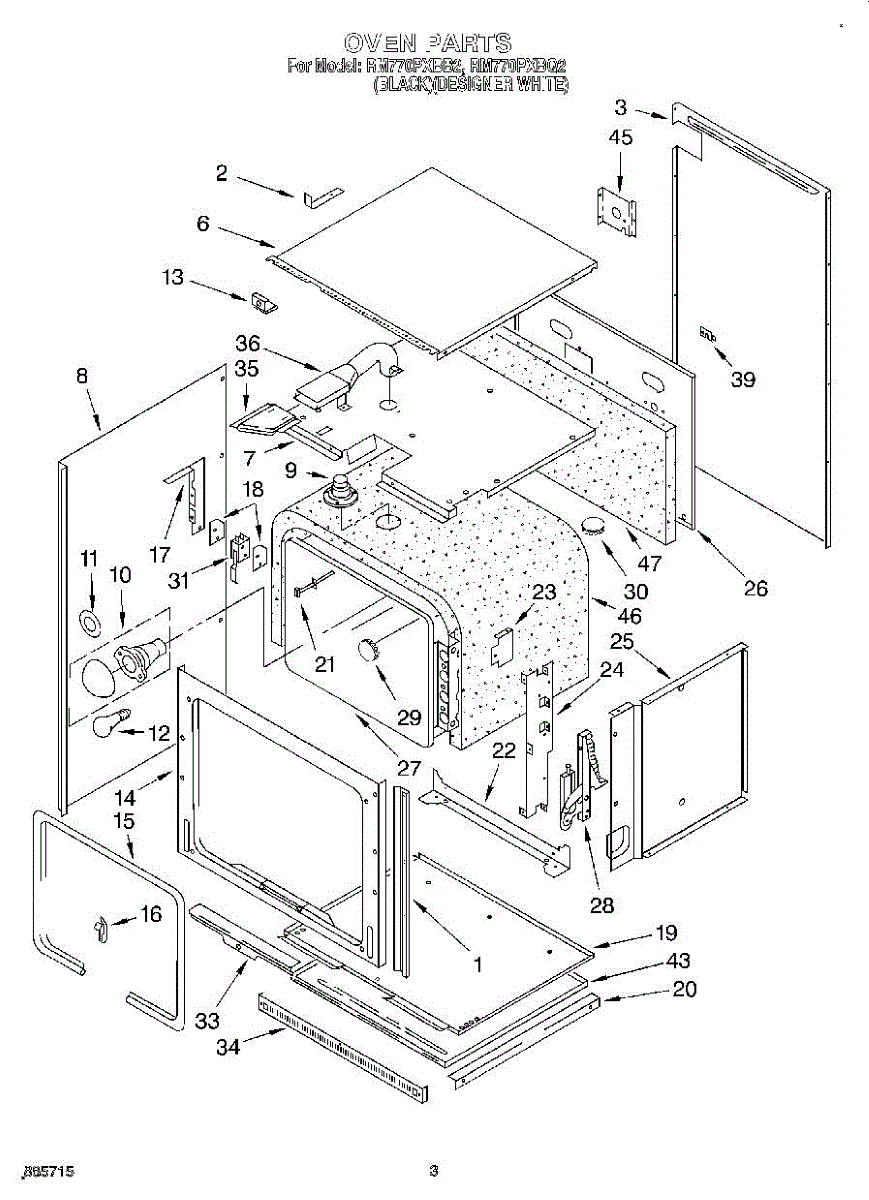

Parts for Whirlpool RM770PXBB2: 02 - Oven Parts

The Light Socket Assembly is an OEM part for Whirlpool ranges and wall ovens. This part houses the oven light bulb, providing the necessary electrical connections to illuminate the oven's interior. It ensures that you can monitor the cooking process without opening the oven door, thereby maintaining a consistent temperature and energy efficiency.

Causes of damage to the light socket assembly often include excessive heat, electrical surges, or physical damage during cleaning or maintenance.

A malfunctioning light socket assembly can lead to several issues, including:

• The inability to turn the oven light on
• Flickering or inconsistent lighting caused by loose connections or damage to the socket
• Complete failure of the light feature, due to wear and tear or electrical faults

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This oven light lens gasket seals the lens to the oven liner, helping keep heat, steam, and grease out of the light housing. It maintains a secure fit for the lens and protects the bulb and wiring.

• Creates a heat-resistant seal between the light lens and oven cavity
• Helps block heat, steam, and grease from entering the light assembly
• Stabilizes the lens/retainer so the lens sits flush and secure
• Common signs of failure: torn/brittle gasket, lens feels loose, condensation or grease inside the lens, or scorching around the light opening

• Disconnect power at the breaker and allow the oven to cool completely before servicing
• Remove the lens retainer and lens to access the gasket; note orientation before removal
• Seat the new gasket evenly around the opening, then reinstall the lens and retainer without overtightening
• The lens sits flush and the seal is even after reassembly

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Size: 8 x 3/8 inch.

Size: 6 inches long. Includes ceramic wire connectors.

Size: 8 x 3/8 inch.

Size: 8 x 3/8 inch.

Size: 8 x 3/8 inch.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This part has been discontinued by the manufacturer and is no longer available.

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.
