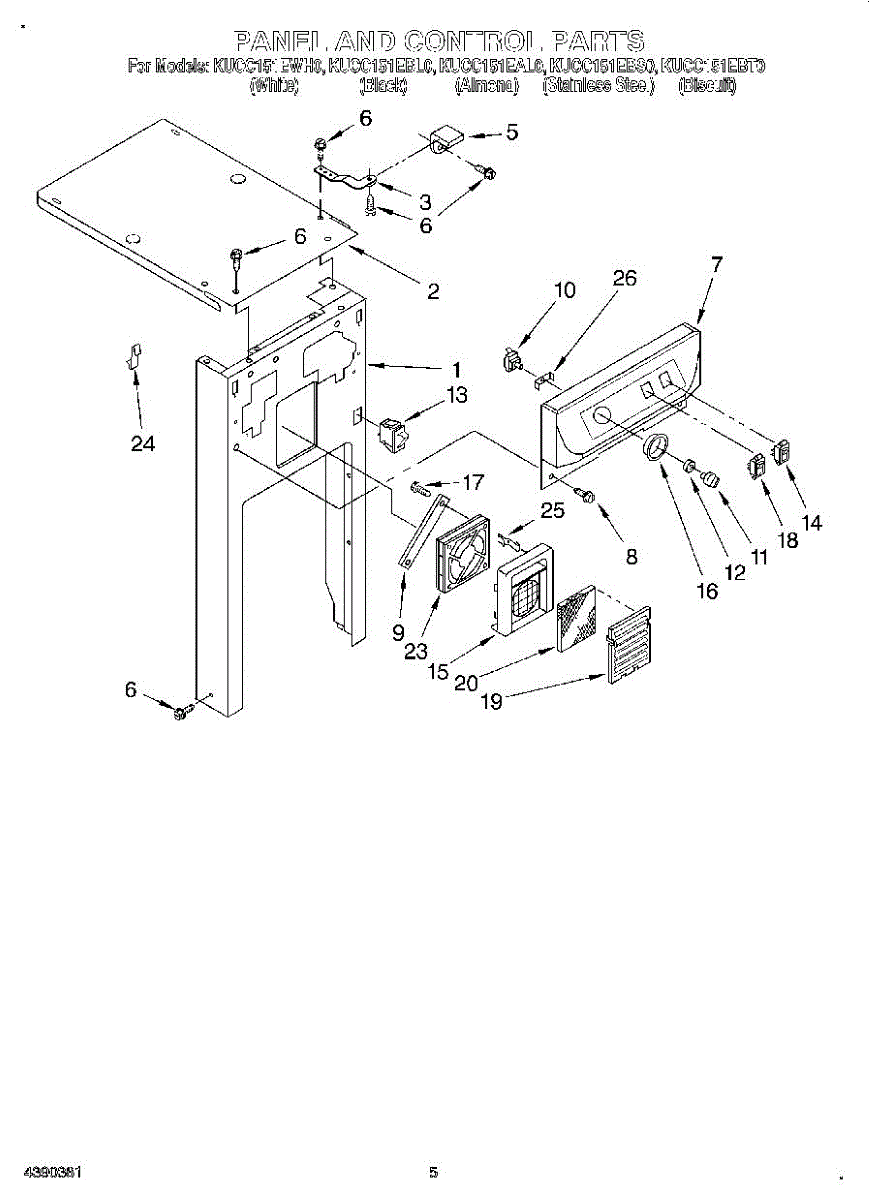

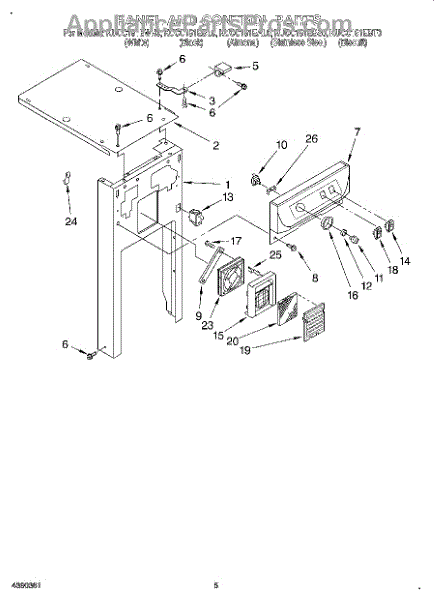

Parts for Kitchenaid KUCC151EBT0: 05 - Panel And Control Parts

Color: Black. This panel is without cut out for lower switch. For panel with cut out use W10342596.

This retainer bracket secures internal components in place to restore proper alignment and support. It replaces a worn or broken bracket to help reduce rattling, misalignment, or loose parts during operation. What it does:

• Holds and supports internal assembly parts to maintain correct positioning
• Prevents movement that can cause noise, vibration, or rubbing
• Restores stability after bracket damage or wear
• Works as a direct-fit replacement when the original bracket is broken or bent

• High-level replacement — basic hand tools required;
• Disconnect power (and gas if applicable) before beginning any repair
• Inspect surrounding parts and hardware; replace any damaged fasteners for a secure fit

Size: 8 x 1/2 ab.

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

The On/Off Rotary Switch Kit is an OEM part for Whirlpool trash compactors. This kit includes the rotary switch and necessary components to control the power and operation of the trash compactor, allowing users to turn the unit on and off easily.

Causes of a bad rotary switch can include electrical wear and tear, damage from repeated use, or issues with the internal contacts. Over time, these factors can lead to the switch becoming unresponsive or failing to control the compactor properly.

Symptoms of a bad rotary switch include:

• The trash compactor not turning on or off
• Intermittent operation of the compactor
• The switch feeling loose or unresponsive
• Electrical sparking or unusual noises from the switch area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Start Switch Knob is an OEM part for Whirlpool trash compactors. This knob allows you to control the start function of the trash compactor, initiating the compacting cycle when turned.

Causes of a bad Start Switch Knob can include wear and tear from frequent use, damage due to excessive force, or issues with the internal connection between the knob and the switch mechanism.

Symptoms of a bad Start Switch Knob include:

• Difficulty turning the knob or engaging the start function
• The compactor not starting or stopping intermittently
• The knob feeling loose or coming off completely

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This switch nut secures a rotary control or switch to the appliance's front panel. Replacing a stripped or missing nut keeps the control stable so the knob turns smoothly and the shaft stays properly aligned.

• Clamps the switch/control to the panel to prevent movement or rotation
• Helps maintain correct knob alignment with dial markings
• Common symptoms: loose or wobbly knob, switch rotates in the panel, missing/damaged nut
• Often needed after service if the original nut is stripped or lost

• Disconnect electrical power before servicing
• Remove the knob and any decorative escutcheon; thread the new nut onto the switch bushing from the front of the panel
• Support the switch from behind while tightening; do not overtighten to avoid panel or switch damage
• Restore power and test control operation

This push-button door switch senses when your refrigerator door opens and closes to control the interior light. Replace a worn or stuck switch to restore reliable lighting and proper on/off operation when the door moves. What it does:

• Turns the interior light on when the door opens and off when it closes
• Common fix for a light that won't turn on with the door open
• Resolves lights that stay on continuously with the door closed
• Addresses intermittent lighting from a sticking or damaged plunger

• One door switch

• Disconnect power to the refrigerator before servicing
• Carefully pry the old switch from the liner; protect the surface to avoid damage
• Transfer wires to the new switch one at a time to maintain correct connections
• Press the new switch fully into place and restore power to test operation

This SPDT rocker switch restores dependable user control of a selected function on your appliance. Replacing a worn or intermittent switch brings back positive engagement and consistent operation. What it does:

• Toggles a single circuit between two positions to control a function
• Restores responsive on/off or selection input at the control panel
• Helps resolve no-response or intermittent operation when the switch is toggled
• Addresses a loose, sticking, or physically damaged rocker actuator

• Disconnect power to the appliance before servicing
• Access the control panel; note wire locations or take a quick photo
• Move wires to the new switch one at a time to maintain correct orientation
• Seat the switch securely in the panel, restore power, and test function

Size: 10-24 x 3/8 inch.

Replace a broken or missing air freshener cover. This black cover shields and secures the charcoal deodorizer cartridge, helping it stay in place so odors are contained and the compartment maintains a clean, finished look. What it does:

• Covers and protects the deodorizer/charcoal air freshener compartment
• Holds the odor-absorbing cartridge securely in place
• Helps contain odors by ensuring the cartridge is seated correctly
• Common symptoms: cracked, warped, loose, rattling, or missing cover

• 1 black air freshener/filter cover

• Disconnect power before servicing
• Open the access area for the deodorizer/filter
• Remove the old cover; position and secure the new cover per the design (snap or fastener)
• The deodorizer/filter is properly seated and the cover is fully engaged

Color: black. It measures about 4-1/2 inches wide by 4-1/2 inches high.
