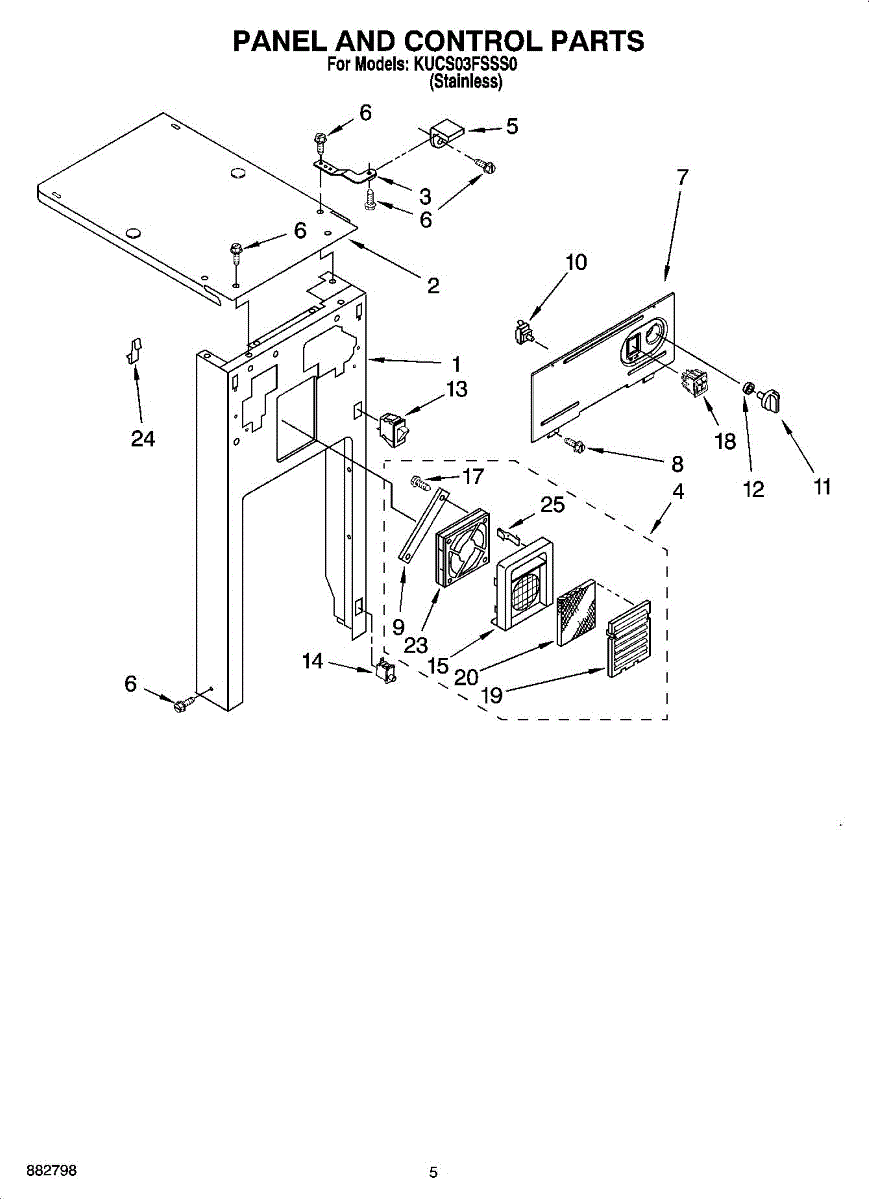

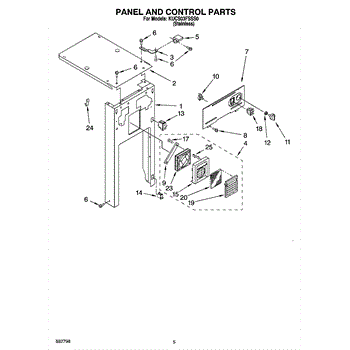

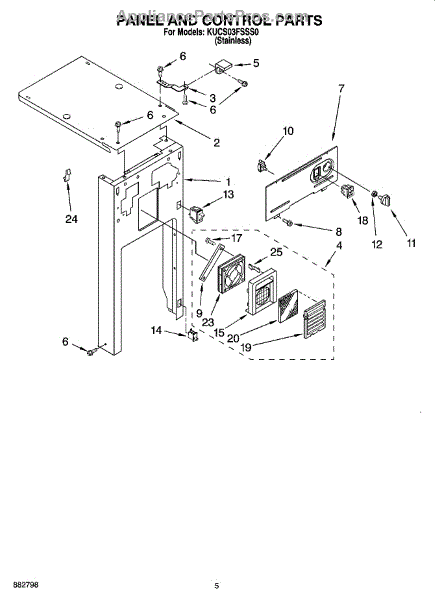

Parts for Kitchenaid KUCS03FSSS0: 05 - Panel And Control Parts

The Actuator Switch Kit is an OEM part for Whirlpool trash compactors. This part activates the compaction cycle when the trash compactor's door is shut and locked, ensuring the unit operates safely and effectively. The actuator switch signals the control system to start the compaction process, an essential step in reducing the volume of waste.

Causes of a malfunctioning actuator switch can include prolonged use leading to mechanical wear, electrical failures within the switch itself, or misalignment issues with the compactor's door.

Symptoms of a bad Actuator Switch Kit include:

• The compactor fails to start the compaction cycle
• The system starts only intermittently or not at all
• Unexpected halting of the compaction process
• The need to manually engage or adjust the switch to start the cycle

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This retainer bracket secures internal components in place to restore proper alignment and support. It replaces a worn or broken bracket to help reduce rattling, misalignment, or loose parts during operation. What it does:

• Holds and supports internal assembly parts to maintain correct positioning
• Prevents movement that can cause noise, vibration, or rubbing
• Restores stability after bracket damage or wear
• Works as a direct-fit replacement when the original bracket is broken or bent

• High-level replacement — basic hand tools required;
• Disconnect power (and gas if applicable) before beginning any repair
• Inspect surrounding parts and hardware; replace any damaged fasteners for a secure fit

Size: 8 x 1/2 ab.

This console flat kit restores the flat control-panel trim on a stove or range for a clean, finished appearance and protection for the controls. Designed as a direct replacement for the damaged or worn console surface. What it does:

• Replaces a cracked, scratched, faded, or missing flat console trim to restore appearance
• Covers and protects the control area from spills, grease, and debris
• Helps ensure proper alignment of front-facing control components and buttons
• Reduces chance of foreign objects entering the control cavity through damaged trim

• Disconnect power to the appliance before starting any work to avoid shock or injury.
• Some models require removing trim screws or control knobs; save and reuse original hardware.
• Align the part carefully with existing mounting points; do not force—check for hidden clips or fasteners.
• Take care around wiring and electronic controls.

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

This rotary start-run switch controls power to the appliance motor. Turning the knob engages the motor circuit to start and keep it running, restoring reliable on/off operation when the original switch wears out.

• Controls motor power using a rotary action
• Replaces a worn or intermittent switch that causes no start, stops, or inconsistent operation
• Helps resolve issues like fan/blower not turning on, cutting out, or only running in certain positions
• Designed for correct fit and dependable switching in compatible units

• Disconnect power before servicing to prevent electrical shock
• Note wire locations or take photos before removing the old switch
• Transfer wires to the same terminals on the new switch; secure connections firmly
• Test operation before reassembling any panels or knobs

This replacement rotary switch knob restores simple, reliable control of your appliance's rotary selector. It gives you a clear grip and indicator for selecting settings so the control is easy to turn and read. What it does:

• Replaces a cracked, worn or loose rotary control knob to restore positive grip and selection feel.
• Provides a visible pointer/indicator to help line up and select the correct setting.
• Helps when the original knob slips, turns loosely, or has faded markings.
• Fits onto the appliance's rotary switch to allow manual selection of functions or temperatures.

• Disconnect power to the appliance (unplug or switch off the breaker) before servicing.
• Most installs are direct: pull the old knob straight off and push the new knob onto the switch shaft; some models may use a retaining screw—inspect before forcing.
• Do not attempt internal repairs while the appliance is energized.

This switch nut secures a rotary control or switch to the appliance's front panel. Replacing a stripped or missing nut keeps the control stable so the knob turns smoothly and the shaft stays properly aligned.

• Clamps the switch/control to the panel to prevent movement or rotation
• Helps maintain correct knob alignment with dial markings
• Common symptoms: loose or wobbly knob, switch rotates in the panel, missing/damaged nut
• Often needed after service if the original nut is stripped or lost

• Disconnect electrical power before servicing
• Remove the knob and any decorative escutcheon; thread the new nut onto the switch bushing from the front of the panel
• Support the switch from behind while tightening; do not overtighten to avoid panel or switch damage
• Restore power and test control operation

Color: Black

The Actuator Switch Kit is an OEM part for Whirlpool trash compactors. This part activates the compaction cycle when the trash compactor's door is shut and locked, ensuring the unit operates safely and effectively. The actuator switch signals the control system to start the compaction process, an essential step in reducing the volume of waste.

Causes of a malfunctioning actuator switch can include prolonged use leading to mechanical wear, electrical failures within the switch itself, or misalignment issues with the compactor's door.

Symptoms of a bad Actuator Switch Kit include:

• The compactor fails to start the compaction cycle
• The system starts only intermittently or not at all
• Unexpected halting of the compaction process
• The need to manually engage or adjust the switch to start the cycle

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 10-24 x 3/8 inch.

This Off switch controls power to the appliance circuit, restoring reliable on/off operation when the original switch is worn or fails. It provides a direct replacement to stop power flow and restore user control. What it does:

• Opens the circuit to stop power when switched off
• Replaces a broken, stuck, or unresponsive power switch
• Helps resolve symptoms like the unit not turning off or intermittent power
• Restores tactile on/off control at the user interface

• Disconnect power at the breaker or unplug the appliance before starting
• Remove the control panel or access cover to reach the switch; keep track of screws and fasteners
• Match terminals and wiring orientation; swap the old switch for the new one exactly

Replace a broken or missing air freshener cover. This black cover shields and secures the charcoal deodorizer cartridge, helping it stay in place so odors are contained and the compartment maintains a clean, finished look. What it does:

• Covers and protects the deodorizer/charcoal air freshener compartment
• Holds the odor-absorbing cartridge securely in place
• Helps contain odors by ensuring the cartridge is seated correctly
• Common symptoms: cracked, warped, loose, rattling, or missing cover

• 1 black air freshener/filter cover

• Disconnect power before servicing
• Open the access area for the deodorizer/filter
• Remove the old cover; position and secure the new cover per the design (snap or fastener)
• The deodorizer/filter is properly seated and the cover is fully engaged

Color: black. It measures about 4-1/2 inches wide by 4-1/2 inches high.
