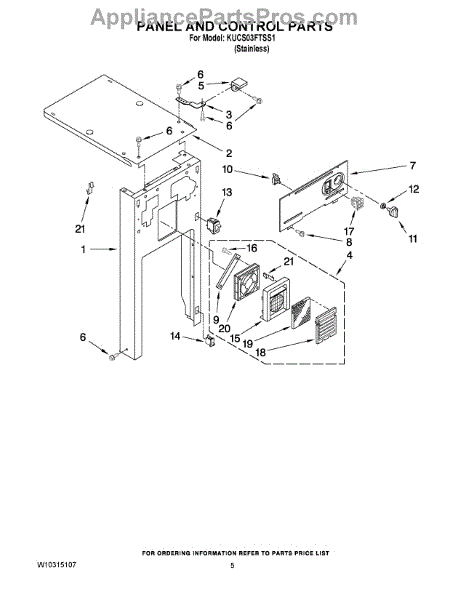

Parts for Kitchenaid KUCS03FTSS1: 05 - Panel And Control Parts

This retainer bracket secures internal components in place to restore proper alignment and support. It replaces a worn or broken bracket to help reduce rattling, misalignment, or loose parts during operation. What it does:

• Holds and supports internal assembly parts to maintain correct positioning
• Prevents movement that can cause noise, vibration, or rubbing
• Restores stability after bracket damage or wear
• Works as a direct-fit replacement when the original bracket is broken or bent

• High-level replacement — basic hand tools required;
• Disconnect power (and gas if applicable) before beginning any repair
• Inspect surrounding parts and hardware; replace any damaged fasteners for a secure fit

Size: 8 x 1/2 ab.

This console flat kit restores the flat control-panel trim on a stove or range for a clean, finished appearance and protection for the controls. Designed as a direct replacement for the damaged or worn console surface. What it does:

• Replaces a cracked, scratched, faded, or missing flat console trim to restore appearance
• Covers and protects the control area from spills, grease, and debris
• Helps ensure proper alignment of front-facing control components and buttons
• Reduces chance of foreign objects entering the control cavity through damaged trim

• Disconnect power to the appliance before starting any work to avoid shock or injury.
• Some models require removing trim screws or control knobs; save and reuse original hardware.
• Align the part carefully with existing mounting points; do not force—check for hidden clips or fasteners.
• Take care around wiring and electronic controls.

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

This rotary start-run switch controls power to the appliance motor. Turning the knob engages the motor circuit to start and keep it running, restoring reliable on/off operation when the original switch wears out.

• Controls motor power using a rotary action
• Replaces a worn or intermittent switch that causes no start, stops, or inconsistent operation
• Helps resolve issues like fan/blower not turning on, cutting out, or only running in certain positions
• Designed for correct fit and dependable switching in compatible units

• Disconnect power before servicing to prevent electrical shock
• Note wire locations or take photos before removing the old switch
• Transfer wires to the same terminals on the new switch; secure connections firmly
• Test operation before reassembling any panels or knobs

This replacement rotary switch knob restores simple, reliable control of your appliance's rotary selector. It gives you a clear grip and indicator for selecting settings so the control is easy to turn and read. What it does:

• Replaces a cracked, worn or loose rotary control knob to restore positive grip and selection feel.
• Provides a visible pointer/indicator to help line up and select the correct setting.
• Helps when the original knob slips, turns loosely, or has faded markings.
• Fits onto the appliance's rotary switch to allow manual selection of functions or temperatures.

• Disconnect power to the appliance (unplug or switch off the breaker) before servicing.
• Most installs are direct: pull the old knob straight off and push the new knob onto the switch shaft; some models may use a retaining screw—inspect before forcing.
• Do not attempt internal repairs while the appliance is energized.

This switch nut secures a rotary control or switch to the appliance's front panel. Replacing a stripped or missing nut keeps the control stable so the knob turns smoothly and the shaft stays properly aligned.

• Clamps the switch/control to the panel to prevent movement or rotation
• Helps maintain correct knob alignment with dial markings
• Common symptoms: loose or wobbly knob, switch rotates in the panel, missing/damaged nut
• Often needed after service if the original nut is stripped or lost

• Disconnect electrical power before servicing
• Remove the knob and any decorative escutcheon; thread the new nut onto the switch bushing from the front of the panel
• Support the switch from behind while tightening; do not overtighten to avoid panel or switch damage
• Restore power and test control operation

Color: Black

This normally closed pushbutton switch controls an on/off circuit in the appliance. Replacing a worn switch restores reliable light shutoff and interlock response so the unit behaves correctly when the button or door/plunger is pressed.

• NC operation: circuit is closed at rest and opens when the button is pressed
• Commonly used for door/light or interlock "off" functions in compatible assemblies
• Symptoms can include: light stays on with door closed, light won't turn on, unit won't start because door isn't detected, or intermittent operation
• Helps ensure consistent, repeatable switch actuation

• Disconnect power before servicing
• Note/photograph wire locations; move wires to the same terminals on the new switch
• Mount securely and align the actuator with the button or door plunger
• Restore power and test for proper operation before reassembly

Size: 10-24 x 3/8 inch.

This Off switch controls power to the appliance circuit, restoring reliable on/off operation when the original switch is worn or fails. It provides a direct replacement to stop power flow and restore user control. What it does:

• Opens the circuit to stop power when switched off
• Replaces a broken, stuck, or unresponsive power switch
• Helps resolve symptoms like the unit not turning off or intermittent power
• Restores tactile on/off control at the user interface

• Disconnect power at the breaker or unplug the appliance before starting
• Remove the control panel or access cover to reach the switch; keep track of screws and fasteners
• Match terminals and wiring orientation; swap the old switch for the new one exactly

Replace a broken or missing air freshener cover. This black cover shields and secures the charcoal deodorizer cartridge, helping it stay in place so odors are contained and the compartment maintains a clean, finished look. What it does:

• Covers and protects the deodorizer/charcoal air freshener compartment
• Holds the odor-absorbing cartridge securely in place
• Helps contain odors by ensuring the cartridge is seated correctly
• Common symptoms: cracked, warped, loose, rattling, or missing cover

• 1 black air freshener/filter cover

• Disconnect power before servicing
• Open the access area for the deodorizer/filter
• Remove the old cover; position and secure the new cover per the design (snap or fastener)
• The deodorizer/filter is properly seated and the cover is fully engaged

Color: black. It measures about 4-1/2 inches wide by 4-1/2 inches high.
