Bosch Dishwasher SHS63VL2UC Parts

This replacement screw secures panels, brackets, and internal parts in your appliance for a tight, rattle-free fit. Use it to replace lost, stripped, or corroded hardware and keep components properly fastened.

• Fastens components to the appliance frame or assemblies
• Replaces a missing, stripped, or rusted original screw
• Helps reduce rattling or vibration from loose hardware
• Restores proper alignment of panels or brackets

• Disconnect power and shut off water before servicing
• Refer to your model's parts diagram to locate and place
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening

Covers visible gaps along dishwasher tub edges for a clean, finished look. Restore your dishwasher's appearance with this protective trim strip.

The Cover is an OEM part for Bosch dishwashers. It serves as a protective barrier over vulnerable inner components. The cover helps prevent damage from spills, shields electronics from moisture, and blocks access to moving parts for safety.

Causes of a bad cover can be normal wear and tear, repeated impact damage, or improper handling during repairs.

Symptoms of a bad cover include:

• Cracks, holes or other physical damage
• Warping or deformation over time
• Loose or improper fit that exposes internal parts

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This metric M4 x 8 screw secures the toe-kick/lower access panel at the base of the appliance. Replace a missing or stripped fastener to keep the kickplate tight and aligned, helping prevent looseness and noise.

• Secures the toe-kick or lower access panel to the base/frame
• Restores proper fit when the original screw is lost or damaged
• Helps reduce panel rattles and vibration
• Maintains correct alignment and clearance at the bottom edge

• Disconnect power before servicing; also shut off the water supply
• Support the panel and align holes before threading the screw
• Start by hand to avoid cross-threading; tighten snugly—do not overtighten
• Verify size matches the original; replace matching hardware together if required by your model

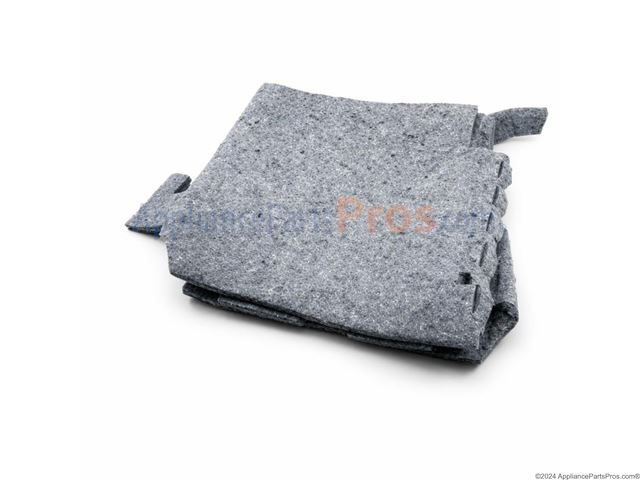

Fix excessive exterior heat or protect components with this dishwasher insulation blanket. Reduces heat transfer to maintain safe operating temperatures.

This is the lower housing or base case that forms the bottom enclosure of the dishwasher. It provides structural support and helps contain water and components beneath the wash tub. Replace this part if it is cracked, warped, or leaking from the base of the unit.

The Terminal Block is an OEM part for Bosch dishwashers. It serves as the connection point where the household electrical power supply is connected to the dishwasher's internal wiring harness.

Causes of a malfunctioning Terminal Block can include loose connections allowing arcing or short circuits, corrosion buildup due to moisture exposure, or physical damage from impact.

Symptoms of a bad Terminal Block include:

• No power to the dishwasher at all
• Intermittent power issues or the dishwasher unexpectedly losing power
• Signs of overheating, burning or arcing around the terminal block area

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This protective cover sheet mounts to the appliance's frame to shield and support nearby components. Replacing a damaged or missing panel helps keep wiring and mechanisms protected and securely mounted, reducing vibration and preventing premature wear.

• Shields internal components from debris, moisture, and accidental contact
• Helps maintain proper alignment and support of adjacent assemblies
• Can reduce rattling or vibration when correctly secured
• Replace if bent, cracked, corroded, or missing

• Disconnect power (and water supply if applicable) before servicing
• Wear cut-resistant gloves; panel edges can be sharp
• Note and retain original fasteners/clips for reuse
• Route wires and seals carefully to avoid pinching; align panel before tightening fasteners

The pump sump seal repair kit contains gaskets and seals that prevent water leaks in the dishwasher's drain pump assembly. Located at the bottom of the dishwasher tub where the pump connects, these seals maintain watertight connections. Replace if you notice water pooling under the dishwasher, reduced drainage performance, or visible water leaks during operation.

The Divertor Motor is an OEM part for Bosch dishwashers.  This part controls the direction of water flow within the unit. This motor directs the water to different spray arms based on the selected wash cycle, ensuring efficient cleaning by optimizing water usage and spray intensity.

Causes of damage to the divertor motor can include regular wear and tear, exposure to water and detergent over time, and electrical issues such as wiring problems or faults in the control board.

Symptoms of a failing Divertor Motor include:

• Inadequate water distribution during cycles, which can lead to uneven cleaning results.
• The dishwasher making unusual noises, such as humming or grinding, which may indicate a struggle in the motor function.
• Certain wash zones receiving little to no water, affecting the appliance's overall performance.
• Error codes displayed on the dishwasher panel that relate to water circulation problems.

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This support is a factory replacement component that holds and stabilizes a specific part within your appliance so it stays aligned and secure. Replacing a cracked or missing support restores proper fit and helps prevent noise or binding.

• Provides structural support and alignment for the designated component
• Keeps parts seated securely to minimize movement and vibration during use
• A damaged or missing support can cause looseness, rattling, sagging, or misalignment
• Restores proper fit and function when the original is cracked, warped, or broken

• Disconnect power and shut off any gas/water supplies before servicing
• Refer to your model's parts diagram to identify location and orientation
• Install using the appliance's existing screws or clips; avoid overtightening to prevent damage
• Wear cut-resistant gloves; beware of sharp edges and pinch points

Fix a dishwasher that won't start, stops mid-cycle, or has error codes with this pre-programmed power module control board. Manages all wash functions.

Secures the dishwasher sump or sump cover to the tub for a tight, leak-resistant seal. Replace if missing, stripped, or damaged to restore stability.

Lower rack wheel for Bosch dishwashers. Guides the bottom rack smoothly in and out. Replace if cracked, broken, or worn for proper rack operation.

This lock clamp secures an appliance component or assembly so it stays properly seated during operation. Replacing a worn or missing clamp helps restore a stable, rattle-free fit and reliable performance. What it does:

• Holds mating parts together to prevent shifting or vibration
• Helps maintain correct alignment of the secured component
• Can resolve issues where a part won't stay attached or seated
• Restore normal operation when the original clamp is broken or missing

• One lock clamp

• Disconnect power (and shut off water/gas if applicable) before servicing
• Note the clamp's original orientation; take a photo to aid reassembly
• Seat the component fully, then engage the clamp securely without over-stressing it
• Reassemble and test for a firm, stable fit before returning the appliance to service

This sensor monitors the clarity and cleanliness of the wash water inside the dishwasher, helping the control board determine how dirty the water is and whether additional wash cycles are needed. It plays a key role in optimizing water usage and ensuring dishes come out clean. Replace this sensor if dishes are consistently coming out dirty, wash cycles are running too long or too short, or the dishwasher is not properly adjusting its cleaning performance.
