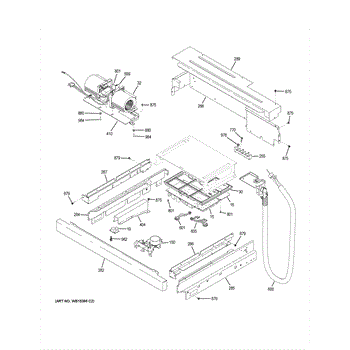

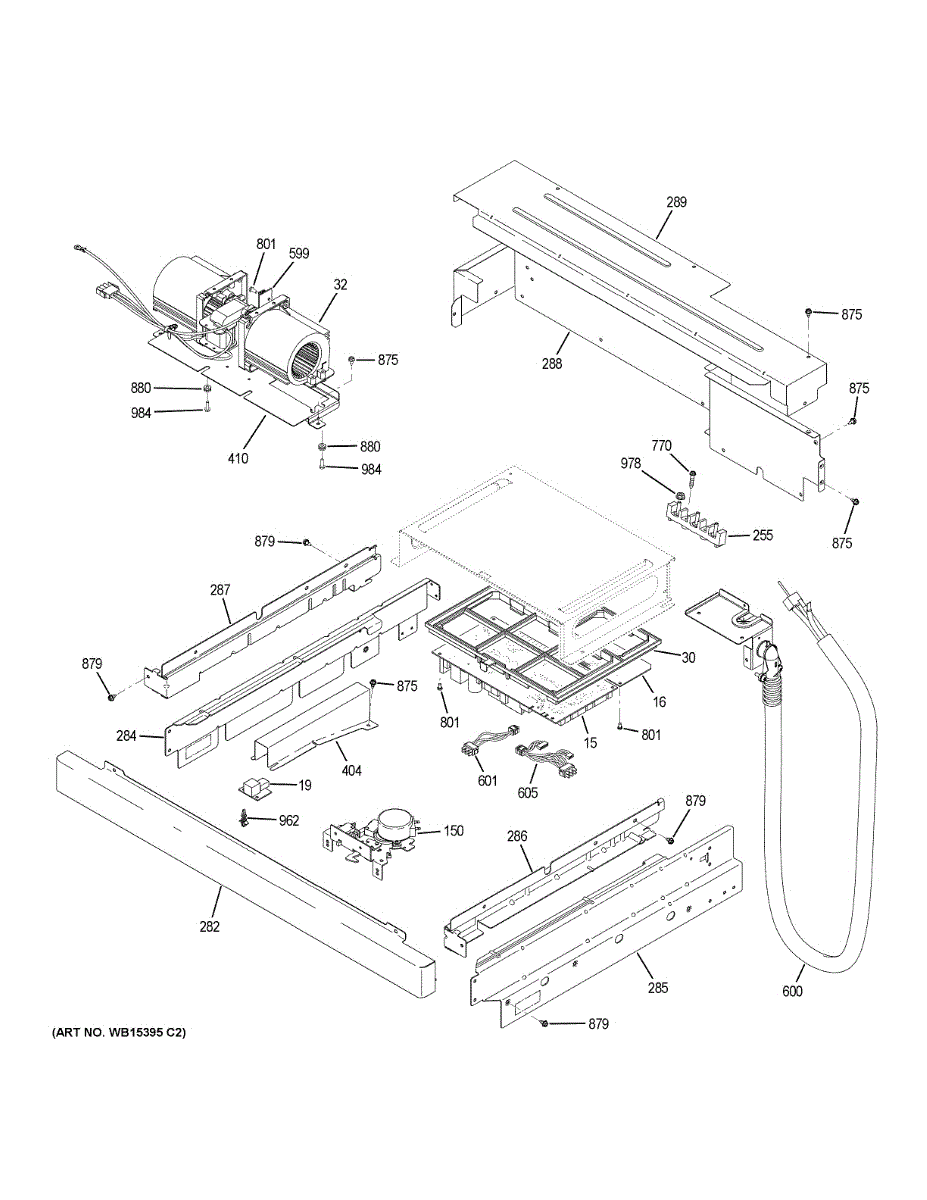

Parts for Ge JK3800DH2BB: Pedestal Parts

The Bridge Board is an OEM replacement part for GE microwave ovens. It is a crucial electronic component that serves as a communication bridge between the control panel and various other components within the microwave. This board plays a vital role in transferring signals and data, allowing the microwave to function properly.

Symptoms of a bad Bridge Board include:

• Microwave not responding to control panel inputs
• Display or control panel malfunctioning or not lighting up
• Inability to set cooking times or power levels
• Microwave not starting or stopping during cooking cycles

Causes of a bad Bridge Board can include electrical surges, overheating, or general wear and tear over time. Faulty connections or damaged circuitry on the board itself can also lead to its malfunction, disrupting the communication between various microwave components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore microwave models.

The Bridge Board is an OEM replacement part for GE microwave ovens. It is a crucial electronic component that serves as a communication bridge between the control panel and various other components within the microwave. This board plays a vital role in transferring signals and data, allowing the microwave to function properly.

Symptoms of a bad Bridge Board include:

• Microwave not responding to control panel inputs
• Display or control panel malfunctioning or not lighting up
• Inability to set cooking times or power levels
• Microwave not starting or stopping during cooking cycles

Causes of a bad Bridge Board can include electrical surges, overheating, or general wear and tear over time. Faulty connections or damaged circuitry on the board itself can also lead to its malfunction, disrupting the communication between various microwave components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore microwave models.

The Fan Blower is an OEM part for GE ranges and wall ovens. This part helps to circulate air within the oven cavity. The fan blower ensures that heat is evenly distributed during cooking, contributing to consistent cooking results, and prevents the electronic components from overheating, which could lead to malfunctions or reduced lifespan of the appliance.

Causes of damage to the Fan Blower can include accumulation of debris and grease, which can obstruct the fan and strain the motor, and mechanical wear over time that affects the fan's efficiency.

Symptoms of a bad Fan Blower in a range include:

• The oven not cooking evenly
• Overheating of the range's electronic control panel
• Unusual noises, such as rattling or buzzing

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: This latch assembly also includes the oven light switch and plunger. These parts of the latch assembly are not sold separately.

The Latch Assembly is an OEM replacement part for GE electric ovens. It is responsible for securely locking and unlocking the oven door, ensuring that the door remains securely closed during cooking and self cleaning.

Symptoms of a faulty latch assembly include:

• Oven door not closing or latching properly
• Difficulty in opening or closing the oven door
• Oven door not staying securely locked during cooking

A bad latch assembly can occur due to wear and tear over time, mechanical issues, or damage from accidental mishandling. If you notice issues such as the oven door not closing or latching properly, difficulty in opening or closing the door, or the door not staying securely locked during cooking, it may be time to replace the old or damaged latch assembly with this genuine OEM part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This block terminal is the wire-connection block that secures incoming power and internal wiring, restoring a safe, reliable electrical connection for the appliance. Replaces worn or damaged terminal connections to help prevent loose wires and arcing. What it does:

• Provides a secure connection point for incoming power and internal leads
• Replaces cracked, burned, or corroded terminal blocks that cause intermittent power or arcing
• Helps stop loose wires that can produce sparks, burning smells, or blown fuses/breakers
• Restores a stable electrical path so controls and heating elements receive power reliably

• One block terminal

• Always disconnect all power (unplug or shut off circuit breaker) before inspecting or replacing electrical parts
• Take a photo of wire routing and terminal screw positions before removal for correct reassembly
• Tighten terminal screws to secure wires; replace if mounting tabs or insulation are damaged

This right-side 27-inch support slide guides and supports a refrigerator shelf or drawer so it opens and closes smoothly. Replacing a damaged slide restores proper alignment and prevents sagging or sticking when pulling the shelf or drawer. What it does:

• Guides the shelf/drawer along the cabinet wall to ensure smooth, even travel.
• Supports weight at the outer end of the shelf or drawer to prevent sagging.
• Restores proper engagement when the drawer or shelf binds, sticks, or falls off track.
• Helps keep refrigerated items level and prevents uneven wear on the cabinet track.

• Disconnect power to the appliance before starting any repair and remove stored items from the shelf or drawer.
• Installation typically requires removal of the drawer or shelf, aligning the slide with the cabinet track, and securing any retaining clips or screws.
• Inspect mating track and mounting features for damage; damaged mating parts must be repaired or replaced for proper function.
• Use basic hand tools.

This left-hand 27-inch support slide stabilizes and guides a refrigerator shelf or drawer for smooth opening and secure positioning. It restores proper alignment and prevents sagging or uneven movement. What it does:

• Provides left-side support for a 27" shelf or drawer, helping it glide and stay level
• Replaces worn or broken slide hardware that causes binding or drooping
• Helps eliminate rattling, sticking, or uneven shelving movement
• Works as a direct-fit replacement where the OEM part number matches

• Disconnect power to the appliance before servicing to reduce shock risk
• Remove adjacent shelves/drawers for access; retain mounting hardware if reusable
• Inspect mating track and right-hand slide for wear; replace both sides if uneven wear is present
• Use basic hand tools.

This is a replacement screw used to secure appliance components and restore proper fit and function. Installing the correct screw prevents loose panels and noisy operation and keeps parts aligned for safe use. What it does:

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Helps stop rattling or vibration caused by missing or stripped fasteners
• Restores secure fit where a screw has been lost or damaged
• Matches the OEM fit so adjoining parts align correctly

• One replacement screw as pictured

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread by hand first, then snug; do not overtighten to avoid cracking plastic or stripping threads
• Replace only with the same type and size screw to ensure proper fit

Black. 8-18 AB HXW 3/8

Size: 8-18 BA POR 3/4 SN

This standoff secures and isolates the oven power control module from the range chassis, helping keep the control electronics stable and properly spaced for safe operation. Replaces worn or broken mounting standoffs. What it does:

• Provides a stable mounting point for the power control module or control board
• Maintains proper clearance and insulation between the control and metal chassis
• Prevents movement that can cause loose connections, arcing, or intermittent control faults
• Helps reduce vibration and stress on control board components

• Disconnect power to the appliance before inspecting or replacing the standoff
• Use only the exact replacement standoff to maintain insulation and spacing
• If the control board shows damage, inspect the electronic assembly and wiring for additional issues

A replacement hex nut used to secure appliance components and restore proper fastening. Installs quickly and helps stop loose or rattling parts caused by a missing or stripped nut. What it does

• Secures mounting studs, brackets, or components in place
• Prevents parts from shifting, vibrating, or coming loose during operation
• Replaces a missing, damaged, or corroded nut to restore reliable fastening

• One hex nut

• Disconnect power and gas before starting work
• Start threads by hand to avoid cross-threading, then tighten with the proper-size wrench
• Do not overtighten; snug until secure to avoid damaging studs or threads
• Use replacement only where the OEM hex nut is specified
