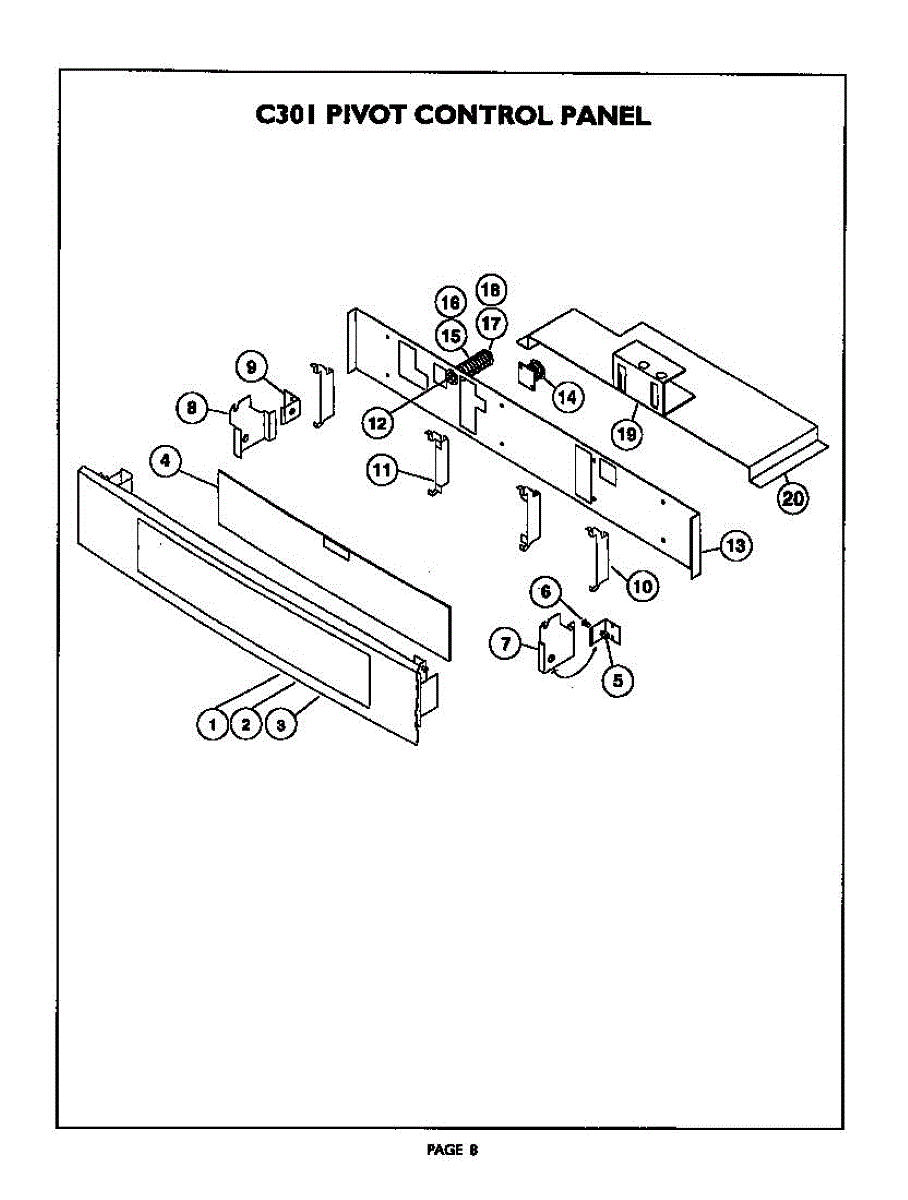

Parts for Thermador C302UW: C301 Pivot Control Panel Parts

A small retaining clip that secures a detent or pivot pin in place, keeping linked components aligned and preventing pins from slipping out during regular use. Restores proper retention for worn or broken clips. What it does

• Holds a detent/pivot pin in position so moving parts stay aligned
• Prevents pins from backing out, which can cause loose or misaligned doors/drawers
• Helps stop rubbing, rattling, or intermittent engagement caused by a missing clip
• Used wherever a small spring/retaining clip is required to secure a pin or shaft

• One detent pin retaining clip

• Simple replacement; access requires removing the panel or component holding the pin
• Use needle-nose pliers for safe, controlled installation of the clip onto the pin
• Power off and disconnect the appliance before servicing to avoid injury
• If the pin or mating parts are damaged, replace those components to ensure secure fit

Display mounting bracket for wall ovens and ranges. Secures the control panel display in position. Replace if bracket is cracked, broken, or missing.

Fix an oven door that won't close or latch properly with this push-release door latch assembly. Direct fit for electric wall ovens and ranges.

Protective guard sleeve for wall ovens and ranges. Replaces cracked, worn, or missing sleeves. Installs to shield and protect internal components.

This part has been discontinued by the manufacturer and is no longer available.

A 1/2 in. 90° connector used to join the appliance water inlet to the household supply, restoring a secure right-angle connection and helping prevent kinks or strain at the hose junction. What it does:

• Creates a sealed right-angle connection between the appliance water inlet and supply line
• Restores proper water flow when the previous connector is damaged or leaking
• Reduces strain and hose kinking at the inlet fitting
• Commonly replaced to stop visible leaks or water drips at the connection

• Turn off the water supply and disconnect power to the appliance before installing
• Use appropriate thread sealant or tape where required by the appliance manufacturer
• Hand-start threads to avoid cross-threading; tighten with a wrench until snug — do not overtighten

Flexible conduit cable that protects electrical wiring in your oven. Replaces cracked, damaged, or worn conduit. Installs between junction box and unit.

Fix a blank or flickering oven display with this display signal harness. Connects the control board to the display panel. Moderate DIY repair.

Communication signal wire harness for wall ovens and ranges. Connects control boards to transmit data signals. Replace if wires are frayed or damaged.

Wire harness that connects to your wall oven's door latch assembly. Replace if the harness is damaged, wires are frayed, or connectors are broken.

Wire harness for wall oven lower door latch assembly. Connects latch mechanism to control system. Replace if wires are damaged, frayed, or connectors broken.

Phillips pan head mounting screw for cooktops and ranges. Replace this zinc-coated fastener if lost, stripped, or corroded during appliance repair.
