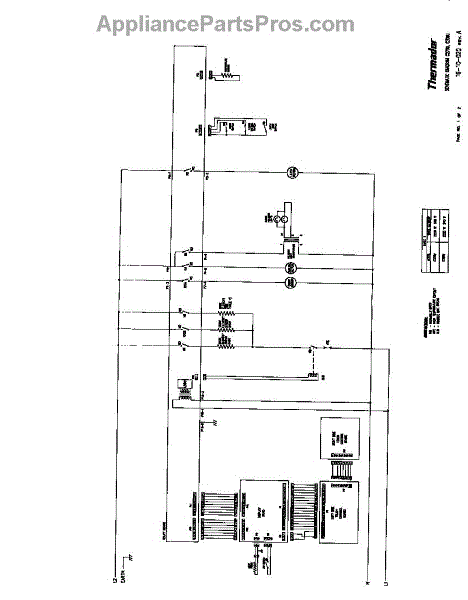

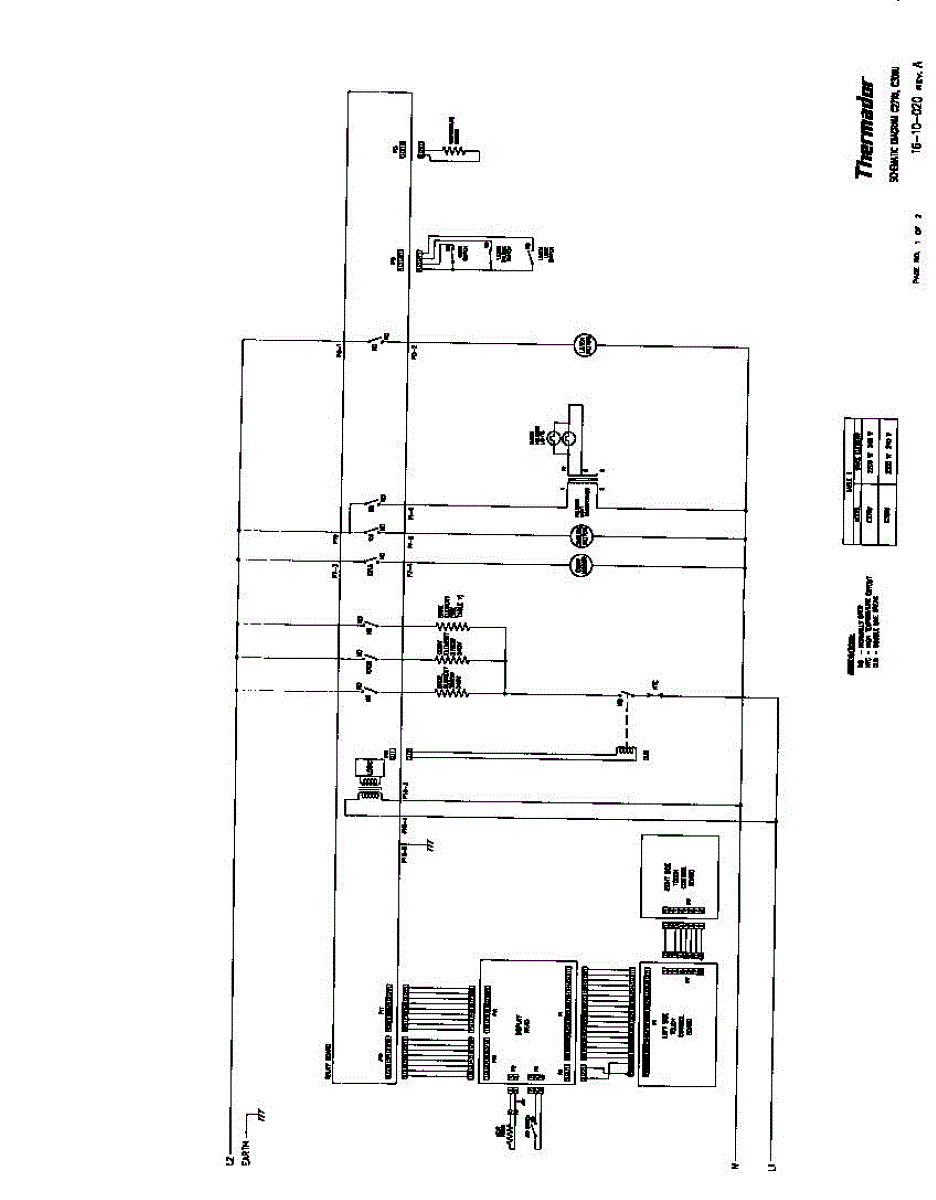

Parts for Thermador C302UW: Wiring Diagram Parts

A 1/2 in. 90° connector used to join the appliance water inlet to the household supply, restoring a secure right-angle connection and helping prevent kinks or strain at the hose junction. What it does:

• Creates a sealed right-angle connection between the appliance water inlet and supply line
• Restores proper water flow when the previous connector is damaged or leaking
• Reduces strain and hose kinking at the inlet fitting
• Commonly replaced to stop visible leaks or water drips at the connection

• Turn off the water supply and disconnect power to the appliance before installing
• Use appropriate thread sealant or tape where required by the appliance manufacturer
• Hand-start threads to avoid cross-threading; tighten with a wrench until snug — do not overtighten

This part has been discontinued by the manufacturer and is no longer available.

Wiring harness that connects electrical components in your wall oven. Replace if wires are frayed, damaged, or connections are loose or corroded.

Flexible conduit cable that protects electrical wiring in your oven. Replaces cracked, damaged, or worn conduit. Installs between junction box and unit.

Replacement mounting screw for electric wall ovens. Secures panels, trim, or internal components. Order when original screws are stripped, lost, or damaged.

Phillips pan head mounting screw for cooktops and ranges. Replace this zinc-coated fastener if lost, stripped, or corroded during appliance repair.

Wire harness for wall oven lower door latch assembly. Connects latch mechanism to control system. Replace if wires are damaged, frayed, or connectors broken.

Replace your wall oven's main air switch wire harness if damaged, frayed, or connectors are loose. Ensures proper electrical connections for safe operation.

Replace the keypad power harness on your wall oven. Restores electrical connections to the control panel. Order now if your harness is damaged or worn.

Fix a blank or flickering oven display with this display signal harness. Connects the control board to the display panel. Moderate DIY repair.

Communication signal wire harness for wall ovens and ranges. Connects control boards to transmit data signals. Replace if wires are frayed or damaged.

Wire harness that connects to your wall oven's door latch assembly. Replace if the harness is damaged, wires are frayed, or connectors are broken.

Replacement mounting screw for range and cooktop panel installation. Secures panels and components. Needed when original screws are stripped or missing.
