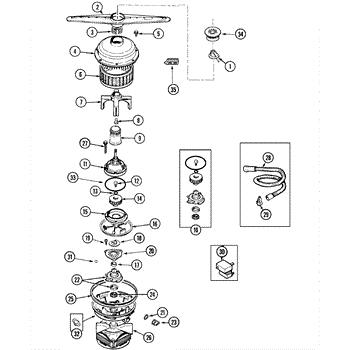

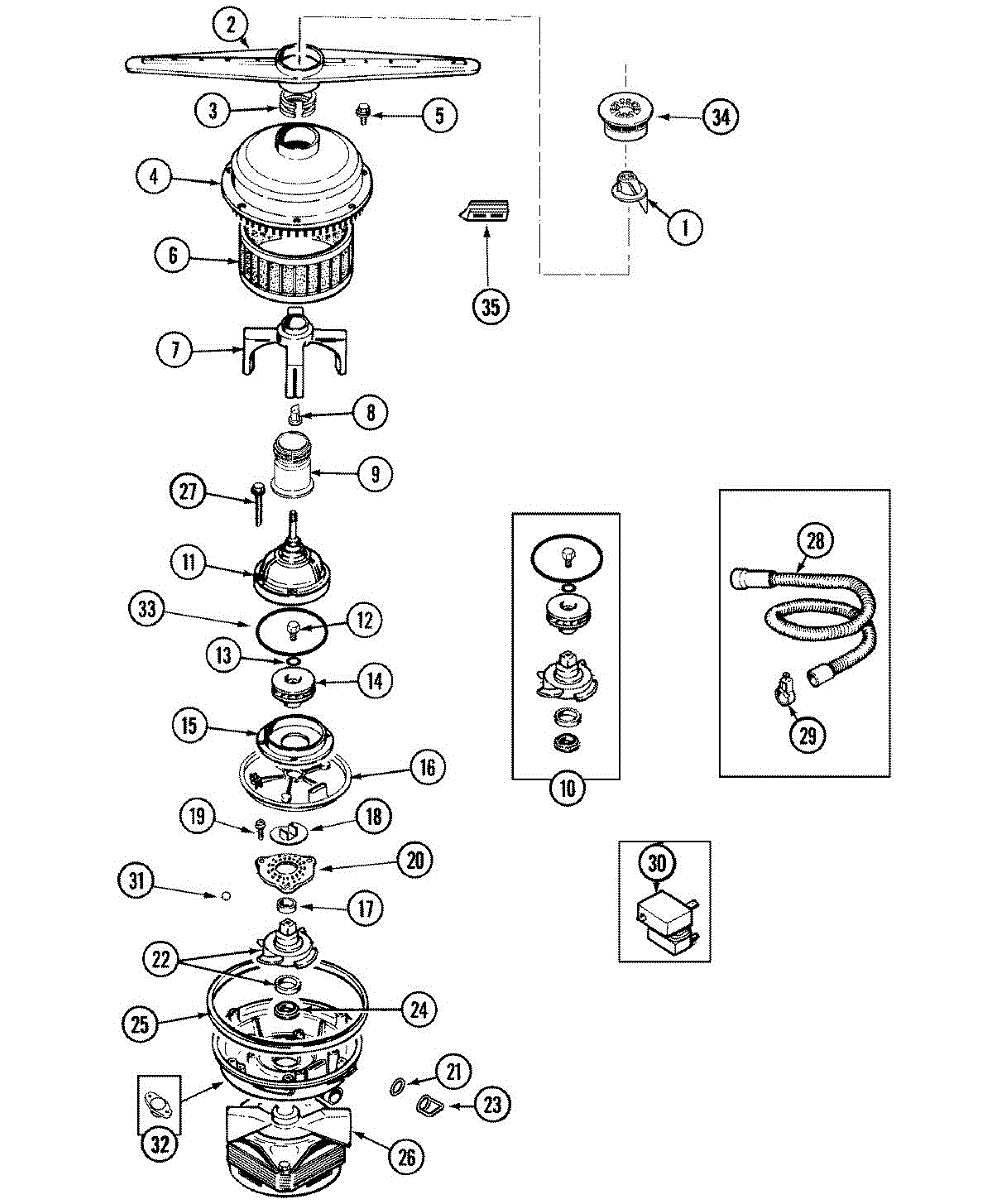

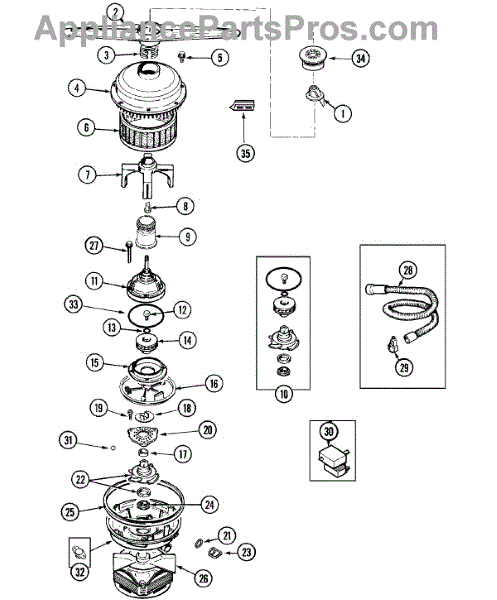

Parts for Magic Chef CDB6100AWN: 03 - Pump & Motor Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Traps food debris before it enters the dishwasher pump. Replace when clogged or damaged to restore cleaning performance. Confirm fit by model number.

Support bracket that holds the lower spray arm in place. Replace if cracked, broken, or missing to ensure proper spray arm rotation and alignment.

Includes: Upper and lower impellers, impeller screw with o-ring, motor shaft seal with install tool, and 3 o-rings needed to repair pump.

Dishwasher lower washarm drain pump housing.

Creates a leak-resistant seal between pump components and connections. Replace when you notice water leaking during drain cycles or around fittings.

Fix poor cleaning and broken spray arms with this dishwasher impeller kit. Restores water pressure and quiet operation. DIY-friendly repair.

Replacement handle mounting screw for refrigerators. Secures the door handle to the appliance. Order if your original screw is stripped, missing, or lost.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Note The manufacturer has changed the old spring design. If you have the old spring design replace with Pump module repair package part number 12001489

Fix dishwasher leaks or drainage issues with this flexible drain hose. Routes wastewater from pump to household drain. Moderate DIY repair, 1-2 hours.

Secures hose connections to prevent leaks in your washer. Replace if you notice dripping at hose fittings or loose connections. Verify fit with your model.

Upper

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
