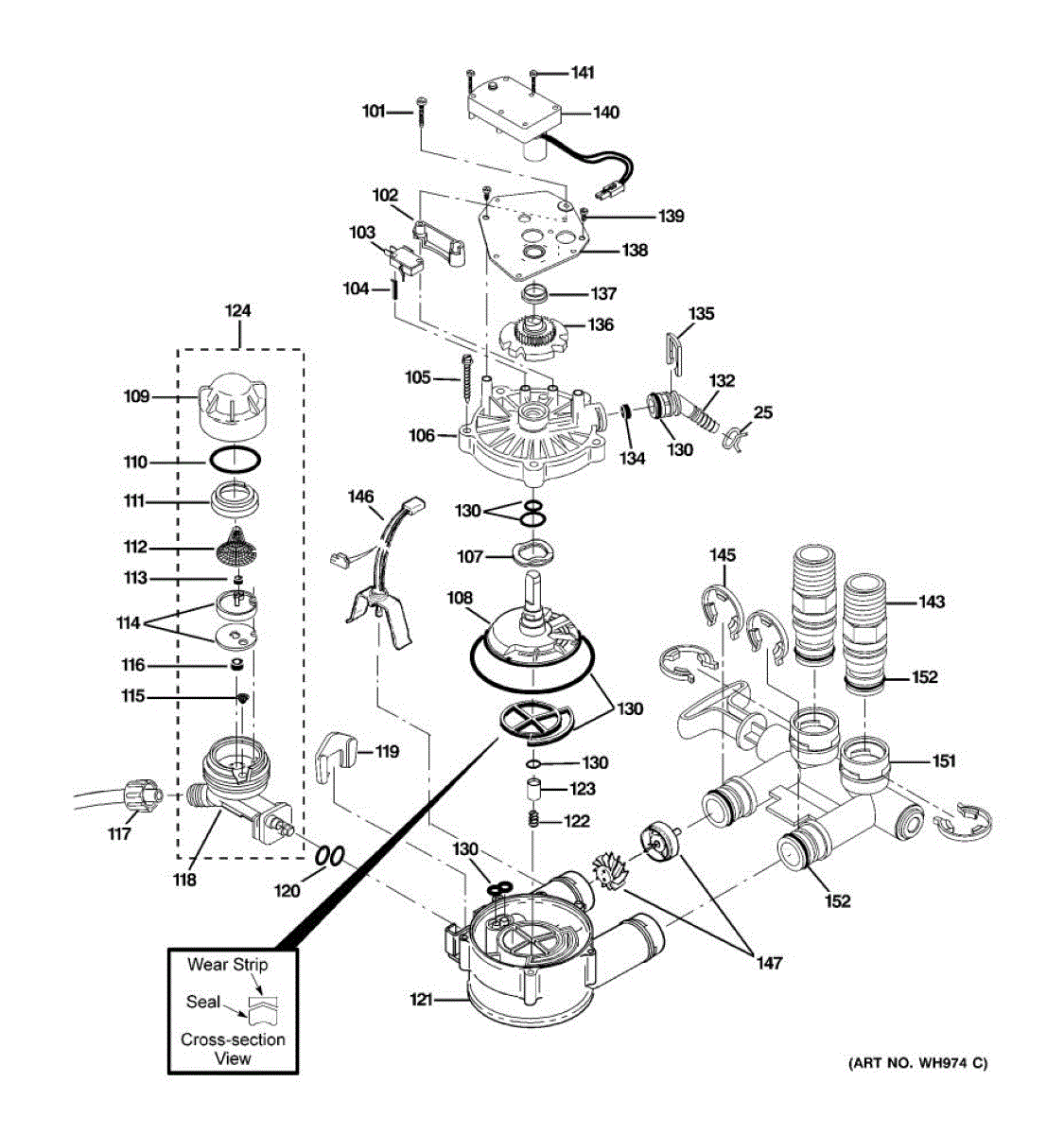

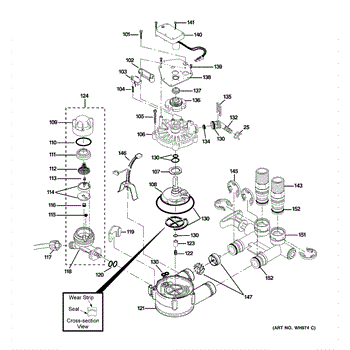

Parts for Ge GXSH40V00: 02 - Pump Parts

Routes excess water from your water softener to the drain, preventing spills and surface damage. Replace if worn, cracked, or missing. Verify fit with your model.

Mounting screw for water filtration systems and softeners. Secures internal components and panels. Replace if stripped, missing, or corroded.

Replace missing or stripped #4-24 x 3/4 inch mounting screw for water softener and filtration system housings. Secures panels and components.

This electrical switch opens and closes a circuit to signal the control when a mechanism is engaged or returns to position, helping restore reliable start/stop and proper cycle sequencing in your appliance. What it does:

• Sends an on/off signal to the control when actuated by a lever or cam
• Helps start, stop, or confirm the position of internal mechanisms
• Common symptoms of a failed switch: selected function won't start, cycles won't advance or stop as expected, or intermittent operation
• A good switch shows proper continuity when actuated during a multimeter test

• 1 electrical switch

• Disconnect power before servicing; shut off water supply if applicable
• Access the switch and note/photograph wire positions
• Transfer wires one at a time; mount the new switch in the same orientation
• Verify operation or continuity before reassembly and full testing

Replace a cracked or broken valve cover on your water softener. This cover protects internal valve components from debris and damage during operation.

This washer wave is the molded wave-shaped plate that helps move water and clothes during the wash cycle, restoring proper agitation and wash action in compatible top-load machines. What it does:

• Re-establishes the water flow pattern under the laundry to improve agitation and cleaning
• Helps stabilize load movement to reduce excessive vibration or uneven washing
• Can eliminate grinding or scraping noises caused by a damaged or worn wave plate
• Restores correct engagement between the washplate/pulsator and the drive components when worn

• Disconnect power and water before beginning any repair
• Remove the agitator or washplate per the manufacturer's service instructions to access and replace the wave
• Use appropriate tools and replace the part with the exact OEM part number for proper fit

Fix water softener regeneration issues with this rotor and disc assembly. Restores proper cycling and water flow. Common repair for softeners not regenerating.

This O-ring creates a tight, leak-resistant seal between mating water system components. Replacing a worn seal helps stop drips and maintain correct pressure and flow in your GE water treatment system.

• Forms the compression seal between housings, manifolds, or valve fittings
• Helps prevent water leaks and seepage at the connection
• Maintains system pressure by reducing bypass at the joint
• Typical failure signs: flattening, cracks, nicks, swelling, or persistent drips even after tightening

• Shut off the water supply and relieve system pressure before service
• Clean the groove and mating surfaces; remove debris, scale, or old residue
• Lightly lubricate with food-grade silicone grease; do not use petroleum-based products
• Seat the O-ring evenly without twisting and tighten fittings to manufacturer guidance—do not overtighten

Support screen for water softeners prevents media loss and ensures proper filtration. Replace if damaged or during resin tank maintenance. Verify fit.

Fixes inconsistent water flow or excessive water usage. This flow plug restricts water to 0.1 GPM for precise filtration cycles. Direct fit installation.

This is a small mesh screen filter used in water softener systems to prevent sediment and debris from entering or clogging internal components. It helps maintain proper water flow and filtration performance. Replace this screen if your water softener has reduced flow, is not regenerating properly, or if the screen appears torn, clogged, or deteriorated.

This fill flow plug controls and limits water flow into the appliance to the specified 0.3 gpm rate, helping the unit fill correctly and preventing overfilling. It's a direct-replacement inlet flow restrictor used on compatible GE water systems. What it does

• Restricts incoming water flow to about 0.3 gallons per minute for proper fill volumes
• Helps maintain consistent water fill levels for ice makers and dispensers
• Can stop excessive flow that may cause slow fills, minor leaks at fittings, or improper ice/dispense operation
• Works as a simple inline replacement to restore correct inlet flow performance

• One fill flow plug (0.3 gpm)

• Replace only when water supply is shut off and the appliance is unplugged or power is disconnected
• Inspect nearby hoses and fittings for wear or leaks when replacing the plug

Leaking water line connection? This compression nut ferrule secures tubing to prevent leaks at the inlet fitting. Simple slip-on installation.

Fix low water pressure or slow regeneration in your water softener with this nozzle venturi body. Essential for proper brine draw and system function.

Retainer for water softener systems. Secures internal components in place. Replace if cracked, broken, or missing to maintain proper assembly.

Fix leaking water filter connections with this seal O-ring. Stops drips at pipe, hose, and valve fittings. Quick 5-minute replacement restores watertight seal.

Fix low water pressure or leaks with this water softener body valve. Routes and channels water flow between internal ports. Restores proper cycling.

This is a small spring used in a water filtration or water softener system. It provides tension to hold a door, lid, or internal component securely in place. Replace this spring if the door or cover no longer stays closed or if the original spring is broken, stretched, or missing.

Fix a water softener that won't draw brine from the salt tank. This nozzle and venturi assembly restores proper regeneration. DIY-friendly repair.

Water softener seal kit prevents leaks and maintains system pressure. Replace when you notice dripping or reduced water flow. Verify fit with your model.

Connects the drain hose to the drain outlet on water softeners. Replace when the existing adapter is cracked, worn, or leaking for a secure connection.

Fix water leaks or loose drain hoses with this drain hose clip. Secures the hose connection to prevent separation during operation. Simple DIY fix.

This motor cam gear assembly replaces a worn or damaged cam gear that times and transfers motion from the motor to the appliance's driven components, restoring proper movement and reducing noise or slipping. What it does:

• Transmits motor rotation to the drive mechanism to control component timing and movement
• Restores proper gear engagement when worn, cracked, or stripped teeth cause slipping
• Helps eliminate grinding, clicking, or unusual gear noise from the motor area
• Can prevent intermittent operation or failure of the driven parts when the cam gear is broken

• Disconnect power before servicing to avoid electric shock or injury
• Follow the appliance's service manual for disassembly and reassembly steps
• Basic hand tools are typically required; inspect surrounding parts for related wear

Mounting screw for water filtration and softener systems. Secures panels, brackets, and components. Replace if stripped, rusted, or missing.

This motor cam gear assembly replaces a worn or damaged cam gear that times and transfers motion from the motor to the appliance's driven components, restoring proper movement and reducing noise or slipping. What it does:

• Transmits motor rotation to the drive mechanism to control component timing and movement
• Restores proper gear engagement when worn, cracked, or stripped teeth cause slipping
• Helps eliminate grinding, clicking, or unusual gear noise from the motor area
• Can prevent intermittent operation or failure of the driven parts when the cam gear is broken

• Disconnect power before servicing to avoid electric shock or injury
• Follow the appliance's service manual for disassembly and reassembly steps
• Basic hand tools are typically required; inspect surrounding parts for related wear

Threaded adapter that connects water softener systems to standard plumbing with 1-inch NPT connections. Replace if there are leaks at the connection point or if threads are damaged or corroded.

Leaking from valve connections? This retaining clip secures bypass and control valve fittings to prevent leaks under water pressure. Simple fix.

Fix water softener sensor errors or no regeneration cycles with this wire harness sensor assembly. Direct fit part restores proper system monitoring.

This turbine and support assembly replaces a worn blower wheel and its support to restore exhaust airflow and reduce noise. It's a direct-fit service part used where a damaged turbine causes weak ventilation or vibration. What it does:

• Spins to drive airflow for exhaust/ventilation in the appliance
• Restores proper venting and drying performance when the turbine is damaged or broken
• Reduces grinding, rattling, or scraping noises caused by a worn wheel or loose support
• Helps prevent airflow restrictions that can lead to overheating or poor operation

• Disconnect power to the appliance before starting any repair.
• Access and removal may require removing panels; keep track of screws and fasteners.
• Inspect surrounding housing and ducting for debris or damage before reassembly.

Leaking water softener? This bypass valve assembly stops drips and restores proper flow control. Moderately easy DIY repair for cracked or seized valves.

Leaking at valve or fitting connections? This seal O-ring creates a watertight seal at hoses, valves, and fittings. Simple DIY repair part.
