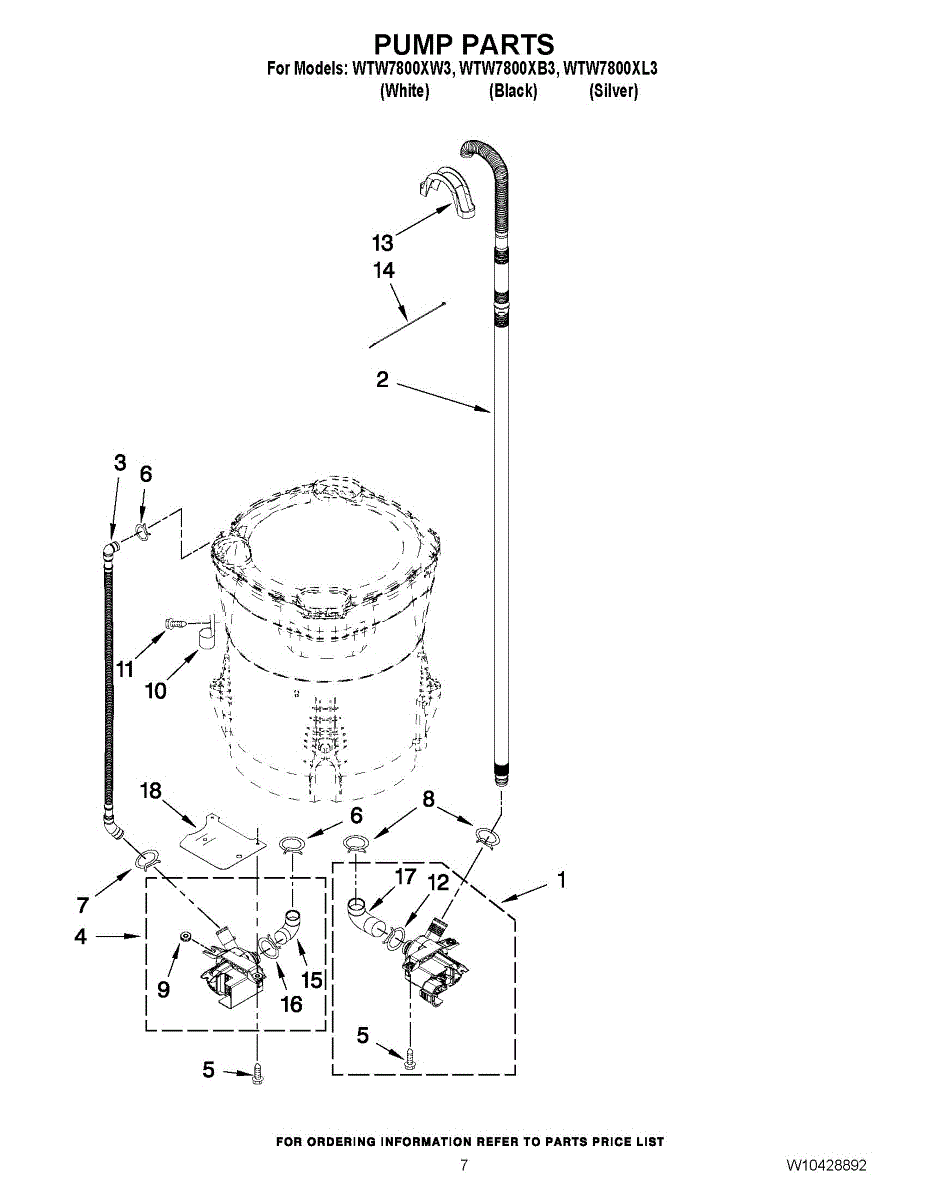

Parts for Whirlpool WTW7800XB3: 04 - Pump Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Drain Pump is an OEM part for Whirlpool washing machines. This component is responsible for expelling water from the washing machine at the end of the wash and rinse cycles. Its motor and impeller system push water through the drain hose, helping to ensure that the washing machine empties completely.

Symptoms of a failing drain pump include:

• Water not draining out of the washing machine, leading to stagnant water pooled inside the tub
• Unusual noises, such as buzzing or humming, indicating that the pump motor is struggling
• The washing machine stopping mid-cycle due to inability to drain

Causes of drain pump failure typically include obstruction by foreign objects like coins or socks, motor burnout, or impeller damage. Regular maintenance, such as checking for debris in the pump's filter, can help prevent these issues.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This washer drain hose routes wastewater from the drain pump to your home standpipe or laundry tub. Replacing a cracked, kinked, or clogged hose helps stop leaks and restores proper draining so cycles complete reliably.

• Directs discharge water from the washer to the household drain
• Maintains proper flow when correctly routed and secured
• Common symptoms: water leaking at the rear/under the washer, slow or no drain, long-drain errors, visible cracks or kinks
• Visible wear, brittleness, or residue buildup on the hose indicates replacement is needed

• Unplug the washer and move it for rear access; place towels or a pan to catch residual water
• Loosen clamps/fasteners and disconnect the old hose from the pump and drain connection; note the original routing
• Install the new hose in the same orientation; avoid kinks and secure all connections firmly
• Position the outlet per your model's instructions to prevent siphoning; run a test drain and check for leaks

This recirculation hose routes wash water back through the tub during the cycle. A fresh, intact hose helps maintain proper water flow and prevents leaks, supporting consistent cleaning performance.

• Directs water from the pump back into the tub for continued circulation
• A cracked, kinked, or leaking hose can cause water leaks or poor wash performance
• Can help resolve issues like low recirculation flow or visible water drips during operation
• Restores correct internal water routing as designed

• Disconnect power and water supply before servicing
• Have towels or a shallow pan ready to catch residual water
• Note hose routing and clamp positions before removal; reuse or replace clamps as needed
• After installation, run a quick cycle to check for leaks and proper flow

Washer water circulation pump for Cabrio, Bravos and other washers.

This factory fastener secures appliance panels and components for a tight, rattle-free fit. Replace a missing, stripped, or corroded screw to keep assemblies aligned and performing as intended.

• Fastens panels, brackets, or assemblies in place
• Helps reduce vibration and rattling caused by loose hardware
• Maintains proper alignment of parts to prevent premature wear
• Common signs you need it: missing screw, loose panel, vibration/buzzing noises, or hardware that won't tighten

• Disconnect power; for gas or water-connected appliances, shut off supply lines before service
• Match the screw to the original; verify size, length, and thread before installation
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Snug only—do not overtighten, especially into plastic or thin sheet metal

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This hose clamp secures dishwasher hoses to fittings and ports to maintain a tight, leak-resistant seal. Replacing a worn clamp helps prevent drips and loose connections that can cause water under the unit.

• Secures drain or circulation hose to the pump, sump, or other dishwasher fittings
• Helps maintain a watertight seal at hose connection points
• Can help resolve water dripping from a hose joint or a loose hose
• Replace if corroded, deformed, cracked, or no longer holds tension

• Disconnect power and turn off the water supply before servicing
• Place a towel or shallow pan to catch residual water when removing hoses
• Fully seat the hose on the fitting, position the clamp over the barb/connection, and secure firmly
• After reassembly, run a brief fill/drain and check all connections for leaks

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This replacement screw secures panels, brackets, and other components in your appliance to keep them aligned and rattle-free. Replacing worn, stripped, or missing hardware restores a tight fit and helps maintain safe, quiet operation.

• Fastens panels, brackets, or internal parts to the cabinet/frame
• Helps maintain alignment to reduce vibration and rattling
• Replaces lost, stripped, or corroded screws
• Common symptoms: loose panels/trim, rattles, or a screw that won't tighten

• Disconnect power; shut off water or gas if applicable
• Match thread and length to the original; replace one at a time to keep alignment
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten, especially into plastic or thin sheet metal

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Tub to Circulation Pump Hose is an OEM replacement part for Whirlpool washing machines. This hose provides a direct connection between the tub and circulation pump during wash cycles. The hose is responsible for transporting water from the tub to the circulation pump and spinning basket assembly.

Causes of a bad tub to circulation pump hose can include cracking, kinking or collapse of the inner lining. Wear and environmental factors like mineral buildup can weaken it over time.

Symptoms of a bad hose include:

• Water leaks within or around the washing machine
• The washer fails to fill or drain properly
• Reduced water pressure impacting cleaning performance

This genuine OEM Whirlpool part is compatible with brands like Maytag, KitchenAid, and more, it ensures long-lasting performance.

This hose clamp secures a flexible hose to its fitting to help prevent leaks and hose blow-offs during operation. Replace a rusted, stripped, or distorted clamp to restore a tight, reliable seal at the connection point.

• Applies clamping force around a hose to hold it on a barb or stub fitting
• Commonly used on washer drain and tub-to-pump hose connections
• Helps stop drips at the joint and prevents the hose from slipping off
• Typical failure signs: leaking at the connection, clamp won't tighten, visible rust, broken/warped band

• Unplug the appliance and turn off water supply; expect some residual water
• Seat the hose fully on the fitting; place the clamp just behind the bead/barb
• Tighten until snug and secure; do not overtighten to avoid damaging the hose
• Run a short test cycle and recheck for leaks at the connection

The Tub to Drain Pump Hose is an OEM replacement part for Whirlpool washers. This hose is responsible for transporting water from the wash tub to the drain pump during the drain cycle.

Causes relate to mineral deposits stiffening the interior over multiple years, natural cracking from repeated flexion, or punctures from foreign objects inside tub impacting the material.

Symptoms of a defective hose involve:

• Puddling or flooded pockets of water left inside tub after draining
• Slow or inefficient drainage taking excessive time
• Leaks from cracked tub connections or along hose itself

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.
