Laci June 27, 2023 for Model Number KERS202BSS1 Will the wiring be the same for the new and old switches?

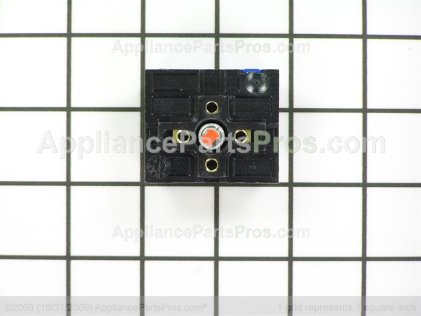

Paul January 16, 2020 for Model Number MER8674AB I just want to confirm that this is the correct Infinity switch for my model WPW10411934 I am looking for the right front burner which is the "speed Heat" burner. Thank You.
1 Answer Paul, the infinite switch WPW10411934 is for the right front burner of the model number provided. Read More...
Greg Long February 13, 2019 for Model Number mer8674aw my front left burner,which has a single and two element position, is out of control. any help with a part number would help me. thank you.
1 Answer Greg, The left front, dual element infinite switch for the model number you supplied is WPW10434452 / W10434452 Switch-Inf. The part is in stock and available at this time. Based on your post description " is out of control", the switch is the most likely issue. Thanks, Read More...
Andy October 16, 2018 for Model Number MER8775AS0 I think I have a faulty infinite switch. It is the front left electric burner with three settings - you can select the inner ring, the middle and inner, or all three. I cant tell from the website if part AP6020794 is the right one, if it is for the smaller single element in back.
1 Answer Andy, The left front "triple" burner element switch is part number WPW10391743 WPW10391743 (LF) Switch, Infinite. The left rear "dual" burner element switch is WP3149404 / WP3149404 (LR & RR) Switch, Infinite. Either part is in stock and available at this time. Thanks, Read More...
Jim February 24, 2018 for Model Number WFE714HLAS0 Right rear burner only comes on partially.It will not go to high. Is it burner or switch issue.Thank you,
1 Answer Jim, The burner getting power but not going to high would most likely be caused by a faulty infinite switch. Read More...
