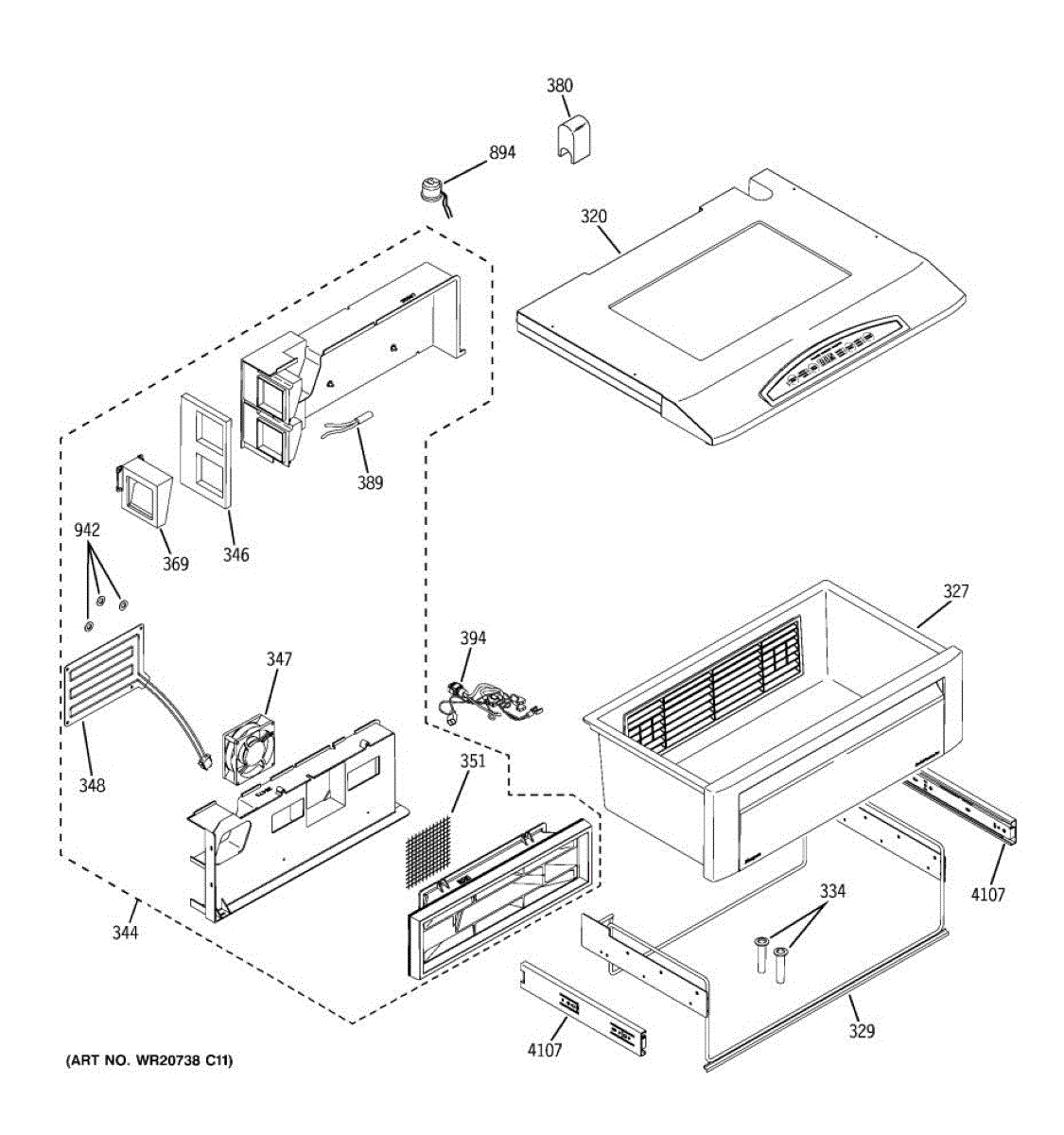

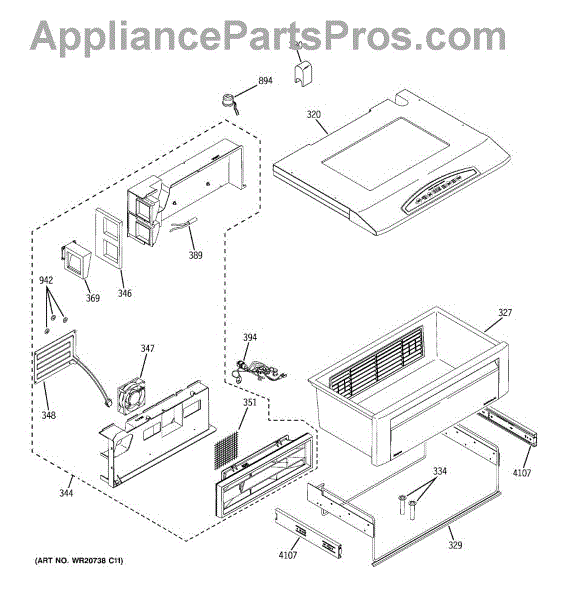

Parts for Ge ZISB420DXA: 09 - Quick Chill Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This quick chill pan assembly circulates cold air across the refrigerator compartment to speed cooling of fresh food. It replaces a damaged or leaking pan to restore proper airflow and help maintain even temperatures. What it does:

• Collects and channels condensate while supporting the quick-chill airflow path
• Restores proper cold-air distribution when the original pan is cracked, warped, or blocked
• Can reduce frost or pooling symptoms caused by a damaged pan or misdirected drain flow
• Works with the refrigerator's evaporator/airflow system to help maintain consistent cooling

• Disconnect power before servicing; follow lockout/tagout procedures
• Installation may require removing interior panels, shelves, and trim for access
• Inspect adjoining seals, drain troughs, and clips; replace any damaged fasteners to ensure proper fit

This vent tube routes air or drain flow inside the refrigerator, helping maintain proper circulation and drainage in affected compartments. It replaces a worn, cracked, or clogged vent tube to restore normal airflow or drainage. What it does:

• Directs airflow or condensation safely through internal channels to prevent pooling or reduced circulation
• Helps clear minor blockages that can cause uneven cooling or water buildup
• Restores the intended airflow path after damage, cracks, or deformation
• Compatible with the refrigerator's existing mounting points and hose connections when the correct OEM part is used

• Disconnect power (and water supply if applicable) before servicing the appliance
• Remove the appropriate access panels to reach the vent tube; keep track of clips and fasteners
• Inspect surrounding seals and channels; replace or clean as needed to ensure proper function

This air handler assembly replaces the failed air distribution module to restore proper airflow and circulation in the appliance. Designed as a direct-fit replacement to revive normal heating/cooling performance and fan operation. What it does:

• Houses the blower and air-distribution components that move conditioned air through the unit
• Restores airflow when a damaged or nonworking air handler causes weak or no air movement
• Helps eliminate uneven temperatures caused by a malfunctioning air distribution assembly
• Works with existing controls and ducting when installed as a like-for-like replacement

• One air handler assembly

• Verify power is disconnected before starting
• Handle assembly carefully to avoid damage to blower blades, wiring, or connectors
• Follow OEM instructions and local codes for electrical and mechanical connections

This QC seal damper is the refrigerator air damper that helps control and seal airflow between compartments to keep temperatures stable and reduce energy loss. Replacing a worn damper restores proper airflow regulation. What it does:

• Regulates cold air flow from the freezer to the fresh-food section to help maintain set temperatures.
• Seals the transfer opening to prevent unwanted air exchange and reduce temperature swings.
• A faulty or stuck damper can cause uneven temperatures, excessive frost/ice, or poor cooling in the refrigerator compartment.
• Dampers can produce rattling or buzzing noises when damaged or obstructed.

• Always disconnect power to the appliance before servicing.
• Access may require removing interior shelves, drawers, or a panel; handle inner liners and gaskets carefully.
• Inspect surrounding seals and mounting points; ensure the damper is oriented correctly and moves freely before reassembling.
• After installation, restore power and verify proper operation and temperature stabilization.

This fan and pre-wired harness assembly drives airflow to the Quick Chill/CustomCool drawer so foods and beverages chill faster and hold the set temperature. Replace a noisy, non-running, or intermittent fan to restore proper drawer cooling.

• Circulates cold air into the Quick Chill/CustomCool/deli drawer for targeted cooling
• Helps correct no-chill or slow-chill performance in the drawer
• Addresses symptoms like no airflow, intermittent operation, or grinding/buzzing noises from the drawer area
• Replaces a failed fan motor or damaged wiring harness in this assembly

• Disconnect power before servicing; remove the drawer and covers to access the assembly
• Note wire routing and connector locations; transfer any original mounting hardware as needed
• Seat connectors fully and route harness away from moving parts to avoid pinching
• Restore power and verify the fan runs and airflow is present to the drawer

This air damper assembly regulates the flow of cold air from the freezer into the refrigerator compartment to keep temperatures even. Replace a stuck or broken damper to restore proper cooling and prevent warm spots or food freezing.

• Controls and meters airflow from the freezer to the fresh food section
• Opens and closes in response to temperature control signals to maintain set temperatures
• Helps balance cooling across shelves and drawers for consistent performance
• Failure symptoms include: refrigerator too warm, items freezing in the fresh food section, temperature swings, or clicking/buzzing from the damper area

• Disconnect power before servicing; remove food and shelves to access the damper area
• Remove the damper cover/grille; take out mounting screws or clips and withdraw the assembly
• Position the new assembly squarely in the air channel; reconnect any harness and reinstall covers
• Restore power and allow the refrigerator to stabilize before final temperature checks

This cover protects and tidies the refrigerator water line area, keeping hoses routed and partially shielded for a cleaner look and reduced snag risk. It's a simple trim piece used where water lines exit or run along the cabinet. What it does

• Conceals and organizes exposed refrigerator water lines for a neater appearance
• Helps prevent hoses from catching or rubbing against other components
• Restores missing or damaged trim that leaves water lines exposed
• Works with factory routing to maintain intended hose positioning

• One water line cover/trim piece

• Disconnect power and shut off the water supply before starting work
• Access may require moving the refrigerator away from the wall or removing a rear/top trim panel
• Typically secures with clips or screws—retain hardware from the original part if possible

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This outer drawer slide supports and guides a refrigerator drawer or pantry pan so it opens and closes smoothly. Replacing a worn or cracked slide restores alignment and helps prevent sticking, tipping, or spills.

• Attaches as the outer rail for the sliding drawer assembly
• Provides smooth gliding action and supports the drawer/pan
• Helps keep the drawer level and properly aligned
• Common symptoms: drawer hard to move, tilts or falls, cracked/broken rail, scraping or binding

• Disconnect power; empty and remove the affected drawer
• Remove the shelf/cover if needed to access the slide
• Take out mounting screws/clips; note the slide's orientation
• Install the new slide, ensure rails are parallel, and test drawer travel
