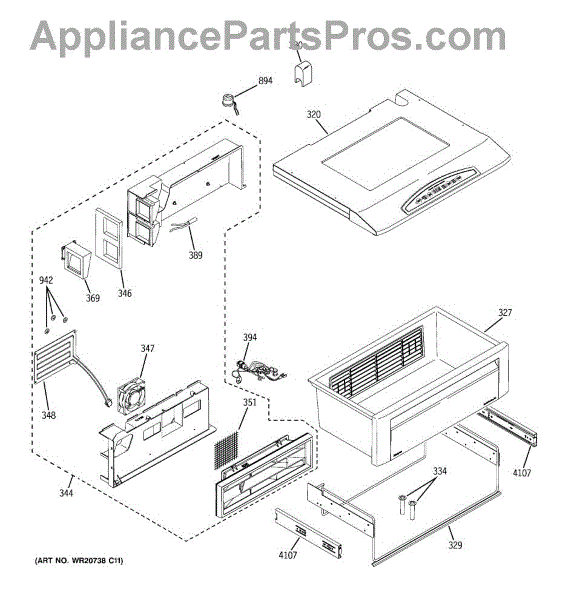

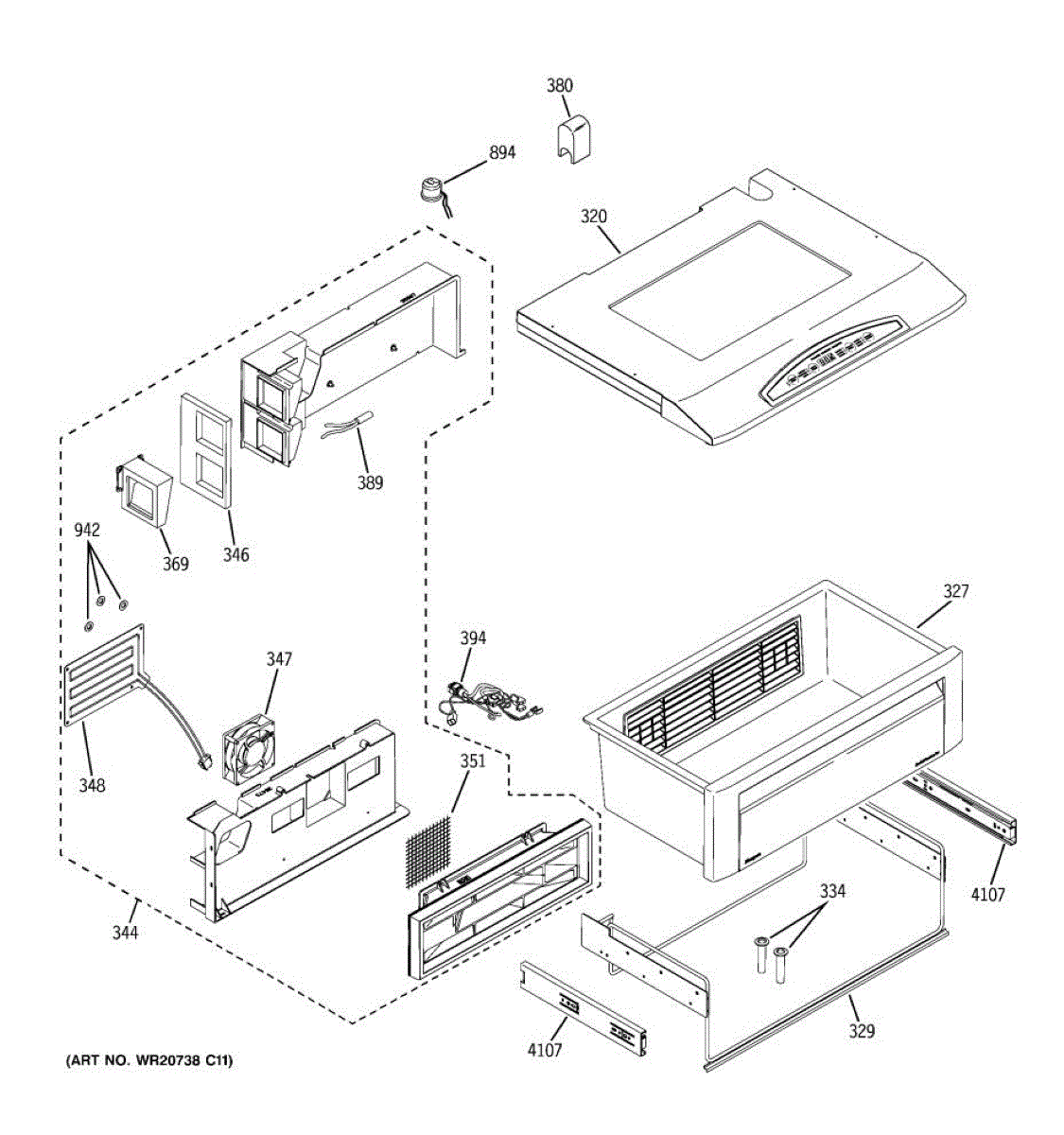

Parts for Ge ZISP420DXBSS: 09 - Quick Chill Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This quick chill pan assembly circulates cold air across the refrigerator compartment to speed cooling of fresh food. It replaces a damaged or leaking pan to restore proper airflow and help maintain even temperatures. What it does:

• Collects and channels condensate while supporting the quick-chill airflow path
• Restores proper cold-air distribution when the original pan is cracked, warped, or blocked
• Can reduce frost or pooling symptoms caused by a damaged pan or misdirected drain flow
• Works with the refrigerator's evaporator/airflow system to help maintain consistent cooling

• Disconnect power before servicing; follow lockout/tagout procedures
• Installation may require removing interior panels, shelves, and trim for access
• Inspect adjoining seals, drain troughs, and clips; replace any damaged fasteners to ensure proper fit

This vent tube routes air or drain flow inside the refrigerator, helping maintain proper circulation and drainage in affected compartments. It replaces a worn, cracked, or clogged vent tube to restore normal airflow or drainage. What it does:

• Directs airflow or condensation safely through internal channels to prevent pooling or reduced circulation
• Helps clear minor blockages that can cause uneven cooling or water buildup
• Restores the intended airflow path after damage, cracks, or deformation
• Compatible with the refrigerator's existing mounting points and hose connections when the correct OEM part is used

• Disconnect power (and water supply if applicable) before servicing the appliance
• Remove the appropriate access panels to reach the vent tube; keep track of clips and fasteners
• Inspect surrounding seals and channels; replace or clean as needed to ensure proper function

This Seal QC Damper is the gasket that seals the refrigerator/freezer air damper to help maintain proper airflow and temperature control. It replaces a worn or damaged seal to reduce air leaks and improve cooling consistency. What it does:

• Seals the damper opening to prevent warm or humid air from entering the cooled compartment
• Helps maintain consistent internal temperatures and more efficient cooling
• Commonly replaced when the damper area shows visible gaps, cracks, or air leakage
• Can reduce frost buildup or uneven cooling caused by a compromised damper seal

• One damper sealing gasket

• Disconnect power before starting any repair to avoid electrical shock
• Remove the damper housing or cover per your model's service instructions to access the seal
• Inspect the damper and surrounding area for damage; clean mating surfaces before installing the new seal
• Handle gently and seat evenly to ensure a full seal; test operation after restoration of power

This fan and pre-wired harness assembly drives airflow to the Quick Chill/CustomCool drawer so foods and beverages chill faster and hold the set temperature. Replace a noisy, non-running, or intermittent fan to restore proper drawer cooling.

• Circulates cold air into the Quick Chill/CustomCool/deli drawer for targeted cooling
• Helps correct no-chill or slow-chill performance in the drawer
• Addresses symptoms like no airflow, intermittent operation, or grinding/buzzing noises from the drawer area
• Replaces a failed fan motor or damaged wiring harness in this assembly

• Disconnect power before servicing; remove the drawer and covers to access the assembly
• Note wire routing and connector locations; transfer any original mounting hardware as needed
• Seat connectors fully and route harness away from moving parts to avoid pinching
• Restore power and verify the fan runs and airflow is present to the drawer

This thaw heater is the evaporator defrost heating element that melts frost during the refrigerator's defrost cycle. Replacing a failed heater helps restore normal defrosting and reduce frost buildup that can restrict cooling. What it does:

• Heats the evaporator coil during the defrost cycle to melt accumulated ice
• Prevents excessive frost buildup that can block airflow and reduce cooling efficiency
• Common symptoms of a failing heater: heavy frost or ice on the evaporator/back wall, reduced cooling, or long compressor run times
• Works as part of the appliance's defrost system alongside the defrost thermostat and control

• Disconnect power to the appliance before starting any repair
• Access typically requires removing interior panels and the evaporator cover; handle the evaporator and wiring carefully
• Inspect associated defrost components (thermostat, timer/control) if problems persist; replace only parts confirmed faulty

The air damper assembly regulates the flow of cold air from the freezer into the fresh food compartment. A new damper restores balanced airflow for steady refrigerator temperatures—helping prevent warm spots or unwanted freezing of items.

• Controls and meters cold-air supply from the freezer to the refrigerator section
• Helps maintain even, consistent temperatures across shelves and drawers
• A stuck or worn damper may cause a warm refrigerator section while the freezer stays cold
• If stuck open, may lead to freezing near the air outlet and noticeable temperature swings
• Failing dampers can produce repetitive clicking or grinding noises from the damper area

• Unplug the refrigerator before servicing
• Access from the fresh food compartment; remove shelves and the diffuser/cover to reach the damper
• Note screw locations and wiring; handle seals and air passages carefully to prevent leaks
• After installation, verify the damper door moves freely and the cover seats properly; allow up to 24 hours for temperatures to stabilize

This cover protects and tidies the refrigerator water line area, keeping hoses routed and partially shielded for a cleaner look and reduced snag risk. It's a simple trim piece used where water lines exit or run along the cabinet. What it does

• Conceals and organizes exposed refrigerator water lines for a neater appearance
• Helps prevent hoses from catching or rubbing against other components
• Restores missing or damaged trim that leaves water lines exposed
• Works with factory routing to maintain intended hose positioning

• One water line cover/trim piece

• Disconnect power and shut off the water supply before starting work
• Access may require moving the refrigerator away from the wall or removing a rear/top trim panel
• Typically secures with clips or screws—retain hardware from the original part if possible

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This fan and pre-wired harness assembly drives airflow to the Quick Chill/CustomCool drawer so foods and beverages chill faster and hold the set temperature. Replace a noisy, non-running, or intermittent fan to restore proper drawer cooling.

• Circulates cold air into the Quick Chill/CustomCool/deli drawer for targeted cooling
• Helps correct no-chill or slow-chill performance in the drawer
• Addresses symptoms like no airflow, intermittent operation, or grinding/buzzing noises from the drawer area
• Replaces a failed fan motor or damaged wiring harness in this assembly

• Disconnect power before servicing; remove the drawer and covers to access the assembly
• Note wire routing and connector locations; transfer any original mounting hardware as needed
• Seat connectors fully and route harness away from moving parts to avoid pinching
• Restore power and verify the fan runs and airflow is present to the drawer

This outer drawer slide supports and guides a refrigerator drawer or pantry pan so it opens and closes smoothly. Replacing a worn or cracked slide restores alignment and helps prevent sticking, tipping, or spills.

• Attaches as the outer rail for the sliding drawer assembly
• Provides smooth gliding action and supports the drawer/pan
• Helps keep the drawer level and properly aligned
• Common symptoms: drawer hard to move, tilts or falls, cracked/broken rail, scraping or binding

• Disconnect power; empty and remove the affected drawer
• Remove the shelf/cover if needed to access the slide
• Take out mounting screws/clips; note the slide's orientation
• Install the new slide, ensure rails are parallel, and test drawer travel
