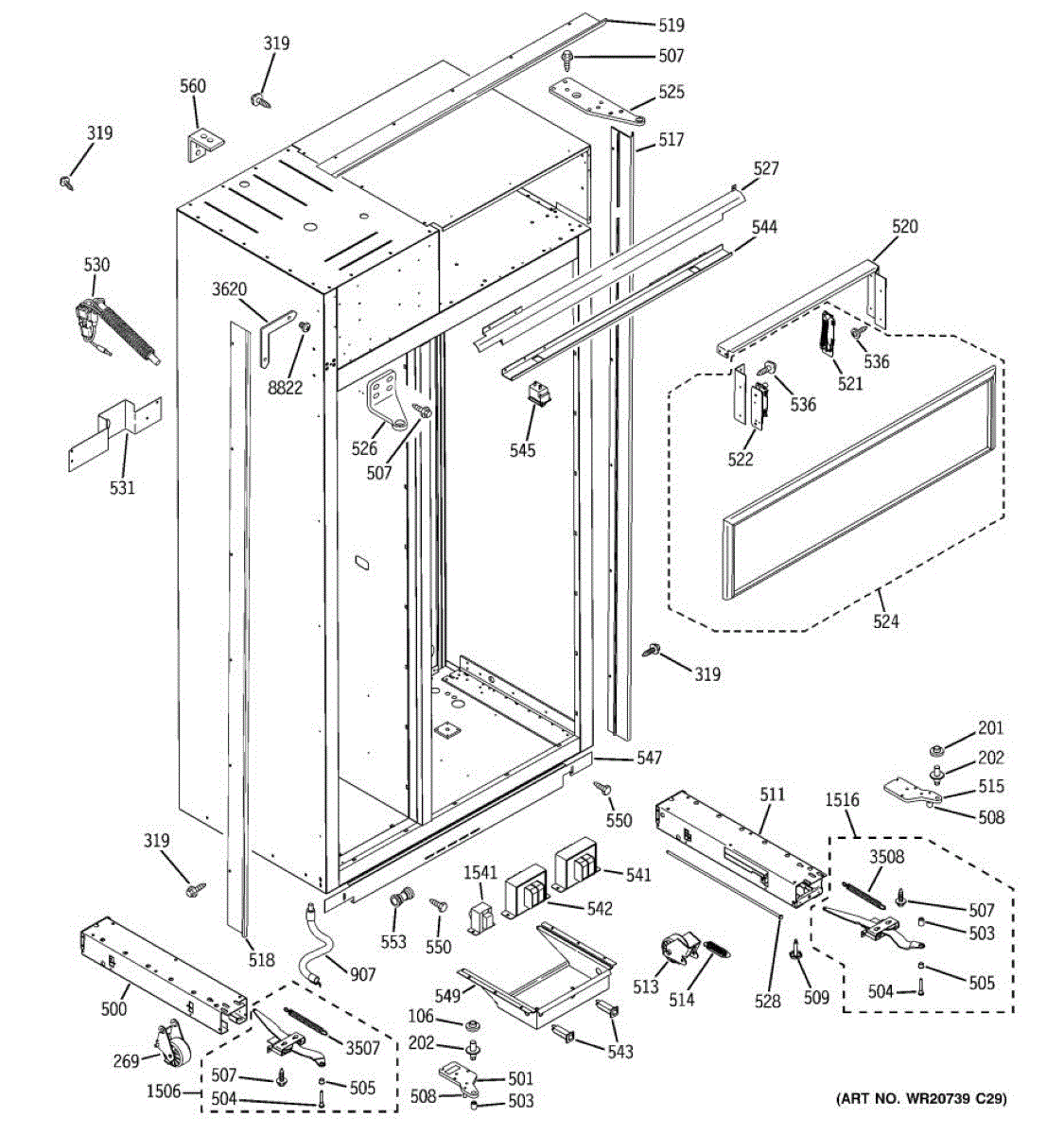

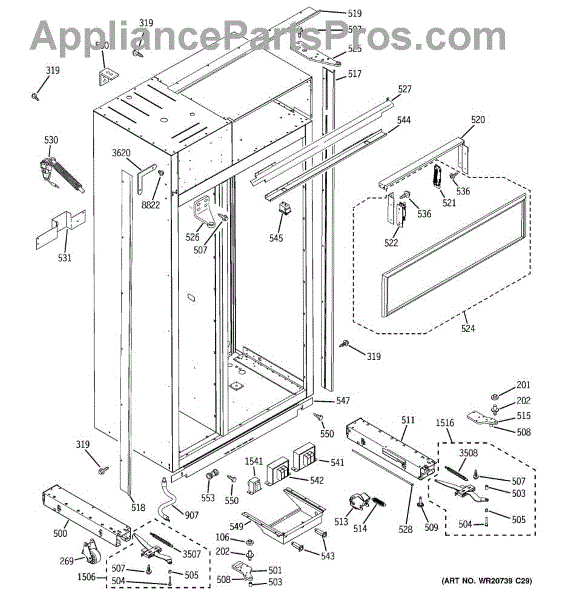

Parts for Ge ZISP420DXBSS: 10 - Case Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This replacement freezer bottom hinge bushing helps the freezer door pivot smoothly and maintain proper alignment, reducing rubbing and uneven wear for more reliable closing. What it does:

• Provides a smooth pivot surface for the freezer bottom hinge
• Restores proper door alignment to help ensure a tight seal
• Reduces hinge noise, sticking, and rubbing during door movement
• Helps prevent premature wear of the hinge and door components

• One freezer bottom hinge bushing

• Disconnect power to the appliance and empty or support the door before starting
• Support the door while removing hinge fasteners to prevent falling or injury
• Inspect the hinge and shaft for wear; replace the hinge assembly if damaged
• Do not overtighten fasteners; test door operation after installation

This bottom hinge bushing helps the appliance door pivot smoothly and reduces wear where the hinge pin contacts the frame. Replacing a worn or cracked bushing restores proper door movement and alignment. What it does:

• Guides the door hinge pin and keeps the door aligned while opening and closing
• Reduces metal-on-metal wear and prevents grinding or catching at the hinge
• Commonly replaced if you notice door sag, uneven closing, or visible bushing damage
• Simple, low-cost part that prevents further hinge or cabinet damage when replaced

• Disconnect power to the appliance before starting any repair
• Support or secure the door when removing hinge pins or fasteners to prevent injury or damage
• Remove the hinge pin or hinge assembly per the service diagram to access and replace the bushing
• Inspect hinge pin and surrounding components for wear; replace if damaged. Avoid petroleum-based lubricants on plastic bushings

This replacement key pivot is the small pivoting pin that supports the refrigerator/freezer door key or latch mechanism, restoring secure pivoting and smooth operation at the key location. A direct-fit OE-design replacement. What it does

• Provides the pivot point for the door/key mechanism so the key or latch rotates smoothly
• Restores proper alignment when the original pivot is worn, bent, or broken
• Helps prevent a loose or wobbly key or a latch that fails to engage
• Works as a simple, serviceable part of the door/lock assembly

• One key pivot

• Disconnect power to the appliance before beginning any repair
• Remove door trim or access panel as needed; keep small parts organized
• Replace the pivot and check movement; avoid forcing parts that do not align

This left hand base channel is the lower cabinet support piece that helps secure and align the appliance's front base. It restores proper fit and stability at the cabinet bottom after damage or wear. What it does

• Provides structural support for the appliance's lower front cabinet, keeping panels aligned.
• Replaces a bent, cracked or missing base channel that causes gaps or misalignment.
• Helps prevent rubbing or binding between the cabinet and kickplate or floor.
• Restores correct mounting points for adjacent trim and hardware.

• Intended for the left/front lower cabinet area; verify orientation before installing.
• Basic hand tools required; support the appliance while removing and installing to avoid strain.
• Disconnect power and water (if applicable) and follow all safety precautions before beginning work.
• If mounting hardware is damaged or missing, replace fasteners with OEM-equivalent parts.

This nylon hinge arm secures and guides a refrigerator/freezer door, providing smooth pivoting and reliable door alignment to help prevent sagging and uneven seals. Durable nylon resists wear at hinge contact points. What it does:

• Supports the door at the hinge pivot to maintain proper alignment and sealing
• Reduces metal-on-metal wear by providing a low-friction contact surface
• Helps stop door sag and uneven closing that can lead to poor sealing
• Works with the hinge assembly to enable smooth opening and closing

• Always unplug the appliance or disconnect power before starting repairs
• Support the door while removing or installing hinge components to prevent movement or injury
• Basic hand tools are typically required; avoid overtightening fasteners

This is a bottom door hinge screw that secures the lower hinge assembly to the appliance door, restoring proper alignment and stable door movement. Use it to replace stripped, missing, or damaged hinge hardware. What it does

• Secures the bottom hinge to the door and helps keep the door aligned and level.
• Restores smooth, consistent opening and closing when a worn or missing screw causes sagging or misalignment.
• Prevents further wear to hinge components by maintaining correct hinge positioning.
• Works with original hinge assemblies; use the correct screw to avoid loose or unstable doors.

• Disconnect power to the appliance before performing any door or hinge repairs.
• Support the door while removing/installing the hinge screw to prevent the door from falling or causing injury.
• Use the correct screwdriver or bit to avoid stripping the screw head.
• Replace any additional worn hinge hardware as needed for proper alignment.

This shear pin secures the washer agitator to the drive shaft and protects the transmission by designed failure when the agitator binds. It's a small, low-cost part that prevents costly gear or motor damage. What it does:

• Locks the agitator to the drive shaft so the washer can agitate and spin
• Designed to break (shear) if the agitator is jammed, preventing transmission or motor damage
• Commonly replaced when the agitator spins freely or the washer won't agitate
• Small part that restores proper mechanical coupling between agitator and drive

• One shear pin

• Disconnect power and water before starting any repair
• Access usually requires removing the agitator; follow your model's service instructions
• Verify shaft and agitator mating surfaces for wear or damage and replace if needed

This right-hand base channel restores the lower support and alignment for a refrigerator door, helping the door sit level and operate smoothly. It replaces a bent, cracked or missing channel to improve door fit and stability. What it does:

• Provides the structural lower support the door mounts to, keeping the door aligned and stable
• Corrects door sag, uneven gaps, rubbing or difficulty closing when the channel is damaged
• Reinforces the hinge and threshold area to maintain proper door seal and operation
• Matches the OEM mounting points for a direct-fit replacement when installed correctly

• Turn off power to the appliance and remove any refrigerated contents from the door before beginning
• Installation typically requires basic hand tools; remove door and lower trim as needed for access
• Handle carefully to avoid scratching the finish and align mounting holes before securing hardware
• If hinge pins, seals or fasteners are worn or missing, replace them per manufacturer recommendations for best results

This rear wheel assembly replaces a worn or broken refrigerator drawer roller to restore smooth, stable movement and proper drawer alignment. It helps prevent sticking, scraping, and uneven wear on the drawer track. What it does:

• Replaces a damaged rear roller so the drawer opens and closes smoothly
• Keeps the drawer aligned and prevents it from binding or tilting
• Reduces scraping and uneven wear on the drawer and track
• Supports normal load on the rear of the drawer for stable operation

• Remove drawer contents and slide the drawer out according to your appliance manual before starting
• Inspect the front and rear tracks; replace only the damaged roller(s) and test drawer movement after installation
• Use basic hand tools; avoid forcing parts
• No special wiring or electronic handling required; follow general safety precautions

This mobility wheel is the small cabinet roller that helps your refrigerator glide for cleaning or service. Replacing a worn, cracked, or missing wheel restores smooth movement and supports proper leveling and positioning. What it does:

• Supports the base of the cabinet and allows the unit to roll when repositioning
• Replaces wheels that are cracked, flat-spotted, broken, or missing
• Common symptoms: refrigerator is hard to move, drags or scrapes, sits unevenly, or shows visible wheel damage
• Aids in pulling the appliance out for maintenance or cleaning

• 1 mobility wheel

• Disconnect power and shut off the water supply before moving the appliance
• Use two people and protect flooring; raise/adjust leveling legs to relieve weight from the wheel
• Access the base/roller bracket, remove the damaged wheel, and install the new wheel securely
• Lower and re-level the unit, reconnect utilities, and verify smooth movement

This spring wheel is a replacement plastic pulley used in appliance hinge and tension assemblies to restore smooth movement and proper tension. It helps reduce noise and prevents binding from a worn or broken wheel. What it does:

• Guides and retains the hinge/tension spring for smooth opening and closing motion
• Restores proper tension and alignment when an original wheel is cracked or worn
• Helps eliminate scraping, grinding, or binding noises caused by a damaged wheel
• Keeps moving hinge components from slipping or catching during operation

• One spring wheel (LE022C4 / WR02X11233)

• Disconnect power to the appliance before beginning any repair
• Basic hand tools are typically required; follow the OEM service instructions
• Inspect surrounding hinge/spring components and replace any damaged parts

This is the upper case hinge that secures and lets the refrigerator/freezer door pivot smoothly, restoring correct door alignment and sealing. Durable, direct-fit replacement for the refrigerator upper door hinge. What it does

• Supports the top of the door and provides the pivot point for opening and closing
• Keeps the door aligned to maintain a proper seal and even closing
• Replaces a cracked, bent, or worn hinge that can cause door sag or rubbing
• Works with the existing hinge pin and mounting hardware when in good condition

• One upper case hinge

• Unplug the appliance or turn off power before starting work
• Support the door while removing and installing the hinge to prevent drop or damage
• Reuse original screws and hinge pin if undamaged; replace any stripped hardware
• After installation, check door alignment and seal; adjust as needed for even gaps

This base shaft is the support shaft that helps the washer's tub or drum stay aligned and rotate smoothly. Replacing a worn shaft restores proper drum support and reduces noise, wobble, and uneven operation. What it does:

• Provides a stable pivot and support for the tub/drum during operation
• Transfers rotational force from the drive components to the drum assembly
• Prevents excessive wobble, vibration, and metal-on-metal contact when intact
• Worn or damaged shafts can cause noise, drum misalignment, or premature bearing wear

• Disconnect power and water supply before servicing; follow all safety precautions
• Replacement typically requires removing the cabinet and drum assembly for access
• Inspect adjacent bearings, seals, and mounting hardware and replace if worn
• Use appropriate tools and follow the OEM service manual

This fill tube kit routes water from the refrigerator's inlet to the ice maker, restoring reliable water delivery for ice production and reducing drips from a cracked or damaged tube. Simple replacement for worn or broken factory tubing. What it does:

• Replaces the water fill tube that supplies water to the ice maker assembly.
• Restores proper water flow so the ice maker can fill and form ice.
• Stops leaks or drips caused by split, brittle, or disconnected tubing.
• Helps resolve symptoms like no/low ice production or visible water pooling under the freezer/ice maker area.

• Disconnect power and shut off the water supply before starting work.
• Handle grommets and fittings gently to avoid damage; inspect seals and replace if worn.
• Confirm correct routing and secure mounting to prevent kinks or rubbing.

The Light Transformer is an OEM replacement part for GE refrigerators. It is responsible for supplying power to the refrigerator's lighting system, ensuring that the interior is properly illuminated.

A bad transformer can occur due to various factors, including electrical malfunctions, power surges, or general wear and tear. If you notice symptoms such as flickering lights, dim lighting, or complete failure of the refrigerator lights, it may indicate a need to replace the transformer.

Symptoms of a bad transformer include:

• Flickering lights
• Dim lighting
• Complete failure of refrigerator lights

Restore your refrigerator by replacing the faulty transformer with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This freezer door light switch turns the interior freezer light on and off when the door opens and closes, restoring proper illumination so you can see contents clearly and avoid wasting food. What it does:

• Activates the freezer interior light when the door opens; deactivates it when the door closes.
• Replaces a worn, stuck or intermittent switch that causes the light to stay on, not turn on, or flicker.
• Fits into the door or cabinet frame mounting and connects to the existing wiring harness for direct replacement.

• Disconnect power to the appliance before starting any repair to prevent shock.
• Typically snaps into place and connects to the factory wiring harness; no special parts required.

This tray transformer is a direct-replacement transformer assembly that provides the proper low-voltage power for the appliance tray assembly, restoring reliable operation and control. Use it to replace a worn or failed transformer without modifying wiring or controls. What it does

• Steps down line voltage to the tray assembly's required control voltage so tray components receive stable power
• Restores power to tray-related circuits when a failed transformer causes loss of function
• Common symptom: tray functions, lights, or heater do not operate or respond
• Designed to fit and mate with the factory tray wiring and mounting points for a clean swap

• One tray transformer assembly

• Always disconnect power to the appliance before starting work to avoid shock hazard
• Match the replacement to the original by part number and connector style before installing
• Basic hand tools are typically required; handle wiring and terminals carefully to avoid damage

Size: 10-32 GXTT FLP.595 S

This water line connector links the refrigerator's water supply tubing to the appliance, restoring a secure water feed for the dispenser and ice maker. A direct-fit replacement that fixes loose or damaged supply connections. What it does:

• Provides a sealed connection between the supply tubing and the refrigerator water system
• Stops leaks caused by cracked, broken or loose connectors
• Restores proper water flow to the dispenser and ice maker when the original connector fails
• Fits the original mounting/location for a direct replacement

• One water line connector

• Turn off the water supply and unplug the appliance before installing
• Inspect tubing for damage and cut back to clean pipe if necessary; ensure proper seating of tubing in the connector
• Hand-tighten fittings; check for leaks after restoring water and power

This dispenser water tube line kit routes water from the inlet to the refrigerator dispenser and ice maker, restoring reliable water flow for dispensing and ice production. Use it when the dispenser has leaks, reduced flow, or a cracked/torn tube. What it does:

• Replaces damaged or cracked dispenser water tubing to stop leaks and restore proper flow
• Connects the household water supply to the dispenser/ice system via existing fittings
• Helps resolve weak water flow or intermittent dispensing caused by collapsed or blocked tubing
• Designed to fit in-line with your refrigerator's existing water valve and dispenser components

• Turn off water supply and unplug the appliance before installing to prevent leaks and electrical hazards
• Inspect connector fittings and seals; replace any worn clips or grommets for a secure, leak-free connection
• Trim tubing squarely and push fully into fittings; use manufacturer-recommended clamps if specified

This replacement link actuator controls the freezer linkage assembly to restore proper door/damper movement and component alignment. It's a direct-fit OEM-design part for affected GE refrigerators, helping stop sticking or misaligned freezer linkages. What it does:

• Engages the freezer linkage to move the damper/door linkage as intended
• Restores smooth movement when a frozen or stiff linkage causes binding
• Helps correct intermittent operation or noisy linkage movement
• Prevents further wear by replacing a worn or broken actuator

• One link actuator

• Disconnect power to the appliance before starting work
• Basic hand tools are typically required; remove any panels blocking access
• Handle the actuator and linkage gently to avoid damaging plastic gears or tabs
• Verify proper operation after installation; do not force parts into place

This LED transformer supplies low-voltage power for your refrigerator's interior lighting. Replacing the transformer can restore consistent illumination when the doors open.

• Steps down line voltage to the proper low voltage for the refrigerator's LED light modules
• Provides stable power for consistent brightness across multiple lamps
• Failure symptoms include interior lights that are dim, flicker, strobe, or stay off
• Often multiple or all lights go out at once when this power component fails

• Disconnect power to the appliance before servicing
• Location varies by model; access the module behind the appropriate cover or panel
• Move connectors one at a time to the new transformer, matching orientation
• Route wiring away from sharp edges and moving parts; test lighting before reassembly

The Spring Closure is an OEM part for GE refrigerators. This spring aids in the automatic closing of the refrigerator door, ensuring it seals tightly after each use to maintain optimal internal temperatures.

Causes of a bad spring closure can include regular wear and tear, corrosion due to moisture, or accidental damage that compromises its function.

Symptoms of a bad spring closure include:

• The refrigerator door not closing completely or staying ajar
• Difficulty in opening or closing the door smoothly
• Increased energy consumption as cold air escapes
• Frost buildup around the door seal area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This closure spring restores the return tension for a linked flap or door in the refrigerator, allowing it to close securely after use. Replacing a fatigued or broken spring helps maintain a proper seal and smooth operation.

• Provides torsion force to return the connected component to its closed/rest position
• Helps maintain sealing to reduce air leaks, frost, or moisture around the opening
• A weak, stretched, or broken spring may leave a flap/door ajar or slow to close
• Can contribute to rattling, poor sealing, or intermittent operation of the linked mechanism

• Disconnect power to the appliance before servicing; wear gloves and eye protection
• Note the spring's routing, leg orientation, and preload; take a photo before removal
• Use needle-nose pliers to control spring tension and avoid pinch points
• After installation, cycle the mechanism to ensure smooth movement and full closure

This corner key assembly secures and finishes a refrigerator door corner, restoring proper alignment and a clean appearance. It replaces a cracked, broken, or missing corner piece to help the door close evenly and look factory-original. What it does:

• Provides structural support at the door corner to maintain proper edge alignment
• Covers and protects the underlying corner area from damage and wear
• Helps reduce visible gaps or misalignment that can affect sealing
• Restores the cabinet's finished appearance after impact or deterioration

• One corner key assembly

• Disconnect power to the appliance before starting any repair
• Remove door or trim per manufacturer instructions to access the corner area
• Install with original fasteners or clips; do not force or over-torque plastic snaps
• If hinge or door alignment issues persist, inspect associated hinges and gaskets

A single replacement screw used to secure appliance panels, trim, and internal brackets so components stay aligned and reduce rattling. Simple, direct-fit fastener for restoring proper mounting and stable operation. What it does:

• Secures panels, mounting brackets, trim pieces and other appliance components
• Helps stop rattling, vibration, or loose panels caused by missing or stripped fasteners
• Restores proper alignment of doors and access panels when original screw is lost or damaged
• Matches the OEM fastening point for a straightforward hardware replacement

• Disconnect power to the appliance before working on electrical components or access panels
• Use the correct screwdriver to avoid stripping the head; match drive type to the screw
• Tighten firmly but do not overtighten—stop when snug to avoid damaging threads or parts
• Keep removed fasteners organized and compare with the replacement to ensure correct fit
