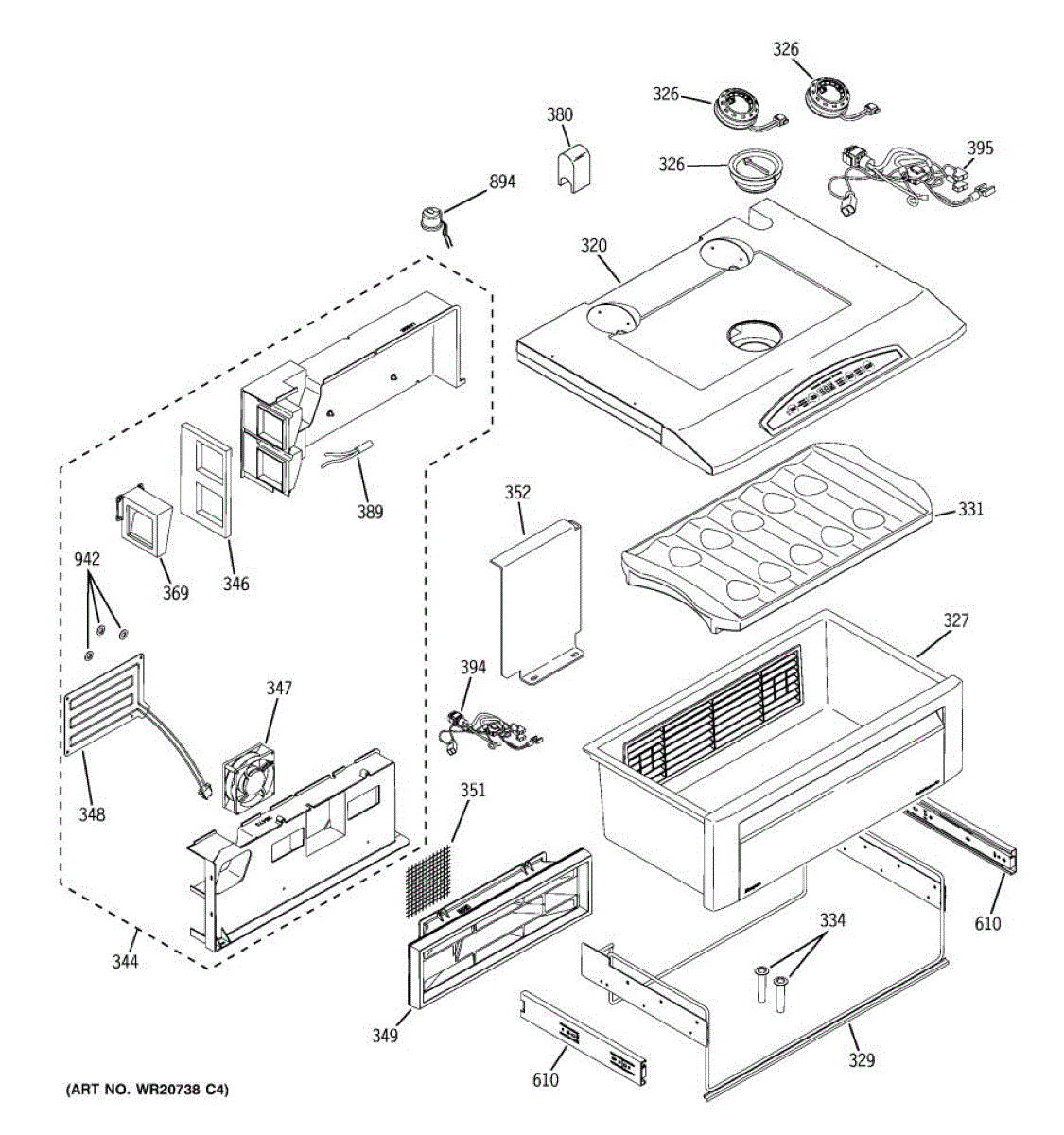

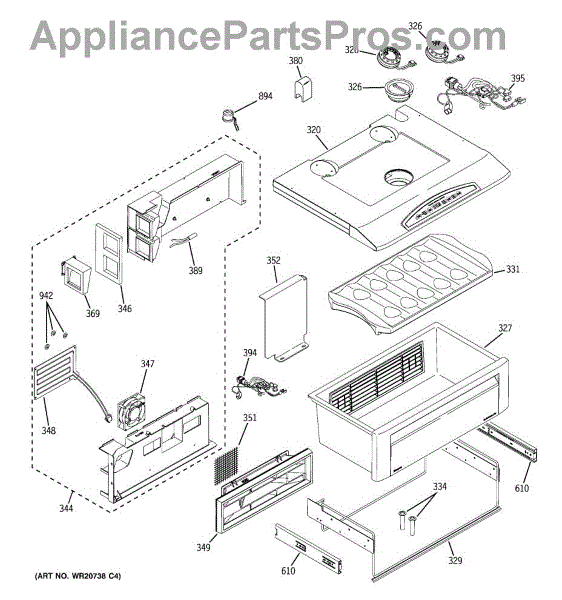

Parts for Ge ZISW360DXA: 09 - Quick Chill Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This QC halogen lamp assembly provides the oven or range interior light so you can check cooking progress without opening the door. It replaces a worn or burnt-out halogen lamp to restore interior illumination. What it does:

• Replaces a failed halogen oven/range interior lamp to restore lighting
• Helps you see food clearly through the oven window for safer, easier monitoring
• Fits into the existing lamp housing and connects to the factory lamp socket
• Common symptom: no interior light or intermittent lighting when the oven light is turned on

• Disconnect power to the appliance before replacing the lamp to avoid electric shock
• Allow the old lamp and interior surfaces to cool completely before handling
• Handle the new bulb by the base; avoid touching the glass with bare hands to prevent oil contamination and premature failure

This quick chill pan assembly helps direct cold from the evaporator to the freezer compartment so items chill faster and maintain even temperatures. Designed as a direct-replacement evaporator pan for compatible freezers. What it does

• Moves cold from the evaporator area into the freezer to improve cooling consistency.
• Helps reduce warm spots on the freezer floor so stored items chill more evenly.
• Supports proper drainage and defrost flow in models that use a dedicated chill pan.
• Commonly replaced when the freezer is slow to cool or the interior shows uneven temperatures.

• Disconnect power to the appliance before beginning any repairs.
• Refer to the OEM service manual for model-specific removal and reassembly steps; some disassembly of the evaporator cover is usually required.
• Avoid bending or contacting evaporator fins and tubing; do not attempt sealed-system repairs.

This veg wire frame supports the refrigerator's vegetable/crisper area and keeps produce bins stable and aligned. It replaces a bent or broken frame to restore proper drawer support and smooth opening/closing of the crisper. What it does:

• Holds and supports the vegetable/crisper drawer so it slides correctly and stays in place
• Replaces a damaged, bent, or missing wire frame that causes drawer misalignment or rattling
• Restores even weight support for full drawers of produce to prevent binding
• Fits in the refrigerator cabinet where the crisper drawers rest

• One veg wire frame

• Remove fresh-food drawers and any contents before installing
• Install by seating the frame into the drawer supports; no special tools typically required
• Inspect surrounding supports and rails for damage and replace if worn to ensure proper fit
• Disconnect power only if required for access; otherwise follow standard safety precautions

This vent tube routes air or drain flow inside the refrigerator, helping maintain proper circulation and drainage in affected compartments. It replaces a worn, cracked, or clogged vent tube to restore normal airflow or drainage. What it does:

• Directs airflow or condensation safely through internal channels to prevent pooling or reduced circulation
• Helps clear minor blockages that can cause uneven cooling or water buildup
• Restores the intended airflow path after damage, cracks, or deformation
• Compatible with the refrigerator's existing mounting points and hose connections when the correct OEM part is used

• Disconnect power (and water supply if applicable) before servicing the appliance
• Remove the appropriate access panels to reach the vent tube; keep track of clips and fasteners
• Inspect surrounding seals and channels; replace or clean as needed to ensure proper function

This QC seal damper is the refrigerator air damper that helps control and seal airflow between compartments to keep temperatures stable and reduce energy loss. Replacing a worn damper restores proper airflow regulation. What it does:

• Regulates cold air flow from the freezer to the fresh-food section to help maintain set temperatures.
• Seals the transfer opening to prevent unwanted air exchange and reduce temperature swings.
• A faulty or stuck damper can cause uneven temperatures, excessive frost/ice, or poor cooling in the refrigerator compartment.
• Dampers can produce rattling or buzzing noises when damaged or obstructed.

• Always disconnect power to the appliance before servicing.
• Access may require removing interior shelves, drawers, or a panel; handle inner liners and gaskets carefully.
• Inspect surrounding seals and mounting points; ensure the damper is oriented correctly and moves freely before reassembling.
• After installation, restore power and verify proper operation and temperature stabilization.

This fan and pre-wired harness assembly drives airflow to the Quick Chill/CustomCool drawer so foods and beverages chill faster and hold the set temperature. Replace a noisy, non-running, or intermittent fan to restore proper drawer cooling.

• Circulates cold air into the Quick Chill/CustomCool/deli drawer for targeted cooling
• Helps correct no-chill or slow-chill performance in the drawer
• Addresses symptoms like no airflow, intermittent operation, or grinding/buzzing noises from the drawer area
• Replaces a failed fan motor or damaged wiring harness in this assembly

• Disconnect power before servicing; remove the drawer and covers to access the assembly
• Note wire routing and connector locations; transfer any original mounting hardware as needed
• Seat connectors fully and route harness away from moving parts to avoid pinching
• Restore power and verify the fan runs and airflow is present to the drawer

This air damper assembly regulates the flow of cold air from the freezer into the refrigerator compartment to keep temperatures even. Replace a stuck or broken damper to restore proper cooling and prevent warm spots or food freezing.

• Controls and meters airflow from the freezer to the fresh food section
• Opens and closes in response to temperature control signals to maintain set temperatures
• Helps balance cooling across shelves and drawers for consistent performance
• Failure symptoms include: refrigerator too warm, items freezing in the fresh food section, temperature swings, or clicking/buzzing from the damper area

• Disconnect power before servicing; remove food and shelves to access the damper area
• Remove the damper cover/grille; take out mounting screws or clips and withdraw the assembly
• Position the new assembly squarely in the air channel; reconnect any harness and reinstall covers
• Restore power and allow the refrigerator to stabilize before final temperature checks

This cover protects and tidies the refrigerator water line area, keeping hoses routed and partially shielded for a cleaner look and reduced snag risk. It's a simple trim piece used where water lines exit or run along the cabinet. What it does

• Conceals and organizes exposed refrigerator water lines for a neater appearance
• Helps prevent hoses from catching or rubbing against other components
• Restores missing or damaged trim that leaves water lines exposed
• Works with factory routing to maintain intended hose positioning

• One water line cover/trim piece

• Disconnect power and shut off the water supply before starting work
• Access may require moving the refrigerator away from the wall or removing a rear/top trim panel
• Typically secures with clips or screws—retain hardware from the original part if possible

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This drawer slide assembly supports and guides your refrigerator's drawer so it opens and closes smoothly. Replace a cracked or worn slide to restore proper alignment and stop sticking, dragging, or dropped drawers.

• Supports the drawer and provides smooth sliding action
• Maintains alignment to prevent binding or popping off the track
• Replaces cracked, warped, or seized slide components
• Typical symptoms: drawer hard to open/close, crooked, or falls off

• Disconnect power before servicing
• Empty and remove the affected drawer and any obstructing shelves for access
• Remove fasteners securing the old slide; transfer any reusable brackets/clips from the original if applicable
• Align and secure the new slide, then verify the drawer engages both tracks and glides freely
