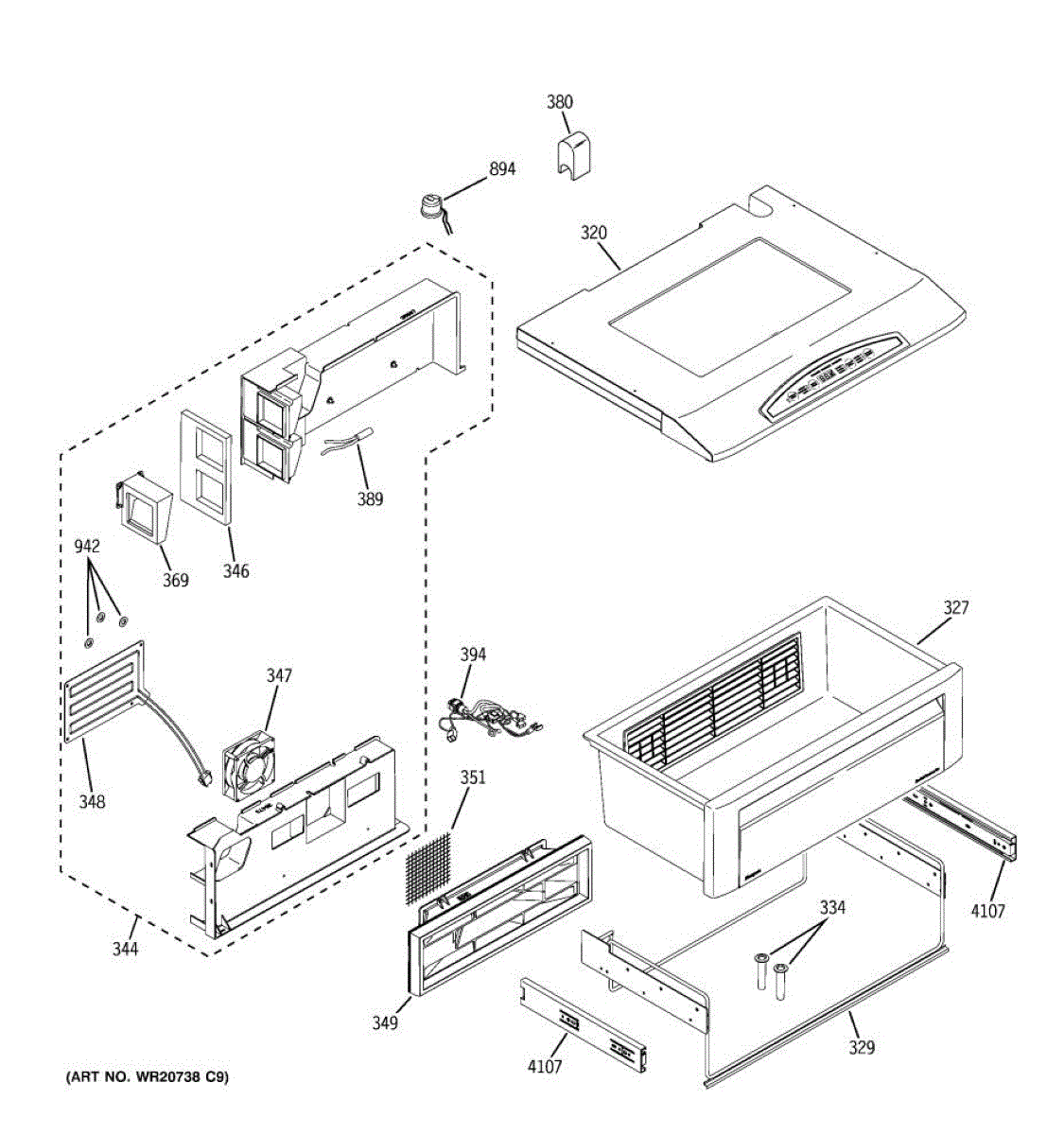

Parts for Ge ZSEB420DYB: 09 - Quick Chill Parts

Replace your refrigerator water filter every 6 months to maintain clean water and ice. Removes contaminants for fresh taste. Easy DIY install in minutes.

This quick chill pan assembly circulates cold air across the refrigerator compartment to speed cooling of fresh food. It replaces a damaged or leaking pan to restore proper airflow and help maintain even temperatures. What it does:

• Collects and channels condensate while supporting the quick-chill airflow path
• Restores proper cold-air distribution when the original pan is cracked, warped, or blocked
• Can reduce frost or pooling symptoms caused by a damaged pan or misdirected drain flow
• Works with the refrigerator's evaporator/airflow system to help maintain consistent cooling

• Disconnect power before servicing; follow lockout/tagout procedures
• Installation may require removing interior panels, shelves, and trim for access
• Inspect adjoining seals, drain troughs, and clips; replace any damaged fasteners to ensure proper fit

Replacement vent tube that routes air circulation inside your refrigerator. Install this duct if your original is cracked, clogged, or broken.

Air handler assembly for refrigerators. Installs in the fresh food compartment to direct airflow. Replace if cracked, damaged, or missing components.

Seals the air damper to maintain proper airflow and temperature control in your refrigerator. Replace when worn or damaged to reduce air leaks. Confirm fit.

Fix a warm Custom Cool drawer or knocking noise from the bottom compartment. This fan assembly restores proper airflow for faster chilling. DIY repair.

Fix uneven cooling or warm spots in your fridge with this diffuser case assembly. Restores proper airflow from evaporator to fresh food compartment.

Wire mesh guard for refrigerator housing. Protects internal components from debris. Replace if bent, damaged, or missing to maintain proper airflow.

This cover protects and tidies the refrigerator water line area, keeping hoses routed and partially shielded for a cleaner look and reduced snag risk. It's a simple trim piece used where water lines exit or run along the cabinet. What it does

• Conceals and organizes exposed refrigerator water lines for a neater appearance
• Helps prevent hoses from catching or rubbing against other components
• Restores missing or damaged trim that leaves water lines exposed
• Works with factory routing to maintain intended hose positioning

• One water line cover/trim piece

• Disconnect power and shut off the water supply before starting work
• Access may require moving the refrigerator away from the wall or removing a rear/top trim panel
• Typically secures with clips or screws—retain hardware from the original part if possible

Fix uneven cooling or defrost issues with a new temperature sensor. Most DIYers complete this repair in under an hour with basic tools and our video.

Fix a warm Custom Cool drawer or knocking noise from the bottom compartment. This fan assembly restores proper airflow for faster chilling. DIY repair.

Outer drawer slide rail for refrigerator pantry drawers. Guides drawer movement for smooth opening and closing. Replace if cracked, bent, or worn out.
