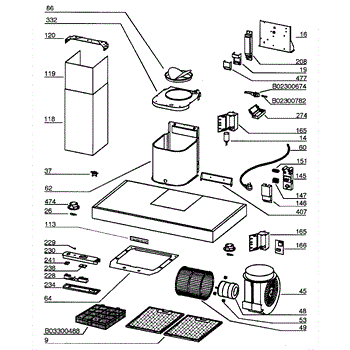

Parts for Broan RM533004: Range Hood Parts

This thermal cutoff fuse interrupts power if internal temperatures exceed safe limits, protecting motors and heating elements. Replacing a failed fuse can restore normal power to the appliance when overheating has caused shutdowns or no-start conditions. What it does:

• Acts as a temperature-sensitive safety device that opens the circuit when excessive heat is detected
• Prevents continued operation of overheating components to reduce fire and damage risk
• Common symptom of failure: appliance or fan won't start or runs intermittently
• Used where overheating protection is required for motors, blowers, or heating elements

• Always disconnect power to the appliance before accessing or replacing the fuse
• Verify the OEM part number and orientation before installing; replace only with the same type
• Do not bypass or defeat the fuse

A replacement recirculating filter for kitchen ventilation hoods that helps control cooking odors and particulates when the hood is used in ventless mode. Restores odor capture and helps maintain ventilation performance. What it does:

• Absorbs and helps reduce cooking odors and airborne particulates in recirculating/ventless operation
• Helps maintain effective air circulation when the hood cannot exhaust outdoors
• Improves kitchen air quality between thorough cleanings or ducted repairs
• Replacing a worn filter can reduce noticeable cooking smells

• Always follow the appliance manufacturer's instructions; disconnect power to the hood if required before servicing
• Access the filter through the grille or access panel per your hood's user manual
• Filter typically installs by sliding or snapping into the filter slot; handle carefully to avoid damage
• Dispose of the used filter according to local regulations

The Filter is an OEM replacement part for Broan range hoods. It is designed to trap grease, smoke, and other airborne particles during cooking, helping to keep the air in your kitchen clean and your range hood operating efficiently. This filter ensures that debris does not accumulate within the range hood, maintaining its performance and preventing potential damage.

You should replace the filter if it becomes clogged, damaged, or too worn to function effectively. Causes of a bad filter can include prolonged use without cleaning, exposure to excessive grease and moisture, or physical damage during handling or cleaning.

Symptoms of a bad filter include:

• Reduced airflow or suction from the range hood
• Persistent grease buildup on surrounding surfaces
• Lingering cooking odors
• Visible tears, holes, or warping in the filter

This OEM Broan part is also compatible with some Nutone range hoods.

This capacitor helps start and keep the blower/fan motor running smoothly in your range hood or ventilation unit. Replacing a weak or failed capacitor can restore proper fan performance and reduce humming or slow-start issues. What it does

• Provides the phase shift needed for a PSC fan motor to start and run correctly
• Common symptoms of failure: fan won't start, only hums, runs slowly, or starts intermittently
• Physical clues include a swollen case or heat-damaged terminals

• 1 capacitor

• Disconnect power at the breaker before servicing; capacitors can retain a charge
• Safely discharge the old capacitor and avoid shorting the terminals
• Note wire positions/take a photo and transfer wiring to the new part one-for-one
• Mount securely and keep leads clear of sharp edges and hot surfaces; test operation after reassembly

This Heat Sentry is a thermal sensor that detects excessive heat in the hood and helps protect the appliance by triggering a shutdown or alert when temperatures rise above safe levels. It restores proper heat-sensing function for safety. What it does:

• Monitors hood temperature and responds if heat exceeds safe thresholds
• Trips the hood's thermal protection to stop the blower or signal an overheat condition
• Helps prevent damage from prolonged exposure to high heat while cooking
• Common symptom: hood fan stops running or won't restart after heavy cooking, or thermal protection repeatedly trips

• One Heat Sentry thermal sensor

• Turn off power at the breaker before accessing the hood or wiring
• Installation typically requires removing the hood canopy or control panel to reach the sensor
• Match mounting and connector type to your unit; replace only with the same part number

Replacement mounting washer that secures fasteners and maintains proper spacing on blower, motor, and housing assemblies. Restores alignment and helps reduce vibration and rattling caused by loose or missing hardware. What it does:

• Provides a smooth bearing surface under a screw or nut to distribute load and prevent pull-through.
• Keeps mounting fasteners aligned and helps maintain correct spacing between components.
• Helps reduce vibration and noise from loose or worn hardware when installed properly.
• Useful when replacing corroded or damaged fastening hardware during routine repairs.

• Disconnect power to the appliance before beginning any repair.
• Match the washer to the original part (size and thickness) and install between the fastener head and the mounting surface.
• Do not overtighten fasteners—tighten just enough to secure the part and avoid crushing the washer.
• Replace any rusted or damaged screws, nuts, or complementary hardware for a reliable repair.

This support is a replacement mounting bracket designed to secure the appliance component in its correct position and restore stable operation. It provides a direct-fit hold where the original bracket is worn, bent, or broken. What it does:

• Holds and stabilizes the appliance assembly to prevent movement or vibration
• Restores proper alignment of the component that it supports
• Helps reduce noise caused by loose or damaged mounting points
• Commonly replaced when brackets are bent, cracked, or missing fastener holes

• One support mounting bracket (exact configuration as shown)

• Follow the appliance manufacturer's service instructions and diagrams for proper placement
• Power off and disconnect the appliance before starting any repair
• Use the correct fasteners and torque to ensure secure mounting
• If rust or surrounding damage is present, inspect adjoining parts and replace as needed

This damper assembly helps control airflow by opening during operation and closing when the fan is off, reducing backdrafts and outside air intrusion. Replacing a worn damper restores proper ventilation and helps keep kitchen air moving the right way.

• Opens to let exhaust air out; closes to block drafts when the unit is off
• Can help address rattling, flapping, or poor airflow due to a stuck or broken damper
• Designed for compatible ventilation units that use this specific damper style

• Disconnect power before servicing
• Access damper at the duct connector or discharge outlet; note orientation of the flap
• Inspect and clear debris from the duct path before installing
• Verify smooth flap movement after installation and restore power to test

This name plate is the identification label that attaches to the appliance housing to display model, serial, and regulatory information—keeps factory identification visible and legible for service or parts replacement. What it does:

• Provides the unit's model and serial number information for identification during repairs
• Replaces faded, damaged, or missing labels that hinder proper part matching
• Helps technicians and owners verify ratings and regulatory markings
• Restores a factory appearance where the original label is worn or peeled

• Disconnect power to the appliance before attempting any service
• Typically adheres or fastens to an exterior panel; remove old label and surface-clean before installing
• Use appropriate fasteners or adhesive as originally supplied; do not cover ventilation openings

This metal mounting bracket secures range hood components in place to restore proper alignment and support. It replaces a damaged or missing bracket so parts sit securely and the hood operates without rattling or sagging. What it does

• Provides structural support for hood components and assemblies
• Restores proper alignment to reduce vibration and noise
• Helps maintain correct airflow by keeping parts positioned
• Common fix for loose, bent, or broken mounting points

• Basic hand tools required; for exact fastener locations
• Turn off power to the appliance before accessing internal parts to avoid injury
• Inspect nearby hardware and replace any stripped screws or damaged mounts for a secure fit

This electronic control board replaces the failed main control in a range hood to restore fan, light, and timed functions. It provides the appliance's switching and control logic so the hood responds correctly to user commands. What it does:

• Controls fan speed selection and on/off signaling for the range hood
• Manages light operation and any timed or delay functions
• Re-establishes reliable electronic switching when the original board has failed
• Common symptoms: hood won't power on, fan or lights are unresponsive, or operation is intermittent

• Disconnect power at the breaker before starting any work
• Handle the board by its edges and avoid static discharge or contact with circuitry

Replacement transformer that restores power to low-voltage components in compatible Broan ventilation appliances, helping lights and control circuits operate correctly. Install the correct PN match to return normal lighting and control function. What it does

• Converts incoming power to the voltage required by low-voltage lights and control circuits in compatible Broan ventilation products.
• Replaces failed or damaged transformers that cause no power, intermittent operation, or flickering lights.
• Stops symptoms such as lights that won't turn on, intermittent lighting, or unresponsive control circuits when the transformer is the fault.
• Fits as a direct replacement when matching the appliance model and part number.

• Always disconnect electrical power at the breaker before inspecting or replacing electrical parts.
• Match wiring colors and connector types; secure all connections and grounding per OEM instructions.

This replacement lens covers and protects the light on compatible Broan range hoods, restoring the fixture's finished appearance and even light diffusion. Durable plastic shields the bulb and helps prevent direct contact. What it does:

• Covers and protects the hood light fixture from grease, spills, and impact
• Diffuses light for more even illumination across the cooktop
• Replaces cracked, discolored, or missing lenses that cause glare or exposed bulbs
• Helps maintain a clean, finished look for the underside of the hood

• Disconnect power to the range hood before starting any work to avoid electrical shock.
• Usually installs by snapping into place or fastening with a small screw—handle gently to avoid cracking.
• Use a soft cloth and mild cleaner; avoid abrasive cleaners that can scratch the lens.

This push button is the user-facing control that operates a range hood or ventilation control panel, restoring tactile on/off and speed/light selection for worn or broken buttons. It provides a simple, direct way to make the control responsive again. What it does:

• Replaces a worn, cracked, or missing control button so the switch beneath can be pressed reliably
• Restores tactile feedback for on/off, speed selection, or light control on compatible vent hoods
• Helps eliminate sticking, intermittent contact, or lost button functionality
• Simple cosmetic repair that returns the control panel to usable condition

• Disconnect power to the appliance before attempting any repair to avoid shock
• Remove the vent hood trim or control panel per the appliance service instructions to access the button and switch
• Gently pry or unclip the old button from the bezel; press the replacement onto the switch stem until it seats

This light housing is the mounting and protective enclosure for the unit's lamp components and wiring. Replacing a damaged housing restores secure bulb placement and dependable illumination while helping protect electrical parts from heat, moisture, and vibration. What it does:

• Supports and positions the light socket(s) and bulb for proper illumination
• Shields and routes wiring to maintain safe electrical connections
• Helps manage heat around the lighting components
• Common signs it's needed: loose or dangling light assembly, cracked/warped/corroded housing, intermittent lighting from poor mounting or heat damage

• Includes 1 light housing

• Disconnect power at the breaker before servicing
• Remove lens and bulb(s); note wiring locations and transfer socket(s)/brackets from the old housing
• Reuse original screws/clips or approved equivalents; tighten securely without overtightening
• Restore power and test light operation
